Model # WA8600PW2 Official Frigidaire 27" washer - 5995230108

Here are the diagrams and repair parts for Official Frigidaire WA8600PW2 27" washer - 5995230108, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

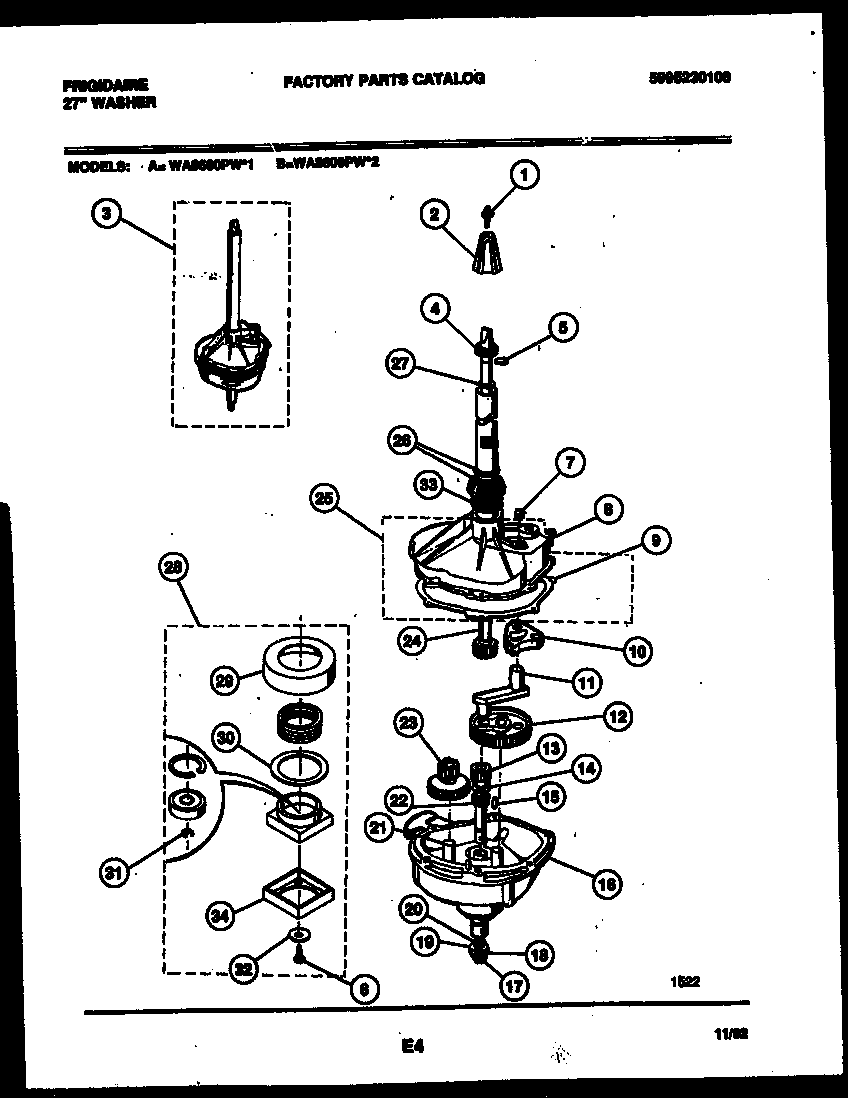

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Belt 3204418
#28

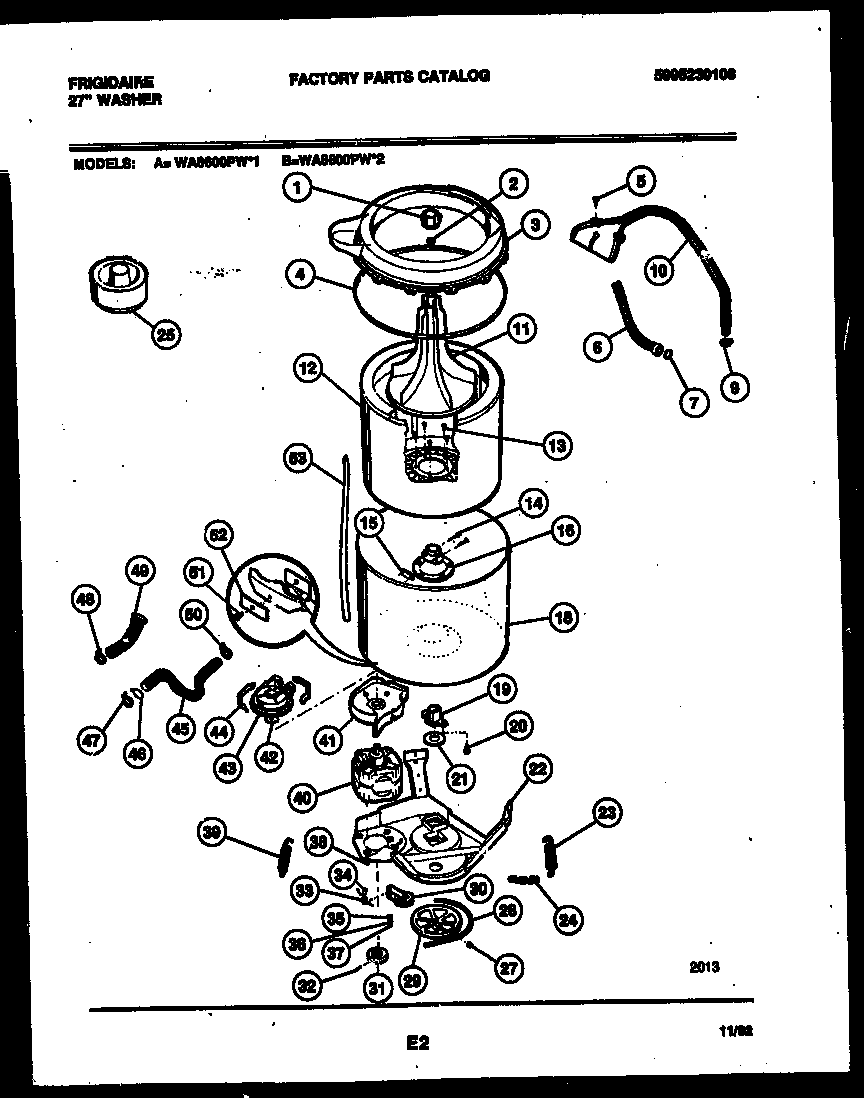

Tub detail diagram

Belt

Part #3204418

Replaced by #134511600

?
Manufacturer substitution
This part replaces 3204418. Substitute parts can look different from the original.
BEST SELLER
$20.96
25% OFF MSRP : $28.00
In Stock
Screw 5303161233
#21

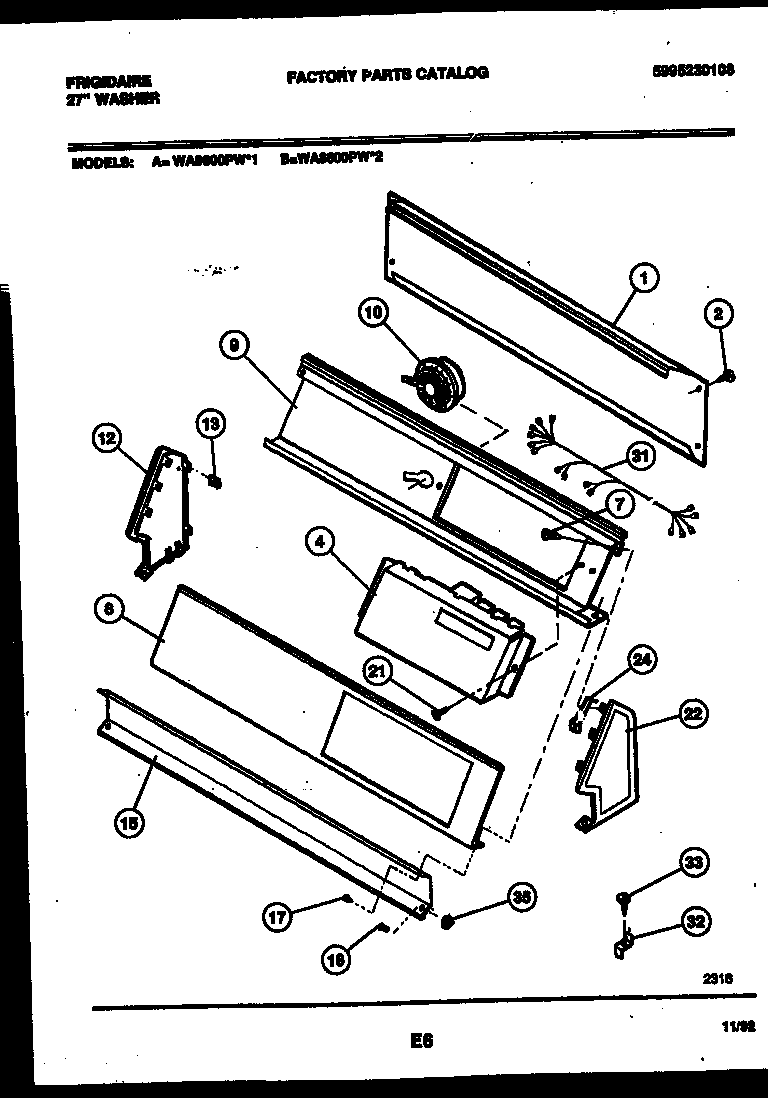

Console and control parts diagram

Screw

Part #5303161233

Replaced by #131168200

?
Manufacturer substitution
This part replaces 5303161233. Substitute parts can look different from the original.
BEST SELLER
$9.78
42% OFF MSRP : $17.00
In Stock
Washer Spin Bearing 3204405
#19

Tub detail diagram

Washer spin bearing

Part #3204405

BEST SELLER
$64.63
7% OFF Phone Price : $69.63
In Stock
Screw 3205406
#41

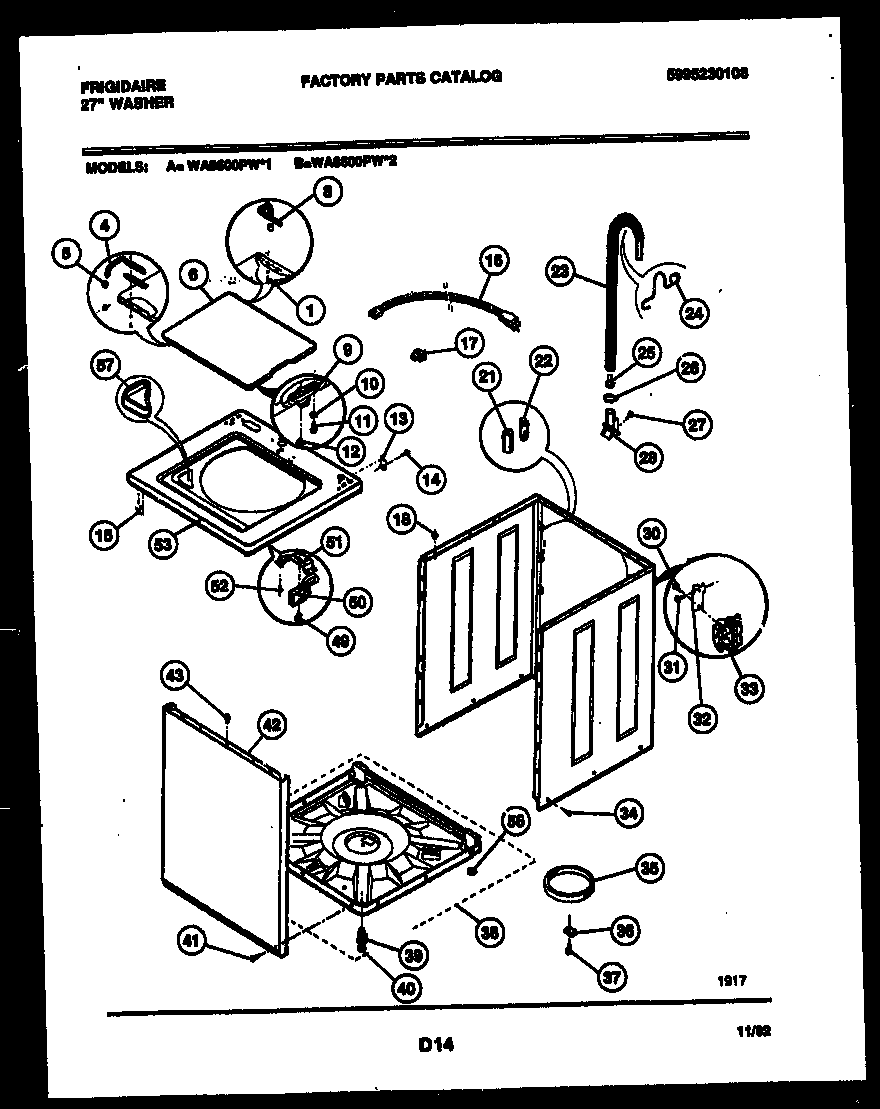

Cabinet parts diagram

Screw

Part #3205406

Replaced by #131302800

?
Manufacturer substitution
This part replaces 3205406. Substitute parts can look different from the original.
$14.09
12% OFF Phone Price : $16.09
In Stock
Trunnion 5303283294
#16

Tub detail diagram

Trunnion

Part #5303283294

Replaced by #131545101

?
Manufacturer substitution
This part replaces 5303283294. Substitute parts can look different from the original.
$102.42
9% OFF Phone Price : $112.42
In Stock
Screw 5308027517
#14

Tub detail diagram

Screw

Part #5308027517

Replaced by #137539500

?
Manufacturer substitution
This part replaces 5308027517. Substitute parts can look different from the original.
$9.80
53% OFF MSRP : $21.00
In Stock
Strike Lid 3204367
#9

Cabinet parts diagram

Strike lid

Part #3204367

Replaced by #131390000

?
Manufacturer substitution
This part replaces 3204367. Substitute parts can look different from the original.
$54.89
8% OFF Phone Price : $59.89
In Stock
Gasket 3204398
#4

Tub detail diagram

Gasket

Part #3204398

Replaced by #131901400

?
Manufacturer substitution
This part replaces 3204398. Substitute parts can look different from the original.
$18.11
10% OFF Phone Price : $20.11
In Stock
Lock Plate 5308001923
#15

Tub detail diagram

Lock plate

Part #5308001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 5308001923. Substitute parts can look different from the original.
$28.29
15% OFF Phone Price : $33.29
In Stock
Dryer Top Panel Clip 3205821
#15

Cabinet parts diagram

Dryer top panel clip

Part #3205821

In Stock
