Model # CDE06RP3NDD1 Official GE refrigerator drawer

Here are the diagrams and repair parts for Official GE CDE06RP3NDD1 refrigerator drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

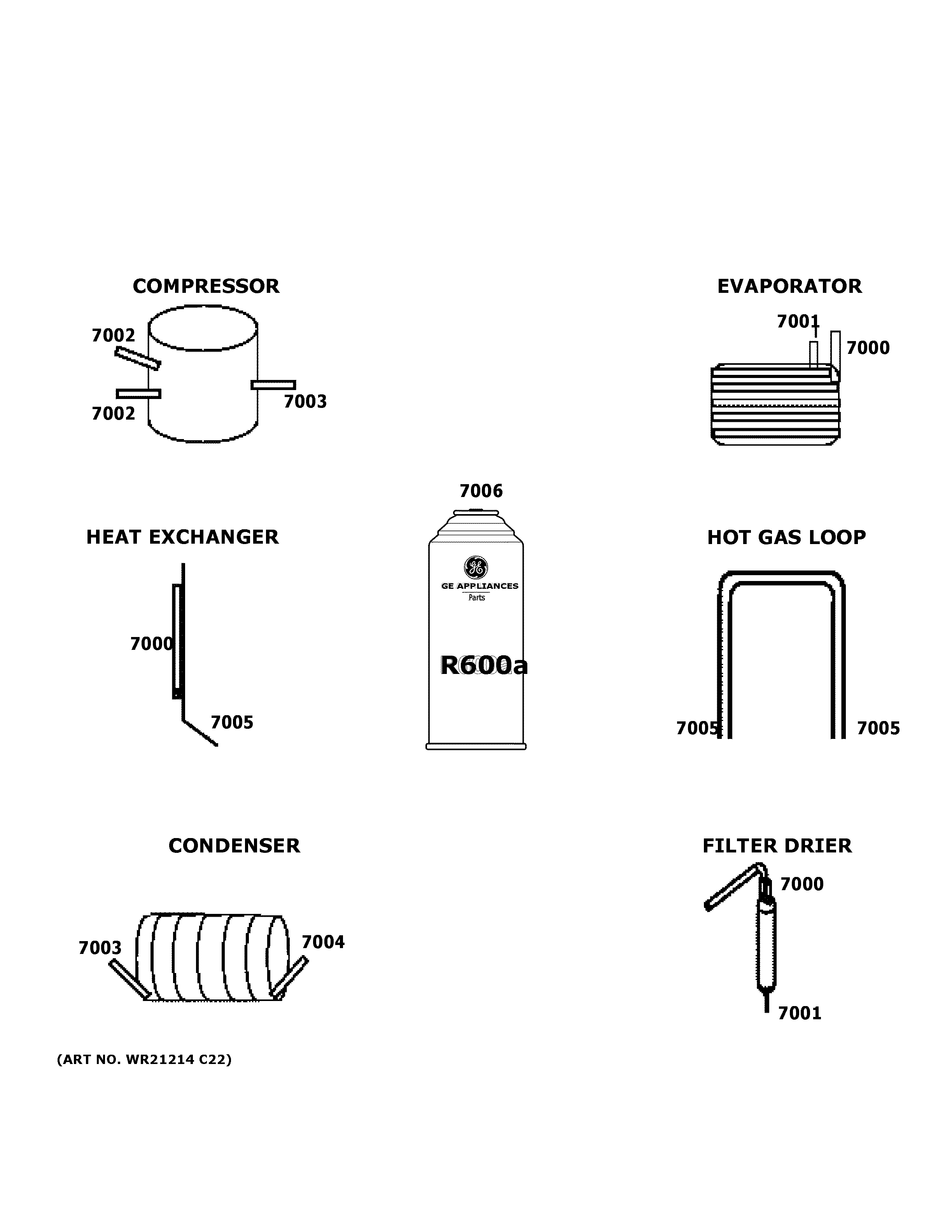

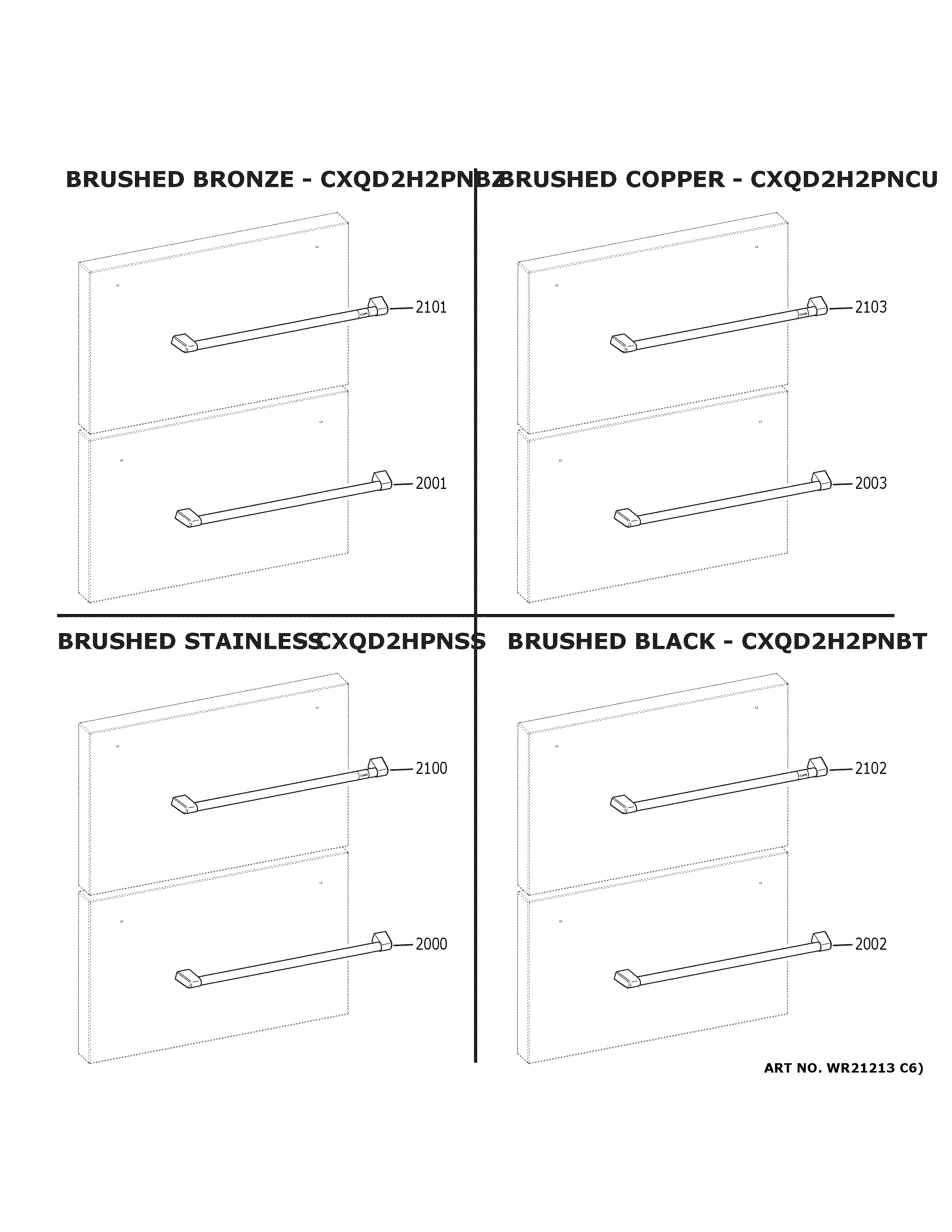

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Drier Filter WR87X33866
#8

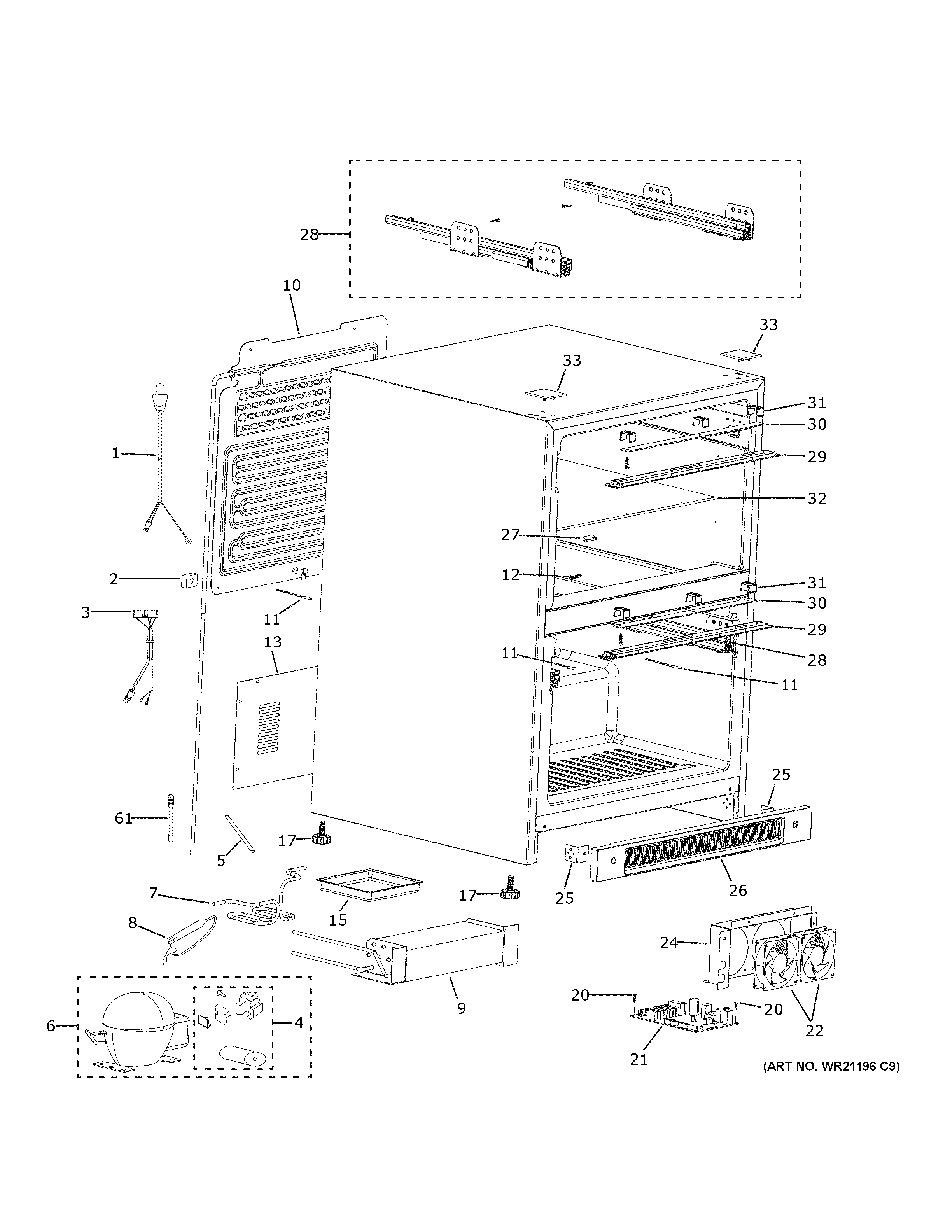

Cabinet diagram

Drier filter

Part #WR87X33866

Replaced by #WR87X30875

?
Manufacturer substitution
This part replaces WR87X33866. Substitute parts can look different from the original.
BEST SELLER
$56.29
In Stock
R600 Process WR87X30876
#61

Cabinet diagram

R600 process

Part #WR87X30876

BEST SELLER
$11.41 |
15% OFF Phone Price : $13.41
In Stock
Refrigerator Door Handle Mounting Bolt (replaces Wr01x21313) WR01X11007
#60

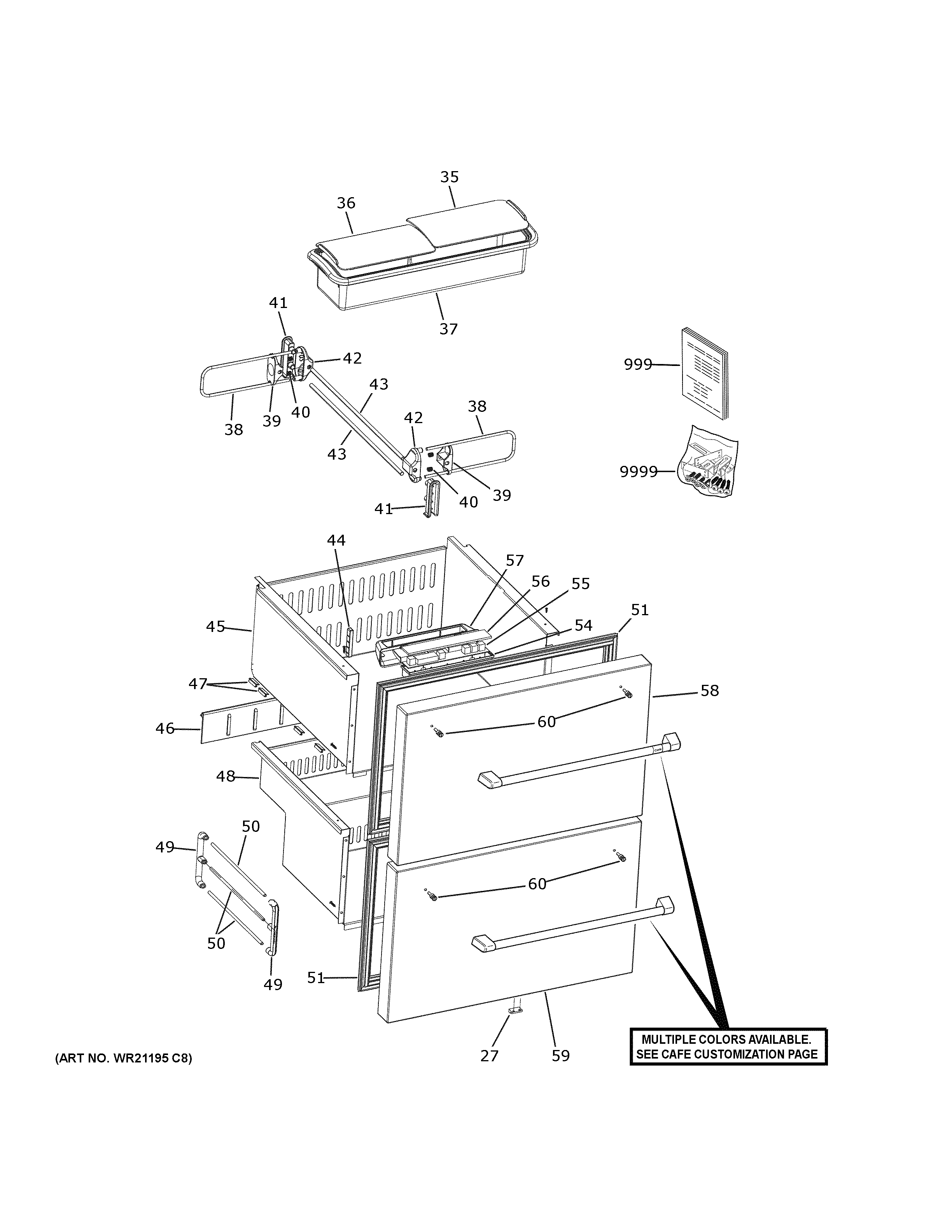

Doors & drawers diagram

Refrigerator door handle mounting bolt (replaces wr01x21313)

Part #WR01X11007

BEST SELLER
$10.55 |
16% OFF Phone Price : $12.55
In Stock
Harness WR55X30056
#3

Cabinet diagram

Harness

Part #WR55X30056

$26.02 |
16% OFF Phone Price : $31.02
In Stock
Evaporator WR87X30054
#10

Cabinet diagram

Evaporator

Part #WR87X30054

$68.77 |
7% OFF Phone Price : $73.77
In Stock
Lower Drawer WR71X28282
#48

Doors & drawers diagram

Lower drawer

Part #WR71X28282

$445.00
In Stock
Display Cont WR13X28266
#54

Doors & drawers diagram

Display cont

Part #WR13X28266

$98.93
In Stock
Display Cont WR14X28251
#57

Doors & drawers diagram

Display cont

Part #WR14X28251

$23.11
In Stock
Rear Acess C WR14X28270
#13

Cabinet diagram

Rear acess c

Part #WR14X28270

$17.18
In Stock
Upper Partit WR01X28273
#41

Doors & drawers diagram

Upper partit

Part #WR01X28273

This item is not returnable
$5.00
In Stock
