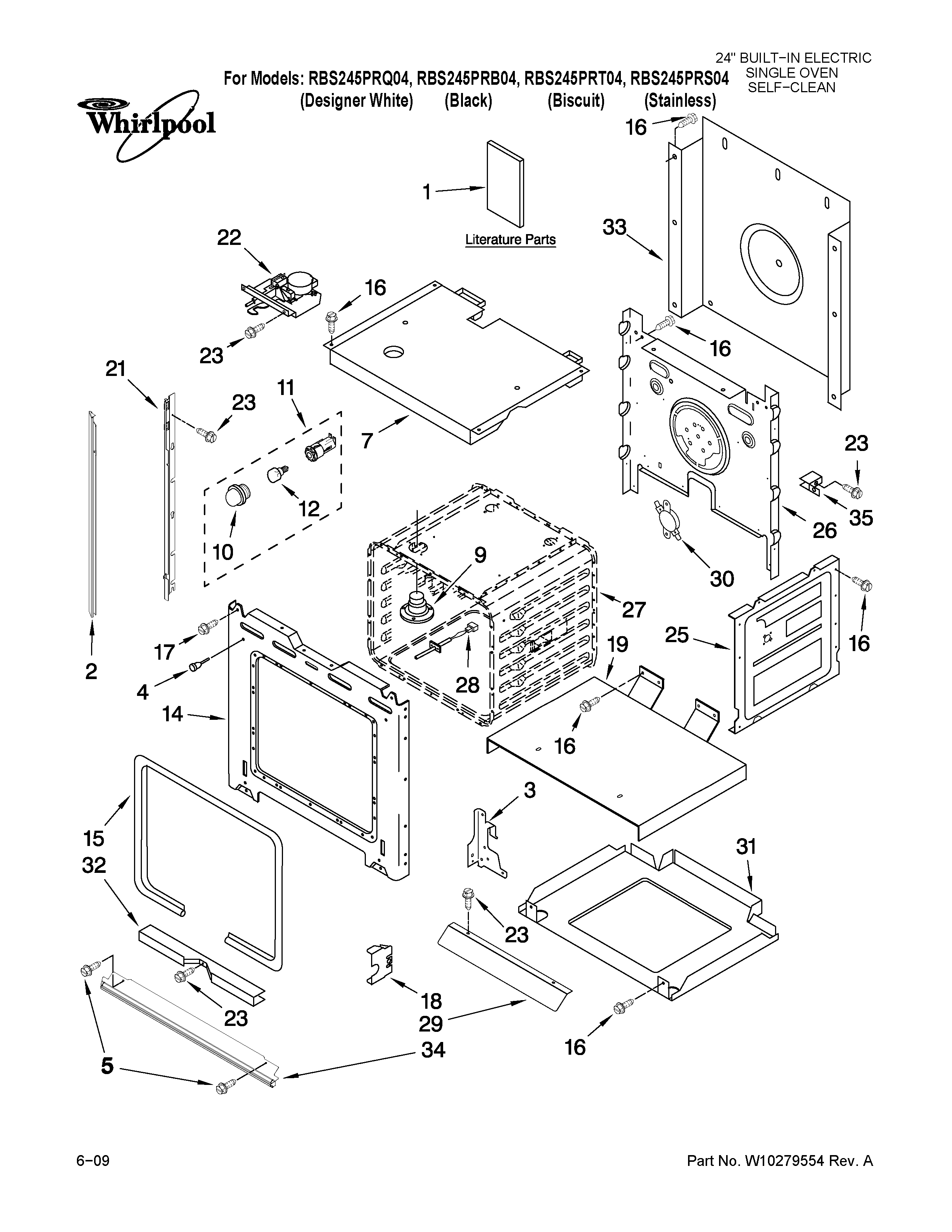

Whirlpool RBS245PRB04 24" electric built-in single oven Parts

For the Whirlpool RBS245PRB04 24" electric built-in single oven, the electrical connection is hardwired (direct-wired) to a junction box, not plugged into a standard receptacle. The installation instructions describe routing the oven’s flexible conduit to a junction box and making 3-wire or 4-wire direct connections.

What the installation requires

A typical RBS245PRB04 installation uses a dedicated, grounded electrical supply and a junction box located in the cabinet area.

• Use a grounded electrical supply.
• Route the oven’s flexible cable conduit through the cabinet opening to the junction box.
• Connect the conduit to the junction box with a UL listed or CSA approved conduit connector.
• Make a 4-wire direct connection (recommended) when available.
• Use a 3-wire direct connection only when 4-wire is not available.
• Replace the junction box cover after wiring is complete.

For the exact wiring method and cabinet/junction box placement guidance, follow the installation guide.

Quick comparison: hardwired vs plug-in

Connection type	What it uses	Typical for built-in wall ovens like RBS245PRB04?	Why
Hardwired (direct-wire)	Junction box, conduit, wire nuts	Yes	Permanent wiring, grounding, code-compliant installation approach
Plug-in	Cord and receptacle	No	Built-in ovens are commonly installed without an accessible receptacle behind the unit

Why it matters

Hardwiring affects cabinet prep, junction box location, and safety. If the junction box is placed where the oven cannot slide fully into the cutout, the oven may not fit correctly and the installation can be unsafe.

Parts that can be involved in a hardwire connection

If you are diagnosing a power connection issue (burnt wires, loose connections, intermittent power), these model-compatible parts are commonly involved:

• Terminal block WPW10245259 (connection point for power wiring)
• Wall oven ground wire harness 4452400 (grounding path components)
• Conduit WP4450952 (protects the wiring as it routes to the junction box)

Last updated: February 2026

Yes. Whirlpool makes wall ovens, including built-in electric wall ovens like model RBS245PRB04. If you are shopping for parts or confirming features for this specific oven, the RBS245PRB04 owner's manual is the fastest way to match your exact model and configuration.

What this means for your RBS245PRB04

Whirlpool’s built-in electric oven manuals commonly cover multiple related models in the same family (including RBS245), so your RBS245PRB04 is part of a Whirlpool wall oven lineup.

• Your appliance is a Whirlpool 24-inch electric built-in single oven
• Parts and service information is organized by model number and serial number
• Many components are shared across similar Whirlpool wall oven models
• Using the correct model number helps ensure the right fit and safe operation

Common wall oven parts Whirlpool uses (examples for this model)

If you are repairing performance issues, these are some common wall oven components that are available for RBS245PRB04:

• Wall oven temperature sensor WPW10131825 (helps regulate oven temperature)

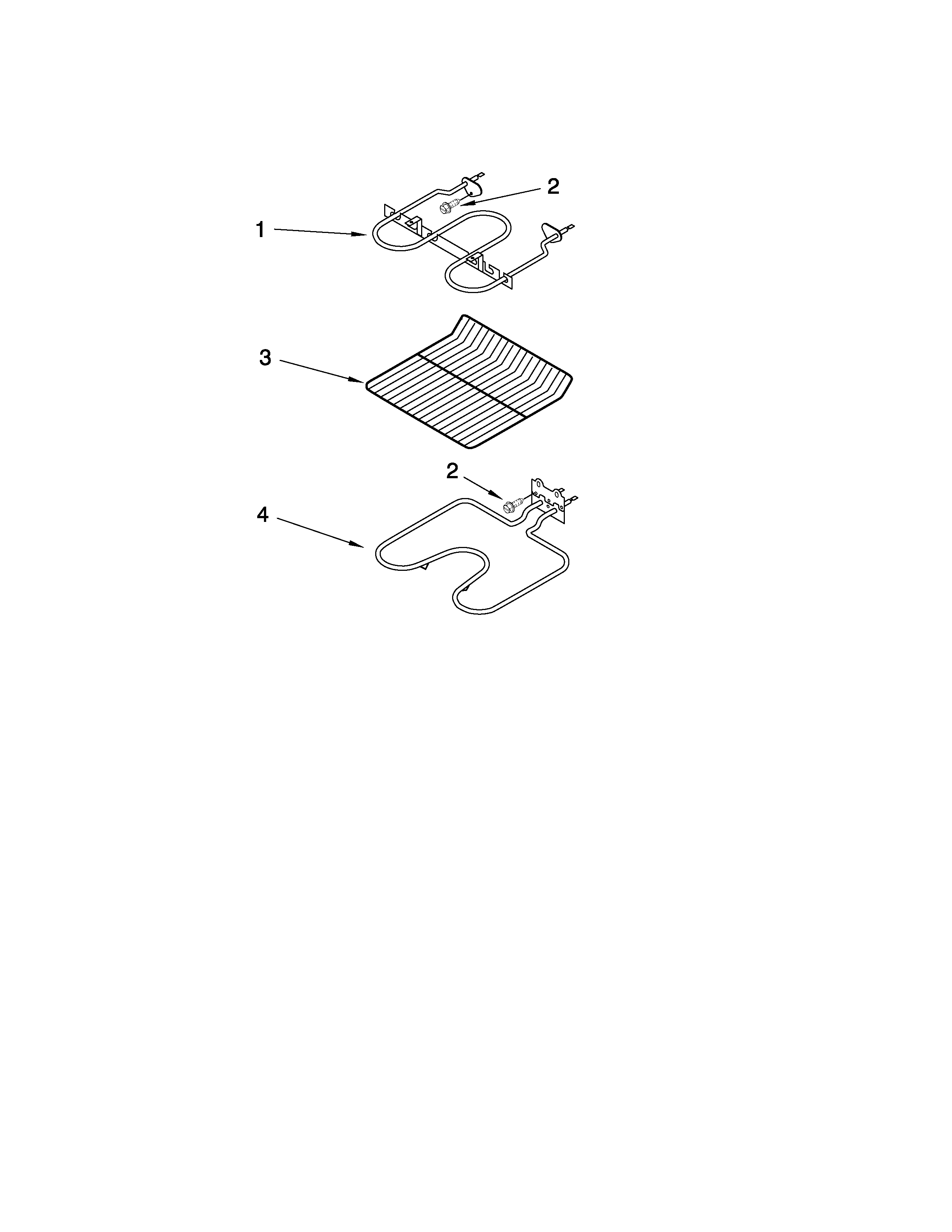

• Range broil element WP9760771 (top heating element for broiling)

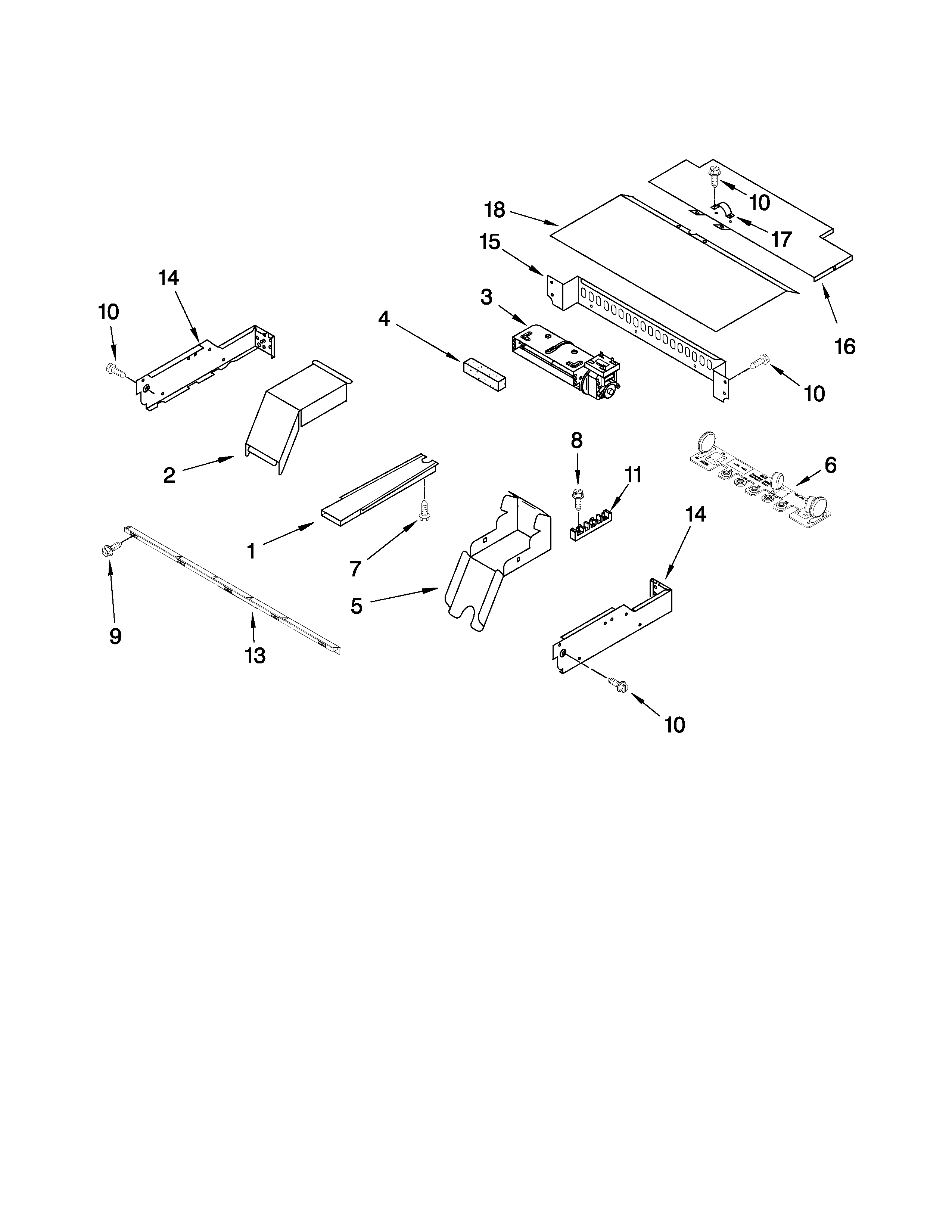

• Oven blower assembly WPW10176670 (cooling fan that helps manage heat)
• Range high-limit thermostat WP9759243 (safety device that can open if overheating occurs)

Quick guide: which part to check first

Symptom	Most common part to check	What you may notice
Oven temperature seems off	Temperature sensor	Overbakes or underbakes
No broil heat	Broil element	Broil does not glow or heat
Oven gets too hot around cabinet	Blower assembly	Fan not running, excessive heat
Oven shuts down or overheats	High-limit thermostat	Intermittent heat loss

Why it matters

Whirlpool makes many wall oven variations; matching the brand and the exact model number (RBS245PRB04) keeps repairs accurate, helps avoid ordering the wrong part, and supports safe electrical operation.

Last updated: February 2026

Whirlpool wall ovens typically last 13 to 15 years. With normal household use and consistent care (especially keeping airflow clear and using self-clean correctly), many units reach 15 to 20 years. For model-specific care and operating guidance for your Whirlpool RBS245PRB04, use the owner's manual.

Typical lifespan and what affects it

A wall oven’s life is mostly driven by heat stress on electrical parts and how often it runs at high temperatures.

• Usage frequency: daily baking shortens life compared to occasional use
• High-heat cycles: frequent broiling and long self-clean cycles add wear
• Ventilation and cooling: blocked vents can overheat controls and wiring
• Cleaning habits: spills left to bake on can damage finishes and create odors
• Repairs over time: replacing common parts can extend service life

Self-clean cycle tips that help the oven last longer

Your RBS245PRB04 uses a high-temperature self-clean cycle; the manual notes the oven is preset for 3 hours 30 minutes, with suggested times of 2 hours 30 minutes (light soil) up to 4 hours 30 minutes (average to heavy soil). After the oven cools, wipe ash with a damp cloth.

• Let the oven cool completely before wiping interior surfaces
• Avoid touching the inner door glass with a cool damp cloth until fully cooled (rapid cooling can break glass)
• Use the shortest clean time that matches the soil level
• Run self-clean only when needed, not as routine weekly maintenance

Self-clean time guide (typical)

Soil level	Common clean time	What to do after
Light	2 hr 30 min	Wipe ash after full cool-down
Average	3 hr 30 min	Wipe ash; check door seal area
Heavy	4 hr 30 min	Wipe ash; allow extra cool-down time

Parts that commonly impact longevity

When a wall oven starts heating unevenly, overheating, or shutting down, these parts are frequent suspects on electric built-in ovens:

• Wall oven temperature sensor WPW10131825 (helps regulate temperature)
• Range high-limit thermostat WP9759243 (opens if the oven overheats)
• Oven blower assembly WPW10176670 (cooling airflow for controls)

Why it matters

Knowing the typical lifespan helps you decide whether to maintain and repair the oven (often cost-effective in the mid-life years) or plan for replacement when multiple heat-related components start failing close together.

Last updated: February 2026

Yes. 36-inch wall ovens exist, but they are a different size class than the Whirlpool RBS245PRB04, which is a 24-inch electric built-in single oven. For a correct fit, always match the oven width to your cabinet cutout dimensions and required installation clearances in the installation guide.

Common wall oven widths (what you will see most often)

Wall ovens are typically sold by nominal width; the actual oven and cutout measurements vary by model.

• 24-inch: common for smaller kitchens and tight cabinet openings (this matches RBS245PRB04)
• 27-inch: very common standard size
• 30-inch: most common standard size
• 36-inch: available, usually higher-capacity or specialty models; requires a larger cabinet cutout

How to confirm whether a 36-inch wall oven will fit

We recommend measuring the cabinet opening first, then choosing an oven that matches those measurements.

• Measure cutout width, cutout height, and cutout depth
• Confirm minimum cabinet width requirements
• Confirm top and bottom clearance requirements (door swing and ventilation)
• Confirm junction box location so the oven can slide fully into the opening
• Confirm the floor or cabinet base can support the oven weight

RBS245PRB04 size reference (from installation specs)

For Whirlpool RBS245PRB04, the installation guide lists a minimum cabinet width of 24 inches and a cutout width around 22 1/2 inches for a single oven installation, which is far smaller than what a 36-inch wall oven needs.

Item	RBS245PRB04 (24-inch class)	36-inch wall oven (typical)
Nominal oven width	24 in	36 in
Cabinet opening width	About 22 1/2 in cutout	Larger cutout required
Cabinet width	24 in minimum	Larger cabinet required

Why it matters

Wall ovens must match the cabinet cutout closely. If the oven is too wide (for example, trying to install a 36-inch unit into a 24-inch cutout), it will not seat correctly, can pinch wiring, and can block required clearances.

Last updated: February 2026

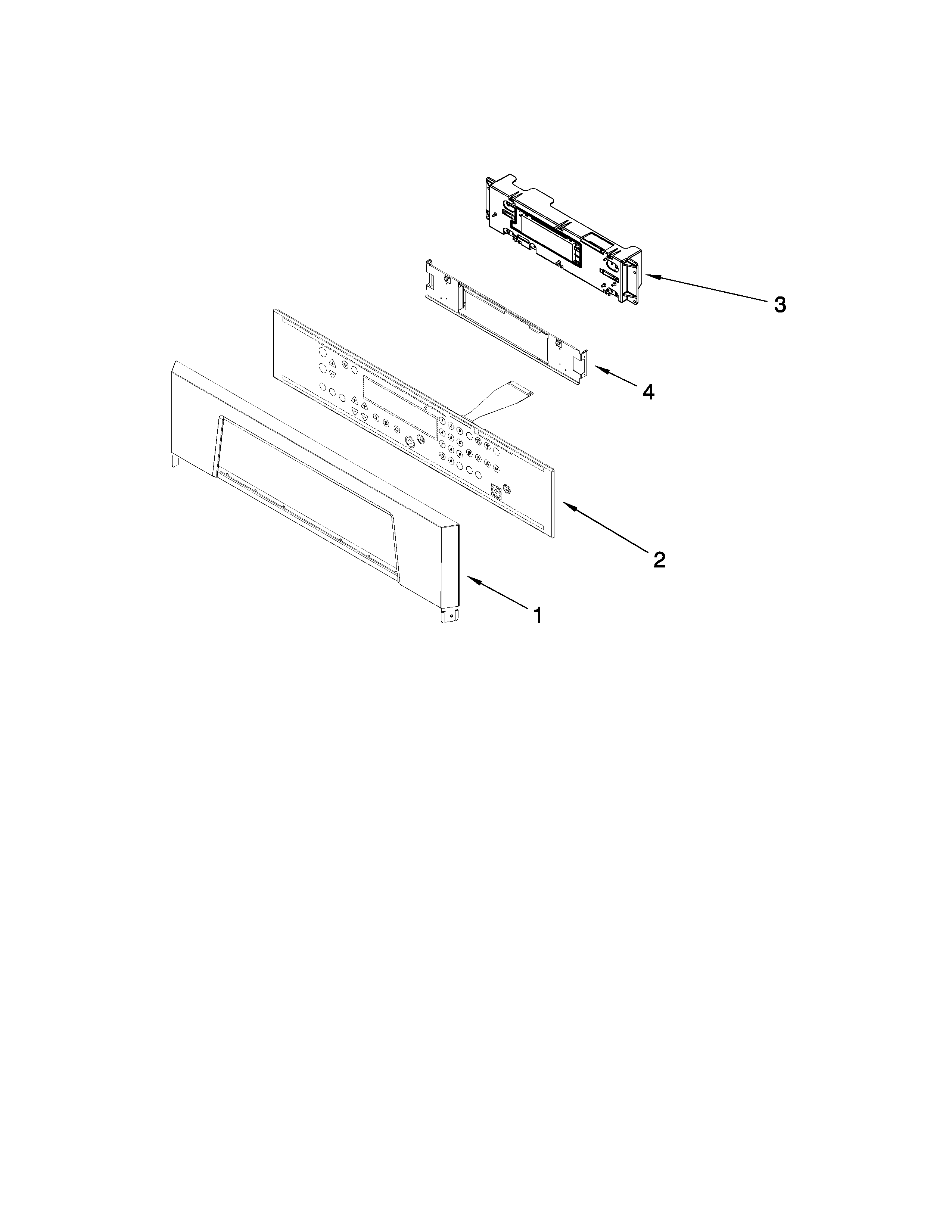

On your Whirlpool RBS245PRB04 wall oven, most display errors clear by stopping the current function and resetting the control. Press OFF/CANCEL to clear the display and stop tones; if the code returns, a power reset and a quick check of common failure parts usually pinpoints the cause. See the owner's manual for the exact keypad behavior on your control.

Quick ways to clear the code

• Press OFF/CANCEL to stop the cycle and clear the display.
• If the oven is in Self-Clean, press OFF/CANCEL; the door can stay locked until the oven cools.
• If the control is locked and you see “Loc”, press and hold START for about 5 seconds to lock or unlock.
• Turn the oven off at the circuit breaker for about 1 minute, then restore power (this resets the electronic control).
• If the code comes back immediately, troubleshoot the likely component instead of repeatedly resetting.

What the code usually means (common causes)

Many recurring error codes are triggered by a temperature sensing or safety condition, or by a control input problem.

Symptom after reset	Most likely area to check	Common related part for this model
Code returns during preheat or baking	Temperature sensing circuit	Wall oven temperature sensor WPW10131825
Oven overheats, shuts down, or trips safety	Overheat protection	Range high-limit thermostat WP9759243

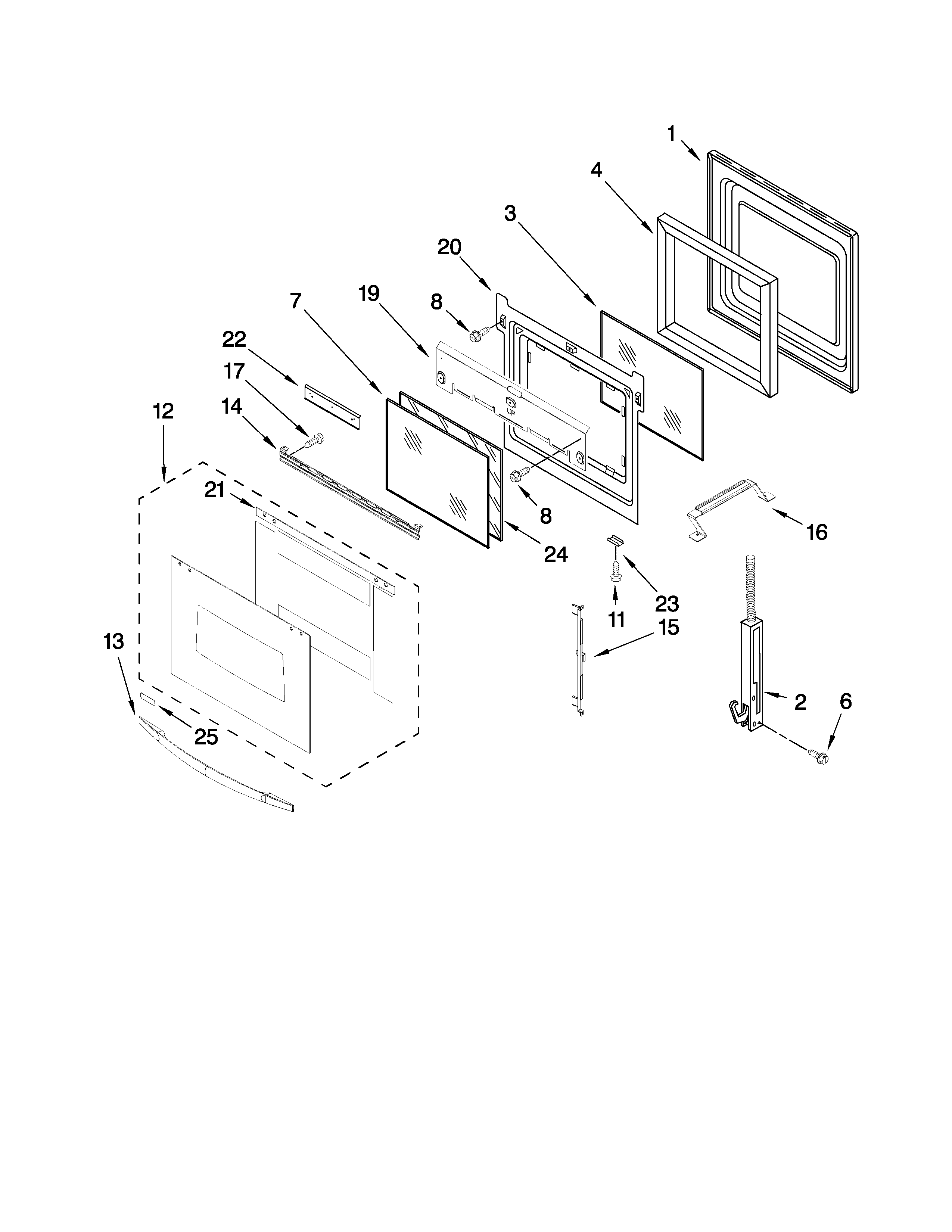

Code appears around Self-Clean or door won’t lock/unlock normally	Door lock system	Range oven door lock assembly WPW10195934
Oven runs hot externally or cooling fan seems off	Cooling airflow	Oven blower assembly WPW10176670

Why it matters

Clearing the code gets you cooking again, but a code that returns is the oven protecting itself or reporting a failed input. Fixing the root cause helps prevent overheating, poor baking results, and repeat shutdowns.

Safety notes we follow before troubleshooting

• Shut off power at the breaker before accessing wiring or components.
• Let the oven cool completely before checking anything related to Self-Clean or the door lock.
• Do not use an in-oven thermometer to judge calibration; door opening and element cycling can mislead readings.

Last updated: February 2026
