Kenmore 25379801990 top-mount refrigerator

Kenmore 25379801990 top-mount refrigerator Parts

Here are the diagrams and repair parts for Kenmore 25379801990 top-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 25379801990 Refrigerators

  • Refrigerator Filter Dryer for Kenmore 25379801990 - Part 5303305677

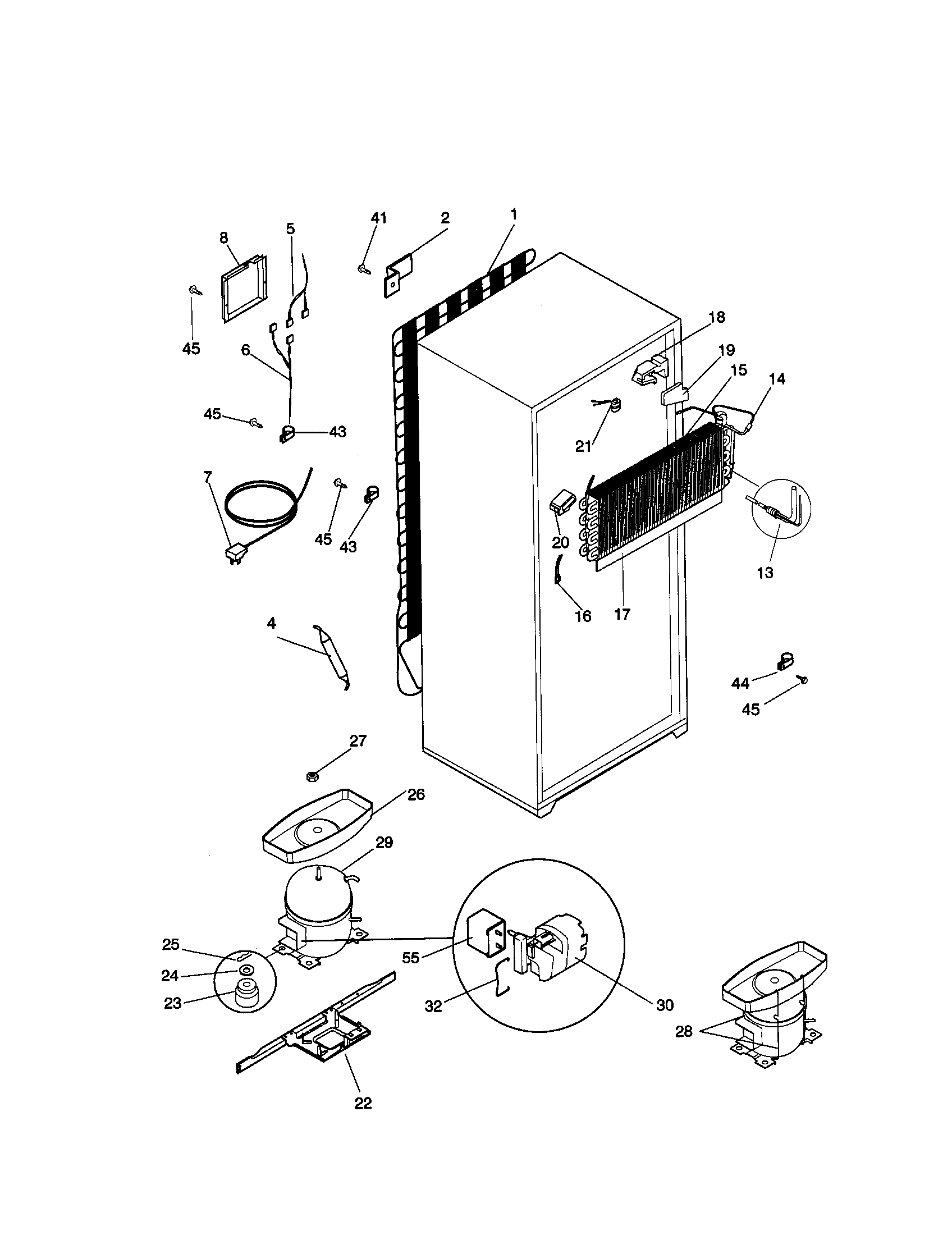

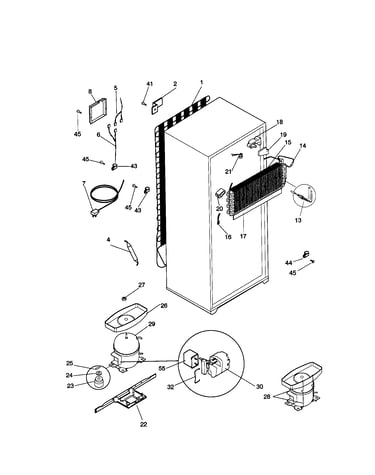

    System diagram

    Drier-r12

    Part #218541000

    Replaced by #5303305677

    Info Icon
    Manufacturer substitution
    This part replaces 218541000. Substitute parts can look different from the original.
    In Stock
    $26.12
    19% OFF Phone Price : $32.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Oven Light Bulb for Kenmore 25379801990 - Part 316538904

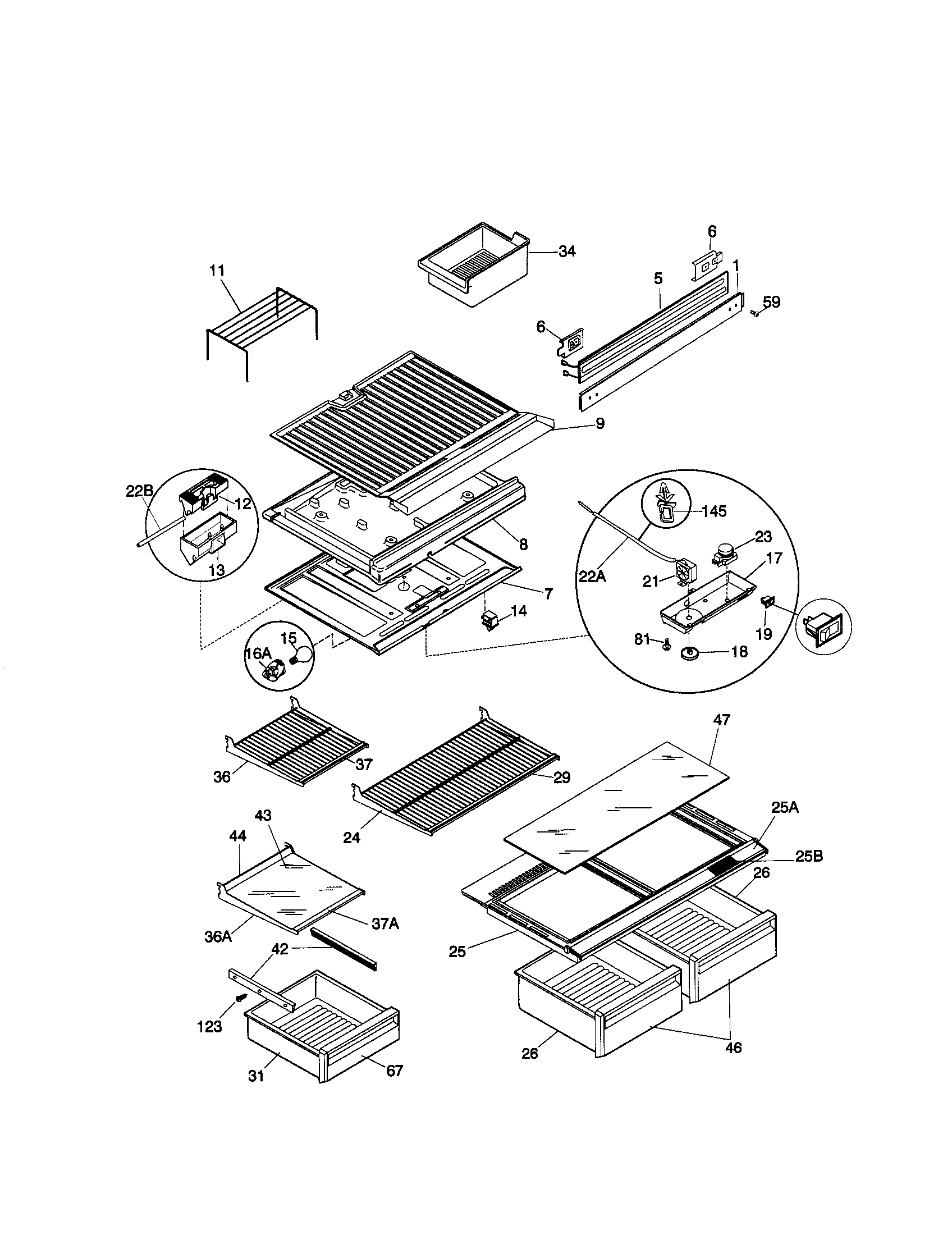

    Shelves diagram

    Appliance Light Bulb, 40-watt

    Part #5303001179

    Replaced by #316538904

    Info Icon
    Manufacturer substitution
    This part replaces 5303001179. Substitute parts can look different from the original.
    In Stock
    $18.45
    10% OFF Phone Price : $20.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Crosley Refrigerator Defrost Timer for Kenmore 25379801990 - Part 215846602

    Shelves diagram

    Refrigerator Timer

    Part #215267800

    Replaced by #215846602

    Info Icon
    Manufacturer substitution
    This part replaces 215267800. Substitute parts can look different from the original.
    In Stock
    $26.85
    18% OFF Phone Price : $32.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Run Capacitor for Kenmore 25379801990 - Part 5304464438

    System diagram

    Capacitor

    Part #216236200

    Replaced by #5304464438

    Info Icon
    Manufacturer substitution
    This part replaces 216236200. Substitute parts can look different from the original.
    In Stock
    $32.61
    16% OFF Phone Price : $38.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Assembly for Kenmore 25379801990 - Part 5303918277

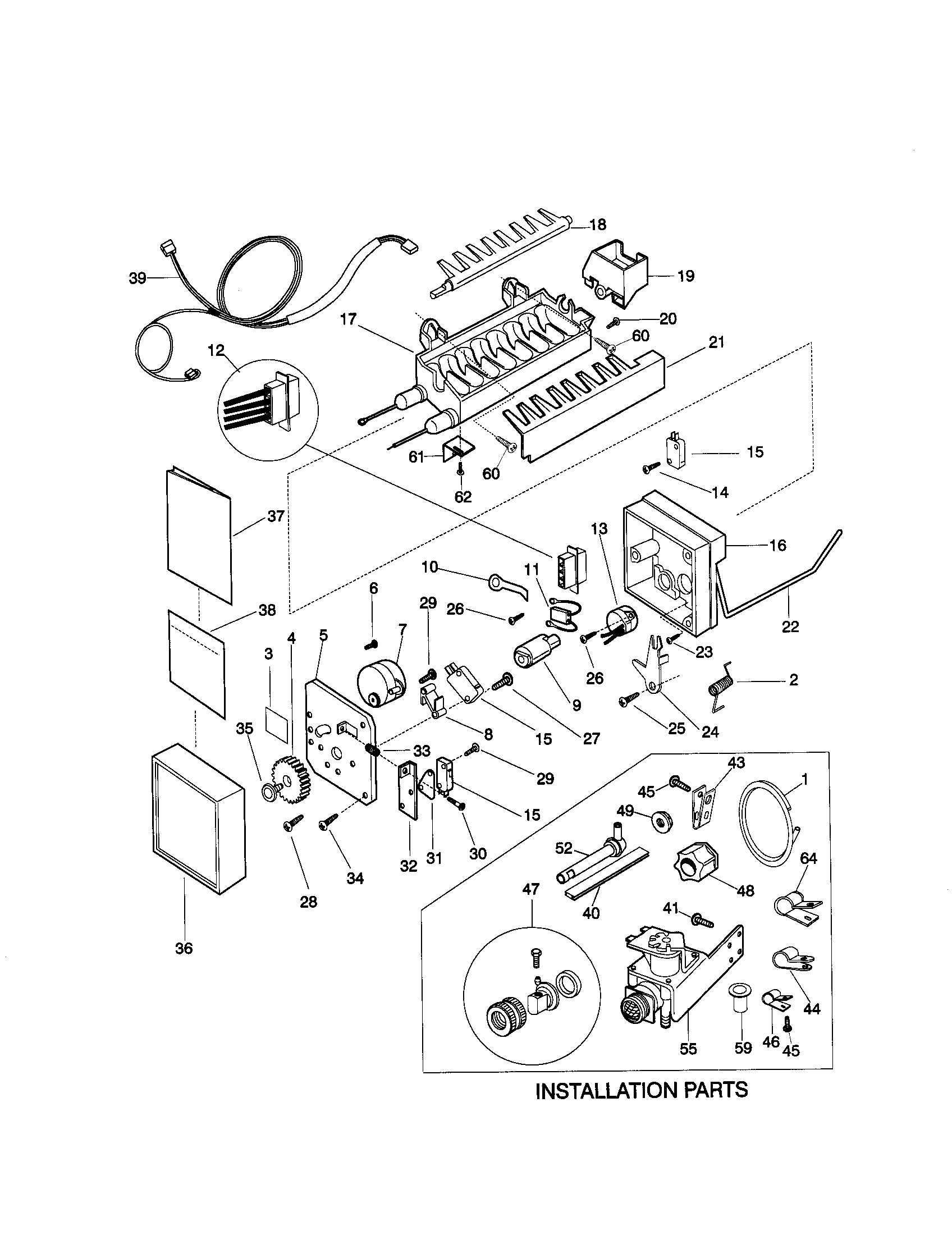

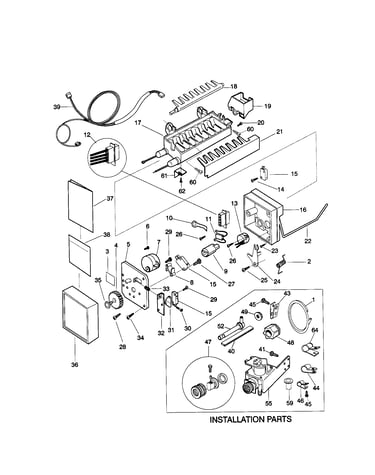

    Ice maker diagram

    Refrigerator Ice Maker Assembly

    Part #3206306

    Replaced by #5303918277

    Info Icon
    Manufacturer substitution
    This part replaces 3206306. Substitute parts can look different from the original.
    In Stock
    $78.34
    25% OFF Was : $104.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Universal/multiflex (frigidaire) Refrigerator Defrost Bi-metal Thermostat for Kenmore 25379801990 - Part 5303917954

    System diagram

    Refrigerator Thermostat

    Part #5316269001

    Replaced by #5303917954

    Info Icon
    Manufacturer substitution
    This part replaces 5316269001. Substitute parts can look different from the original.
    In Stock
    $26.57
    18% OFF Phone Price : $32.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Kit for Kenmore 25379801990 - Part 5304511983

    System diagram

    Refrigerator Compressor

    Part #218846902

    Replaced by #5304511983

    Info Icon
    Manufacturer substitution
    This part replaces 218846902. Substitute parts can look different from the original.
    In Stock
    $537.14
    $12.00 OFF Phone Price : $549.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Strap for Kenmore 25379801990 - Part 5308000110

    System diagram

    Refrigerator Strap

    In Stock
    $36.26
    32% OFF Was : $53.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Gasket for Kenmore 25379801990 - Part 5303207345

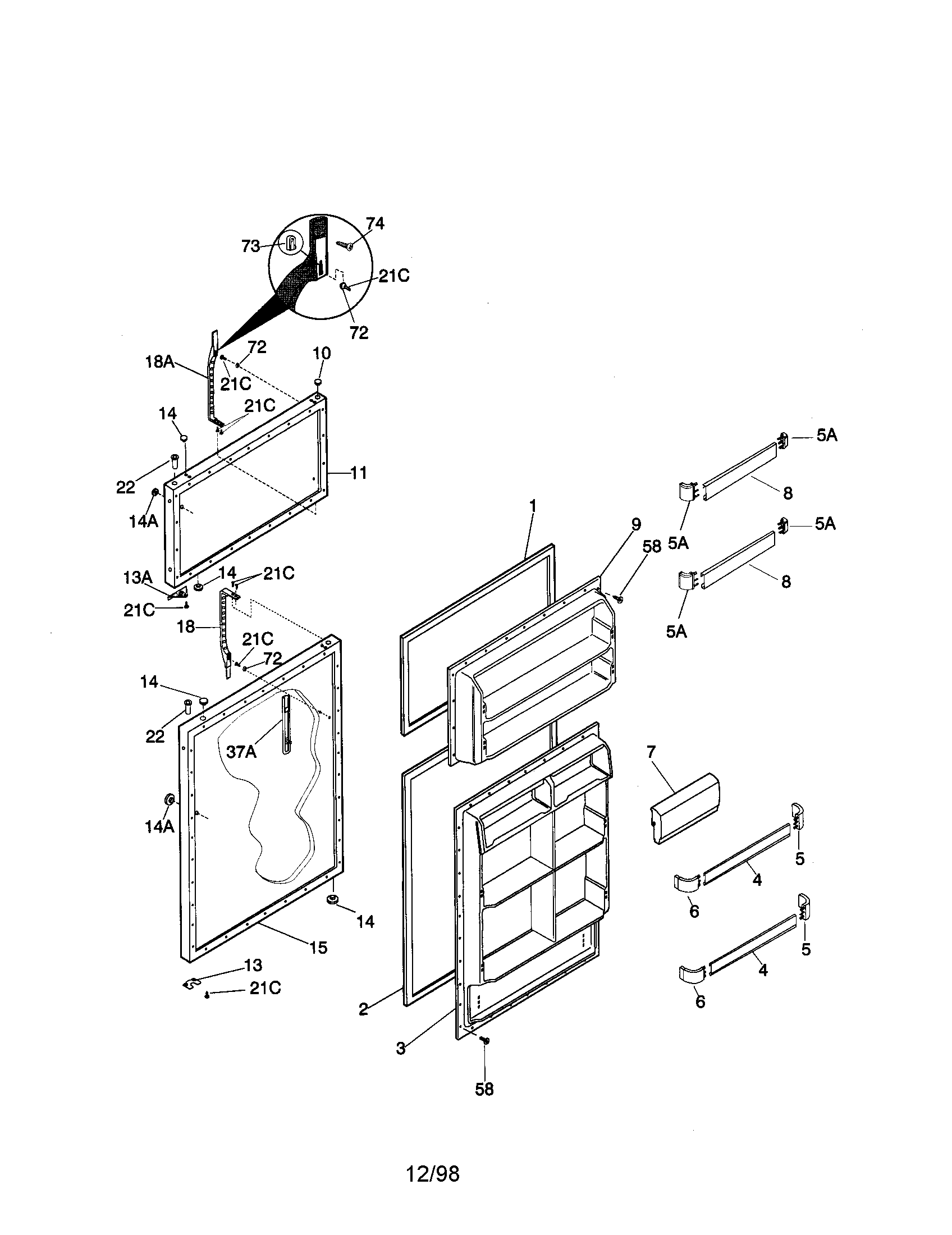

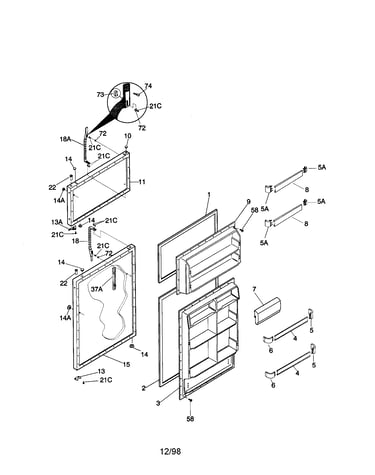

    Door diagram

    Refrigerator Door Gasket (white)

    Part #218730605

    Replaced by #5303207345

    Info Icon
    Manufacturer substitution
    This part replaces 218730605. Substitute parts can look different from the original.
    In Stock
    $111.07
    10% OFF Phone Price : $123.07Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Light Socket for Kenmore 25379801990 - Part 218906802

    Shelves diagram

    Refrigerator Receptacle

    Part #5308000815

    Replaced by #218906802

    Info Icon
    Manufacturer substitution
    This part replaces 5308000815. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.31
    23% OFF Phone Price : $26.31Info Icon
    Minus Item
    Qty
    Plus Item

Kenmore Top-Mount Refrigerator 25379801990 FAQs

Kenmore is a brand name, not a manufacturer; the Kenmore 25379801990 top-mount refrigerator was produced for Kenmore by a third-party manufacturer. For Kenmore models that start with the 253 prefix, the unit is made by Frigidaire/Electrolux (commonly listed as Electrolux Home Products).

How to confirm the manufacturer on your exact unit

We recommend checking the model and serial tag inside the fresh food compartment (often on a side wall or ceiling area). Look for manufacturer identifiers such as:

  • A manufacturer name (Frigidaire or Electrolux)
  • A serial number format that matches Frigidaire/Electrolux patterns
  • A second model number or code near the Kenmore model number
  • A wiring diagram envelope that lists the manufacturer
Why the manufacturer matters for parts

The actual manufacturer determines the engineering design and the correct replacement parts (ice maker components, defrost parts, controls, and door gaskets). For Kenmore 25379801990, many commonly replaced items align with Frigidaire/Electrolux-built designs.

Examples of model-matched parts on this page
What you are fixing Part to check What it affects
Warm freezer, heavy frost Refrigerator timer 215846602 Defrost cycle timing
Frost buildup, no defrost Refrigerator defrost heater 3206453 Melts evaporator frost
Door not sealing, sweating Refrigerator door gasket (white) 5303207345 Air leaks and temperature stability
Related DIY help

If you are troubleshooting a display or fault condition, we recommend starting with our error code resources and symptom checks: Kenmore 111 model top freezer refrigerator error codes.

Last updated: February 2026

For Kenmore model 25379801990, the model number label confirms identity but usually does not directly state cubic feet. The most reliable way to get capacity is to find the capacity/spec listing for that exact model, or calculate an approximate capacity from the interior compartment measurements.

Option 1: Look up capacity by the exact model number

Use the full model number 25379801990 when searching specs so you get the correct top-mount refrigerator capacity (not a similar 253-series unit).

What to do:

  • Confirm the model number from the rating label inside the fresh food section
  • Match the full model number exactly: 25379801990
  • Use the model page to identify the correct unit and parts grouping
  • If you are comparing versions, also note color/finish and any suffixes on the label
Option 2: Estimate cubic feet by measuring the interior

If you cannot find a published capacity, you can estimate it using interior dimensions.

Steps
  • Empty the compartment enough to measure accurately
  • Measure usable interior width, height, and depth (in inches)
  • Multiply: width x height x depth to get cubic inches
  • Divide by 1728 to convert cubic inches to cubic feet
  • Repeat for the freezer and fresh food sections, then add them together
Quick formula
What you measure Calculation Result
Interior volume (in³) W x H x D cubic inches
Capacity (ft³) (W x H x D) / 1728 cubic feet
What “cubic feet” means (and why your estimate may differ)

Manufacturers list capacity as total usable storage volume, but shelves, bins, air ducts, and the evaporator cover reduce real-world space. Your measurement-based number is an approximation, not a lab-rated spec.

Why it matters

Knowing cubic feet helps you compare refrigerator sizes, plan food storage, and choose correctly sized accessories (like bins and door racks) for your Kenmore top-mount refrigerator.

If you are already repairing or refreshing the unit while you measure, common fit-related parts for this model include the refrigerator door gasket (white) 5303207345 and refrigerator door rack 215516220.

Last updated: February 2026

Top-mount refrigerators like Kenmore model 25379801990 are reliable and cost-effective, but the main disadvantages are less convenient fresh-food access (more bending), fewer organization features than many bottom-freezer designs, and fewer built-in dispenser options on many models.

Common disadvantages (what you will notice day to day)
  • Fresh-food compartment is lower: you bend more to reach produce drawers and lower shelves.
  • Freezer is at eye level: great for frozen items, but it pushes everyday refrigerated items down.
  • Less flexible storage in many designs: fewer adjustable bins, drawers, and wide pantry-style zones.
  • Fewer exterior features: many top-mount units do not include an in-door water or ice dispenser.
  • More temperature variation: top shelves in the refrigerator section can run a bit warmer than lower areas in some kitchens.
Quick comparison: top-mount vs bottom-freezer
Feature Top-mount refrigerator Bottom-freezer refrigerator
Fresh-food access Less convenient (more bending) More convenient (eye-level shelves)
Freezer access Convenient (upper freezer) Less convenient (lower freezer)
Organization Often simpler Often more zones and drawers
Dispenser options Less common More common
Why it matters

If you use fresh foods more than frozen foods, the lower refrigerator section can feel inconvenient over time. If you use frozen foods frequently, the upper freezer can be a real advantage.

When a “disadvantage” is actually a repair or setup issue

Some complaints are caused by wear or airflow problems rather than the refrigerator style:

Last updated: February 2026

Yes. We still offer replacement parts for Kenmore refrigerators, including the Kenmore 25379801990 top-mount refrigerator. You can match parts by model number and then choose the exact component you need, such as door gaskets, thermostats, or ice maker parts.

How to find the right part for model 25379801990

Use your model number (25379801990) to ensure fit, then confirm the part name and ID before ordering.

  • Find the symptom (not cooling, leaking, not making ice, door not sealing)
  • Identify the system involved (cooling, defrost, ice maker, door)
  • Match the part by description and ID
  • Compare your original part visually (mounting points, connectors, length)
  • Replace one part at a time so you can confirm the fix
Commonly needed Kenmore 25379801990 parts we carry

These are examples of parts available for this model that customers often replace:

Problem you notice Part that often fixes it Example part on this model
Warm fridge or freezer, weak airflow Evaporator fan blade or controls Refrigerator fan blade 5308000010
Frost buildup, warming temps Defrost timer or defrost thermostat Refrigerator timer 215846602
Door not sealing, moisture or frost near door Door gasket Refrigerator door gasket (white) 5303207345
No interior light Appliance light bulb Appliance light bulb, 40-watt 316538904
Why it matters

Using the correct model-specific part helps restore proper temperatures, reduces frost and moisture issues, and prevents extra wear on the compressor and controls.

Related DIY help

If you’re troubleshooting an ice maker or water-related issue, our DIY guidance can help you narrow down the cause before ordering parts: how to prevent water dispenser and ice maker problems.

Last updated: February 2026

Most Kenmore refrigerators, including the Kenmore 25379801990 top-mount refrigerator, last 12 to 15 years with normal use. Regular maintenance (cleaning condenser coils, keeping door seals tight, and fixing cooling issues early) helps you reach the high end of that range.

Typical lifespan and what affects it

A refrigerator’s life is mostly determined by compressor run time, airflow, and how well the doors seal.

  • Maintenance: dirty condenser coils make the compressor work harder
  • Door gasket condition: air leaks cause longer run times and frost issues
  • Room temperature and ventilation: tight cabinets and hot garages shorten life
  • Usage habits: frequent door openings and overpacking reduce airflow
  • Repairs done early: small issues (fan noise, warm temps) often prevent bigger failures
Quick “repair vs. replace” guide

Use this as a practical rule of thumb for a Kenmore top-mount refrigerator.

If your fridge is… Usually makes sense to… Why
Under 8 years old Repair Parts replacement often restores full performance
8 to 12 years old Compare cost Balance repair cost vs. remaining life
12+ years old Replace if major sealed-system issue Compressor/condenser repairs are high-cost
Parts that commonly extend refrigerator life

If your Kenmore 25379801990 is running warm, frosting up, or cycling too often, these are common wear items we see on top-mount designs.

Why it matters

A refrigerator near the end of its expected lifespan often shows up as temperature swings, excess frost, water leaks, or louder operation. Catching those symptoms early can reduce food spoilage and prevent the compressor from being overworked.

Last updated: February 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Most common repair guides to help fix your refrigerators

These step-by-step repair guides will help you safely fix what’s broken on your refrigerator.

How to replace a refrigerator temperature control board

How to replace a refrigerator temperature control board

If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature cont…

Repair time and Difficulty

 30 minutes or less
How to replace a refrigerator water valve

How to replace a refrigerator water valve

Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water…

Repair time and Difficulty

 15 minutes or less
How to clean refrigerator condenser coils

How to clean refrigerator condenser coils

Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.…

Repair time and Difficulty

 15 minutes or less

Effective articles & videos to help repair your refrigerators

Use the advice and tips in these articles and videos to get the most out of your refrigerator.

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

How to Replace the Water Filter in a Universal/Multiflex Refrigerator

Learn how easy replacing the water filter in a Universal/Multiflex refrigerator is.…

How to Replace the Water Filter in a KitchenAid Refrigerator

How to Replace the Water Filter in a KitchenAid Refrigerator

Discover how easy it is to replace the water filter in your KitchenAid refrigerator.…

Troubleshooting a refrigerator not cooling video

Troubleshooting a refrigerator not cooling video

Learn what to check if the inside of your fridge is wayyyy too warm.…

Parts & More

Chipper/Shredder
Electric Cooktop
Freestanding Freezer
Gas Snowblower
Grass Catcher Attachment
Heating & Cooling Combined Unit
Impact Wrench
Lawn Edger
Outdoor Grill
Parts
Riding Mowers & Tractors
Tiller
Treadmill
Washer
Water Softener
Weight System
Wet/Dry Vacuum
