Gibson
Electric Range

Model # CEB1M3WSTA Official Gibson electric range - lg32088150

Here are the diagrams and repair parts for Official Gibson CEB1M3WSTA electric range - lg32088150, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Surface Pan K5039601
#5

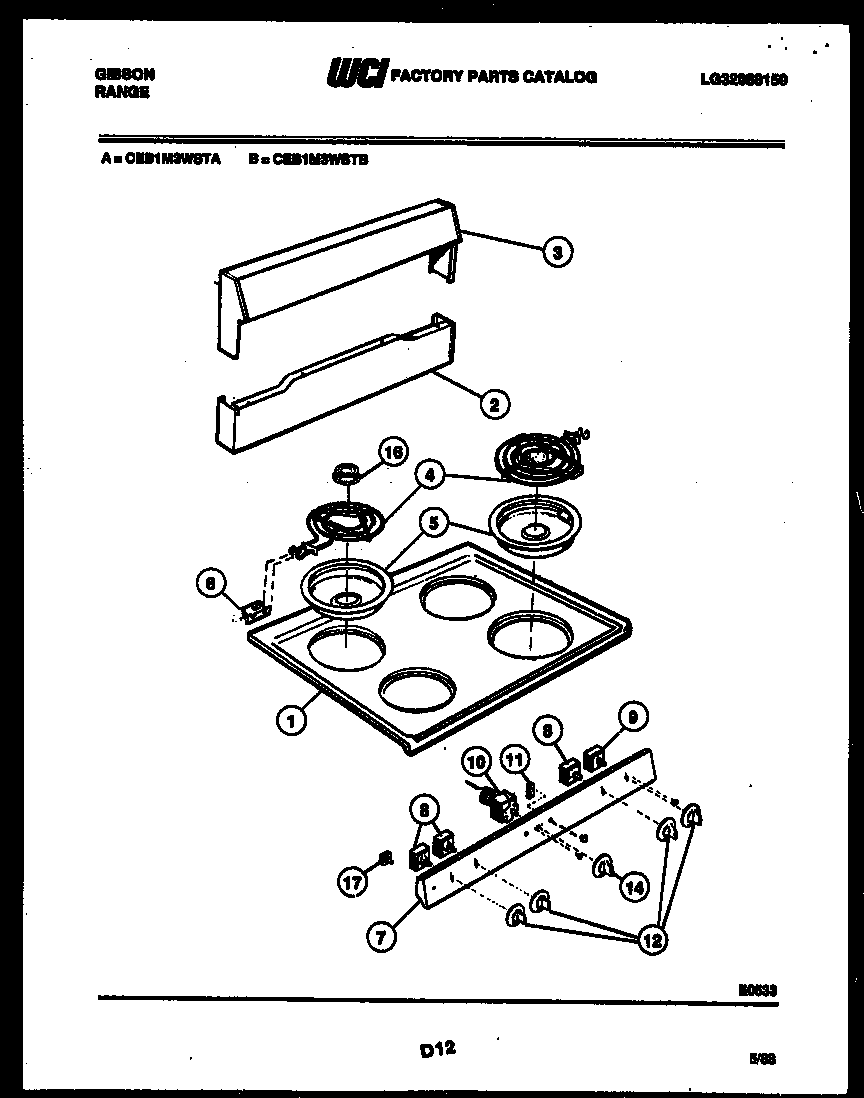

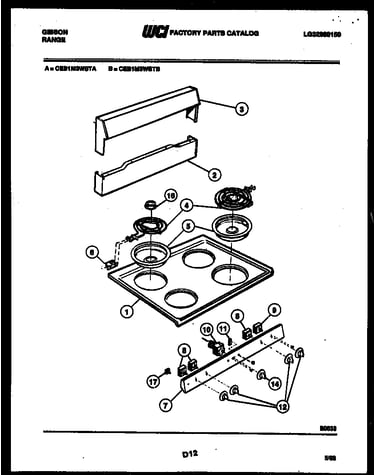

Backguard and cooktop parts diagram

Surface pan

Part #K5039601

Replaced by #316048413

?
Manufacturer substitution
This part replaces K5039601. Substitute parts can look different from the original.
BEST SELLER
$7.53
69% OFF MSRP : $24.00
In Stock
Pan K5039501
#5

Backguard and cooktop parts diagram

Pan

Part #K5039501

Replaced by #316048414

?
Manufacturer substitution
This part replaces K5039501. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.97
57% OFF MSRP : $14.00
In Stock
Terminal Block AP042024
#6

Backguard and cooktop parts diagram

Terminal block

Part #AP042024

Replaced by #5303935058

?
Manufacturer substitution
This part replaces AP042024. Substitute parts can look different from the original.
BEST SELLER
$8.34
31% OFF MSRP : $12.00
In Stock
Surface Element 3015186
#4

Backguard and cooktop parts diagram

Surface element

Part #3015186

Replaced by #316442300

?
Manufacturer substitution
This part replaces 3015186. Substitute parts can look different from the original.
BEST SELLER
$32.07
13% OFF Phone Price : $37.07
In Stock
Surface Switch AP351112
#8

Backguard and cooktop parts diagram

Surface switch

Part #AP351112

Replaced by #5303935086

?
Manufacturer substitution
This part replaces AP351112. Substitute parts can look different from the original.
BEST SELLER
$43.22
10% OFF Phone Price : $48.22
In Stock
Surface Switch AP351113
#9

Backguard and cooktop parts diagram

Surface switch

Part #AP351113

Replaced by #5303935086

?
Manufacturer substitution
This part replaces AP351113. Substitute parts can look different from the original.
BEST SELLER
$43.22
10% OFF Phone Price : $48.22
In Stock
Light Socket K1325527
#31

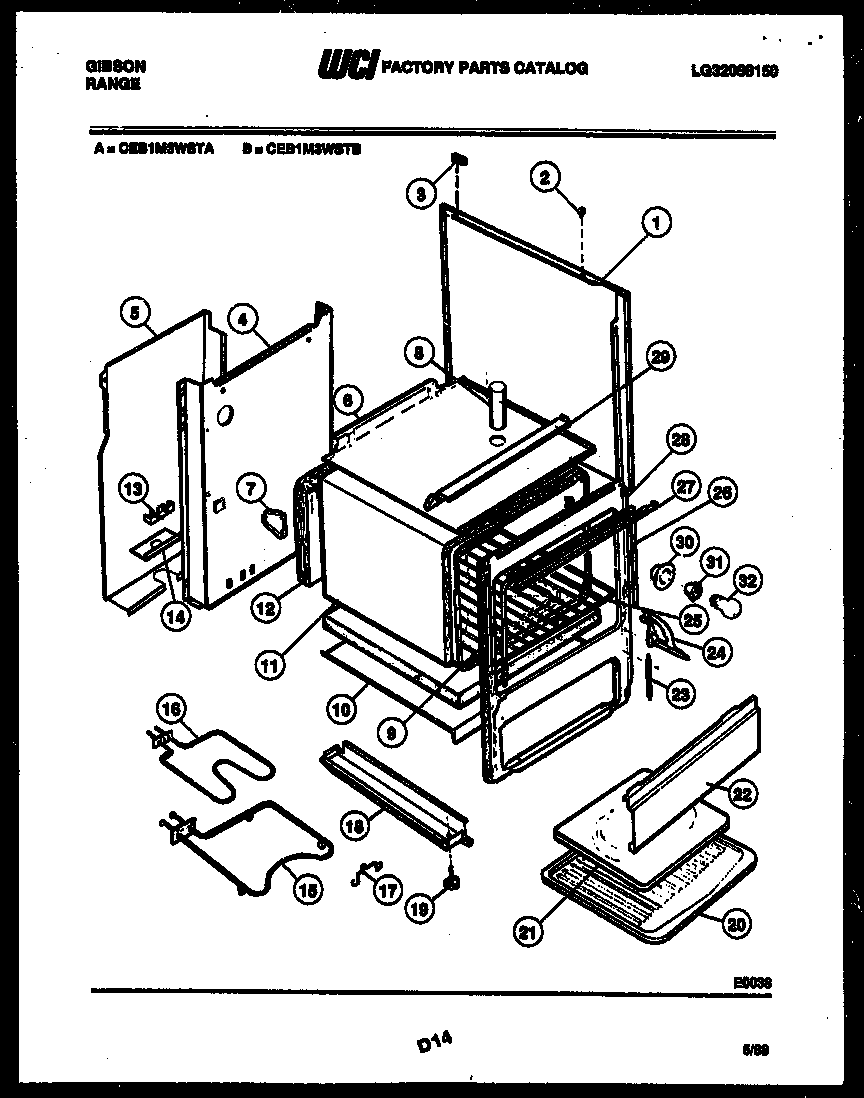

Body parts diagram

Light socket

Part #K1325527

Replaced by #316116400

?
Manufacturer substitution
This part replaces K1325527. Substitute parts can look different from the original.
$42.01
11% OFF Phone Price : $47.01
In Stock
Hinge A96067000
#24A

Body parts diagram

Hinge

Part #A96067000

Replaced by #318348801

?
Manufacturer substitution
This part replaces A96067000. Substitute parts can look different from the original.
$97.04
9% OFF Phone Price : $107.04
In Stock
Switch 3016982
#17

Backguard and cooktop parts diagram

Switch

Part #3016982

Replaced by #5301314211

?
Manufacturer substitution
This part replaces 3016982. Substitute parts can look different from the original.
$64.33
7% OFF MSRP : $69.49
In Stock
Screw AP051060
#6

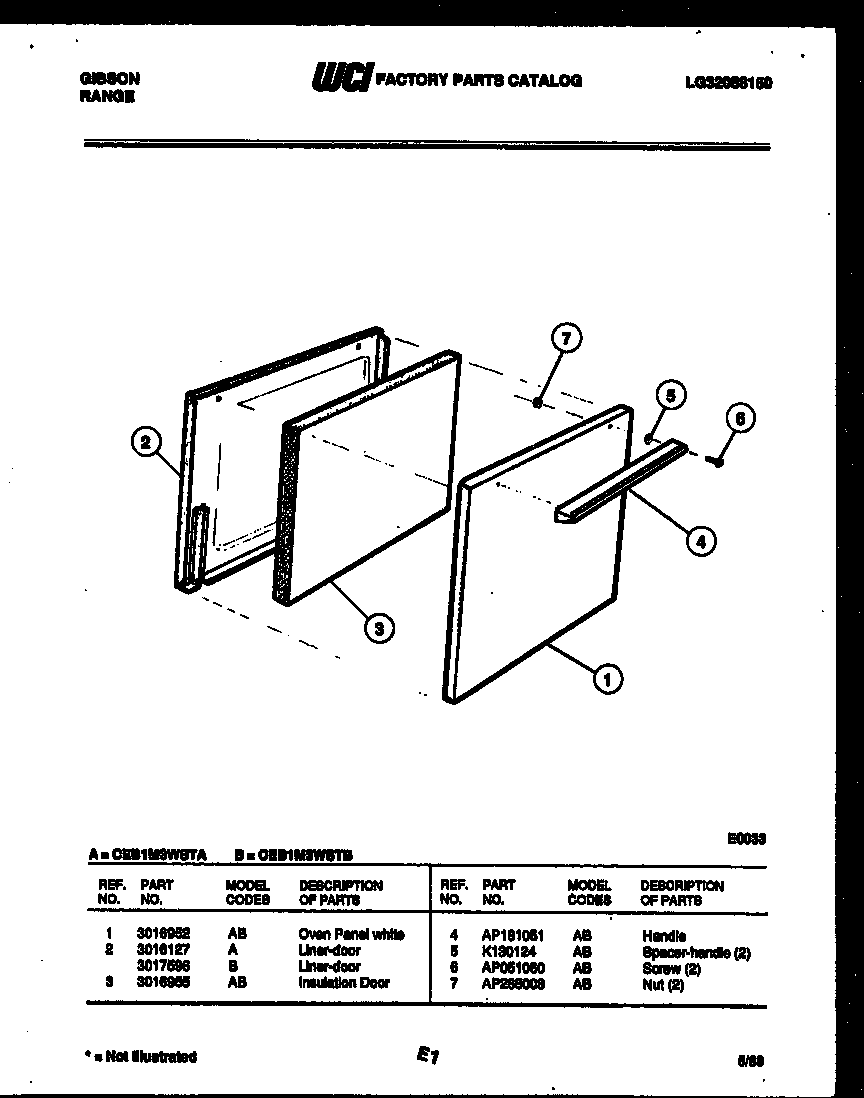

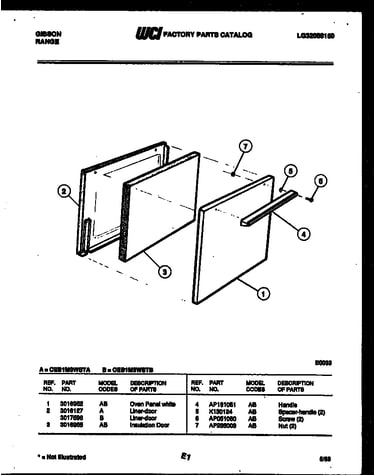

Door parts diagram

Screw

Part #AP051060

Replaced by #5303292012

?
Manufacturer substitution
This part replaces AP051060. Substitute parts can look different from the original.
In Stock
