Kenmore
Faucet Water Filter

Model # 625384600 Official Kenmore water filter

Here are the diagrams and repair parts for Official Kenmore 625384600 water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Sed Cart 25m 42-34360

#NI02

All parts diagram

Sed cart 25m

Part #42-34360

Replaced by #3847807

?
Manufacturer substitution
This part replaces 42-34360. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$15.88
11% OFF Phone Price : $17.88
In Stock
Sed Cart 5 M 42-34362

#NI03

All parts diagram

Sed cart 5 m

Part #42-34362

Replaced by #3848007

?
Manufacturer substitution
This part replaces 42-34362. Substitute parts can look different from the original.
BEST SELLER
$22.02
19% OFF Phone Price : $27.02
In Stock
Water Filtration System Tee Adapter 7228536
#11

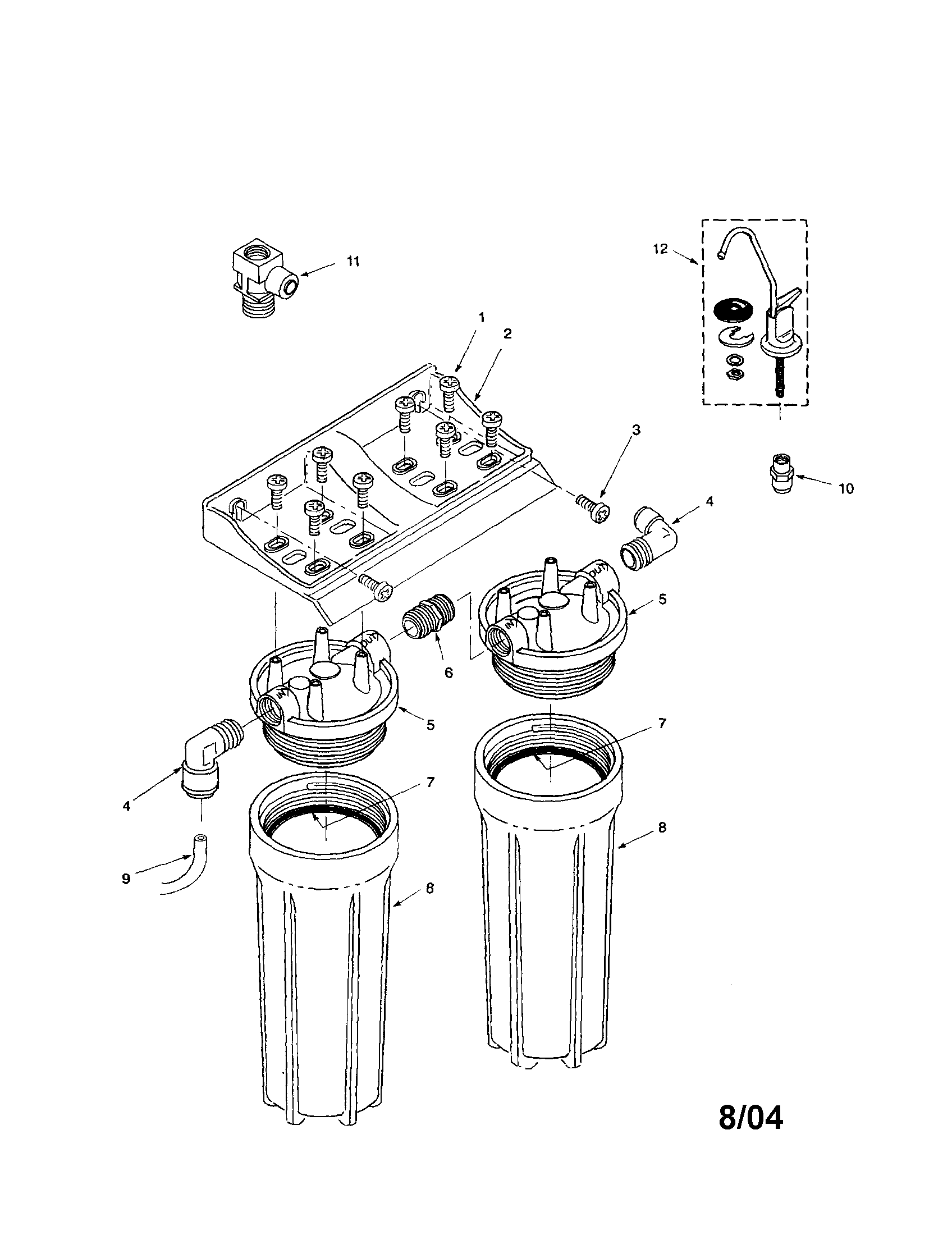

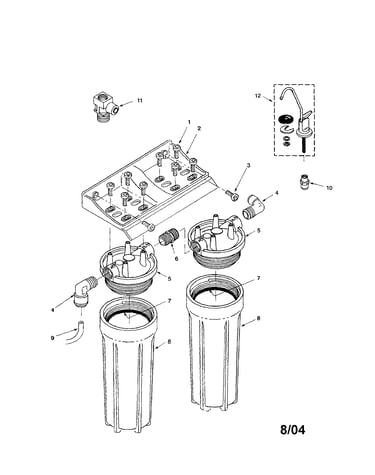

Water filter assembly diagram

Water filtration system tee adapter

Part #7228536

$27.79
15% OFF Phone Price : $32.79
In Stock
Head (gray) 7156535
#5

Water filter assembly diagram

Head (gray)

Part #7156535

Replaced by #7179185

?
Manufacturer substitution
This part replaces 7156535. Substitute parts can look different from the original.
This item is not returnable
In Stock
Tubing (white) 7168435
#9

Water filter assembly diagram

Tubing (white)

Part #7168435

$17.89
10% OFF Phone Price : $19.89
In Stock
Elbow (gray) 7207881
#4

Water filter assembly diagram

Elbow (gray)

Part #7207881

$14.29
12% OFF Phone Price : $16.29
In Stock
Water Filter Water Line Fitting (replaces 7207734, 9043201) 7207920
#10

Water filter assembly diagram

Water filter water line fitting (replaces 7207734, 9043201)

Part #7207920

This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Screw 9006053
#3

Water filter assembly diagram

Screw

Part #9006053

This item is not returnable
In Stock
Bracket 7182502
#2

Water filter assembly diagram

Bracket

Part #7182502

Replaced by #7328352

?
Manufacturer substitution
This part replaces 7182502. Substitute parts can look different from the original.
In Stock
Cart. 99%red 42-34372

#NI05

All parts diagram

Cart. 99%red

Part #42-34372

The manufacturer no longer makes this part, and there's no substitute part
