Whirlpool ED25PEXHB02 side-by-side refrigerator Parts

A 24.5 cu ft refrigerator is typically about 36 inches wide. For Whirlpool model ED25PEXHB02 (a standard-depth side-by-side), plan on a 36-inch class opening and confirm your exact fit by measuring the cabinet opening and the refrigerator cabinet (not the handles).

Typical widths you will see at ~24.5 cu ft

Capacity does not set width by itself, but most refrigerators in the 24 to 25 cu ft range land in these common widths.

• Side-by-side: 35 to 36 inches
• French door: 35 to 36 inches
• Counter-depth: 35 to 36 inches (depth changes more than width)
• Apartment or compact: 24 to 33 inches (usually lower capacity)

Style	Typical width for ~24.5 cu ft	What changes most
Side-by-side	35 to 36 in.	Door clearance and handle depth
French door	35 to 36 in.	Door swing and drawer pull-out space
Counter-depth	35 to 36 in.	Depth, not width

How we recommend measuring for a correct fit

Measure in inches and use the smallest number you find.

• Opening width at the front (cabinet to cabinet)
• Opening width at the back (trim and walls can taper)
• Refrigerator cabinet width (exclude handles)
• Doorway and hallway clearance for moving it in
• Clearance for door swing and airflow around the cabinet

Why it matters

If the opening is even slightly tight, the refrigerator can be hard to level, doors can rub cabinets, and airflow can be restricted, which can lead to warm temperatures and door seal gaps.

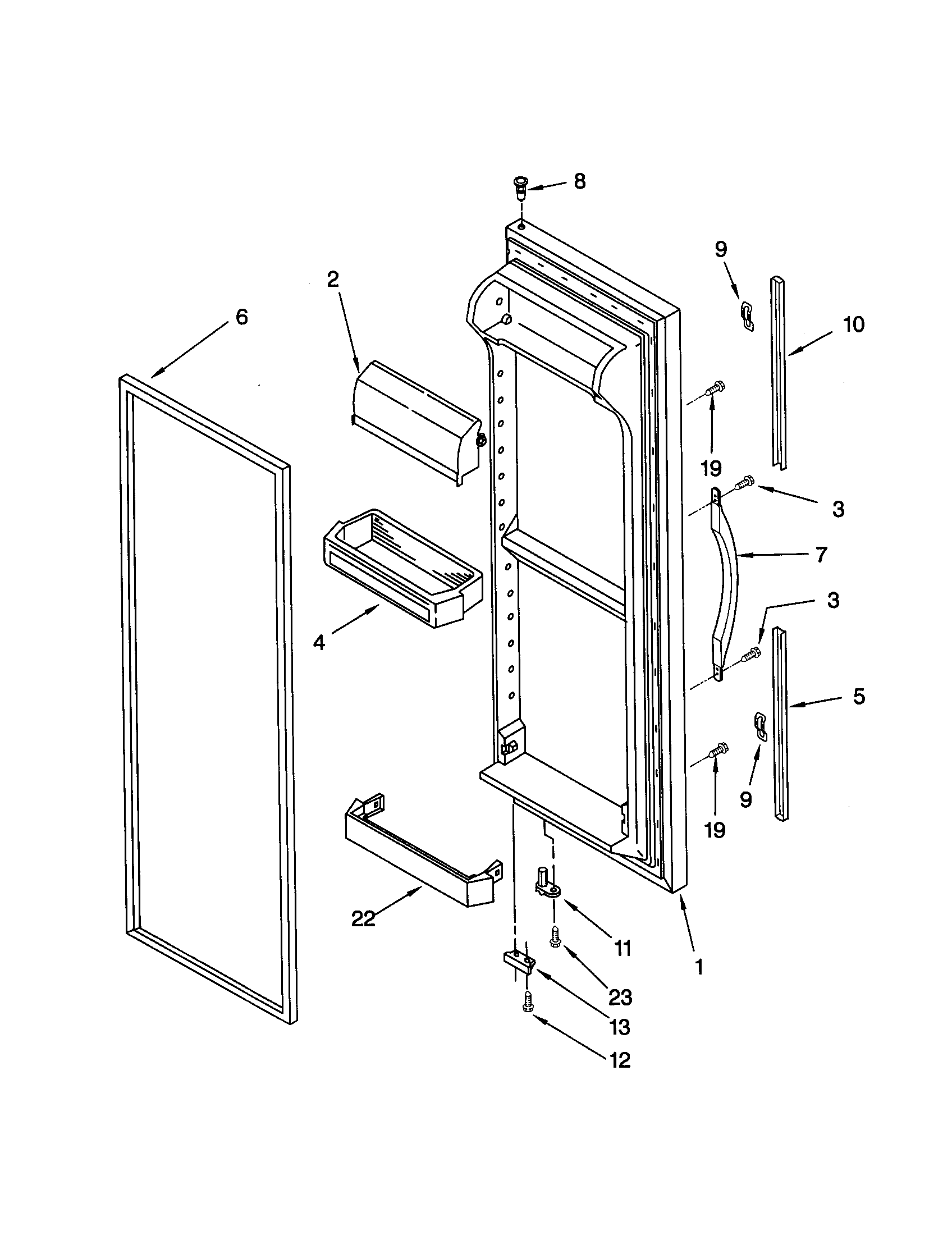

Related fit and door-seal parts for ED25PEXHB02

If you are correcting door closing or sealing after installation, these parts are commonly involved:

• Refrigerator door cam (black) WP2182179 (helps the door lift and close smoothly)
• Whirlpool refrigerator door gasket, black 2159083 (fresh food door seal)
• Whirlpool refrigerator freezer door gasket (black) 2159082 (freezer door seal)

Last updated: January 2026

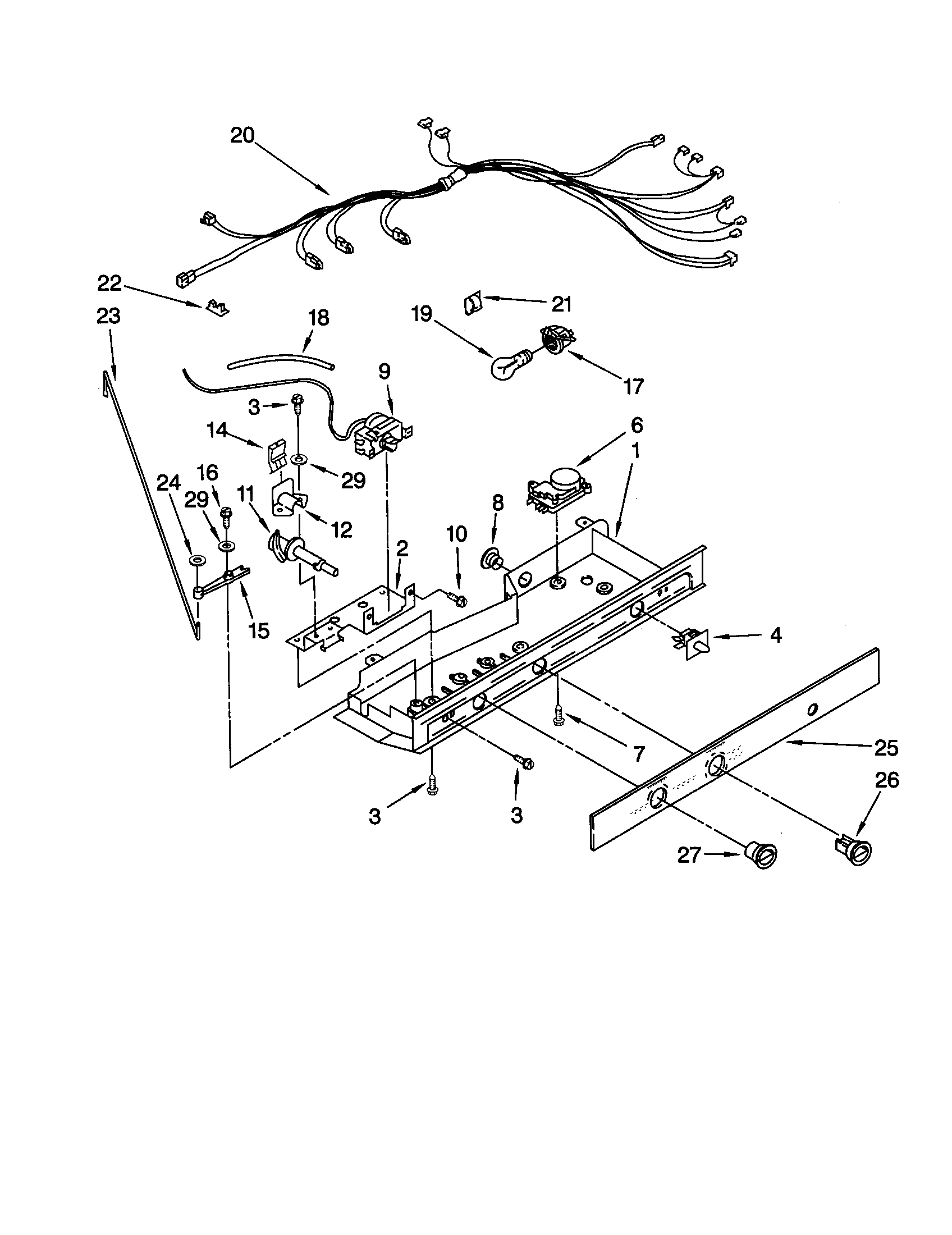

On the Whirlpool ED25PEXHB02 side-by-side refrigerator, the defrost timer (if your version uses a mechanical timer) is typically located in the fresh food control housing at the top of the refrigerator compartment, or behind the lower front toe grille near the floor.

Common defrost timer locations to check

Unplug the refrigerator first, then look in these spots (most common first):

• Inside the refrigerator section, in the temperature control console at the top (often behind a small cover)
• Behind the lower toe grille (kick plate) at the front, near the floor
• In the control box at the back of the unit (less common on many side-by-sides)
• Near the compressor area, mounted to a bracket (varies by design)

How to identify the defrost timer once you find it

A mechanical defrost timer usually has a small dial or slotted shaft you can turn with a flat-blade screwdriver. It will have multiple wires connected to it and may be mounted with 2 screws.

Quick check steps

• Remove the cover or toe grille and look for a small square or rectangular module
• Look for a dial/shaft labeled with timing marks (sometimes)
• Note wire colors and connector positions before disconnecting anything
• If you see a small circuit board instead of a dial, your refrigerator likely uses an adaptive defrost control (ADC) rather than a timer

Timer vs. adaptive defrost control (what you might have)

Defrost system type	What it looks like	Where you usually find it
Mechanical defrost timer	Small box with a turnable dial/shaft	Control housing or toe grille area
Adaptive defrost control (ADC)	Small electronic board (no dial)	Control housing or rear control area

Why it matters

If the defrost system is failing, frost can build up on the evaporator and restrict airflow, causing warm temperatures in the refrigerator section. On this model, defrost problems often point to defrost components such as the refrigerator defrost bi-metal WPW10225581 or the refrigerator heater WP2323198, not only the timer/control.

Last updated: January 2026

A Whirlpool side-by-side refrigerator like model ED25PEXHB02 typically lasts 13 years with normal household use. Keeping the condenser area clean, maintaining good door seals, and fixing cooling or ice maker issues early helps you reach that average.

Typical lifespan and what affects it

Most lifespan differences come down to heat management, door sealing, and how hard the sealed system has to work.

• Dirty condenser coils or a failing condenser fan can overheat the compressor
• Worn door gaskets let warm, humid air in and increase run time
• Defrost problems can cause frost buildup and poor airflow
• Ice maker and dispenser issues can lead to leaks or clogs that create secondary problems
• Frequent door openings and warm room temperatures increase workload

Quick checks that help you hit the average

Start with these practical maintenance steps:

• Vacuum dust from the front grille and condenser area regularly
• Confirm both doors close easily and seal all the way around
• Listen for steady airflow from the freezer evaporator fan
• Watch for recurring frost on the freezer back wall (a defrost warning sign)
• Keep vents inside the refrigerator and freezer unblocked

Common wear items for this model

If you are seeing temperature swings, sweating around the doors, or heavy frost, these parts are often involved:

Symptom	Commonly related part	Example part for ED25PEXHB02
Warm temps, long run time	Temperature control	Refrigerator thermostat WP2198202
Frost buildup, poor airflow	Defrost system	Refrigerator defrost bi-metal WPW10225581
Door not closing right	Hinge/cam wear	Refrigerator door cam (black) WP2182179

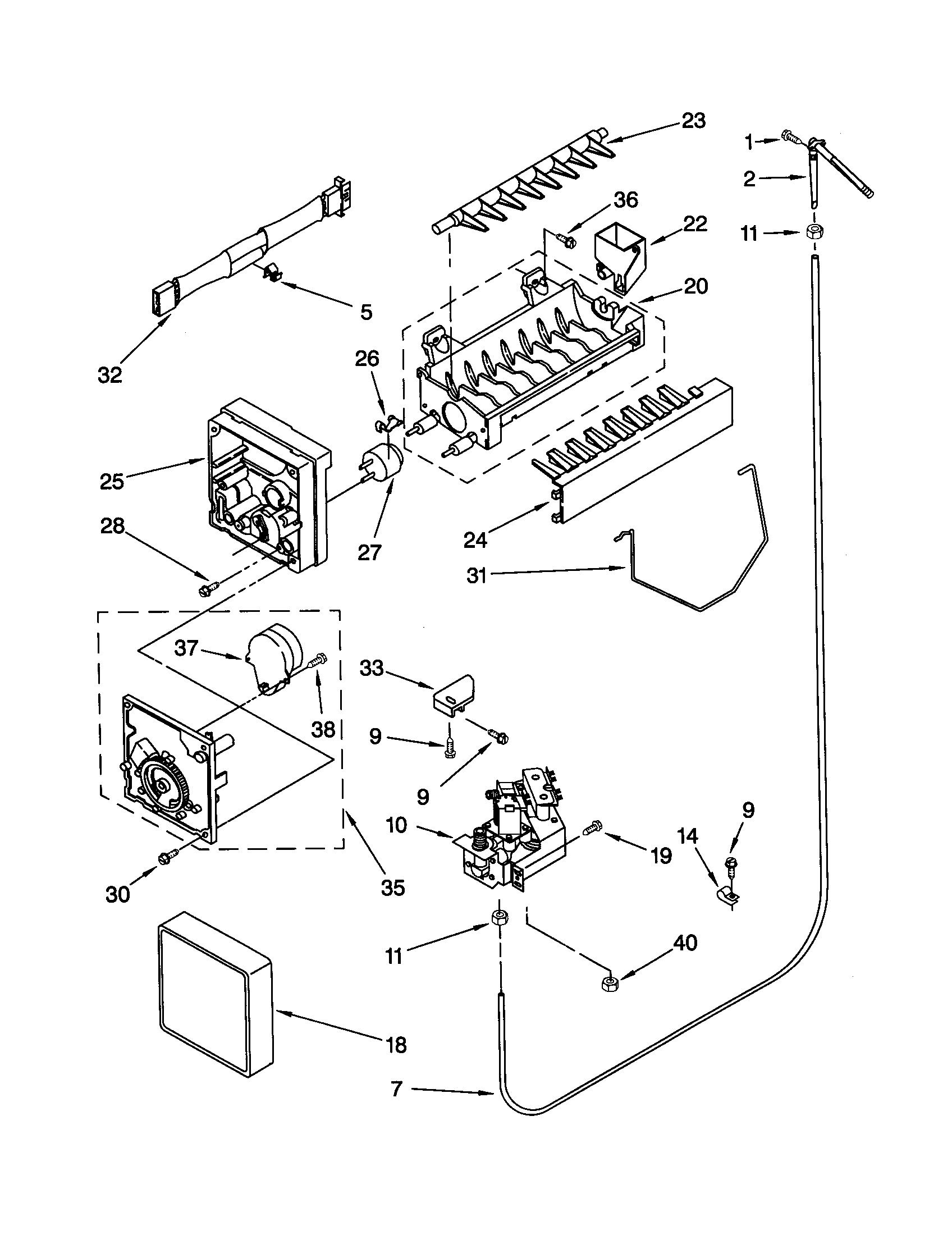

Ice production problems	Ice maker	Ice maker assembly - refrigerator ice maker by Whirlpool 4317943

Why it matters

A refrigerator that is running hot, leaking air at the doors, or icing up in the freezer wears out major components faster. Addressing small issues early protects the compressor and helps keep food temperatures stable.

Last updated: March 2026
