Model # 536882701 Official Craftsman 32" 10-hp snow thrower

Here are the diagrams and repair parts for Official Craftsman 536882701 32" 10-hp snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

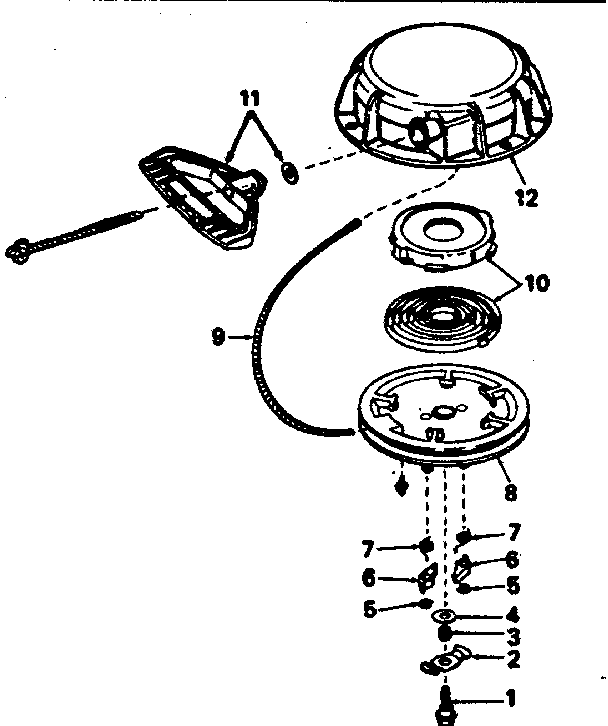

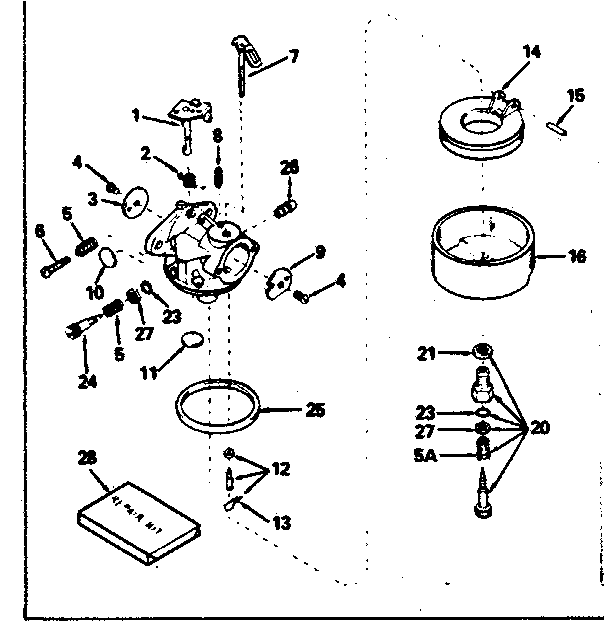

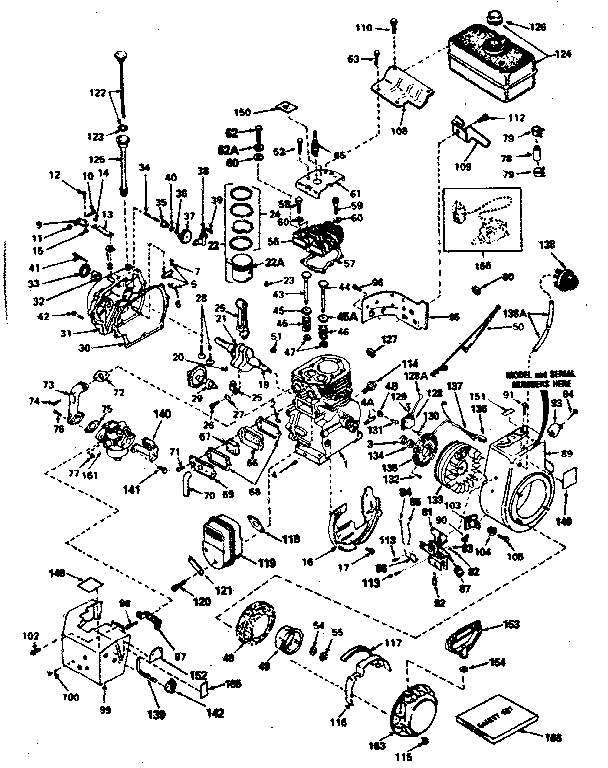

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 446 parts  |

Retaining Ring 36625
#28

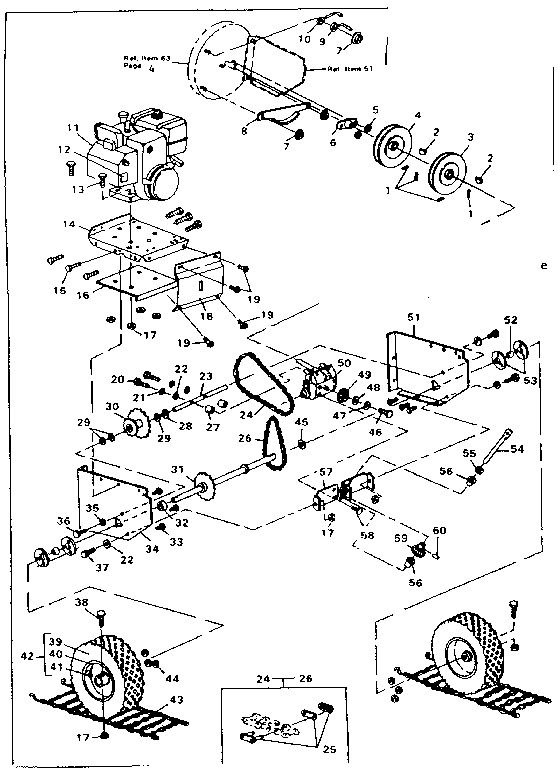

Wheel assembly diagram

Retaining ring

Part #36625

Replaced by #812000029

?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50
22% OFF Phone Price : $4.50
In Stock
Thrust Needle 32397
#41

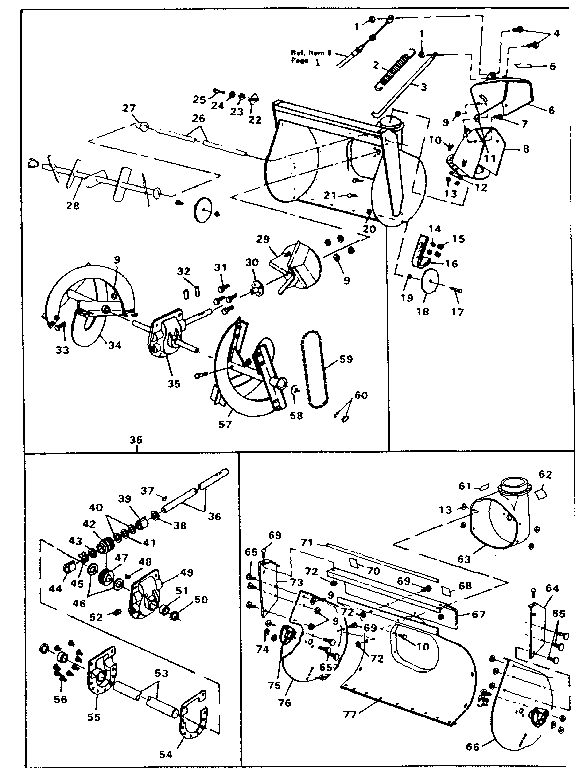

Auger housing assembly diagram

Thrust needle

Part #32397

Replaced by #50684MA

?
Manufacturer substitution
This part replaces 32397. Substitute parts can look different from the original.
This item is not returnable
$10.99
15% OFF Phone Price : $12.99
In Stock
V-belt 51304
#61

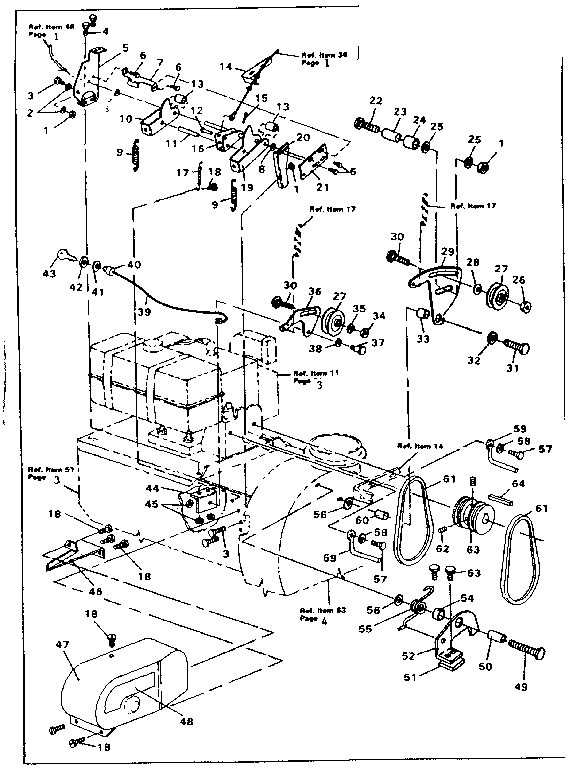

Drive assembly diagram

V-belt

Part #51304

Replaced by #51304MA

?
Manufacturer substitution
This part replaces 51304. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.32
14% OFF Phone Price : $35.32
In Stock
Spring 25644
#3

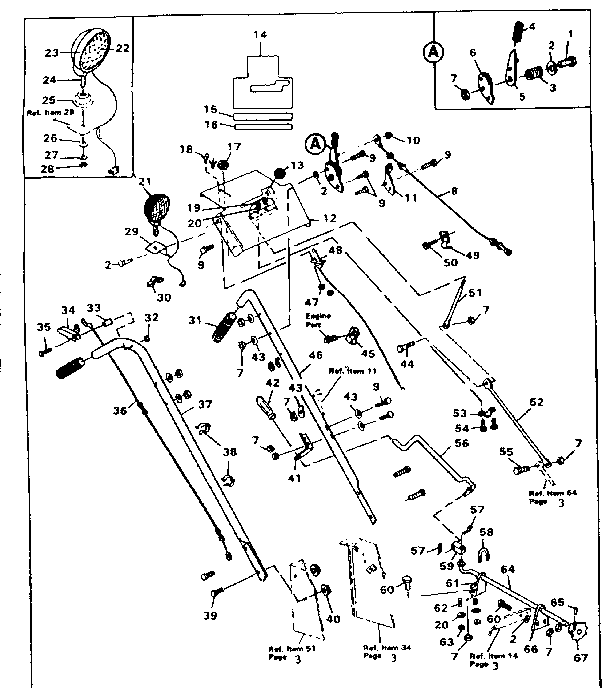

Handle assembly diagram

Spring

Part #25644

Replaced by #25644MA

?
Manufacturer substitution
This part replaces 25644. Substitute parts can look different from the original.
In Stock
Lock Nut 45905
#7

Wheel assembly diagram

Lock nut

Part #45905

Replaced by #45905MA

?
Manufacturer substitution
This part replaces 45905. Substitute parts can look different from the original.
In Stock
Hex Head Screw 443874
#18

Handle assembly diagram

Hex head screw

Part #443874

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Axle Washer 642
#29

Wheel assembly diagram

Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49
11% OFF Phone Price : $9.49
In Stock
Lock Nut 9413447
Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Nut 49106
#10

Handle assembly diagram

Nut

Part #49106

Replaced by #49106MA

?
Manufacturer substitution
This part replaces 49106. Substitute parts can look different from the original.
This item is not returnable
In Stock
