Kenmore 106627152 12.6 cubic foot coldspot upright freezer Parts
Here are the diagrams and repair parts for Kenmore 106627152 12.6 cubic foot coldspot upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 106627152 Freestanding Freezers
#NI
All parts diagram
Insulation
Part #505398Replaced by #606755
Manufacturer substitutionThis part replaces 505398. Substitute parts can look different from the original.In Stock$60.49
Qty

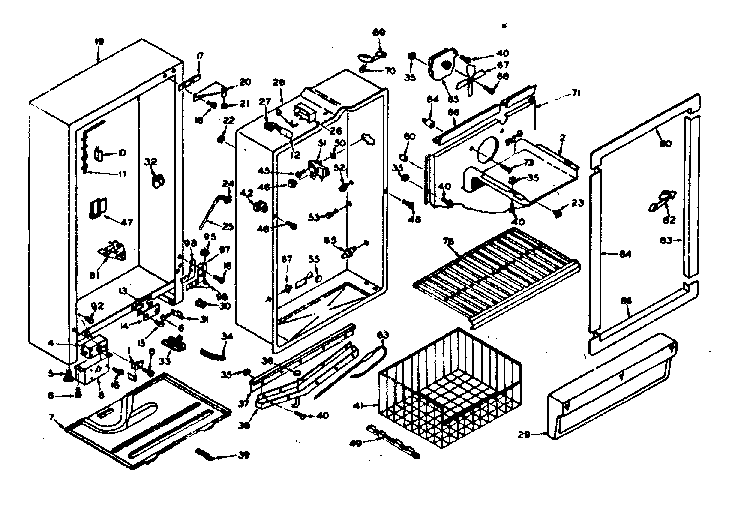

Cabinet parts diagram
Refrigerator Evaporator Motor Bracket Screw
Part #487887Replaced by #WP487887
Manufacturer substitutionThis part replaces 487887. Substitute parts can look different from the original.In Stock$37.63QtyCabinet parts diagram
Screw
Part #486117Replaced by #WP486754
Manufacturer substitutionThis part replaces 486117. Substitute parts can look different from the original.This item is not returnableIn Stock$28.49QtyDoor parts diagram
Screw
Part #487909Replaced by #WP488729
Manufacturer substitutionThis part replaces 487909. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93
Qty#NI
All parts diagram
Appliance Silicone Lubricant
Part #542638Replaced by #WP542638
Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.In Stock$37.3914% OFF Phone Price : $43.39QtyCabinet parts diagram
Bushing
Part #544108
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Heater
Part #531114
The manufacturer no longer makes this part, and there's no substitute part
Door parts diagram
Lock
Part #536353
The manufacturer no longer makes this part, and there's no substitute part
Door parts diagram
Retainer
Part #652727
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Epoxy
Part #799832
The manufacturer no longer makes this part, and there's no substitute part
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Appliance Porcelain Touch-up Paint, 1-qt (white)
In Stock
$131.86
8% OFF Phone Price : $143.86
Qty
Appliance Touch-up Paint, 2-oz (white)
In Stock
$31.02
16% OFF Phone Price : $37.02
Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
