Modern Maid FDU2492B-P1130625NB electric self-cleaning slide-in range Parts
Here are the diagrams and repair parts for Modern Maid FDU2492B-P1130625NB electric self-cleaning slide-in range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

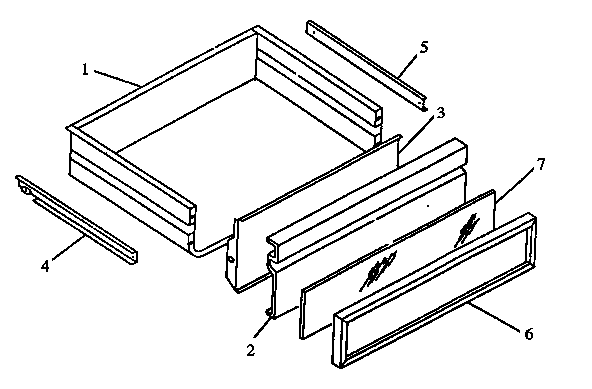

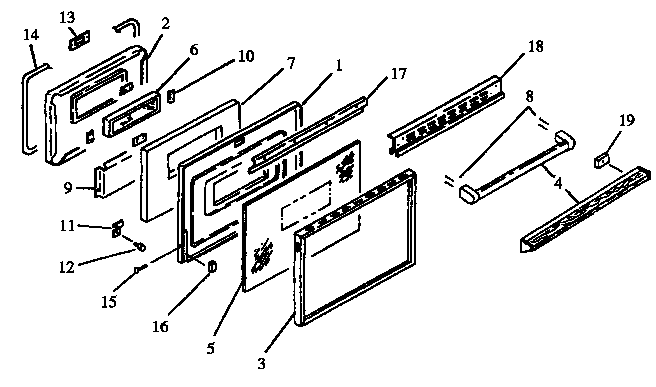

SELECT DIAGRAM
Browse Parts for FDU2492B-P1130625NB Ranges
Control panel diagram
Screw, #8-32
Part #0052031
The manufacturer no longer makes this part, and there's no substitute part

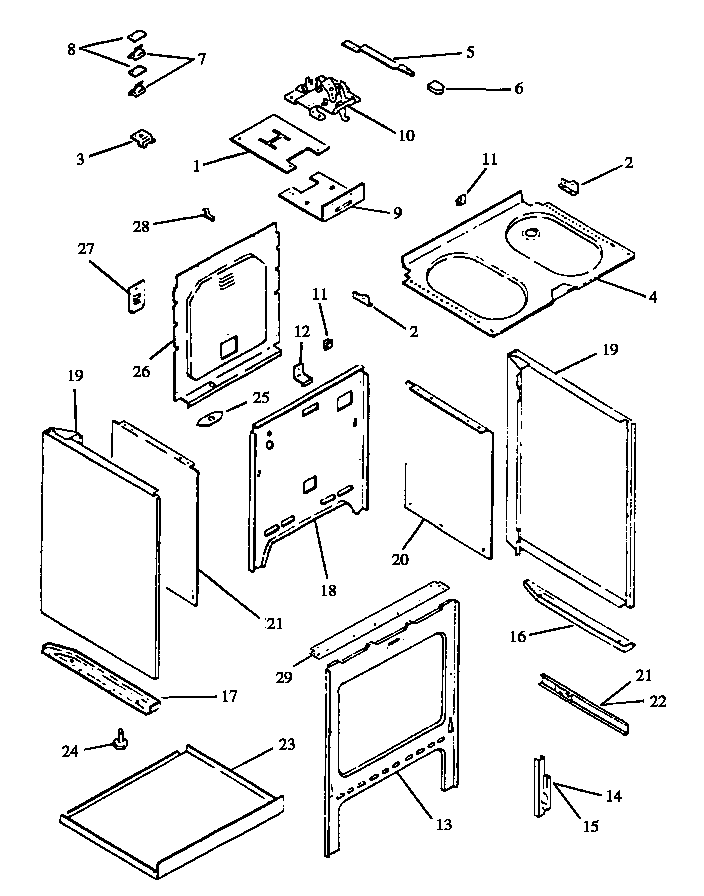

Cabinet assy diagram
Wire Clamp
Part #0068513
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assy diagram
Retainer
Part #0309061
The manufacturer no longer makes this part, and there's no substitute part

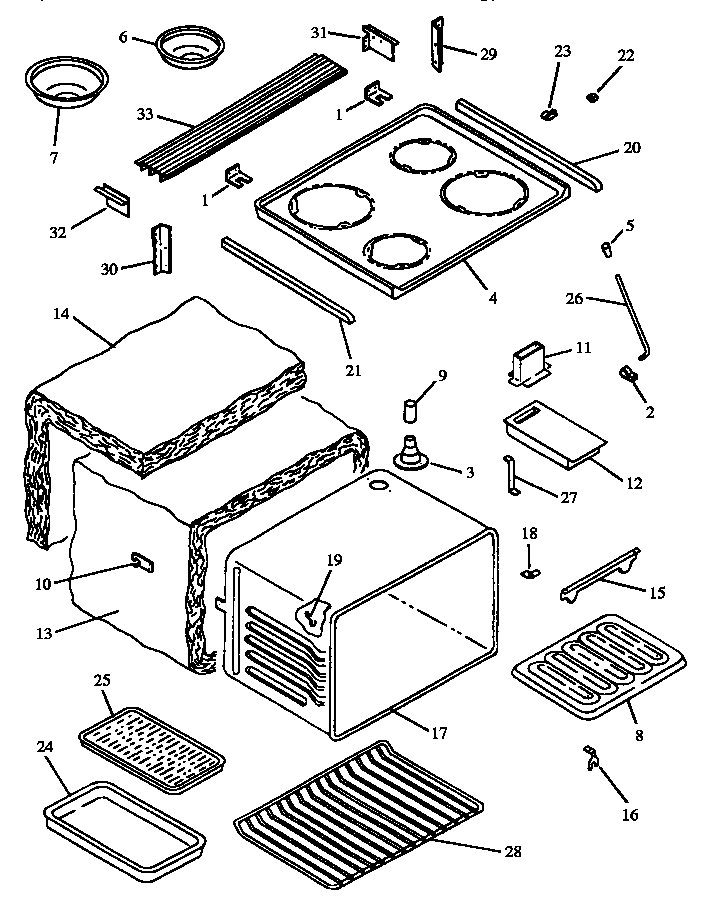

Main top and oven assy diagram
Mounting Bracket
Part #0061556
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assy diagram
Switch Bracket
Part #0061384
The manufacturer no longer makes this part, and there's no substitute part
Main top and oven assy diagram
Flue Box, Re
Part #0059431
The manufacturer no longer makes this part, and there's no substitute part
Electrical components diagram
Fan Assembly
Part #0309092
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assy diagram
Rear Retainer
Part #0309125
The manufacturer no longer makes this part, and there's no substitute part
Electrical components diagram
Element 6"
Part #0309076
The manufacturer no longer makes this part, and there's no substitute part
Electrical components diagram
Electronic Range Control Circulating Board
Part #0301277
The manufacturer no longer makes this part, and there's no substitute part
