Kenmore Elite
Microwave/Hood Combo

Model # 72186009010 Official Kenmore Elite microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore Elite 72186009010 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

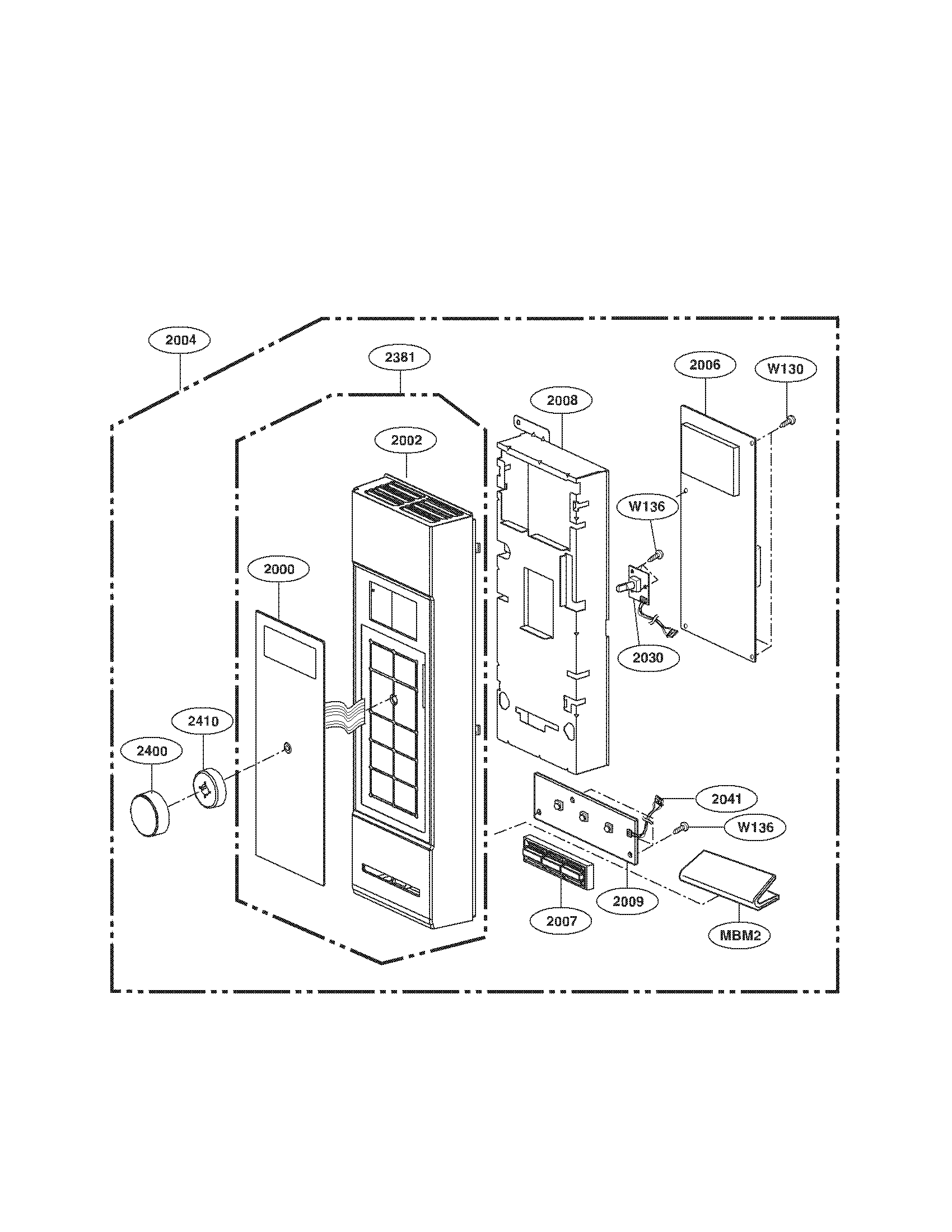

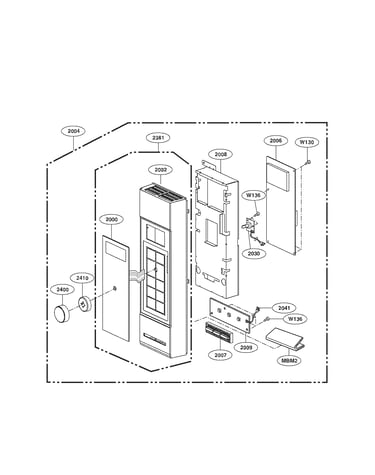

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Microwave Charcoal Filter 5230W1A003A
#5037

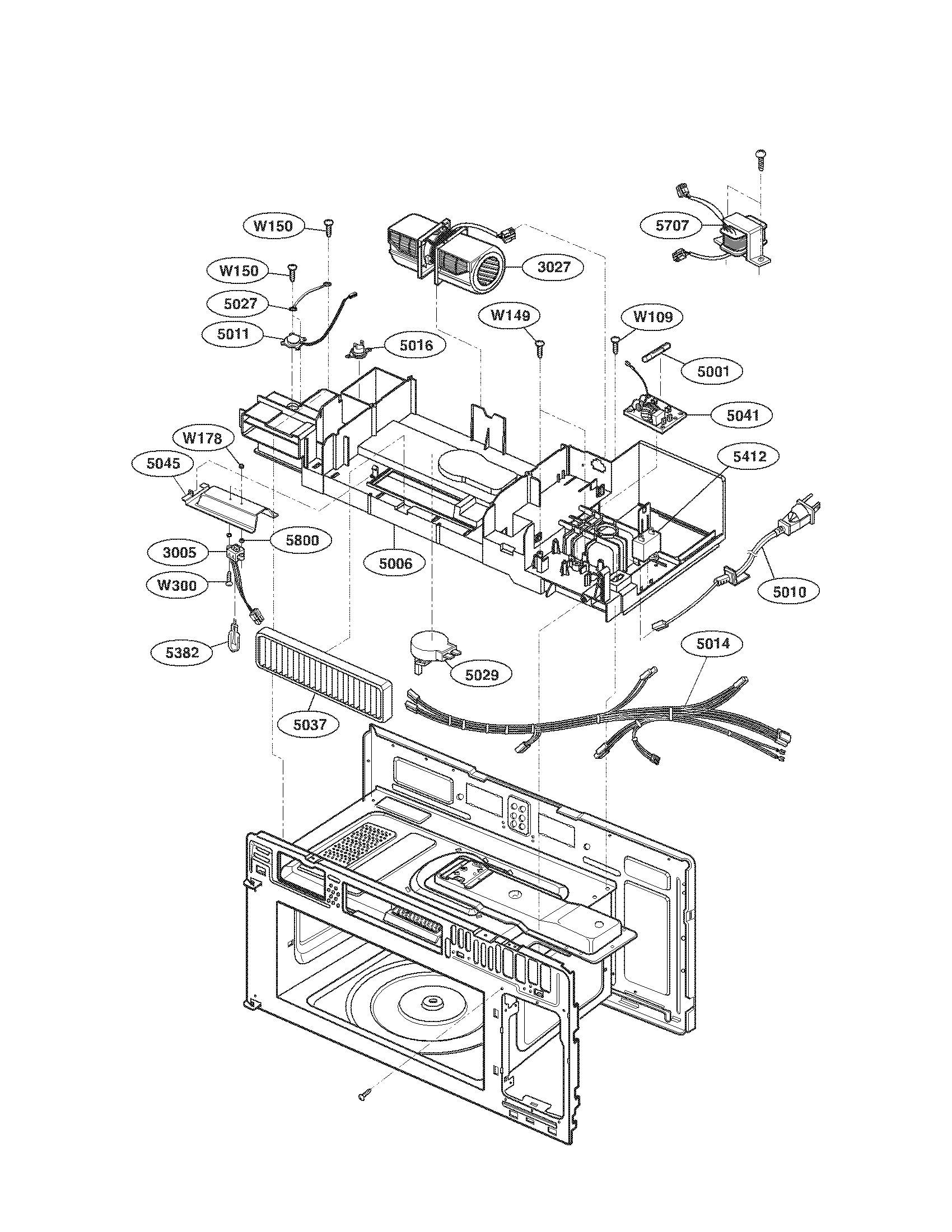

Interior parts diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19 |
15% OFF Phone Price : $33.19
In Stock
Grease Filter 2B72705B
#3026

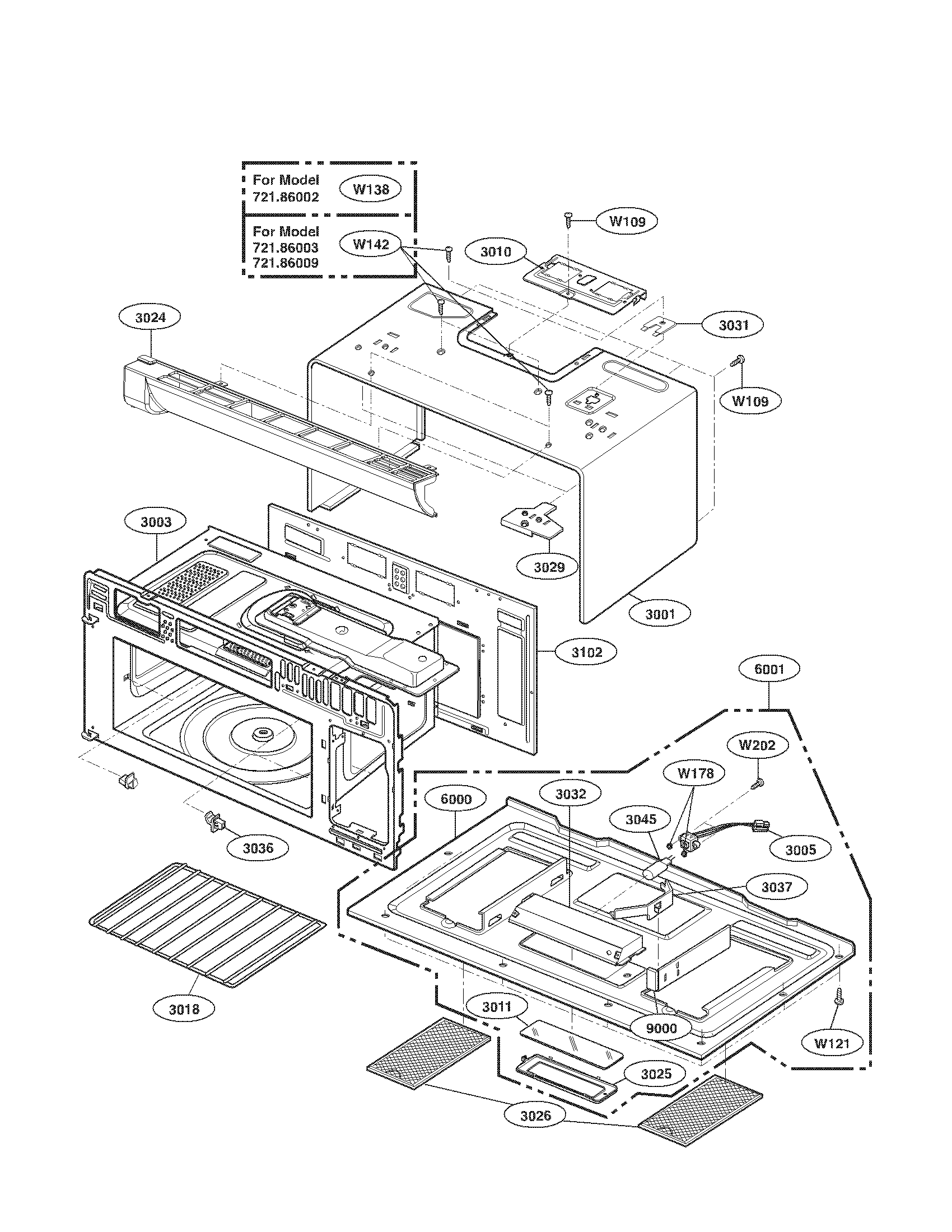

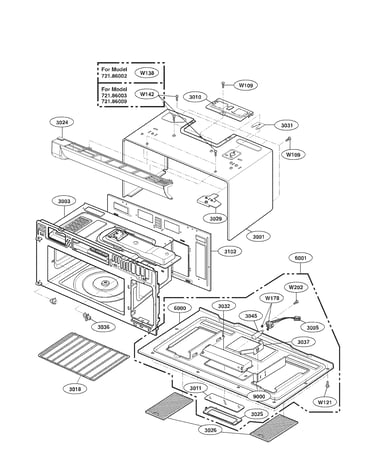

Oven cavity parts assembly diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Microwave Vent Grille MDX61171702
#3024

Oven cavity parts assembly diagram

Microwave vent grille

Part #MDX61171702

Replaced by #MDX61171703

?
Manufacturer substitution
This part replaces MDX61171702. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
12% OFF Phone Price : $41.75
In Stock
Magnetron 6324W1A001Y
#5009

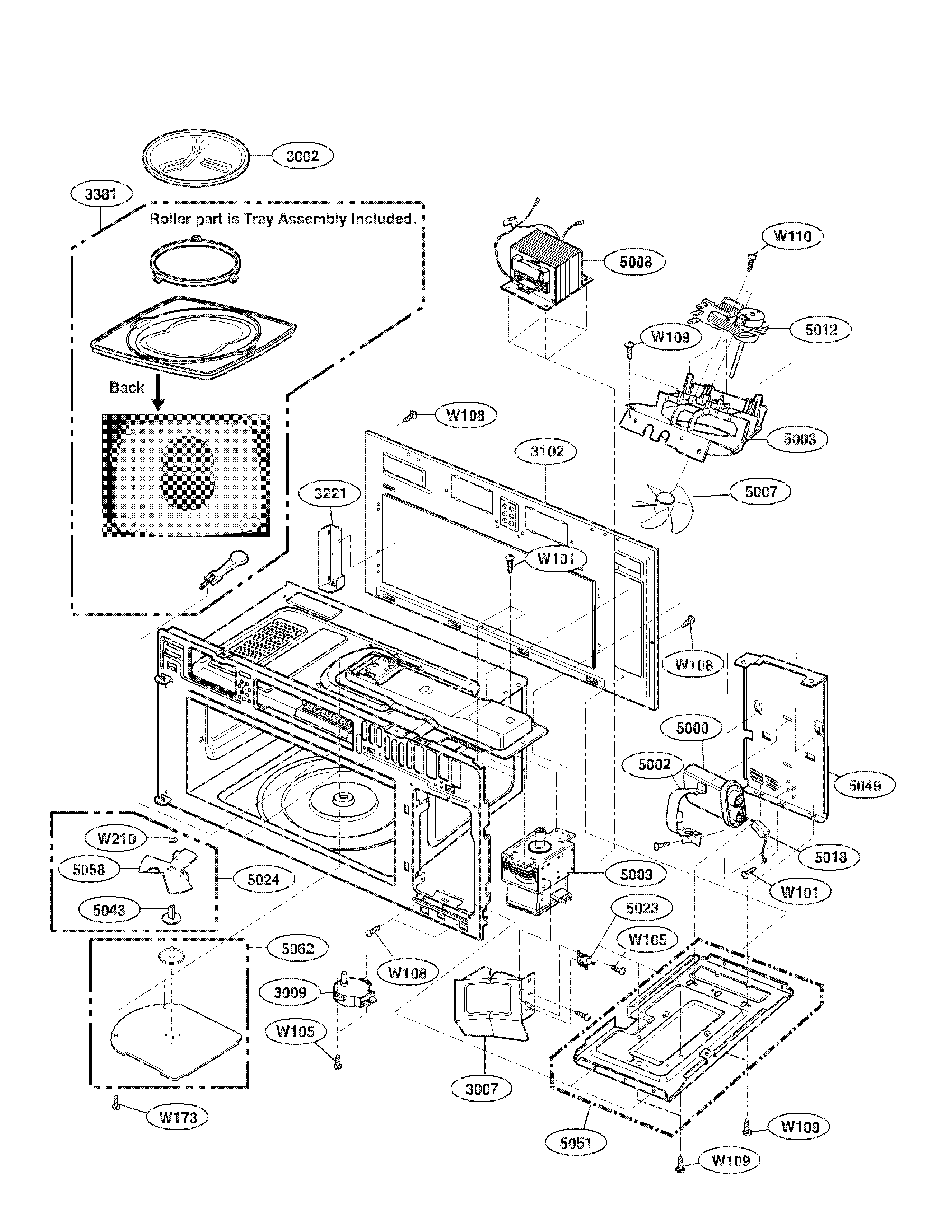

Interior parts diagram

Magnetron

Part #6324W1A001Y

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Switch 3B73361E
#4003

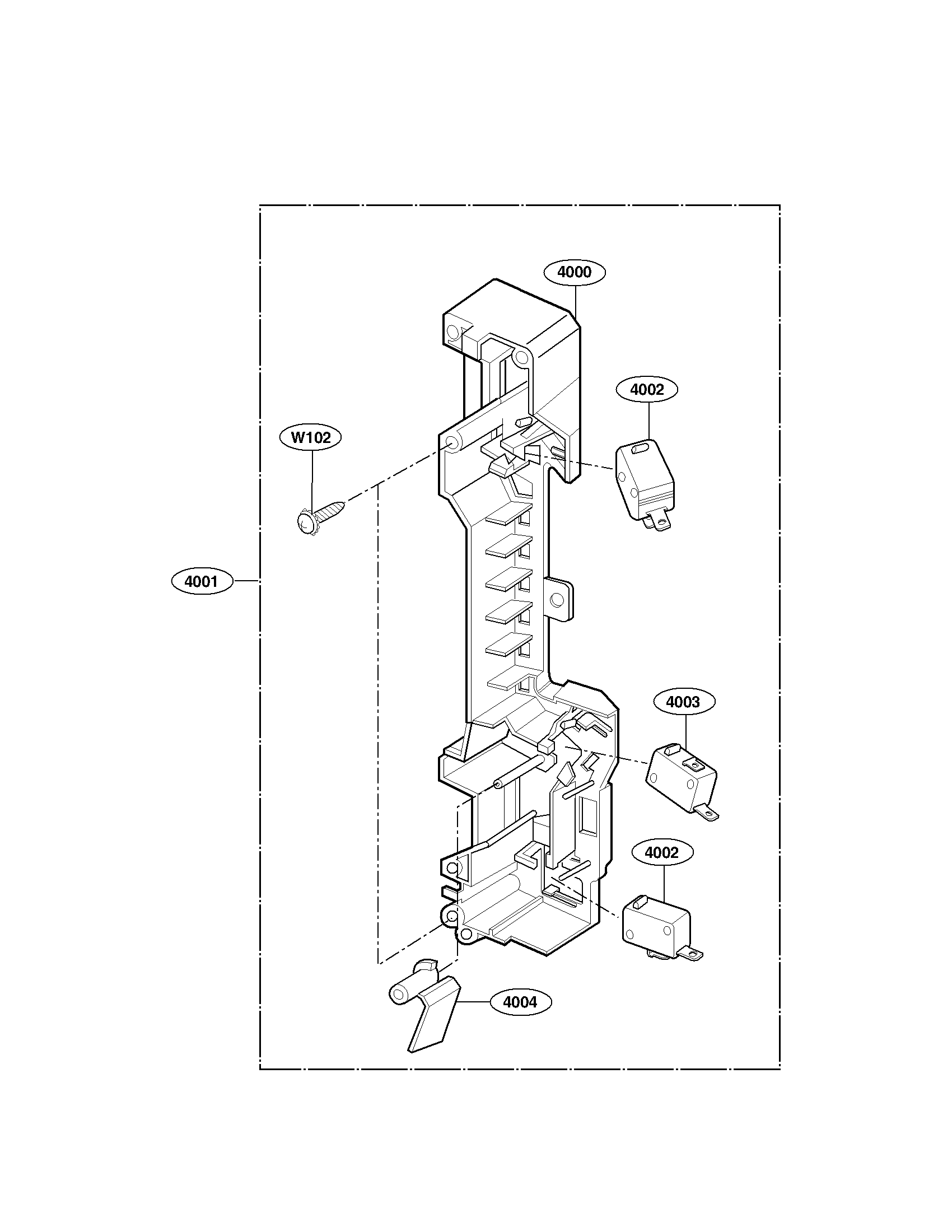

Latchboard parts assembly diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Capacitor 0CZZW1H003J
#5000

Interior parts diagram

Capacitor

Part #0CZZW1H003J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H003J. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

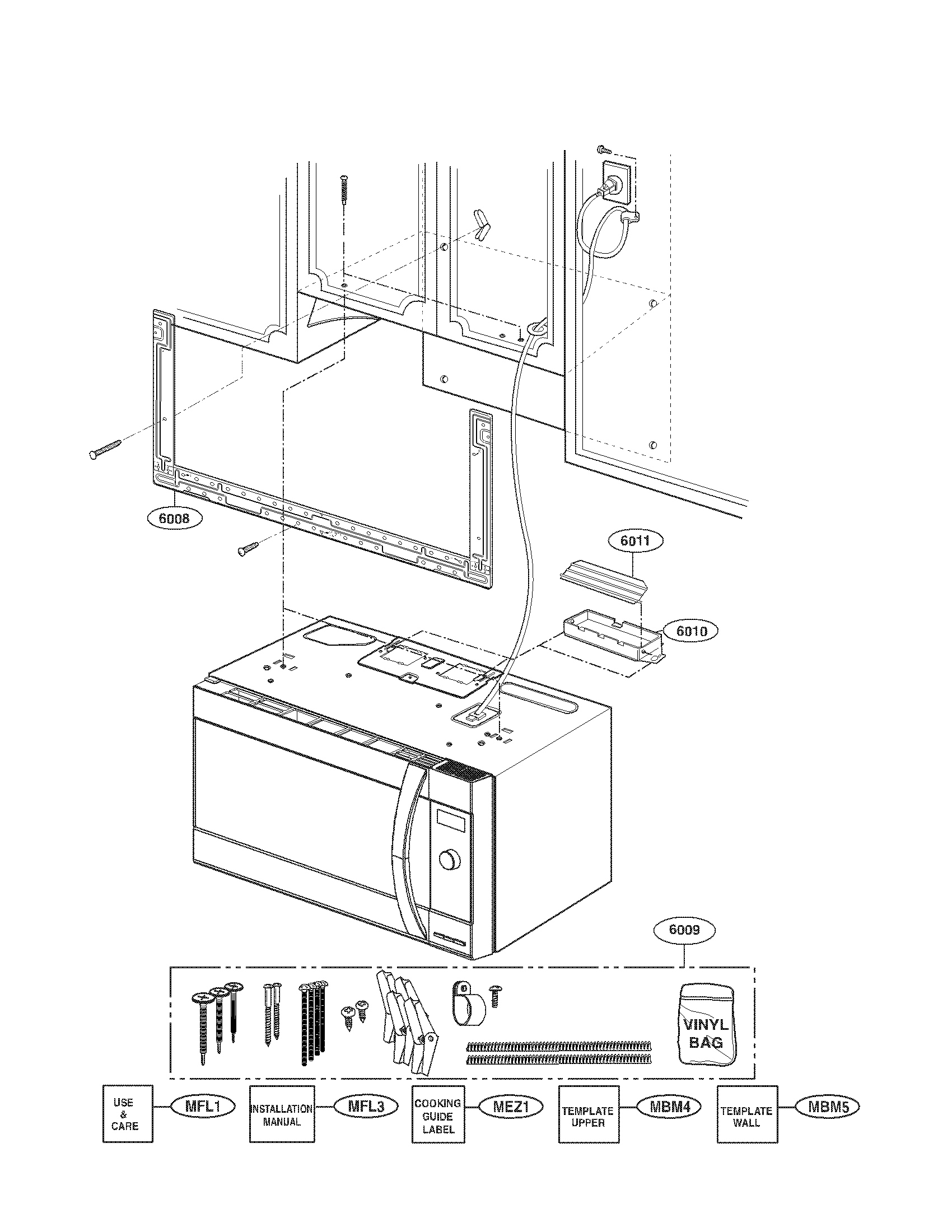

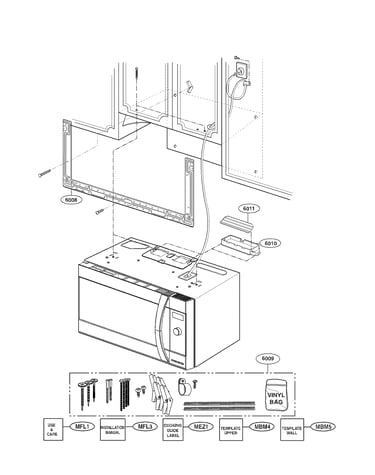

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Damper 3B71432A
#6011

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

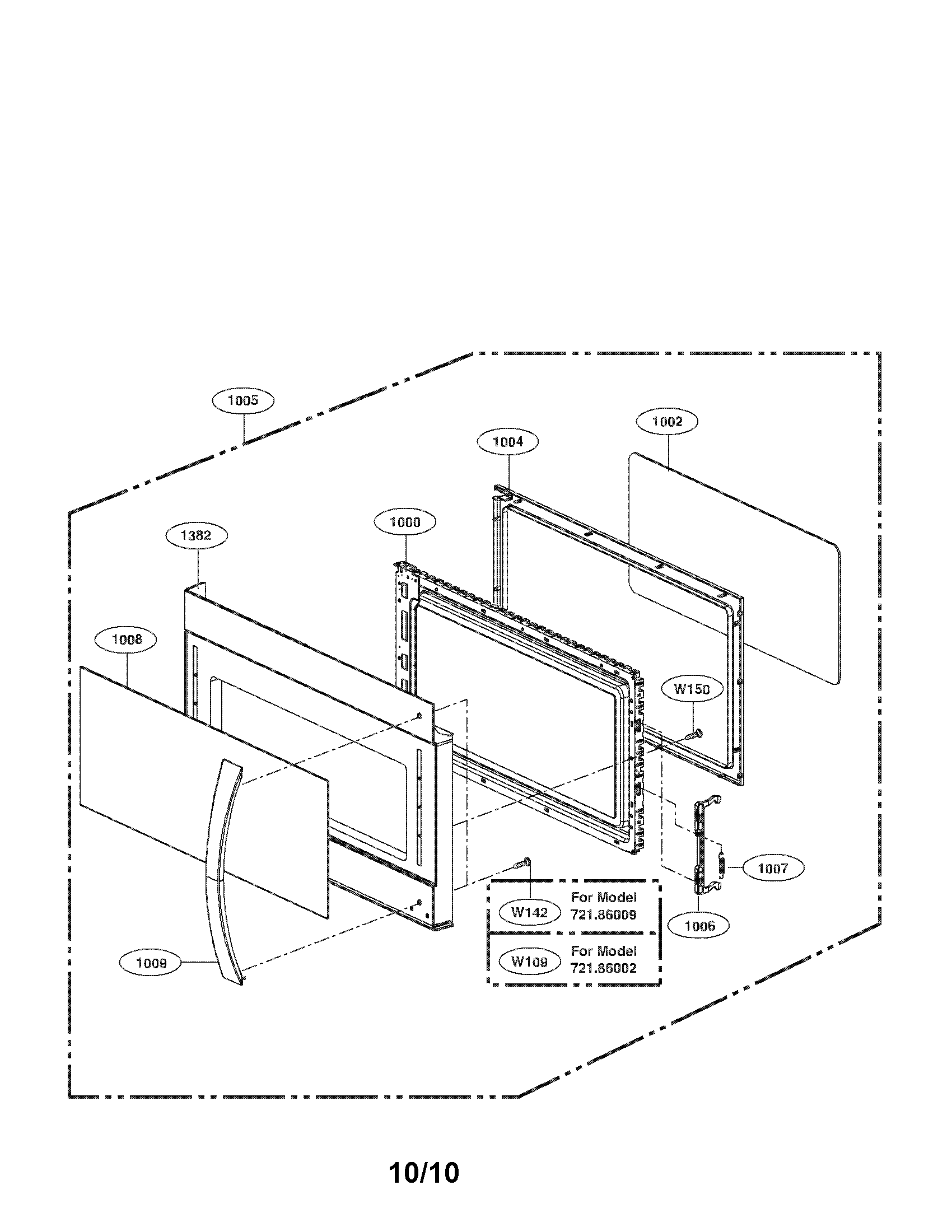

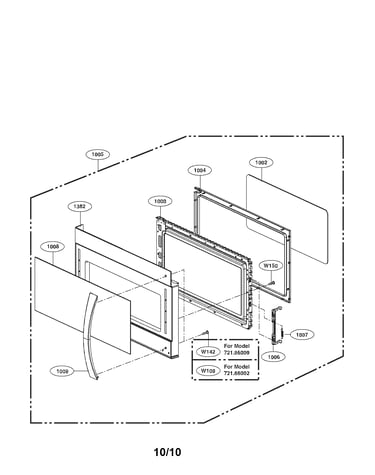

Door assembly parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Thermostat (replaces 6930w1a002k, 6930wrt003c) 6930W1A003J
#5016

Interior parts diagram

Microwave thermostat (replaces 6930w1a002k, 6930wrt003c)

Part #6930W1A003J

BEST SELLER
$10.03 |
17% OFF Phone Price : $12.03
In Stock
