Frigidaire
Gas Range

Model # CFGS379DC2 Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire CFGS379DC2 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

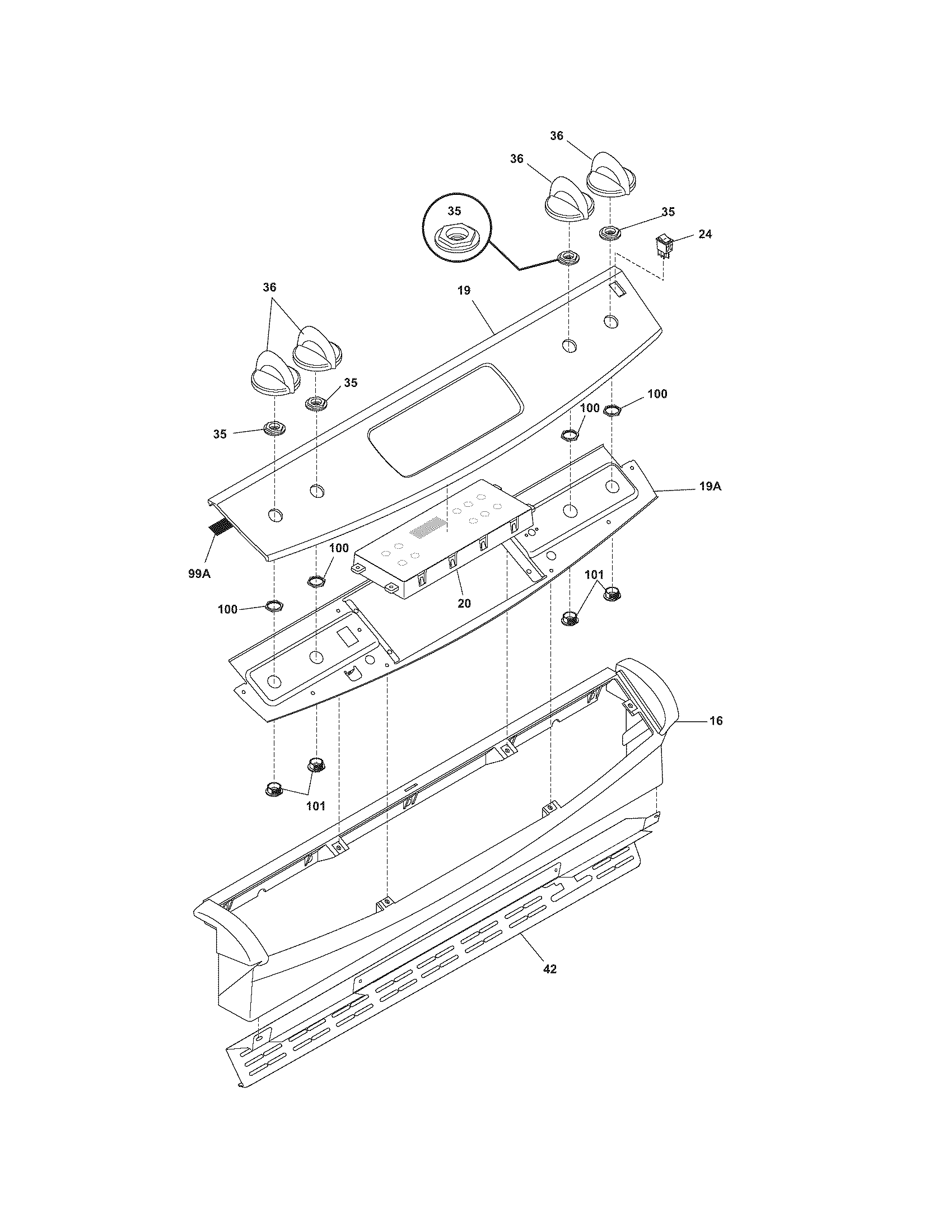

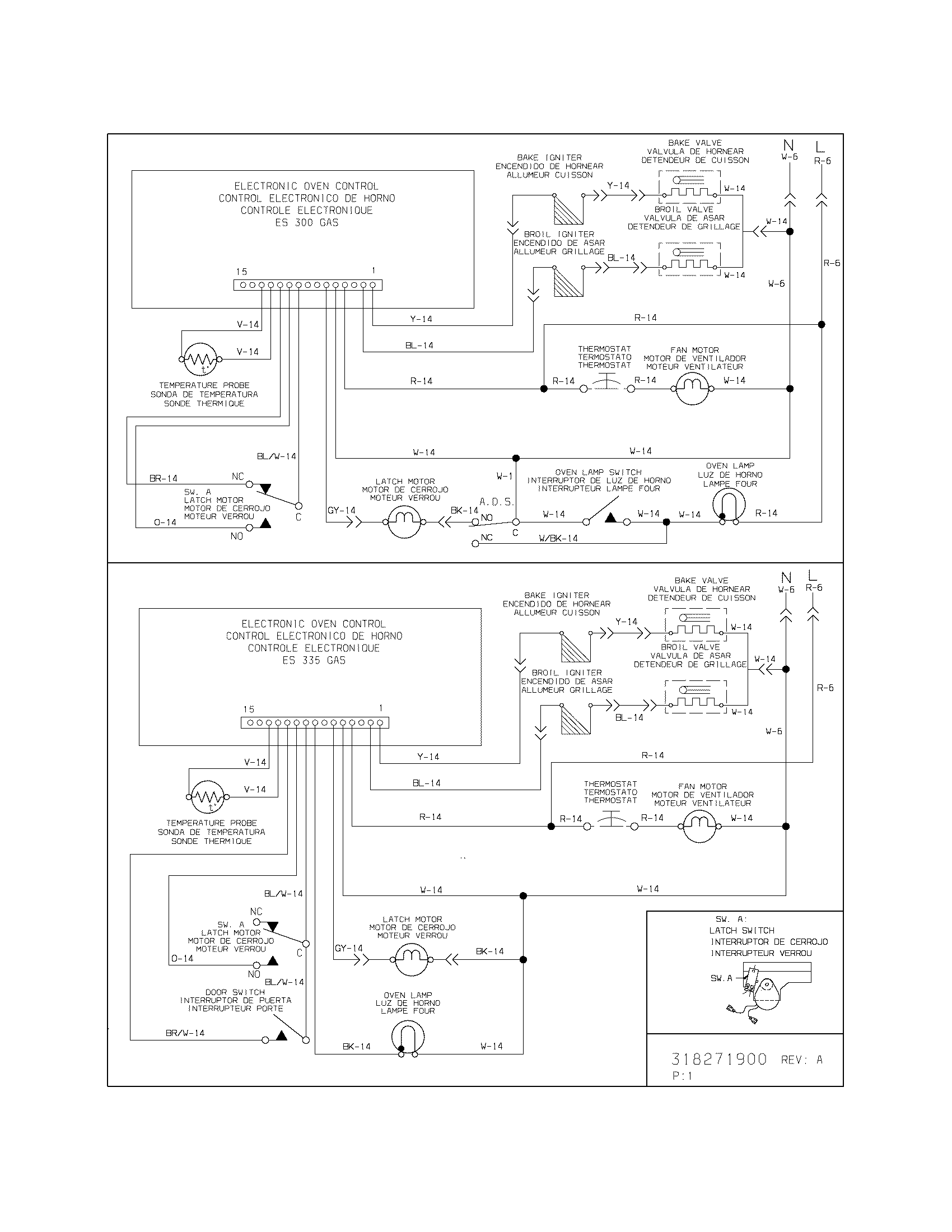

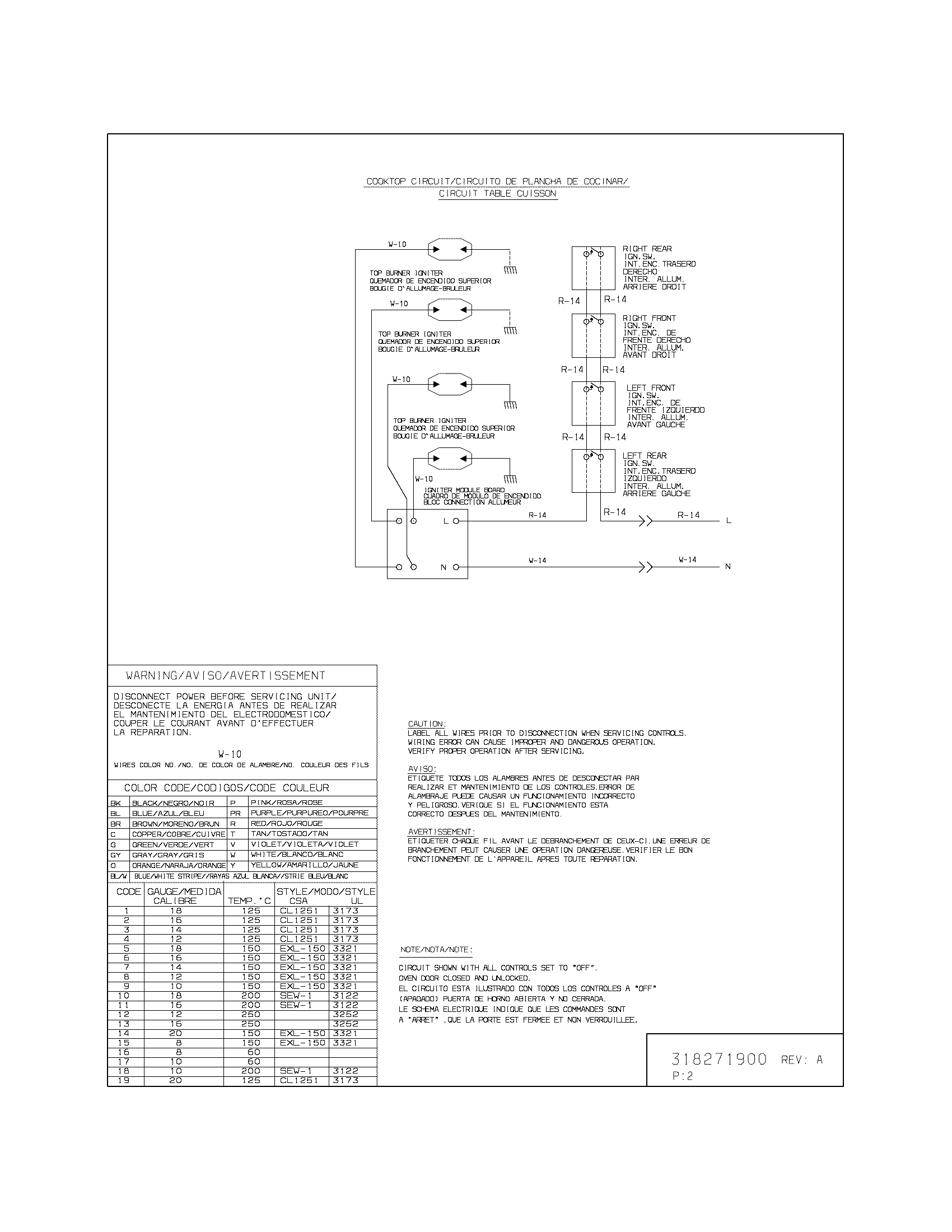

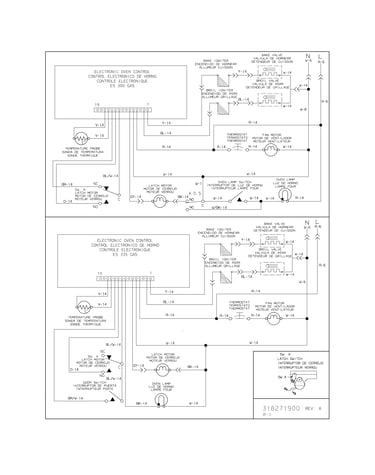

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 166 parts  |

Range Oven Light Bulb 5303013071
#15

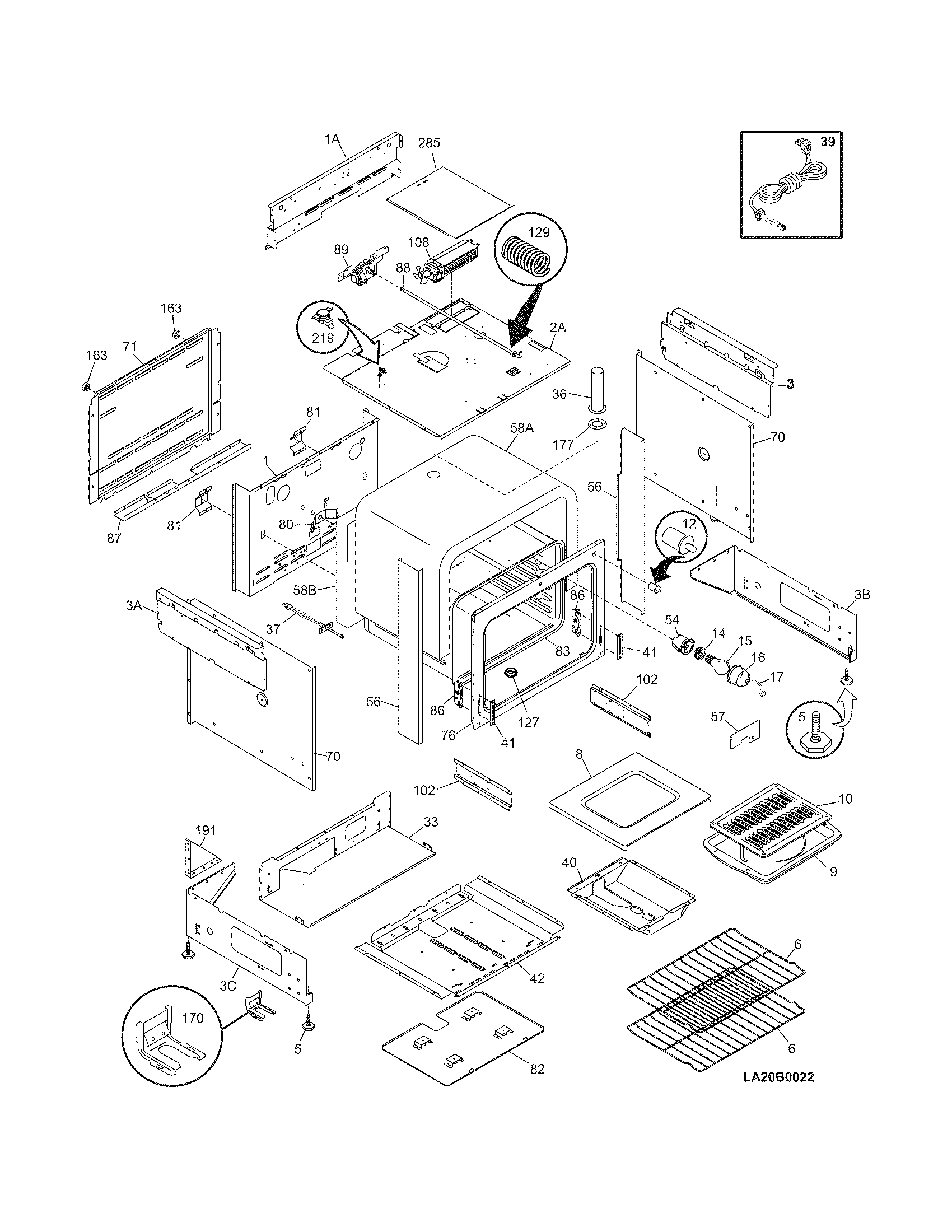

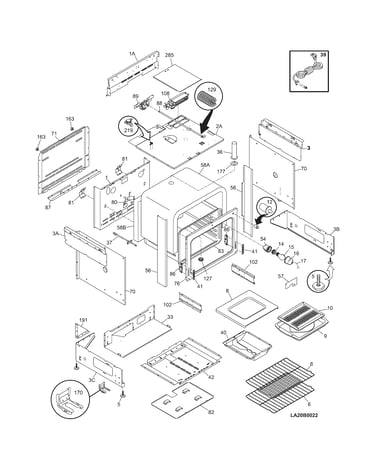

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Igniter 316428600
#26

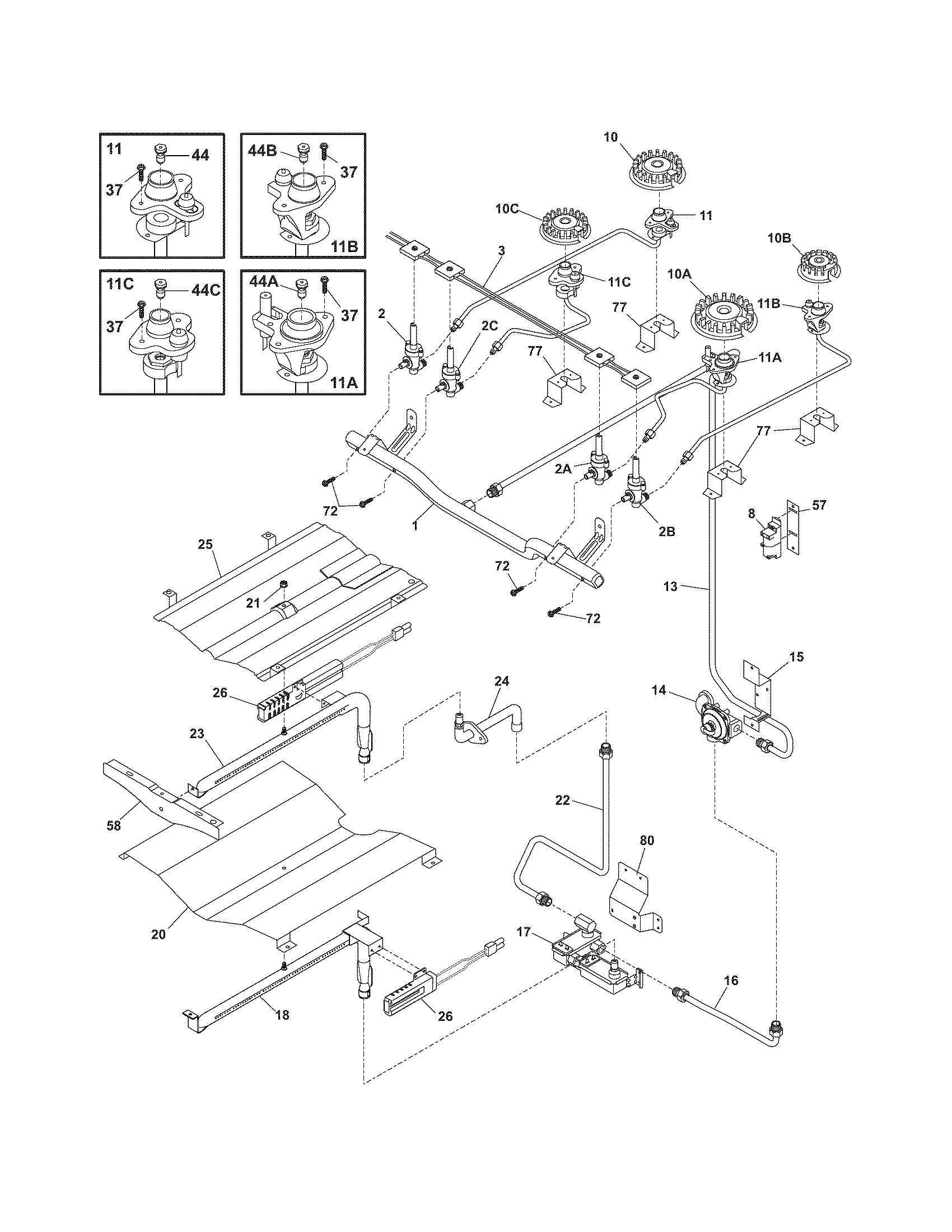

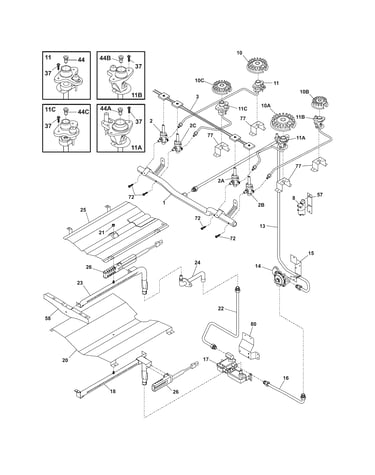

Burner diagram

Igniter

Part #316428600

Replaced by #318177710

?
Manufacturer substitution
This part replaces 316428600. Substitute parts can look different from the original.
BEST SELLER
$147.31
6% OFF Phone Price : $157.31
In Stock
Range Surface Burner Head (replaces 7316223400) 316223400
#10A

Burner diagram

Range surface burner head (replaces 7316223400)

Part #316223400

BEST SELLER
$61.90
7% OFF Phone Price : $66.90
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90
13% OFF Phone Price : $15.90
In Stock
Range Oven Door Inner Glass 318041603
#16

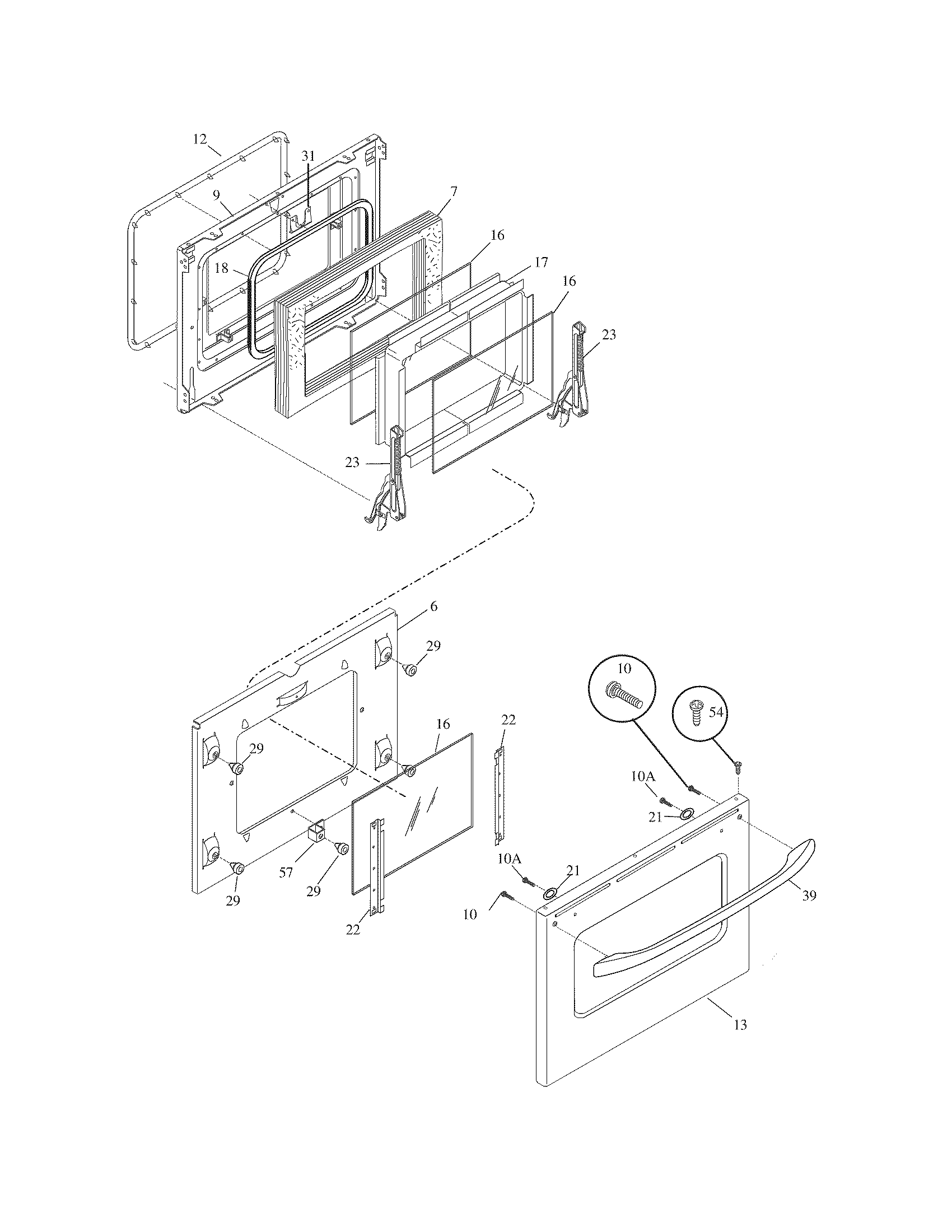

Door diagram

Range oven door inner glass

Part #318041603

BEST SELLER
$51.71
9% OFF Phone Price : $56.71
Back Order
Cord 3202006
#39

Body diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
BEST SELLER
$29.60
14% OFF Phone Price : $34.60
In Stock
Range Surface Burner Seal, 9,500-btu 316242002
#31C

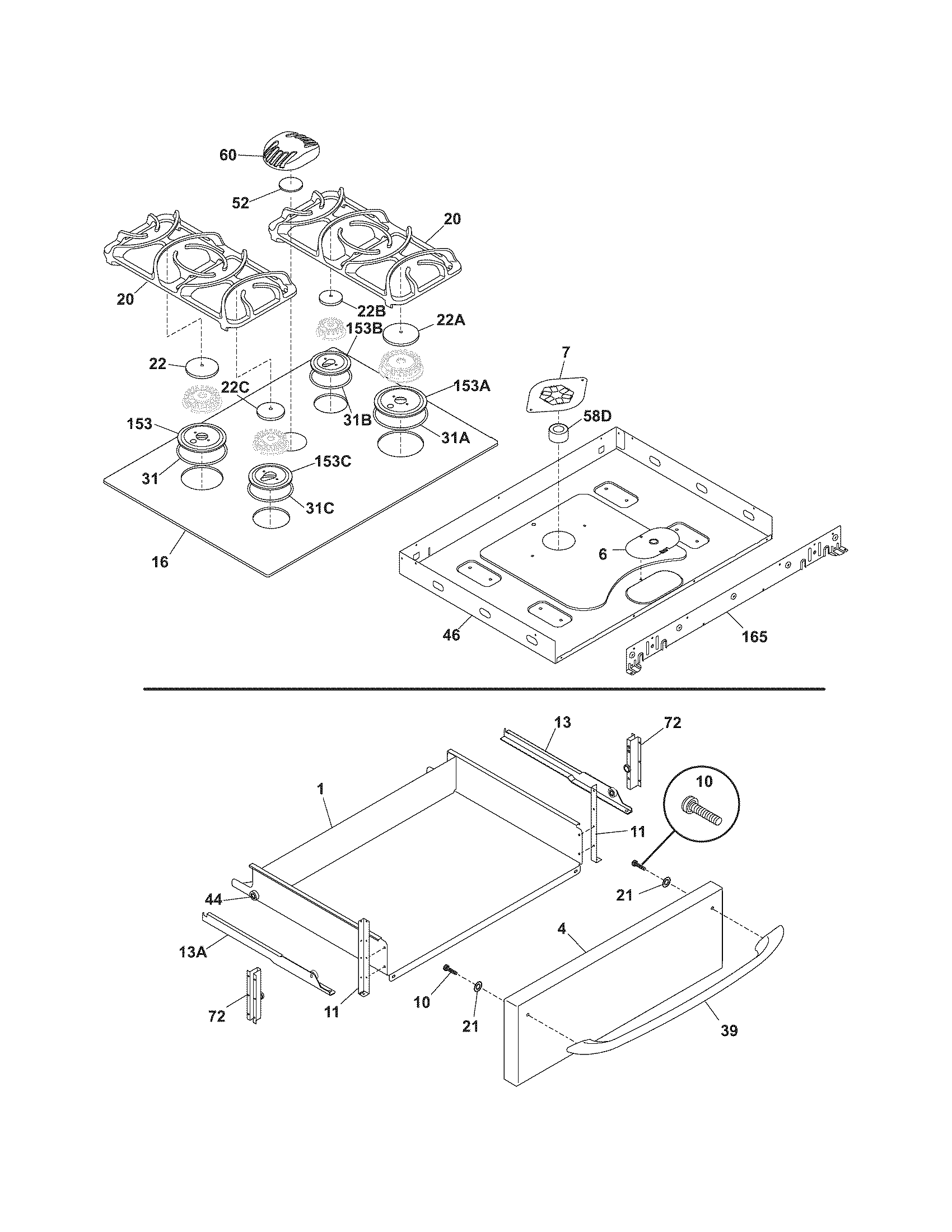

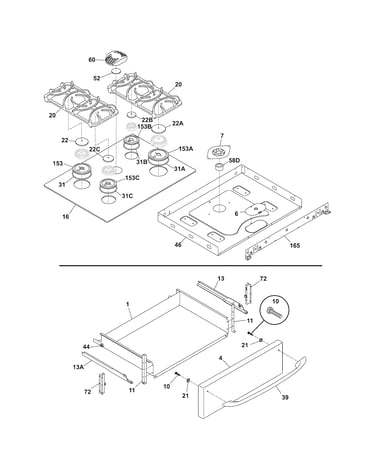

Top/drawer diagram

Range surface burner seal, 9,500-btu

Part #316242002

BEST SELLER
$18.92
10% OFF Phone Price : $20.92
In Stock
Insert Broil 5303317976
#10

Body diagram

Insert broil

Part #5303317976

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317976. Substitute parts can look different from the original.
BEST SELLER
$59.77
8% OFF Phone Price : $64.77
In Stock
Broiler Pan 5303317977
#9

Body diagram

Broiler pan

Part #5303317977

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317977. Substitute parts can look different from the original.
BEST SELLER
$59.77
8% OFF Phone Price : $64.77
In Stock
Range Sealed Burner Assembly 316206400
#10B

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
BEST SELLER
$58.89
8% OFF Phone Price : $63.89
In Stock
