Kenmore 66513362K110 undercounter dishwasher Parts

Your Kenmore dishwasher’s model number is typically printed on a rating label inside the door area. For Kenmore dishwashers like model 66513362K110, we usually find it on the inner door frame, along the top edge of the door opening, or on the tub wall just inside the door.

• Open the dishwasher door fully and look around the inner door frame
• Check the top edge of the door opening (near the latch area)
• Look on the tub wall just inside the door (left or right side)
• Check the side edge of the door itself
• If the label is worn, use a flashlight and look for faint stamped or printed characters

If the inside label is missing or unreadable, the model tag is sometimes located:

• On the side of the dishwasher cabinet (visible after removing the toe-kick panel)
• On the frame behind the lower access panel
• In your paperwork; see the 66513362K110 owner's manual

Kenmore model numbers can look similar, but small differences change the correct parts list. Using the exact model number helps us match the right rack parts, pumps, and valves for your dishwasher.

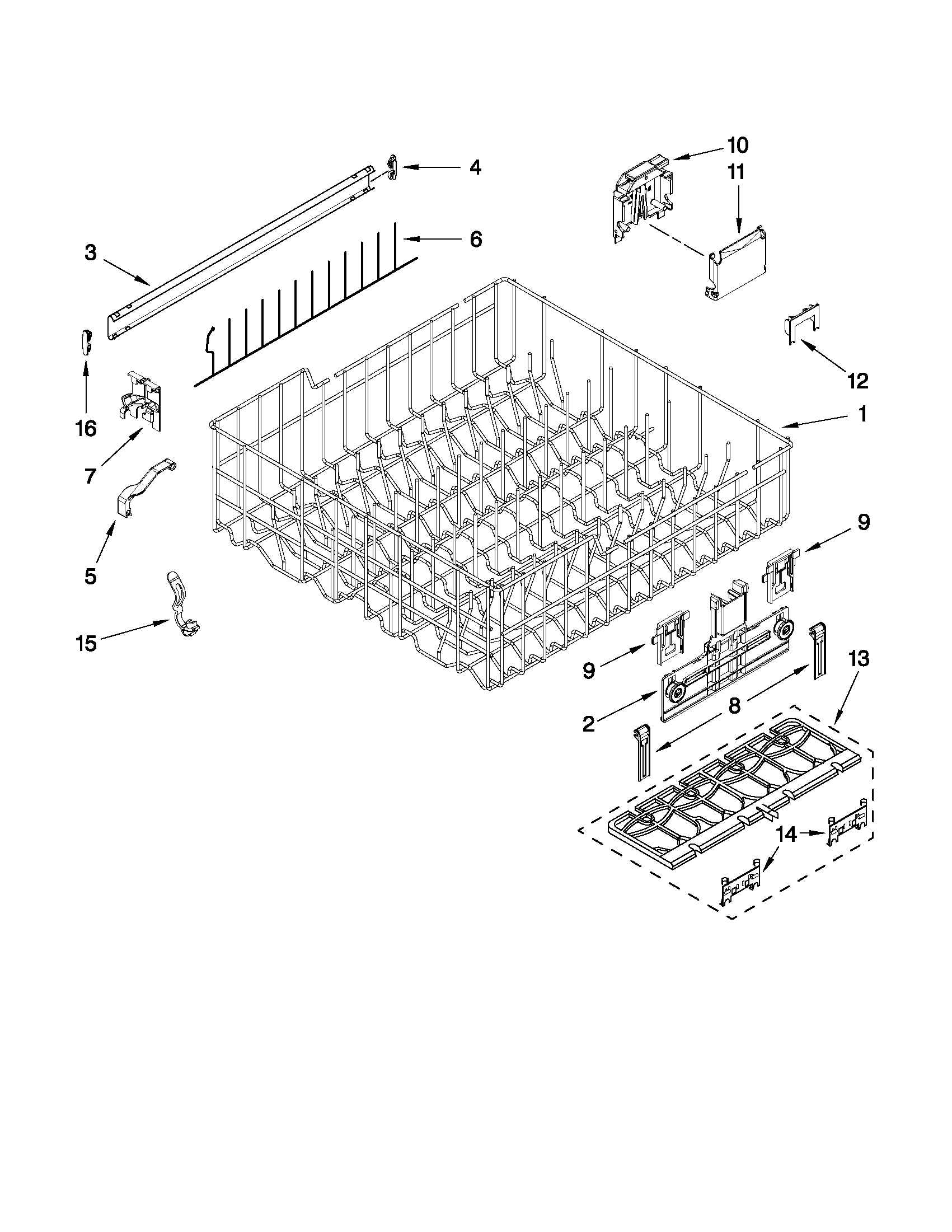

Once you confirm the model, you can confidently choose model-matched parts, such as the dishrack adjuster kit - dishwasher rack component by whirlpool W10712395 if you are fixing an upper rack that will not raise, lower, or stay aligned.

Last updated: February 2026

Yes, repairing your Kenmore undercounter dishwasher model 66513362K110 is worth it when the problem is a single failed part or a wear item; replacement makes more sense when several major systems are failing or the repair total is close to the cost of a new dishwasher.

Use these checkpoints before ordering parts or booking service:

• Age: Under 10 years old typically favors repair; 10 to 15 years is case-by-case; over 15 years typically favors replacement.
• Cost rule: If the repair is under about 50% of replacement cost, repair is the better value.
• Scope: One clear symptom (won’t drain, won’t fill, no heat) is usually a good repair candidate.
• Repeat issues: Ongoing leaks, repeated electrical problems, or multiple unrelated symptoms point to replacement.
• DIY savings: If you can follow the steps in the 66513362K110 installation guide, you can cut labor costs.

These are common single-component fixes on dishwashers like the 66513362K110:

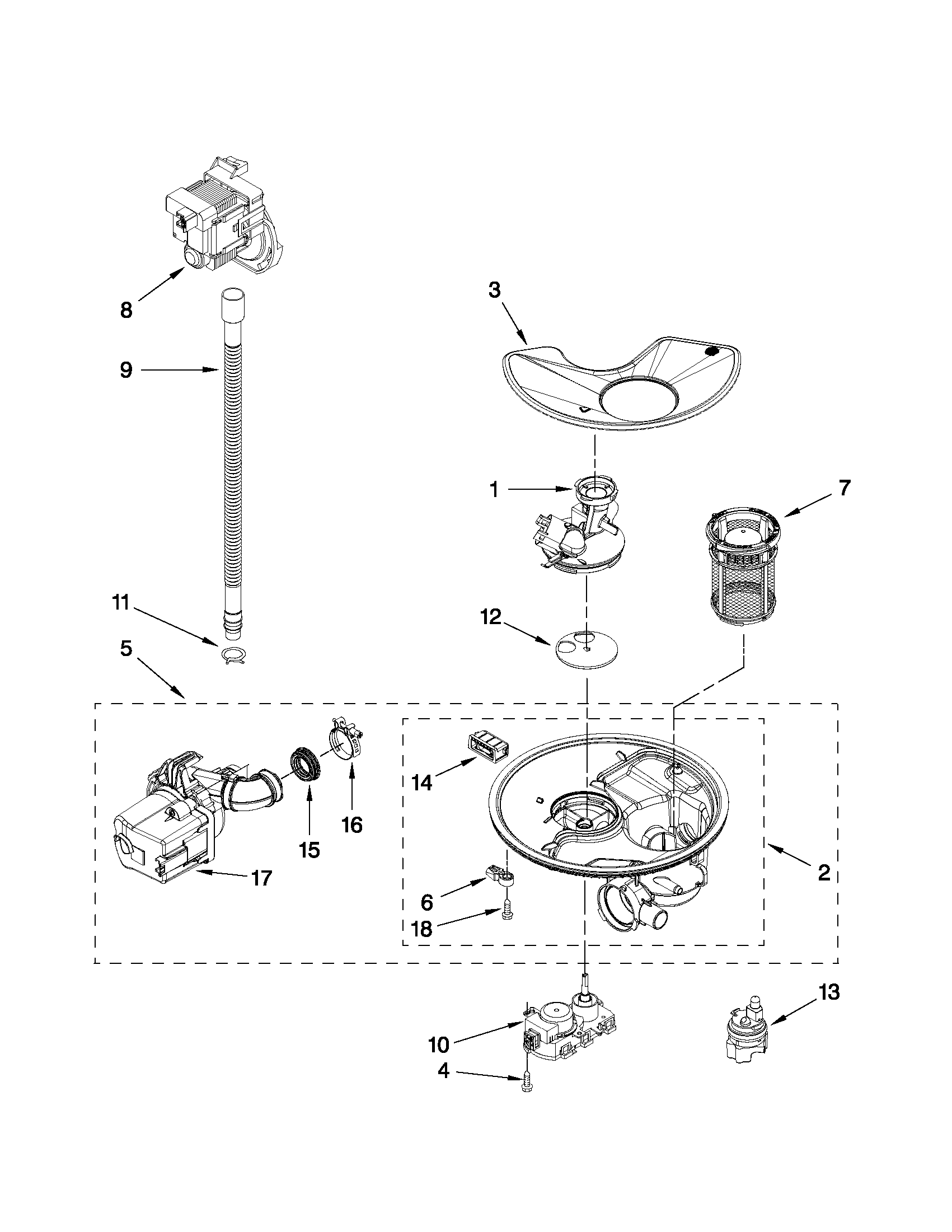

• Not draining: clear the filter and hose first; then consider the dishwasher drain pump WPW10348269

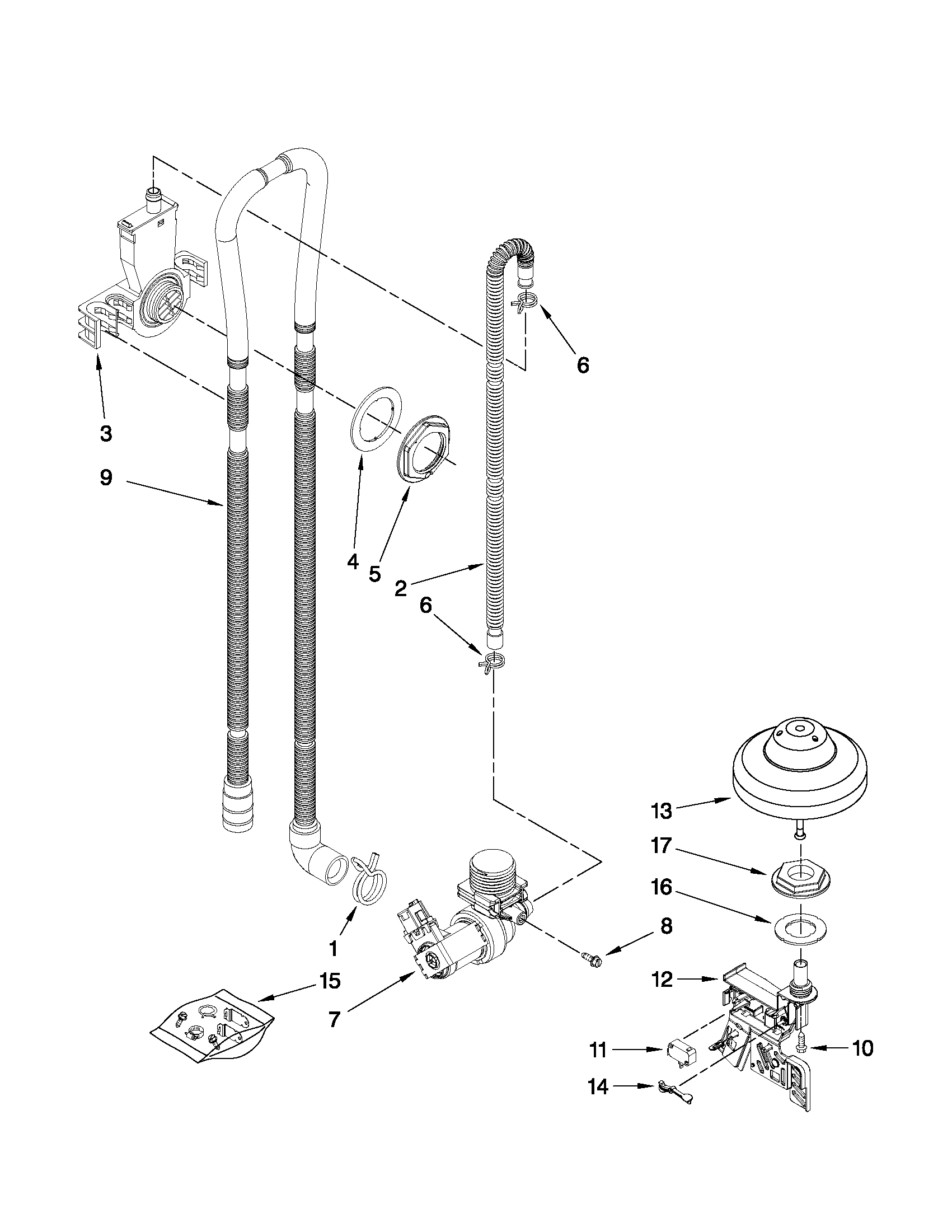

• Not filling: confirm the water supply is on; then consider the dishwasher water inlet valve W11175771

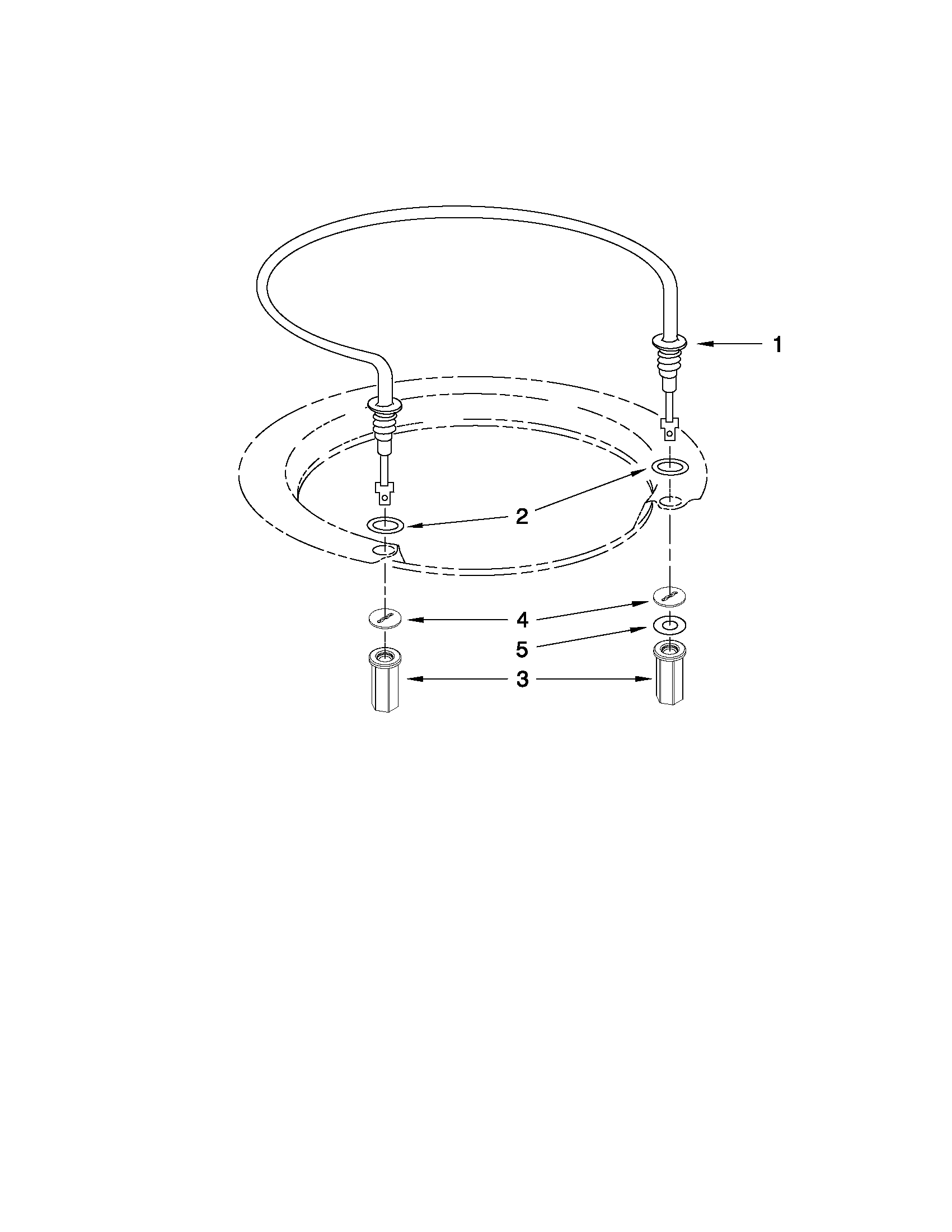

• Poor drying or no heat: consider the dishwasher heater W10703867

A targeted repair restores washing and drying performance for far less than replacement, especially when the fix is limited to a pump, inlet valve, or heater.

Last updated: February 2026

Common problems we see with the Kenmore 66513362K110 dishwasher include not starting (often a door not fully latched), not draining, poor cleaning from spray issues, and poor drying when rinse aid is low. Many issues are resolved by basic checks in the 66513362K110 installation guide.

• Won’t start or Start/Resume light flashes: the door is not closed and latched quickly enough; on many models you must close the door within about 3 seconds after pressing Start/Resume.
• No water in the tub early in the cycle: water supply is off, inlet valve issue, or a kinked supply line.
• Won’t drain or leaves standing water: drain hose routing problem, clogged path, or a failing drain pump.
• Dishes not clean: spray arm ports clogged, filter area dirty, or loading blocking spray.
• Poor drying or spots/film: rinse aid is low; hard water deposits build up faster without it.

• Confirm the breaker/fuse is on and the dishwasher has power.
• Close the door firmly until it latches; then press Start/Resume and close the door promptly.
• Verify the water shutoff valve under the sink is fully open.
• Check the drain hose for kinks and make sure it is routed correctly (not pinched behind the unit).
• Run the shortest cycle and, after about 2 minutes, open the door to confirm water is in the bottom of the tub.

If the basic checks point to a failed component, these are frequent replacements for this model family:

Catching a fill or drain problem early prevents incomplete cycles, standing water odors, and repeat wash issues. Using rinse aid consistently also improves drying and helps control hard water deposits in energy-efficient dishwashers.

Last updated: February 2026
