GE
Range Hood

Model # JVB37H1BB Official GE range hood

Here are the diagrams and repair parts for Official GE JVB37H1BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

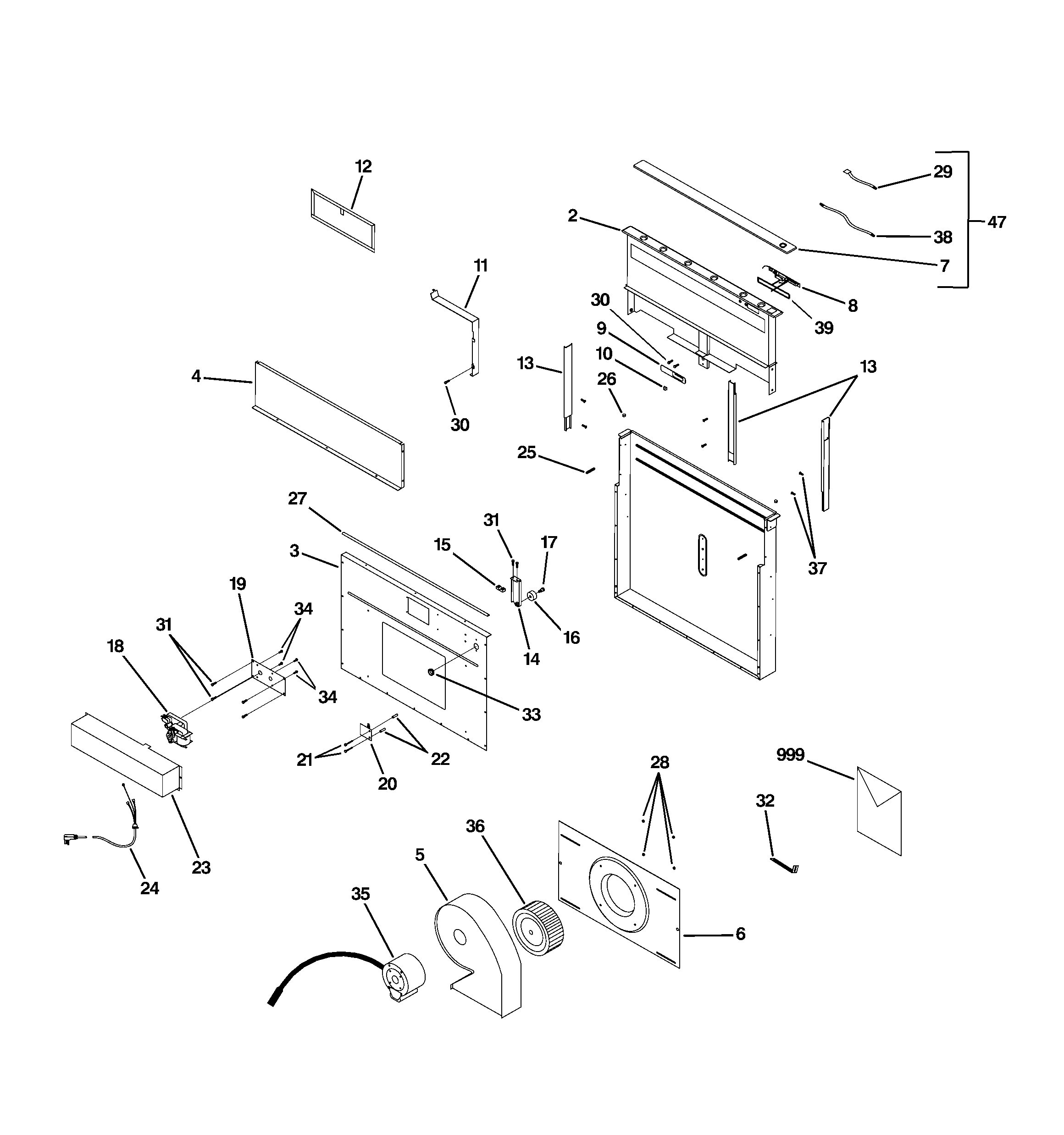

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Bumper WB02X10938
#26

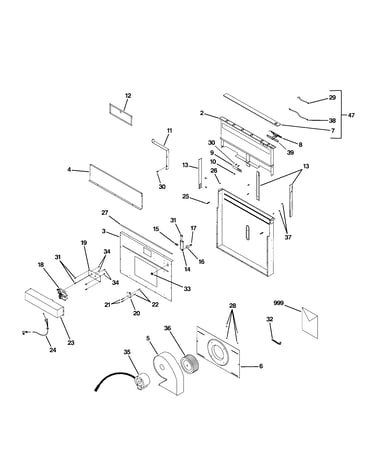

Hood parts diagram

Bumper

Part #WB02X10938

In Stock
Screw, #8-18 WB01X10269
#34

Hood parts diagram

Screw, #8-18

Part #WB01X10269

In Stock
Cooking Appliance Fan Blade WB26X10130
#36

Hood parts diagram

Cooking appliance fan blade

Part #WB26X10130

$44.39
10% OFF Phone Price : $49.39
In Stock
Plate Mtg, G WB02X10936
#19

Hood parts diagram

Plate mtg, g

Part #WB02X10936

$48.89
9% OFF Phone Price : $53.89
In Stock
Bracket Support WB02X10577
#32

Hood parts diagram

Bracket support

Part #WB02X10577

In Stock
Retainer WB02X10934
#15

Hood parts diagram

Retainer

Part #WB02X10934

$36.68
12% OFF Phone Price : $41.68
In Stock
Screw, #8 WB01X10172
#31

Hood parts diagram

Screw, #8

Part #WB01X10172

In Stock
Roller WB02X10935
#16

Hood parts diagram

Roller

Part #WB02X10935

In Stock
Screw Pan He WB01X10008
#37

Hood parts diagram

Screw pan he

Part #WB01X10008

Replaced by #WB01X10324

?
Manufacturer substitution
This part replaces WB01X10008. Substitute parts can look different from the original.
This item is not returnable
In Stock
Downdraft Vent Up/down Switch (black) WB24X10115
#29

Hood parts diagram

Downdraft vent up/down switch (black)

Part #WB24X10115

The manufacturer no longer makes this part, and there's no substitute part
