Jenn-Air
Electric Cooktop

Model # JEC0536ADB Official Jenn-Air electric counter unit cooktop

Here are the diagrams and repair parts for Official Jenn-Air JEC0536ADB electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

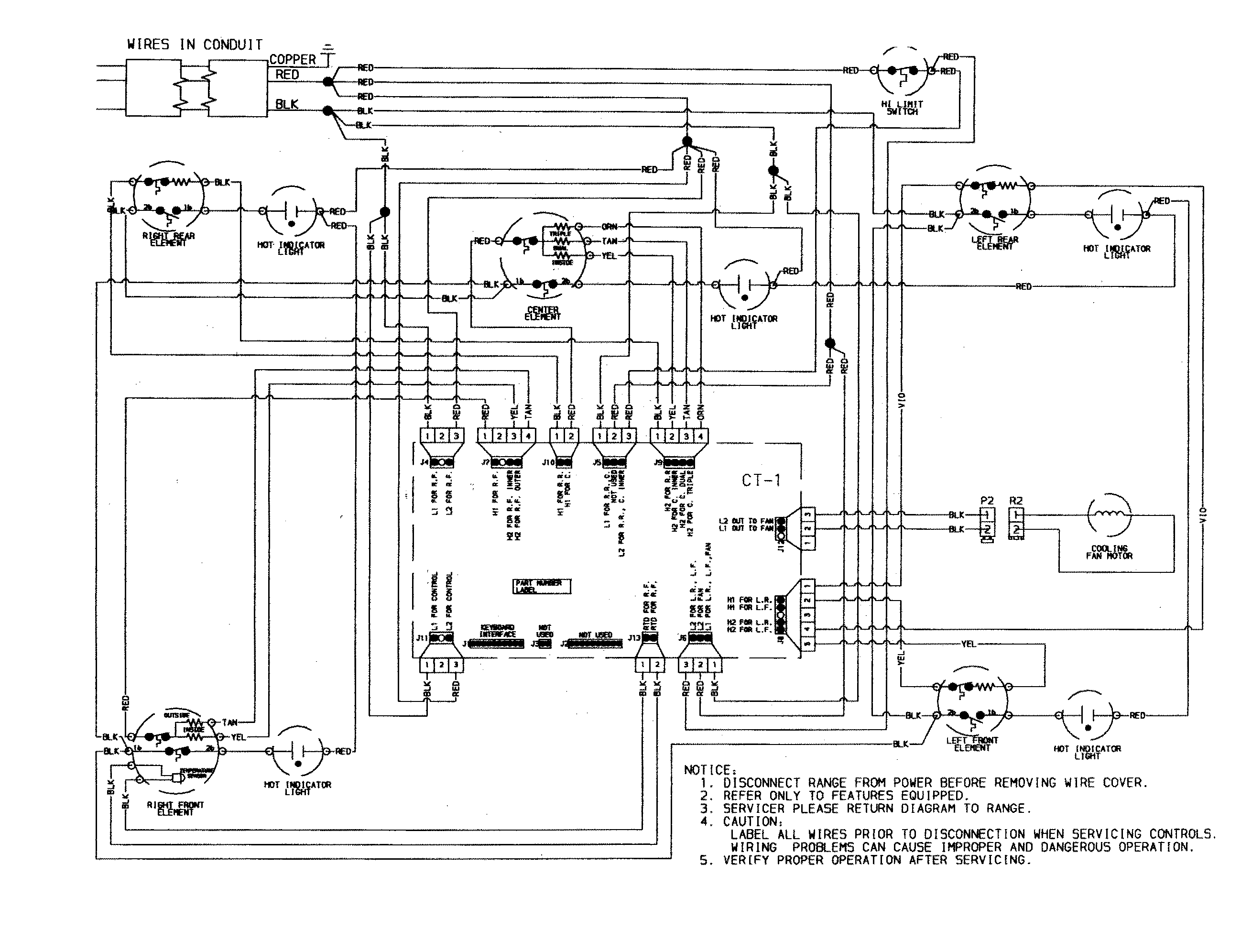

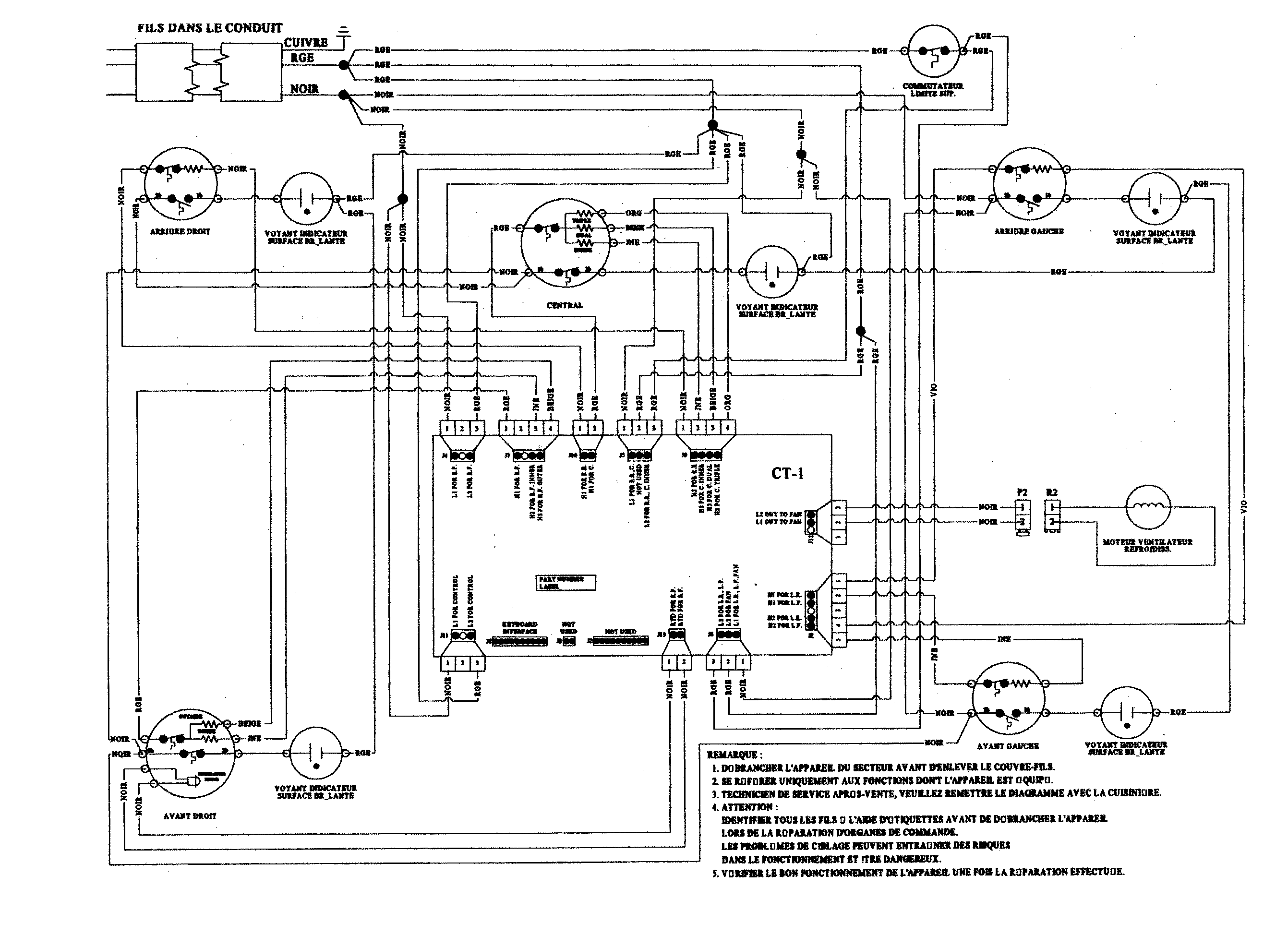

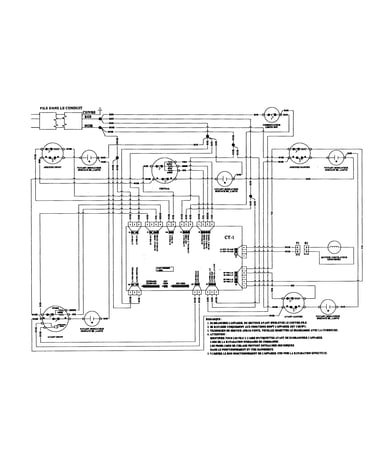

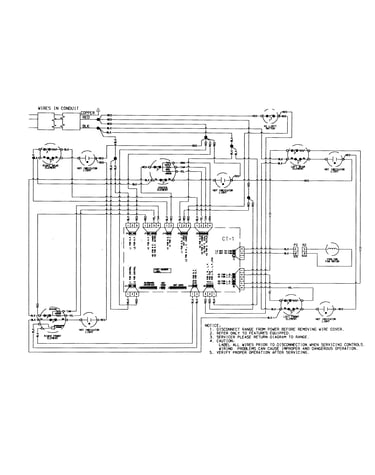

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Cooktop Clea 20001099
#2

Supplemental information diagram

Cooktop clea

Part #20001099

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20001099. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Glass Top 74010154
#1

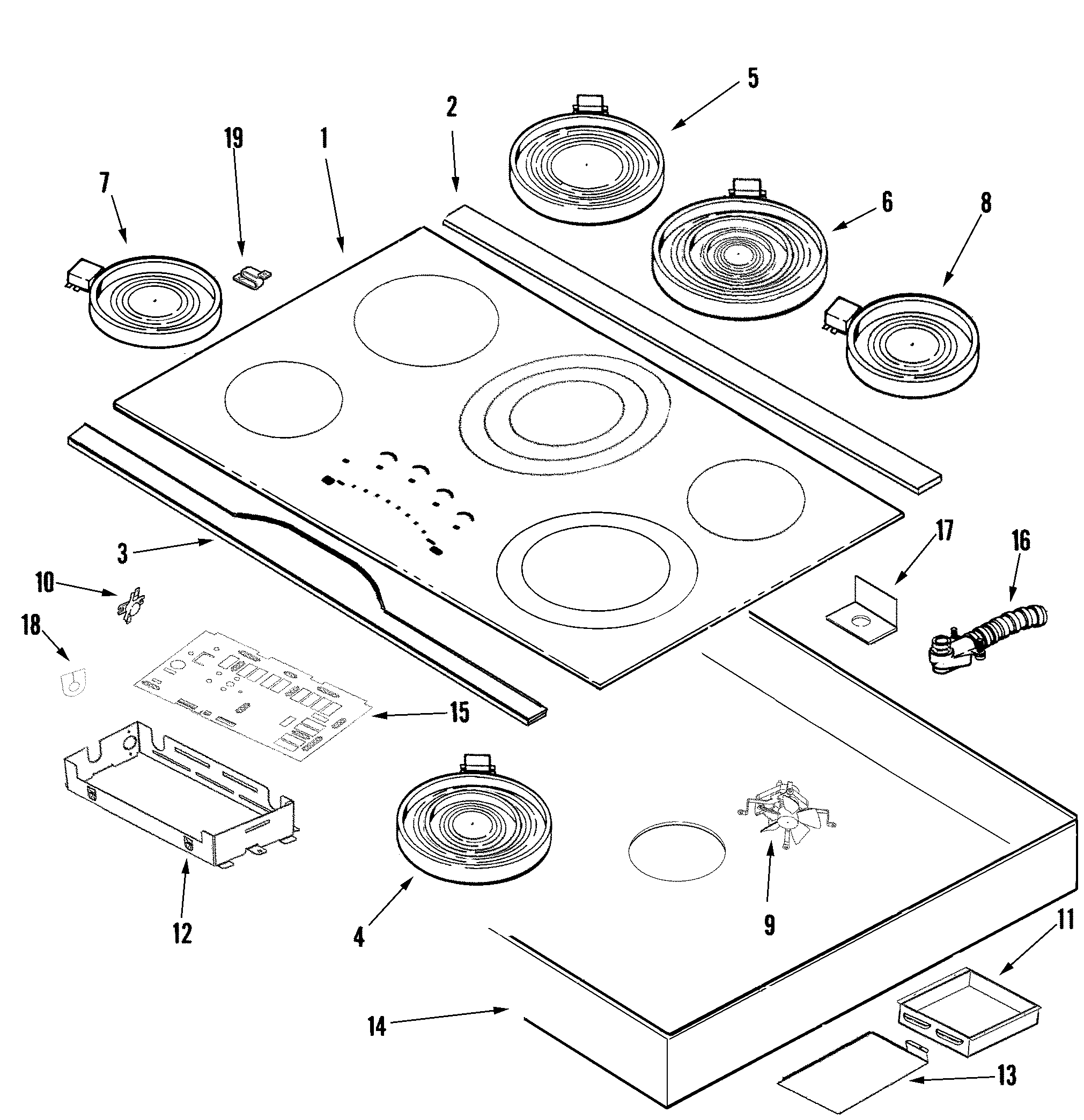

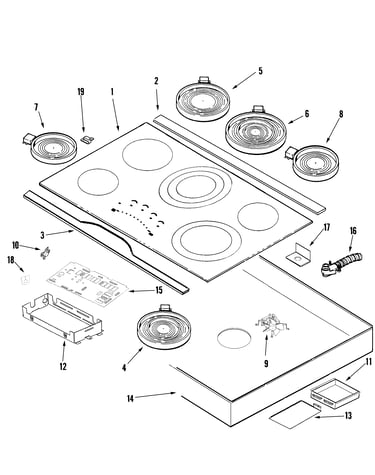

Top assembly/body diagram

Glass top

Part #74010154

Replaced by #W10207850

?
Manufacturer substitution
This part replaces 74010154. Substitute parts can look different from the original.
$730.51 |
$10.00 OFF Phone Price : $740.51
In Stock
Cooktop Dual Radiant Element 74010156
#4

Top assembly/body diagram

Cooktop dual radiant element

Part #74010156

The manufacturer no longer makes this part, and there's no substitute part

Trim 74010280
#3

Top assembly/body diagram

Trim

Part #74010280

Replaced by #WPW10168880

?
Manufacturer substitution
This part replaces 74010280. Substitute parts can look different from the original.
$155.00 |
$5.00 OFF MSRP : $160.00
In Stock
Range Triple Surface Element 74010158
#6

Top assembly/body diagram

Range triple surface element

Part #74010158

The manufacturer no longer makes this part, and there's no substitute part

Range Screw 71001171
#11A

Top assembly/body diagram

Range screw

Part #71001171

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 71001171. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Element (180 74010157
#5

Top assembly/body diagram

Element (180

Part #74010157

Replaced by #WP74010157

?
Manufacturer substitution
This part replaces 74010157. Substitute parts can look different from the original.
$133.42
In Stock
Trim 74008243
#2

Top assembly/body diagram

Trim

Part #74008243

Replaced by #W10168884

?
Manufacturer substitution
This part replaces 74008243. Substitute parts can look different from the original.
$208.99 |
20% OFF MSRP : $260.00
In Stock
Element 74010160
#8

Top assembly/body diagram

Element

Part #74010160

Replaced by #WP74009899

?
Manufacturer substitution
This part replaces 74010160. Substitute parts can look different from the original.
$105.09 |
12% OFF MSRP : $120.00
In Stock
Cooktop Control Panel Cooling Fan 74010173
#9

Top assembly/body diagram

Cooktop control panel cooling fan

Part #74010173

The manufacturer no longer makes this part, and there's no substitute part
