Caloric CDU210CB/P1199013W dishwasher Parts
Here are the diagrams and repair parts for Caloric CDU210CB/P1199013W dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for CDU210CB/P1199013W Dishwasher

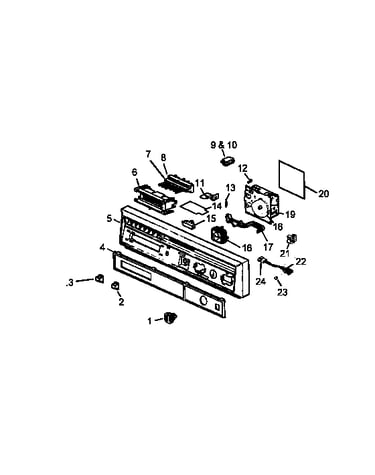

Control panel assembly diagram
Insert Escutcheon
Part #R0913198
The manufacturer no longer makes this part, and there's no substitute part

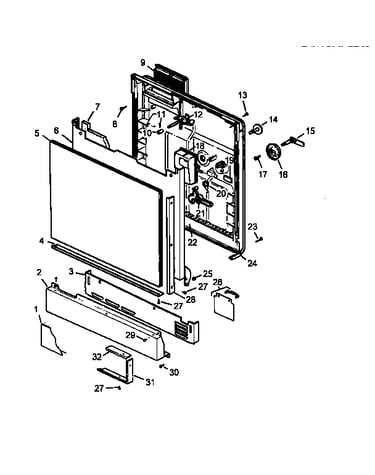

Door assembly diagram
Panel Access And Screw
Part #R0903036
The manufacturer no longer makes this part, and there's no substitute part
Door assembly diagram
Drip Shield
Part #R0910011
The manufacturer no longer makes this part, and there's no substitute part

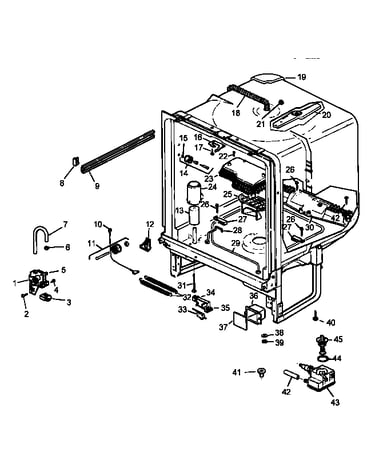

Tub assembly diagram
Hose Chamber
Part #R0903590
The manufacturer no longer makes this part, and there's no substitute part
Tub assembly diagram
Valve & Check Assembly
Part #R0913073
The manufacturer no longer makes this part, and there's no substitute part
Control panel assembly diagram
Push Button Switch
Part #R0902519
The manufacturer no longer makes this part, and there's no substitute part
Control panel assembly diagram
Switch Cycling
Part #R0902507
The manufacturer no longer makes this part, and there's no substitute part
Control panel assembly diagram
Rocker Switch
Part #R0902533
The manufacturer no longer makes this part, and there's no substitute part

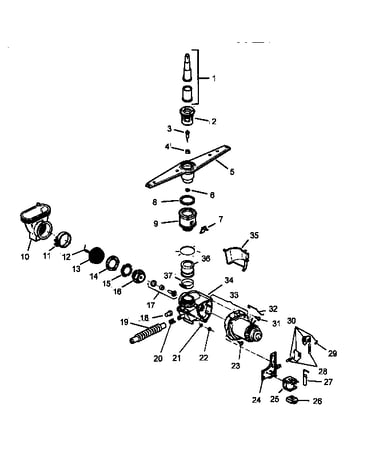

Motor-pump/water distribution components diagram
Thrust Washer
Part #R0900508
The manufacturer no longer makes this part, and there's no substitute part
Tub assembly diagram
Screw 10-24 X 3/8
Part #R0900012
The manufacturer no longer makes this part, and there's no substitute part
