Eureka 3690BV canister vacuum Parts
Here are the diagrams and repair parts for Eureka 3690BV canister vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part

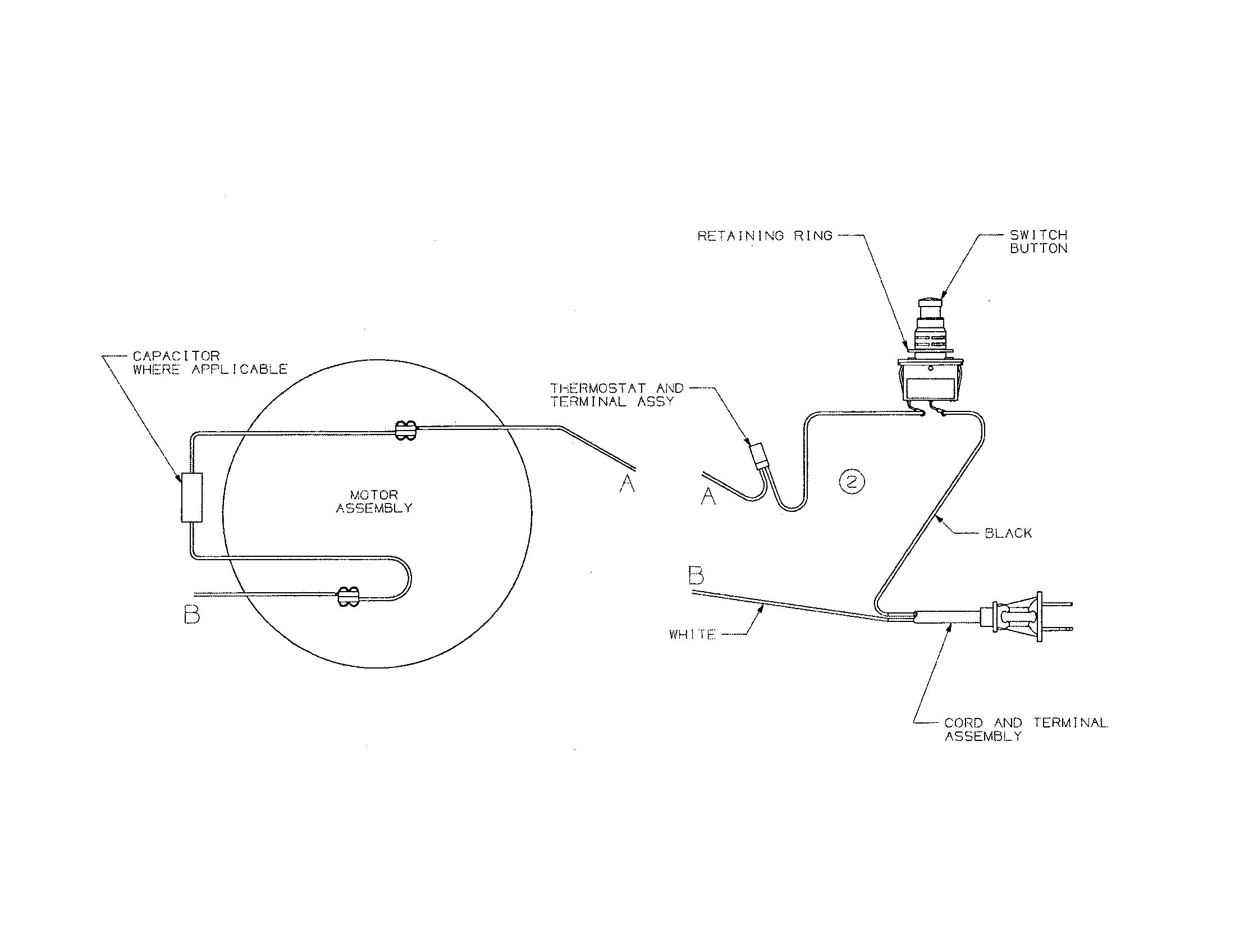

SELECT DIAGRAM
Browse Parts for 3690BV Vacuum Cleaners

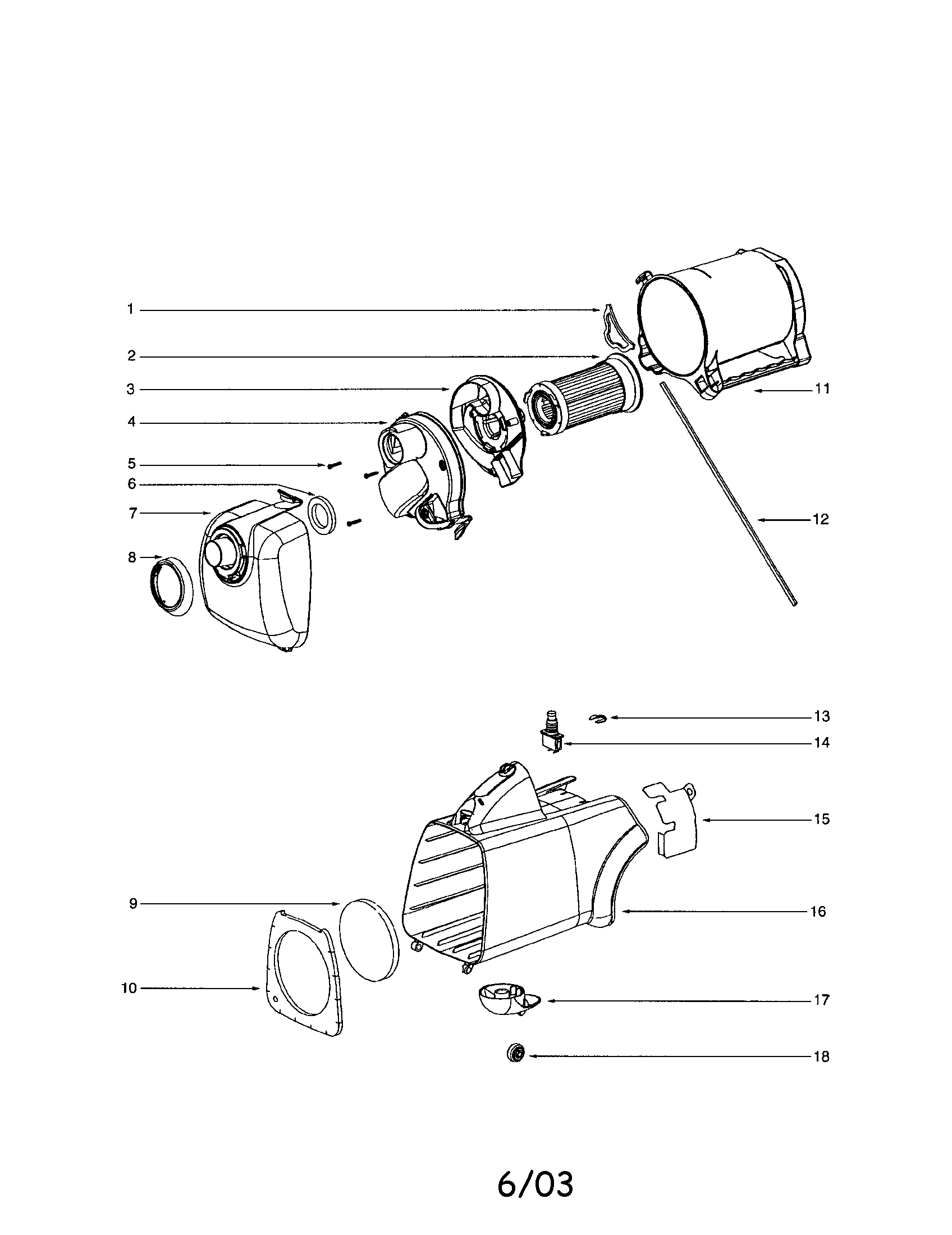

Plenum/housing diagram
Ring-10-pk
Part #60165-1
The manufacturer no longer makes this part, and there's no substitute part
Plenum/housing diagram
Housing
Part #60487-19
The manufacturer no longer makes this part, and there's no substitute part
Plenum/housing diagram
Lower Plenum
Part #71075
The manufacturer no longer makes this part, and there's no substitute part

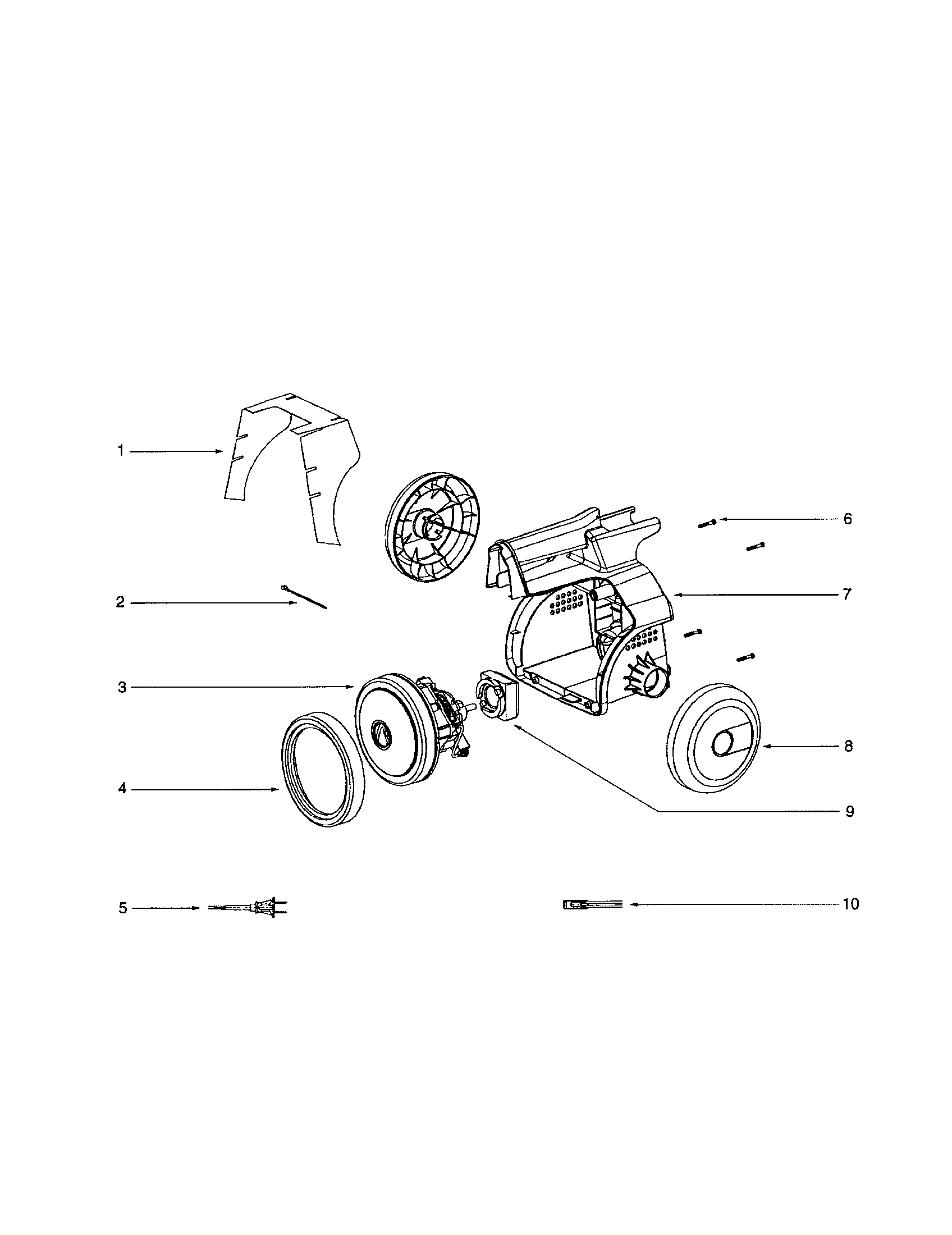

Motor/rear housing diagram
Bushing
Part #28052
The manufacturer no longer makes this part, and there's no substitute part

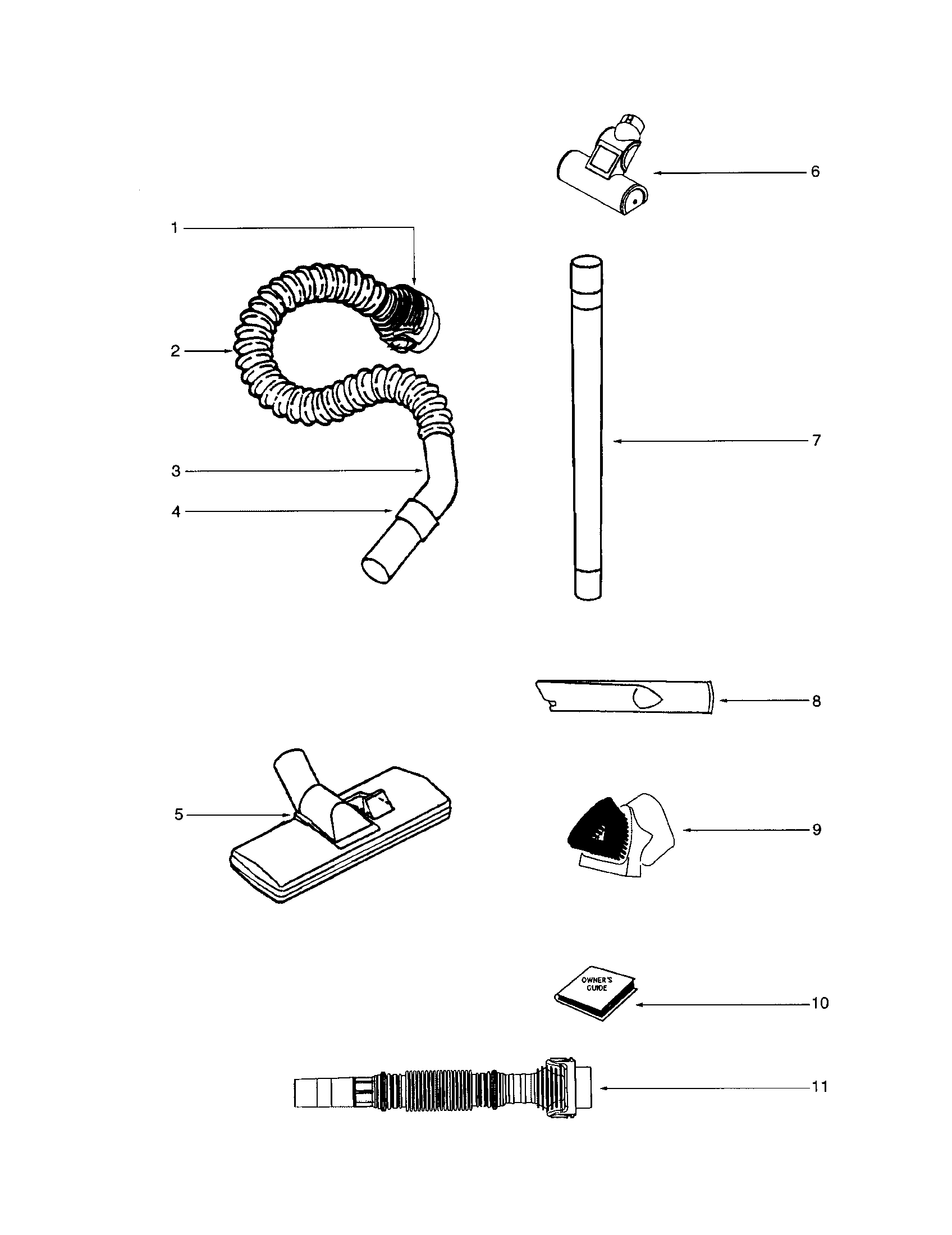

Hose/wand/nozzles diagram
Vacuum Wand
Part #14070-3
The manufacturer no longer makes this part, and there's no substitute part
Plenum/housing diagram
Plenum
Part #71071-288N
The manufacturer no longer makes this part, and there's no substitute part
Motor/rear housing diagram
Screw
Part #60610
The manufacturer no longer makes this part, and there's no substitute part
Motor/rear housing diagram
Rear Housing
Part #28008B-3
The manufacturer no longer makes this part, and there's no substitute part
Plenum/housing diagram
Shield
Part #39028
The manufacturer no longer makes this part, and there's no substitute part
Hose/wand/nozzles diagram
Vacuum Crevice Tool
Part #27237-3
The manufacturer no longer makes this part, and there's no substitute part
