Model # 2539104583 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 2539104583 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Bulb 5303091423
#25

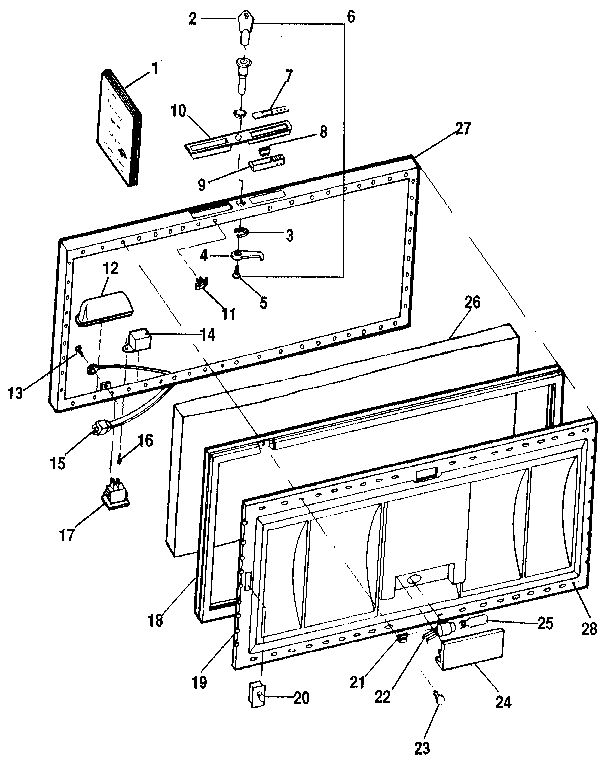

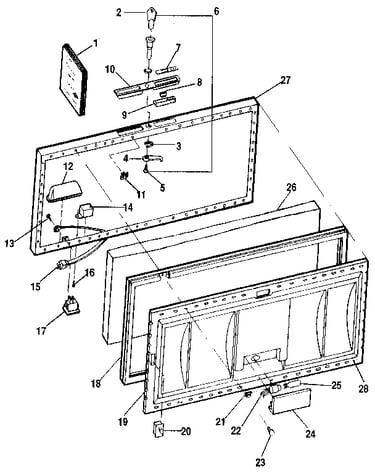

Door diagram

Bulb

Part #5303091423

Replaced by #216846400

?
Manufacturer substitution
This part replaces 5303091423. Substitute parts can look different from the original.
BEST SELLER
$39.17
11% OFF Phone Price : $44.17
In Stock
Freezer Inner Door Panel Rivet 5303212828
#28

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49
9% OFF Phone Price : $21.49
In Stock
Screw 08037935
Screw

Part #08037935

The manufacturer no longer makes this part, and there's no substitute part

Insulation 5300128901
#26

Door diagram

Insulation

Part #5300128901

Replaced by #5303917276

?
Manufacturer substitution
This part replaces 5300128901. Substitute parts can look different from the original.
$212.89
$10.00 OFF Phone Price : $222.89
In Stock
Hinge (almond) 5303925007
#14

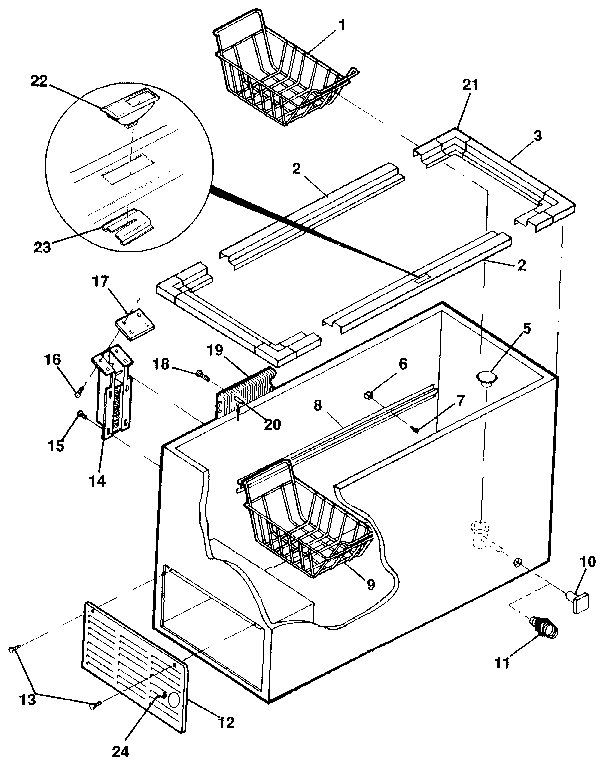

Cabinet diagram

Hinge (almond)

Part #5303925007

Replaced by #297321900

?
Manufacturer substitution
This part replaces 5303925007. Substitute parts can look different from the original.
$73.29
6% OFF Phone Price : $78.29
In Stock
Housing 3202659

#NI

All parts diagram

Housing

Part #3202659

This item is not returnable
In Stock
Refrigerator Evaporator Cover Screw 08037851
#16

Door diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
In Stock
Screw 5300053318
#18

Cabinet diagram

Screw

Part #5300053318

In Stock
Spacer 5300053320
#20

Cabinet diagram

Spacer

Part #5300053320

In Stock
Electronic Harness 216090100
#11

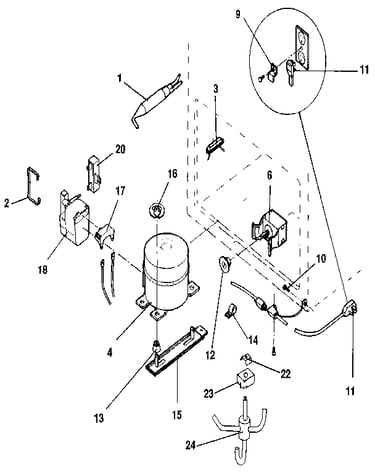

Unit diagram

Electronic harness

Part #216090100

In Stock
