Model # DP400PD1 Official Tappan 24" portable dishwasher - 5995222519

Here are the diagrams and repair parts for Official Tappan DP400PD1 24" portable dishwasher - 5995222519, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

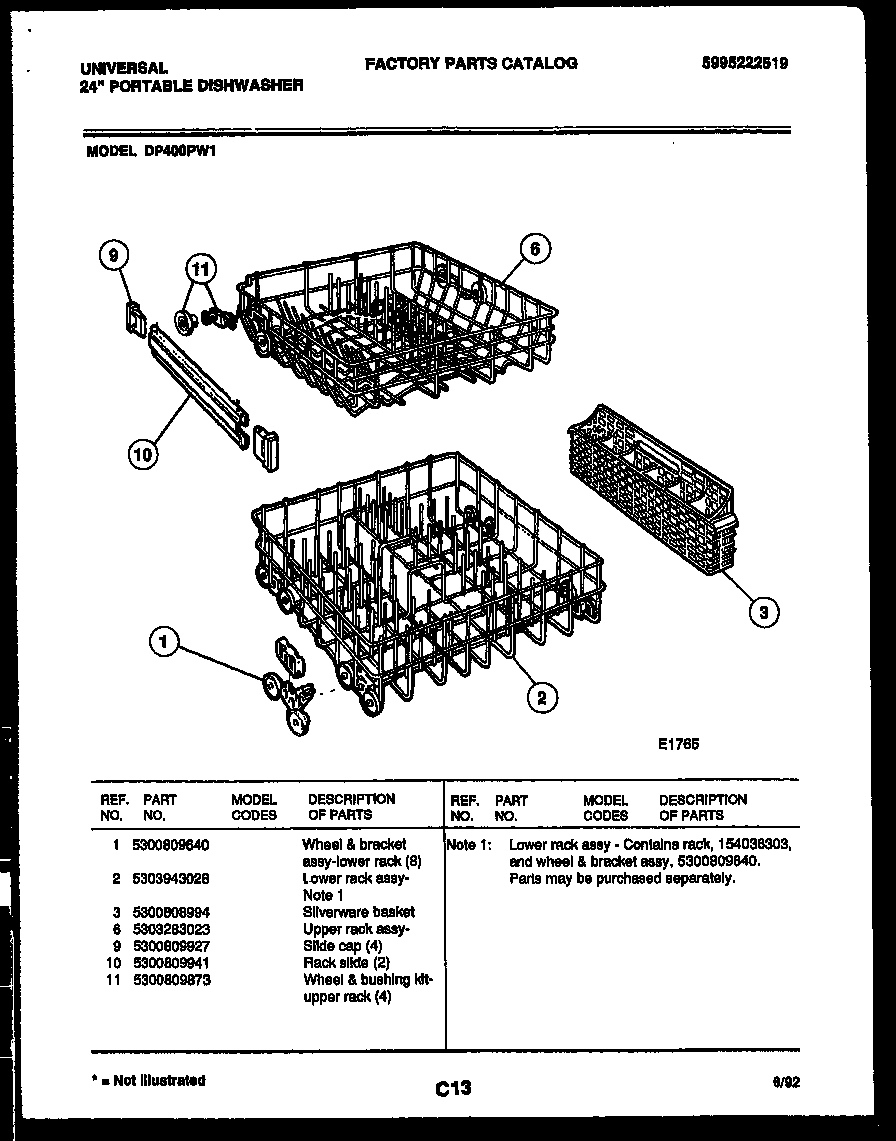

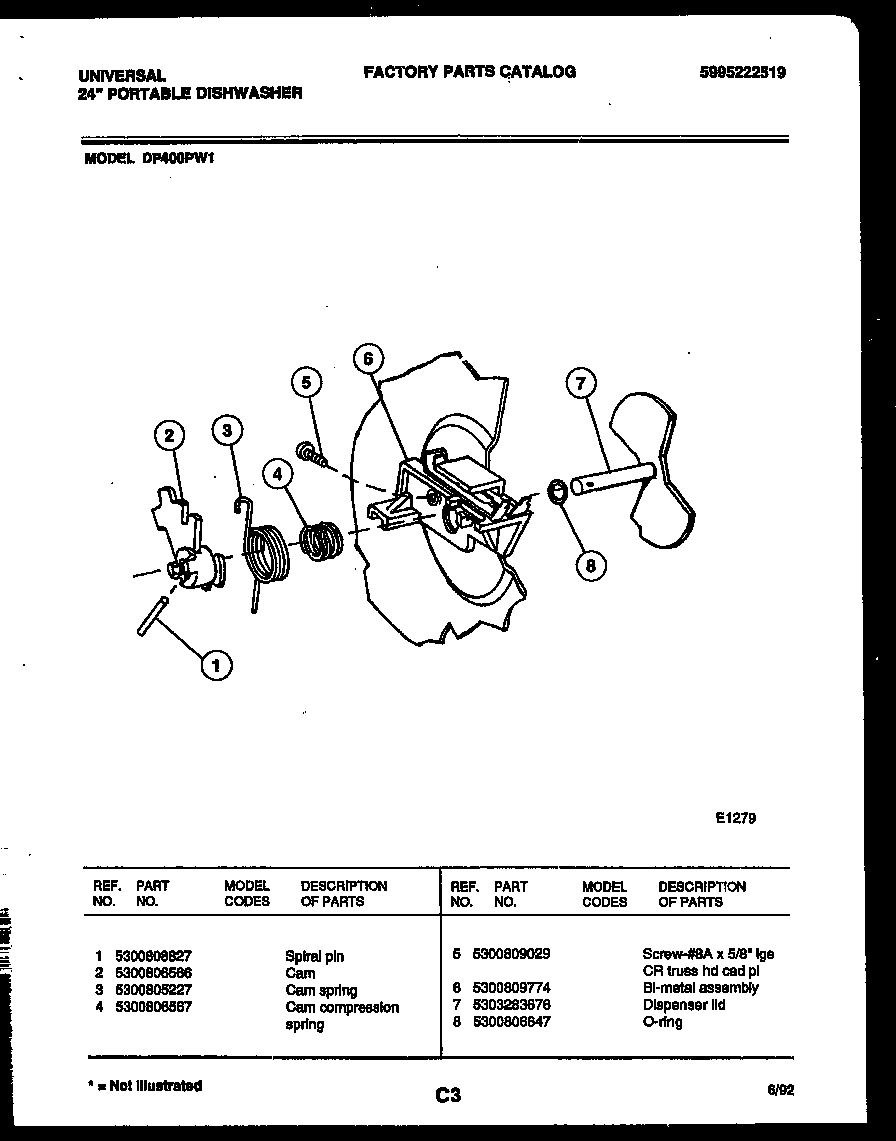

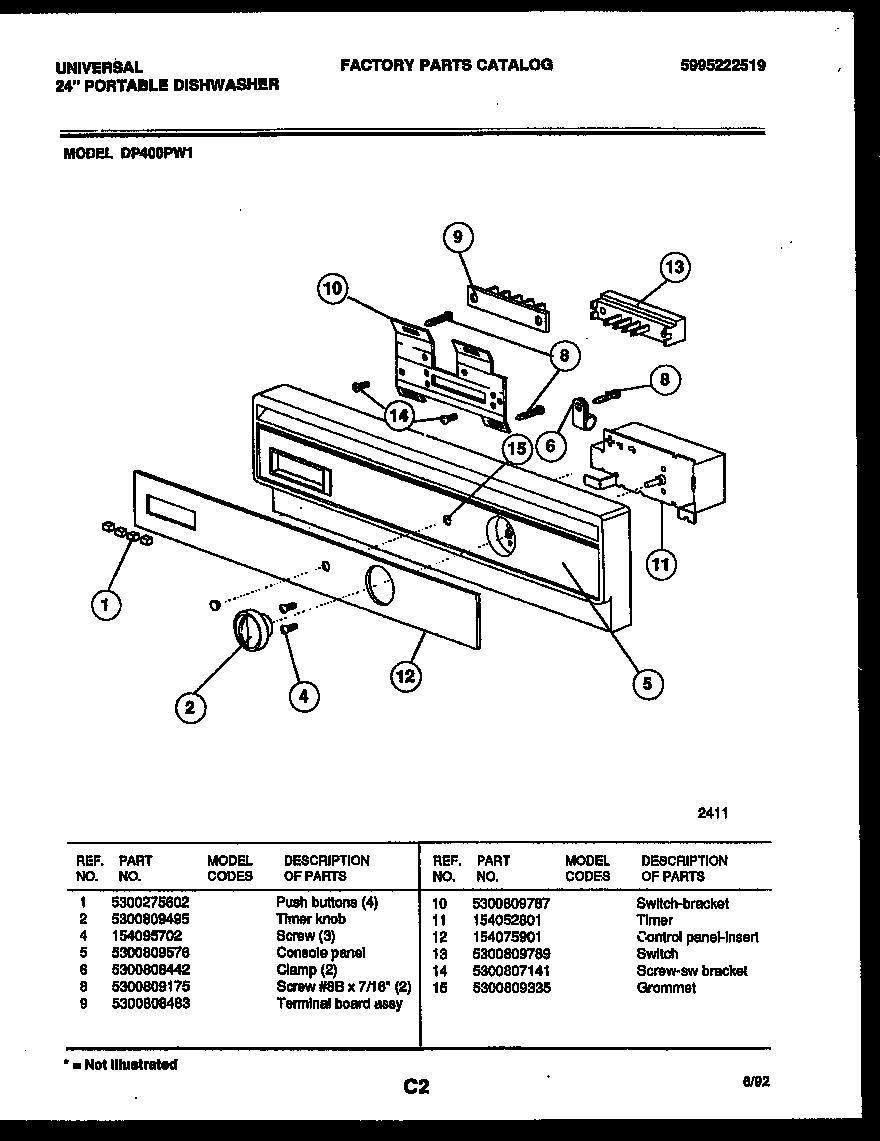

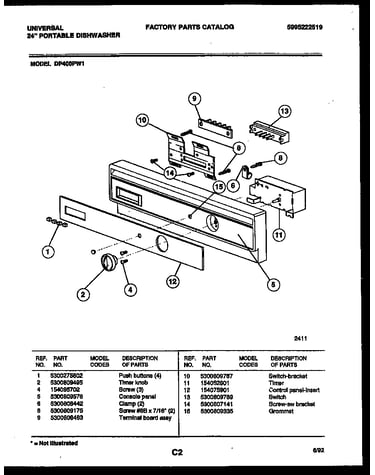

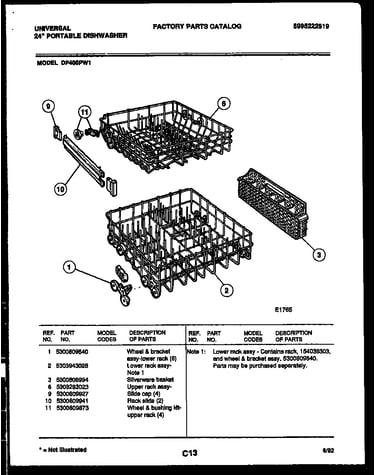

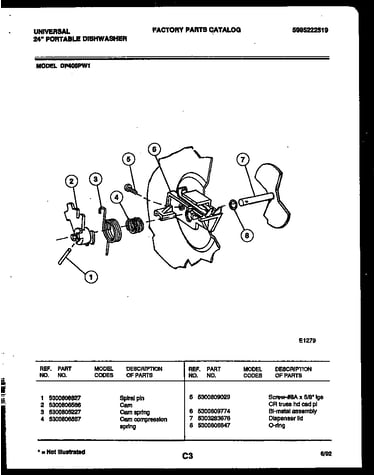

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |

Screw 5300806890
#7

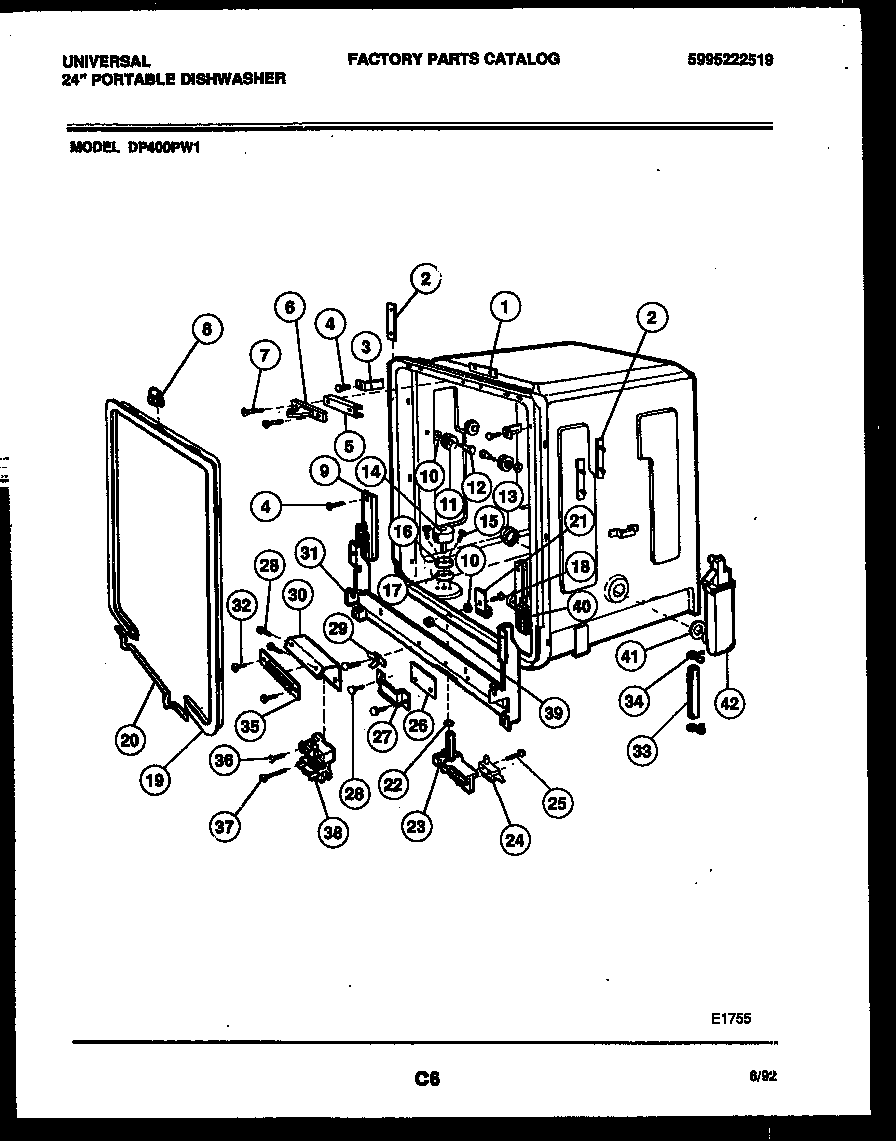

Tub and frame parts diagram

Screw

Part #5300806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 5300806890. Substitute parts can look different from the original.
This item is not returnable
$5.40
16% OFF Phone Price : $6.40
In Stock
Dishwasher Wire Harness Tie 5300809075
#19

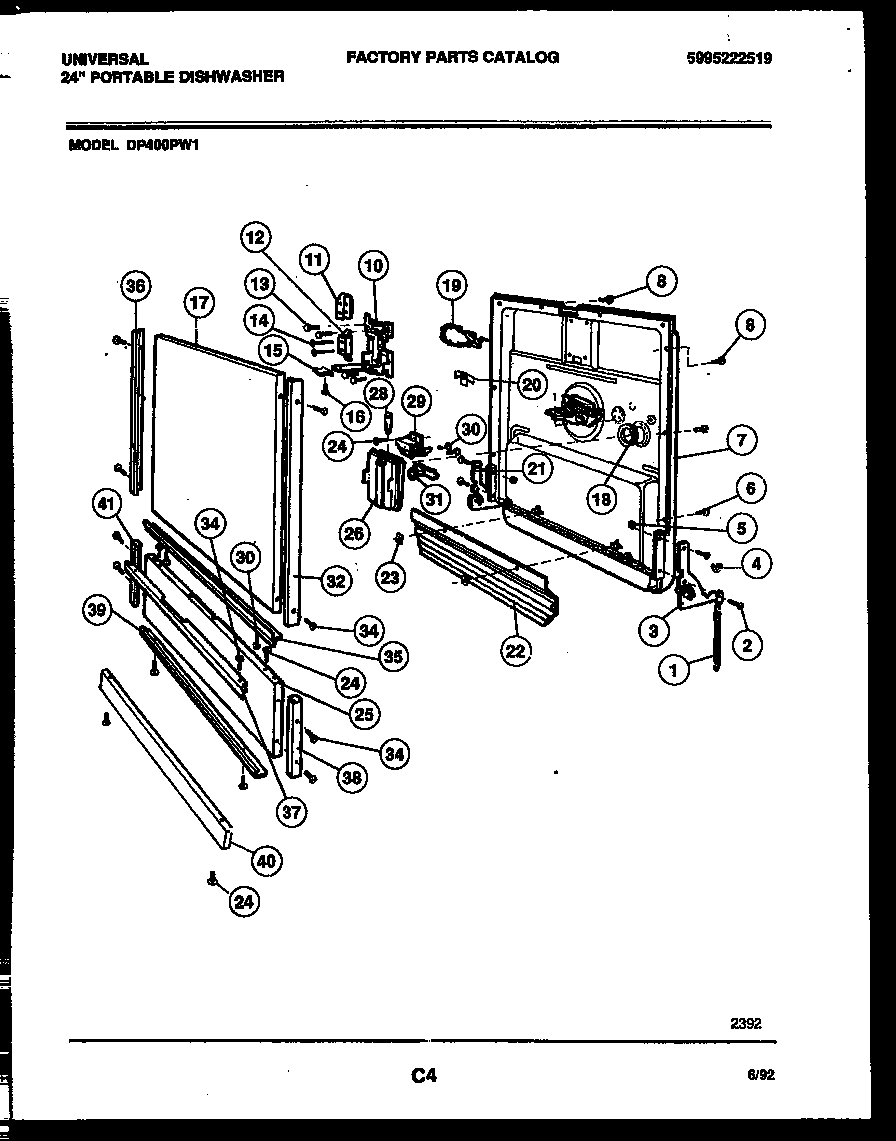

Door parts diagram

Dishwasher wire harness tie

Part #5300809075

This item is not returnable
In Stock
Washer 5300800787
#8

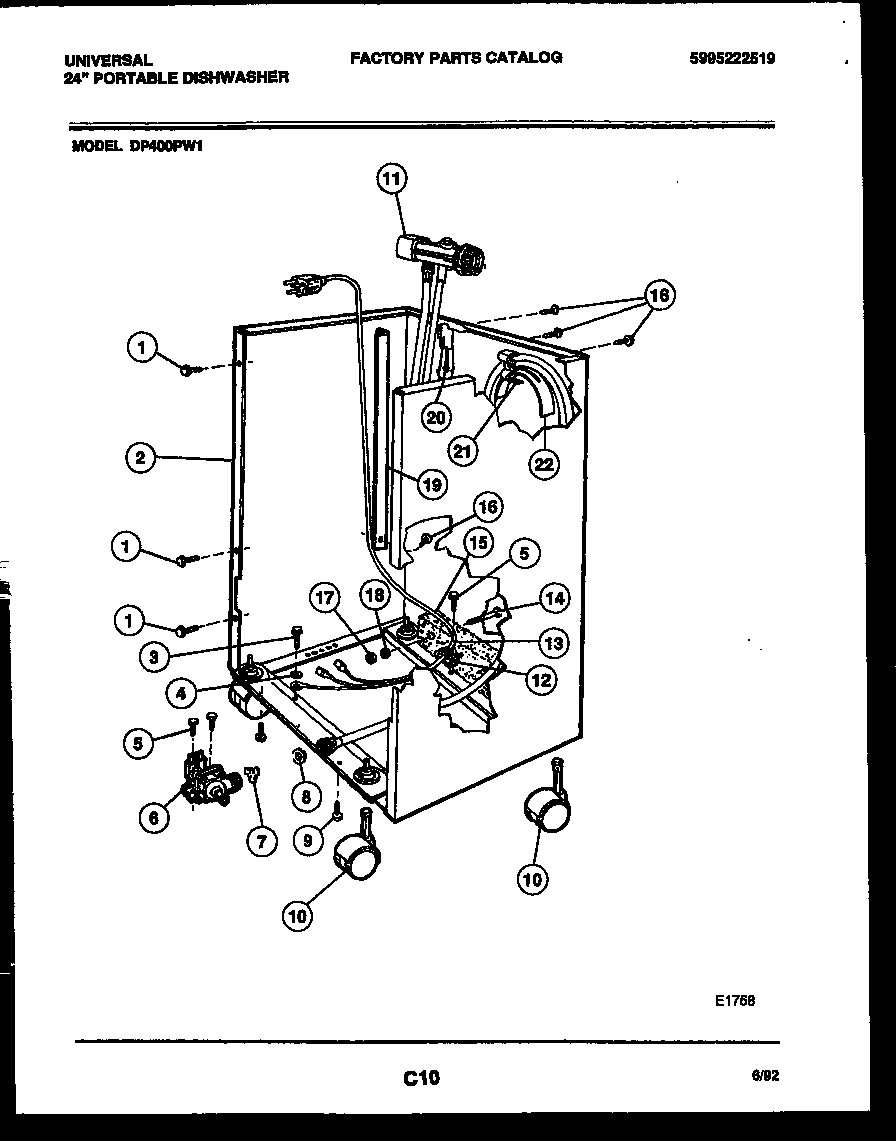

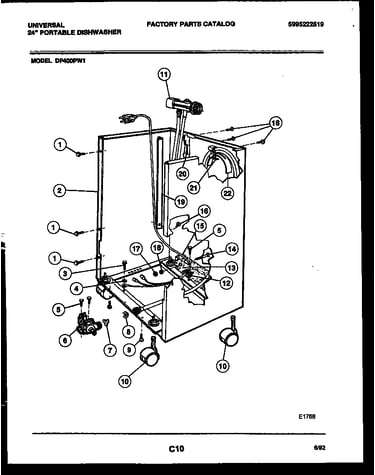

Cabinet parts diagram

Washer

Part #5300800787

This item is not returnable
In Stock

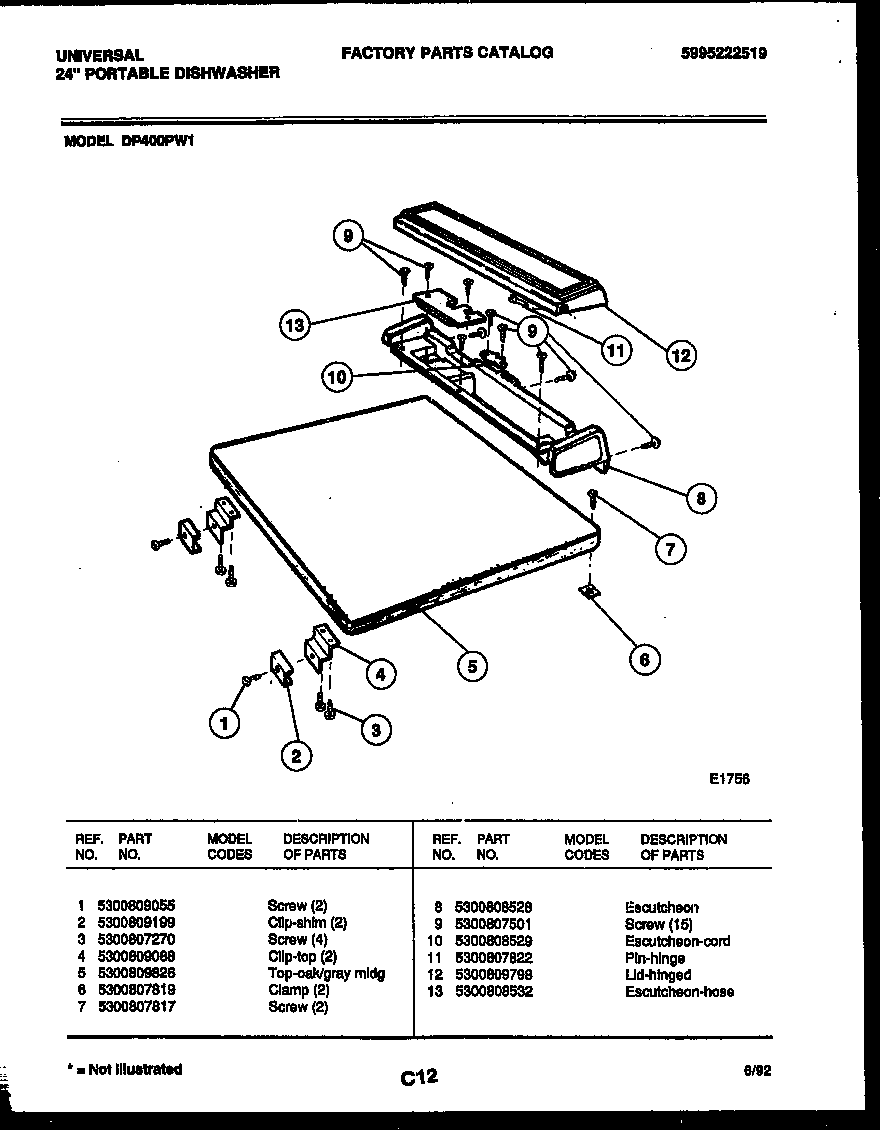

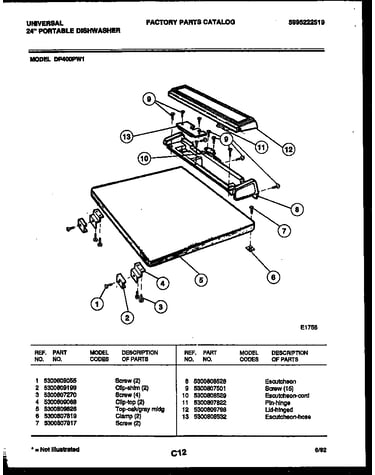

Dishwasher Screw 5300807270
Dishwasher screw

Part #5300807270

This item is not returnable
In Stock
Dishwasher Tub Gasket Clip Set 5300805763
#8

Tub and frame parts diagram

Dishwasher tub gasket clip set

Part #5300805763

In Stock
Washer 5300808613
#18

Cabinet parts diagram

Washer

Part #5300808613

In Stock
Screw 5300808618
#14

Door parts diagram

Screw

Part #5300808618

This item is not returnable
In Stock
Dishwasher Drain Pump Seal 5300807709
#6

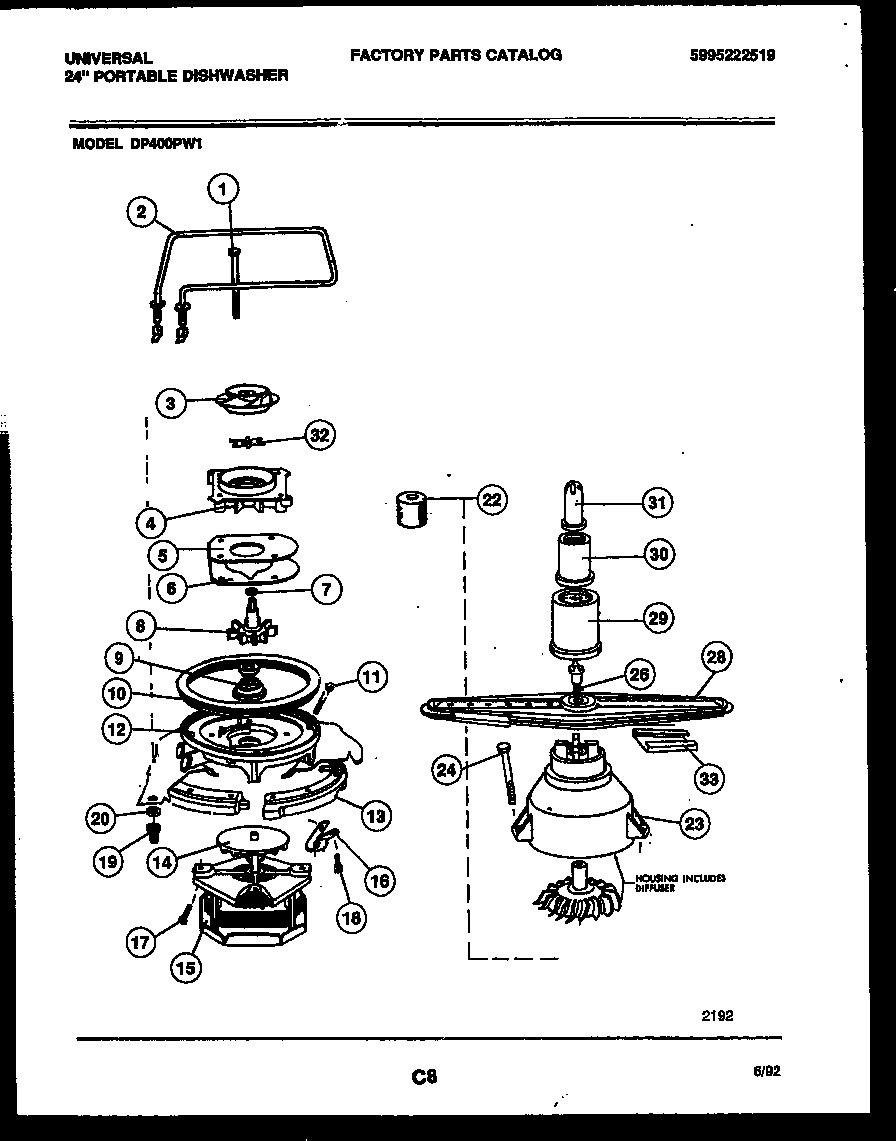

Motor pump parts diagram

Dishwasher drain pump seal

Part #5300807709

$64.33
7% OFF Phone Price : $69.33
In Stock
Dishwasher Chopper Blade 5300809920
#32

Motor pump parts diagram

Dishwasher chopper blade

Part #5300809920

In Stock
Dishwasher Spray Arm Shield 5300809938
#33

Motor pump parts diagram

Dishwasher spray arm shield

Part #5300809938

In Stock
