Model # KGCC566RBL00 Official KitchenAid gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCC566RBL00 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Range Screw 3368921
#20

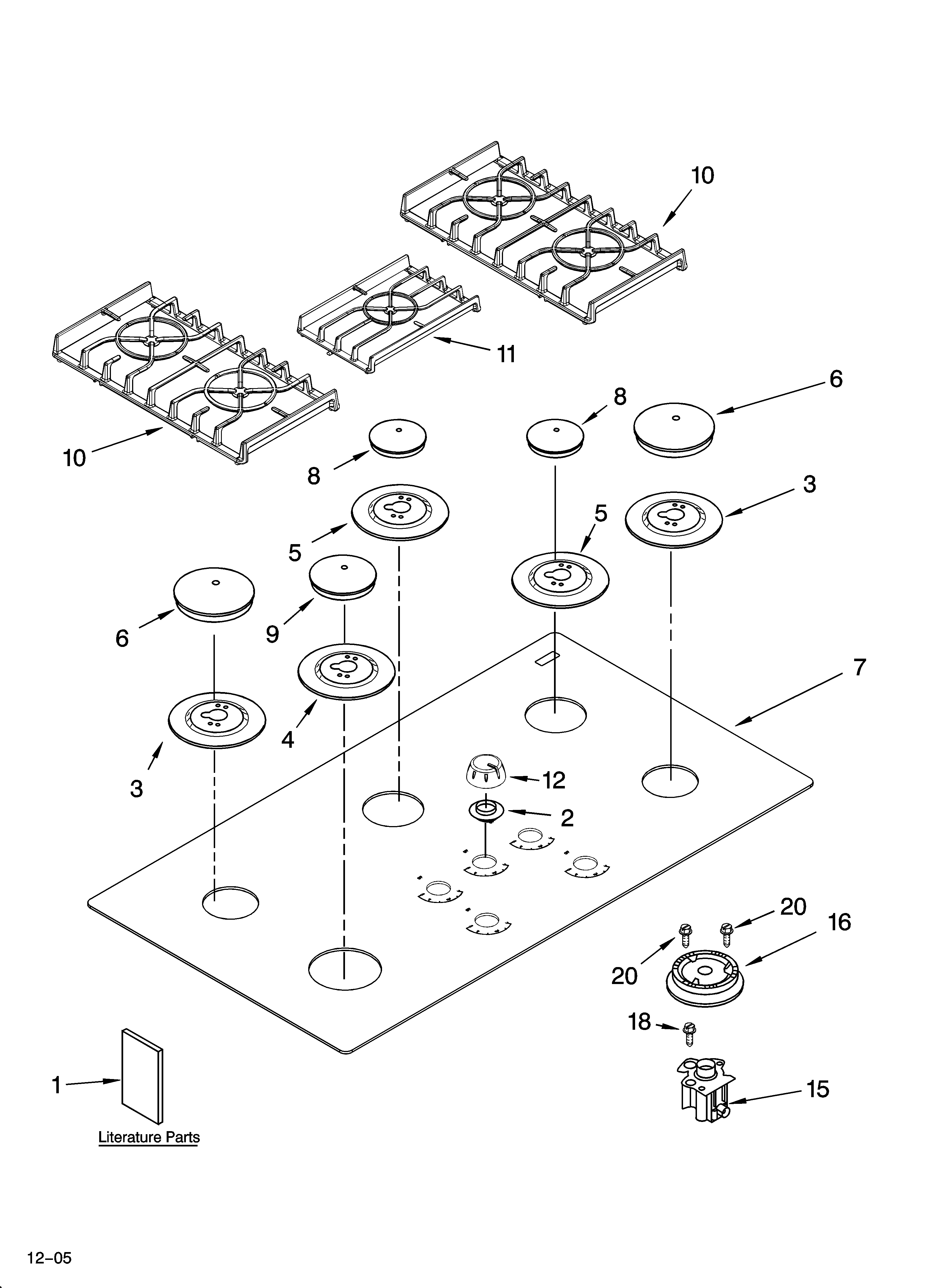

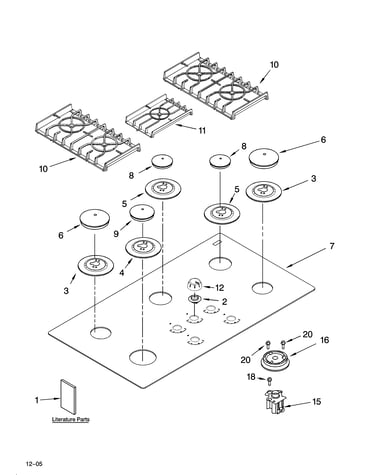

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.82
43% OFF MSRP : $12.00
In Stock
Screw 3196537
#22A

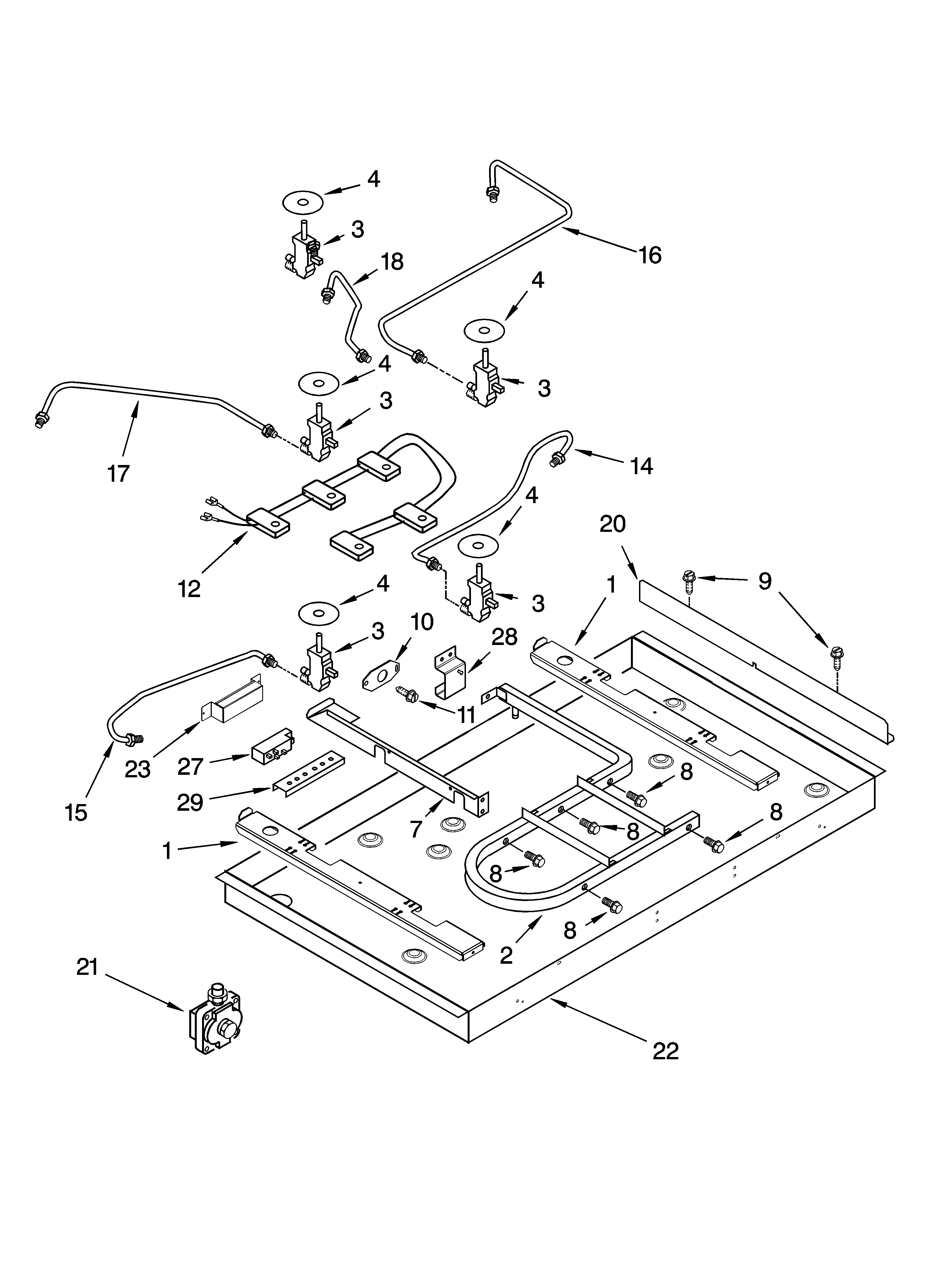

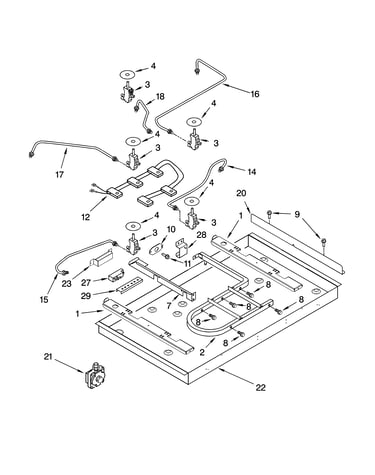

Burner box, gas valves, and switches, optional parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Burner Grate 8285879BL
#10A

Cooktop, burner and grate parts diagram

Burner grate

Part #8285879BL

Replaced by #W11502175

?
Manufacturer substitution
This part replaces 8285879BL. Substitute parts can look different from the original.
$125.38
10% OFF MSRP : $140.00
In Stock
Burner Head 8286181
#16

Cooktop, burner and grate parts diagram

Burner head

Part #8286181

Replaced by #WPW10406243

?
Manufacturer substitution
This part replaces 8286181. Substitute parts can look different from the original.
This item is not returnable
$24.89
25% OFF MSRP : $33.00
In Stock
Spark Module 8522424
#27

Burner box, gas valves, and switches, optional parts diagram

Spark module

Part #8522424

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces 8522424. Substitute parts can look different from the original.
$112.14
30% OFF MSRP : $160.00
In Stock
Grommet-wh 3180081
#2

Cooktop, burner and grate parts diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.59
13% OFF Phone Price : $7.59
In Stock
Gas Burner Head 8286182
#16A

Cooktop, burner and grate parts diagram

Gas burner head

Part #8286182

Replaced by #WPW10406797

?
Manufacturer substitution
This part replaces 8286182. Substitute parts can look different from the original.
$38.61
33% OFF MSRP : $58.00
In Stock
Mounting Bracket 4455917
#29

Burner box, gas valves, and switches, optional parts diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89
13% OFF Phone Price : $37.89
In Stock
Cooktop Lp Conversion Kit 3192741
#NI

Burner box, gas valves, and switches, optional parts diagram

Cooktop lp conversion kit

Part #3192741

Replaced by #WP3192741

?
Manufacturer substitution
This part replaces 3192741. Substitute parts can look different from the original.
$28.07
15% OFF Phone Price : $33.07
In Stock
Cooktop Bracket 3183401
#NI

Burner box, gas valves, and switches, optional parts diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89
13% OFF Phone Price : $37.89
In Stock
