Kenmore 9114658816 electric freestanding range

Kenmore 9114658816 electric freestanding range Parts

Here are the diagrams and repair parts for Kenmore 9114658816 electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 9114658816 Ranges

  • Glass Retainer for Kenmore 9114658816 - Part WB2M1

    Oven door section diagram

    Retainer

    Part #345646

    Replaced by #WB2M1

    Info Icon
    Manufacturer substitution
    This part replaces 345646. Substitute parts can look different from the original.
    In Stock
    $31.37
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Oven Light Rocker Switch for Kenmore 9114658816 - Part WB24K5022

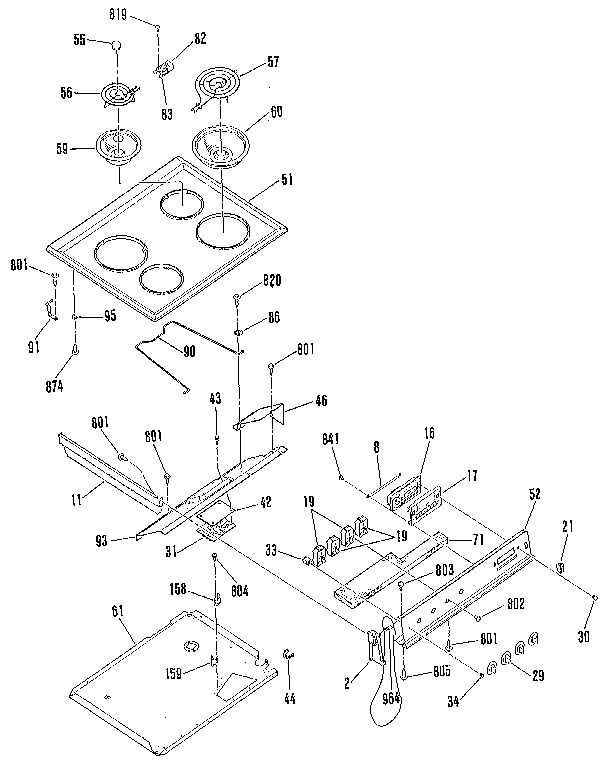

    Main top section diagram

    Switch (white)

    Part #339394

    Replaced by #WB24K5022

    Info Icon
    Manufacturer substitution
    This part replaces 339394. Substitute parts can look different from the original.
    In Stock
    $39.81
    13% OFF Phone Price : $45.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Ge Range Anti-tip Bracket Kit for Kenmore 9114658816 - Part WB2X7909

    Body section diagram

    Bracket Kit

    Part #344119

    Replaced by #WB2X7909

    Info Icon
    Manufacturer substitution
    This part replaces 344119. Substitute parts can look different from the original.
    In Stock
    $57.38
    9% OFF Phone Price : $63.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Ver Trim for Kenmore 9114658816 - Part WB7K5024

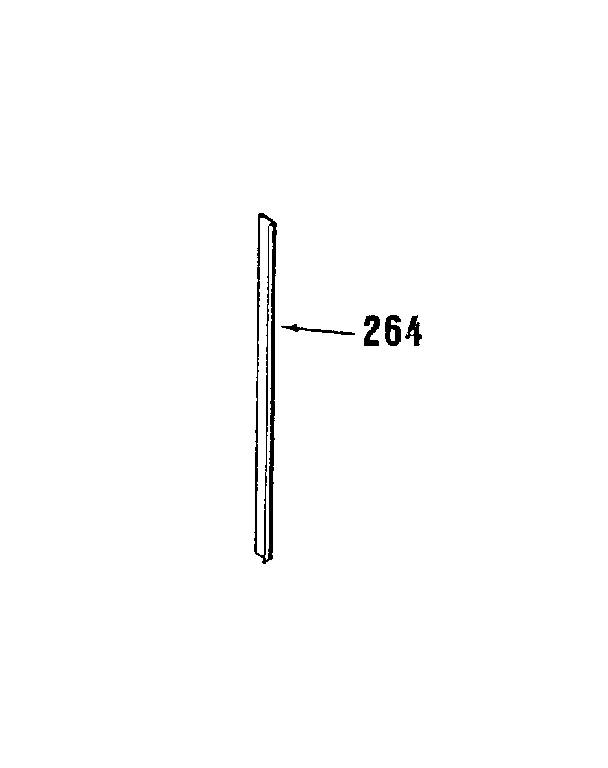

    Optional vertical trim extension 8078690 diagram

    Extension Trim

    Part #334429

    Replaced by #WB7K5024

    Info Icon
    Manufacturer substitution
    This part replaces 334429. Substitute parts can look different from the original.
    In Stock
    $66.82
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 9114658816 - Part WB1X1258

    Body section diagram

    Screw

    Part #313190

    Replaced by #WB1X1258

    Info Icon
    Manufacturer substitution
    This part replaces 313190. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Speed Nut for Kenmore 9114658816 - Part WB1X1432

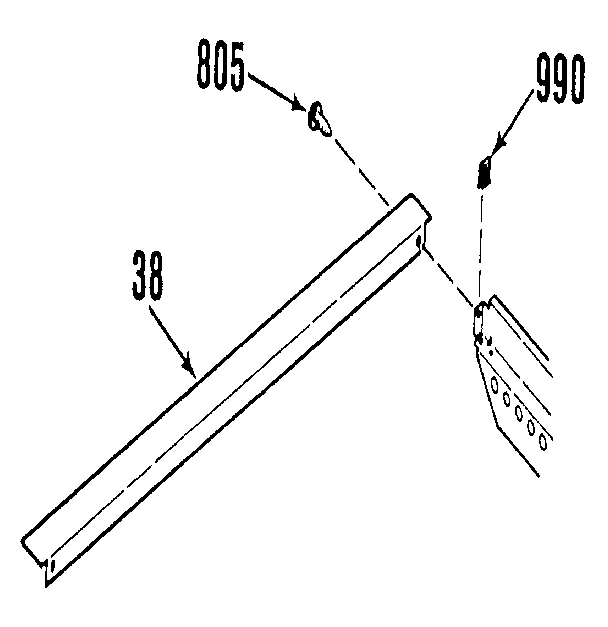

    Optional rear main top filler 8028790 diagram

    Speed Nut

    Part #69365

    Replaced by #WB1X1432

    Info Icon
    Manufacturer substitution
    This part replaces 69365. Substitute parts can look different from the original.
    In Stock
    $32.68
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 9114658816 - Part WB1X1137

    Screw

    Part #69014

    Replaced by #WB1X1137

    Info Icon
    Manufacturer substitution
    This part replaces 69014. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Hinge for Kenmore 9114658816 - Part WB14X110

    Main top section diagram

    Hinge

    Part #334844

    Replaced by #WB14X110

    Info Icon
    Manufacturer substitution
    This part replaces 334844. Substitute parts can look different from the original.
    In Stock
    $43.45
    Minus Item
    Qty
    Plus Item
  • Flex Hose for Kenmore 9114658816 - Part WB26M17

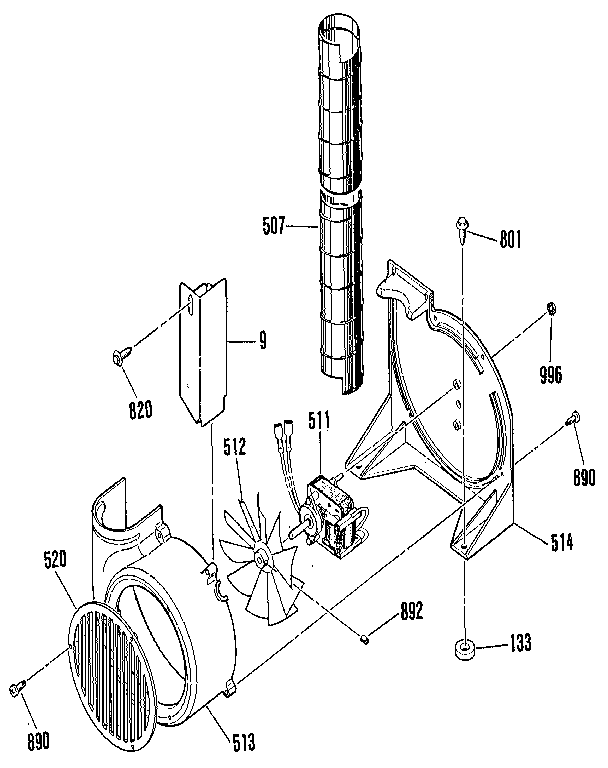

    Blower section diagram

    Flex Hose

    Part #346022

    Replaced by #WB26M17

    Info Icon
    Manufacturer substitution
    This part replaces 346022. Substitute parts can look different from the original.
    In Stock
    $53.17
    Minus Item
    Qty
    Plus Item
  • G.e. Range Bake Element for Kenmore 9114658816 - Part WB44K5012

    Body section diagram

    Range Bake Element

    Part #340521

    Replaced by #WB44K5012

    Info Icon
    Manufacturer substitution
    This part replaces 340521. Substitute parts can look different from the original.
    In Stock
    $51.01
    11% OFF Phone Price : $57.01Info Icon
    Minus Item
    Qty
    Plus Item
