Model # TC5000 Official Bowflex treadclimber

Here are the diagrams and repair parts for Official Bowflex TC5000 treadclimber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Transmittr PK1096

#NI16

All parts diagram

Transmittr

Part #PK1096

The manufacturer no longer makes this part, and there's no substitute part

Bearing 12833
#43

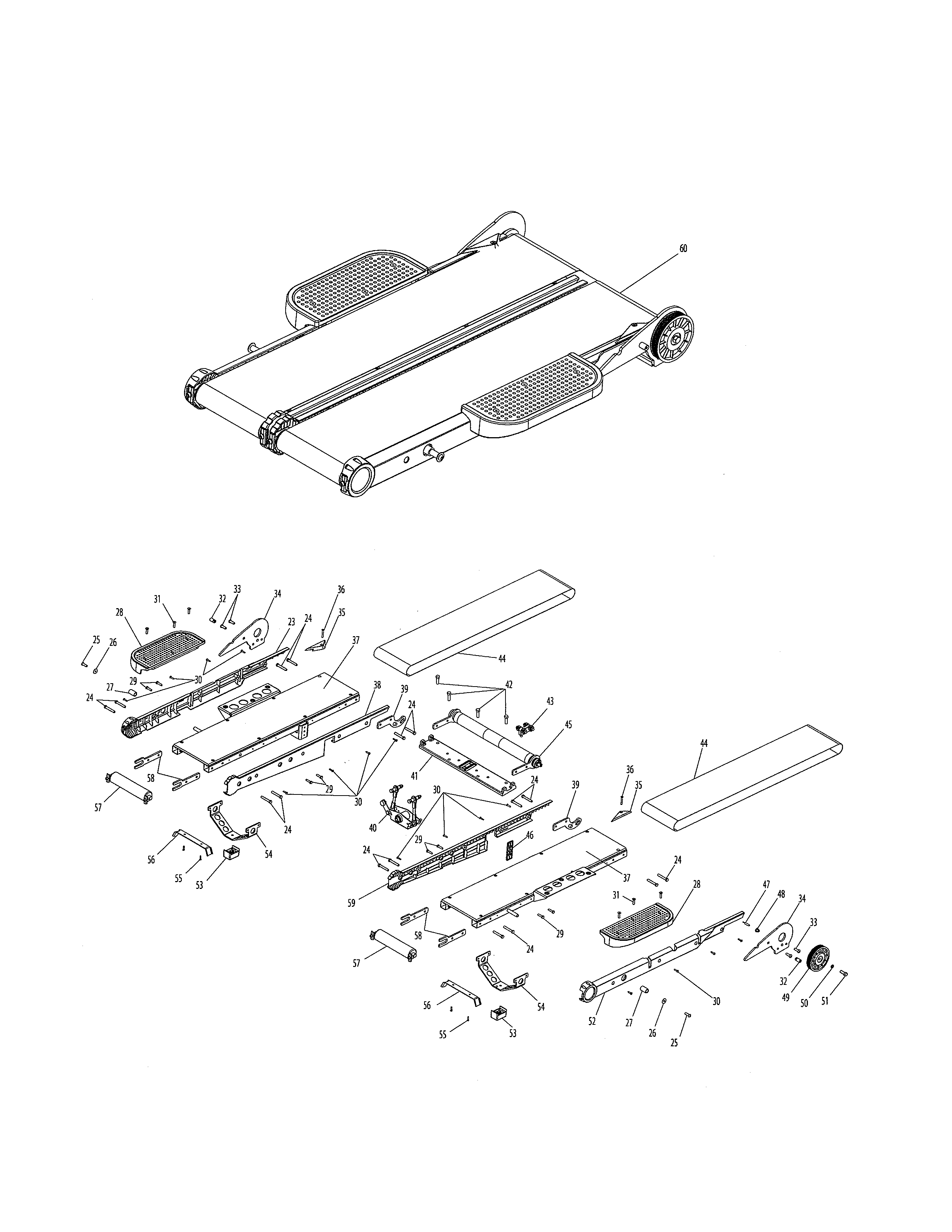

Belt kit/roller kit diagram

Bearing

Part #12833

The manufacturer no longer makes this part, and there's no substitute part

Stepper Walking Board Kit 11772
#37

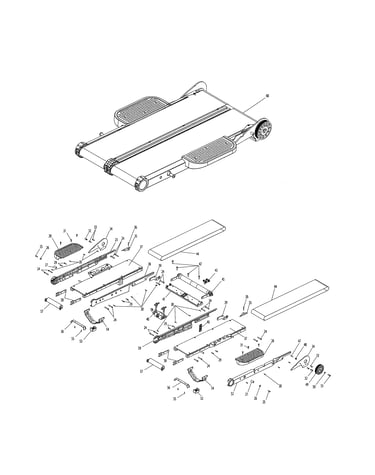

Belt kit/roller kit diagram

Stepper walking board kit

Part #11772

The manufacturer no longer makes this part, and there's no substitute part

Dvd 001-8664

#NI18

All parts diagram

Dvd

Part #001-8664

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 12722

#NI17

All parts diagram

Ac cord

Part #12722

The manufacturer no longer makes this part, and there's no substitute part

On/off Switch With Light 12768
#14

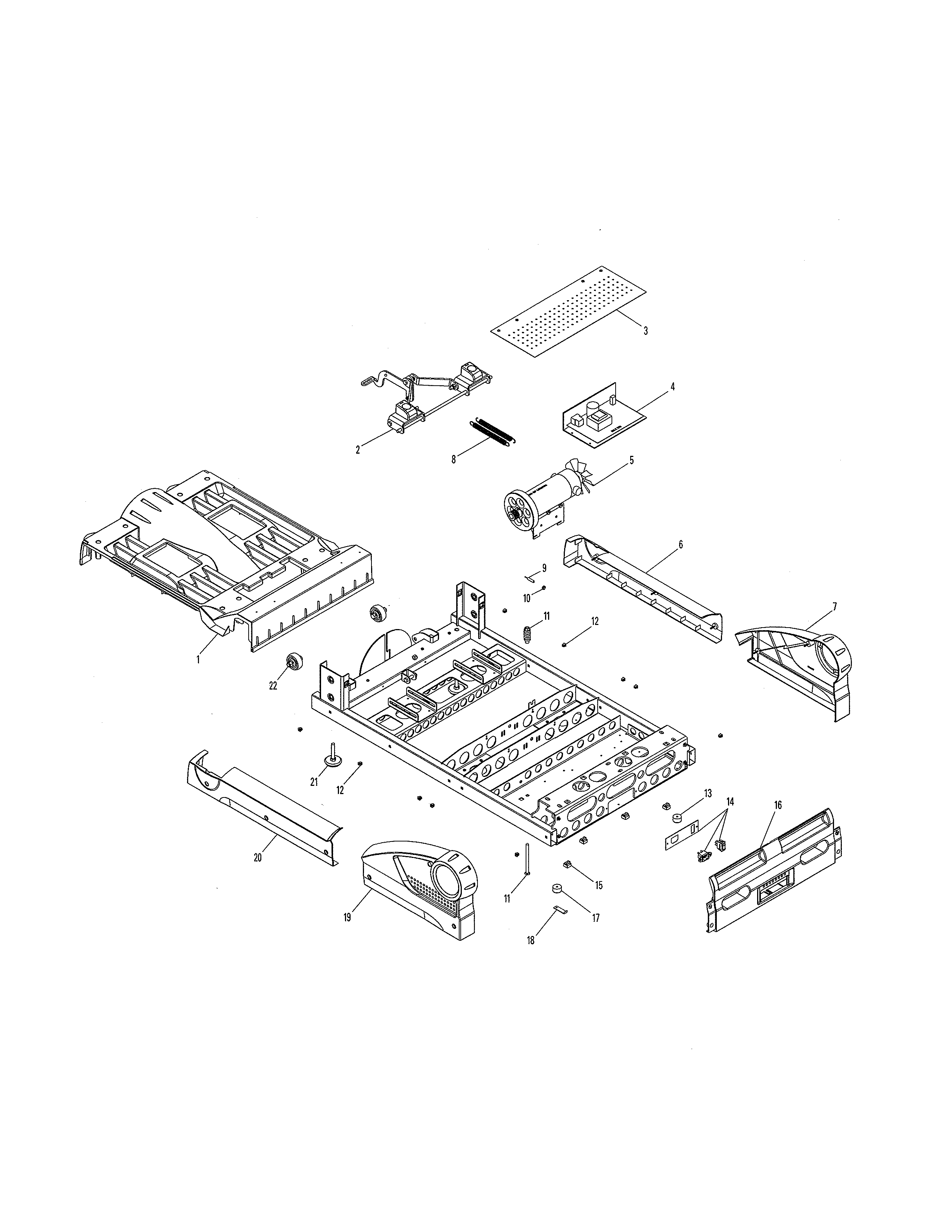

Base cover/motor diagram

On/off switch with light

Part #12768

The manufacturer no longer makes this part, and there's no substitute part

Stepper Shock Set 10580
#61

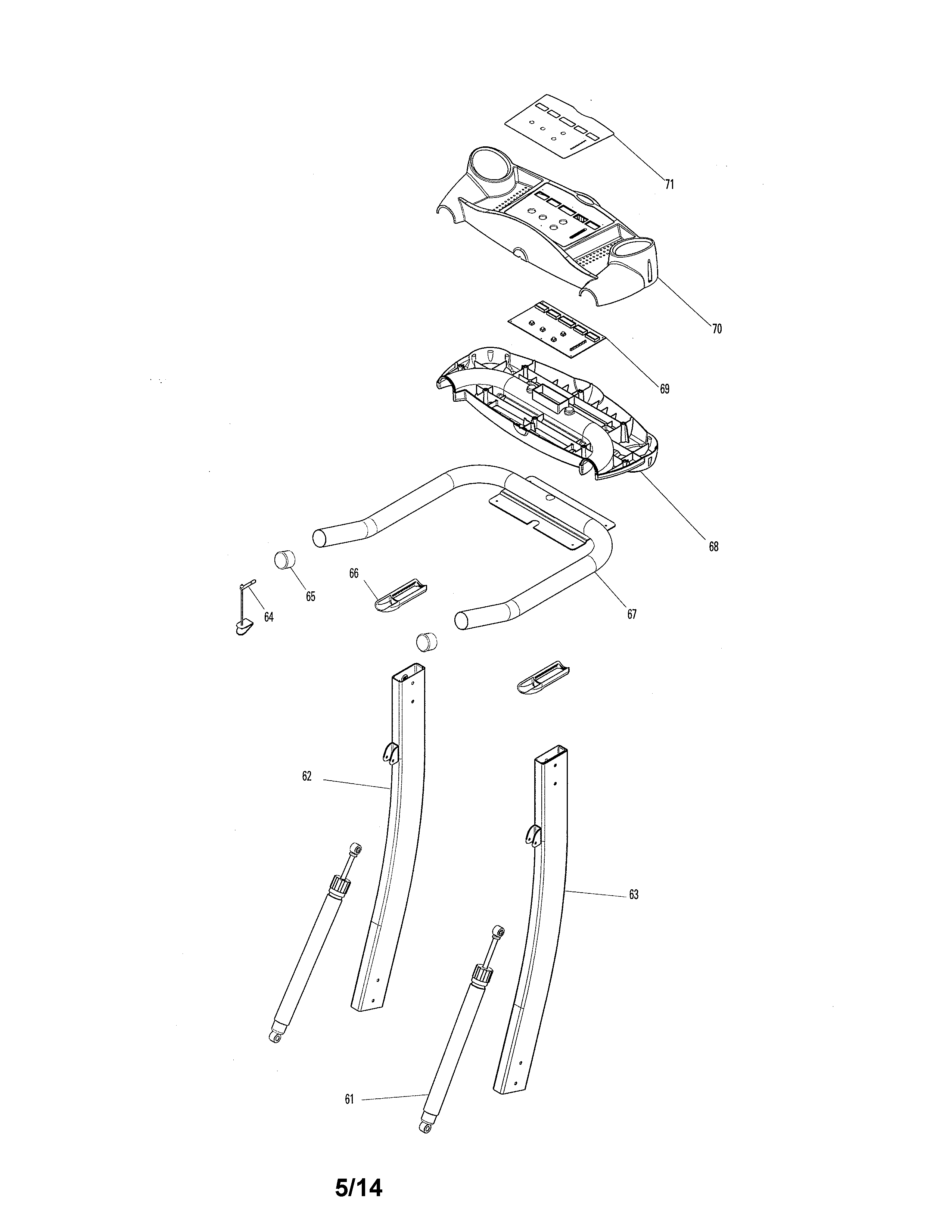

Console/upright diagram

Stepper shock set

Part #10580

The manufacturer no longer makes this part, and there's no substitute part

Stepper Owner's Manual 12844

#NI19

All parts diagram

Stepper owner's manual

Part #12844

The manufacturer no longer makes this part, and there's no substitute part

Front Roller 11739
#57

Belt kit/roller kit diagram

Front roller

Part #11739

The manufacturer no longer makes this part, and there's no substitute part

Speed Sensor Jumper Wire 10565

#NI26

All parts diagram

Speed sensor jumper wire

Part #10565

The manufacturer no longer makes this part, and there's no substitute part
