Frigidaire FFSS2615TE4 refrigerator Parts

On the Frigidaire FFSS2615TE4 side-by-side refrigerator, defrost is controlled by the electronic control system rather than a traditional, standalone defrost timer. For access points and control locations specific to this model, follow the diagrams and component locations in the FFSS2615TE4 owner's manual.

What you will find on this model (and what you will not)

Many older side-by-side refrigerators used a mechanical defrost timer you could turn with a screwdriver. On FFSS2615TE4, the defrost cycle is automatic and managed by the control board and defrost sensing components.

• No separate “defrost timer” dial to manually advance
• Automatic defrost runs periodically (a typical cycle is about 30 minutes)
• Defrost operation is monitored by defrost components such as the defrost thermostat
• Some clicking, dripping, or humming during defrost can be normal

Where to check if you suspect a defrost problem

If you are troubleshooting frost buildup, warm freezer temps, or poor airflow, we focus on the components that actually control and protect the defrost system.

What to check	Where it relates	What it affects
Electronic control	Temperature/defrost logic	When defrost starts and stops
Defrost bi-metal thermostat	On/near the evaporator area	Prevents overheating during defrost
Evaporator fan	Freezer evaporator compartment	Airflow to freezer and fresh food

Model-matched parts commonly involved:

• Refrigerator electronic control A01078804
• Refrigerator defrost bi-metal thermostat 5303918214
• Frigidaire refrigerator evaporator fan motor 242077705

Quick checks before replacing parts

• Confirm the freezer control is not set to “OFF/0”.
• Look for heavy frost on the freezer back wall (often points to a defrost or airflow issue).
• Listen for normal operating sounds; dripping into the drain pan during defrost is expected.
• Make sure doors seal tightly; air leaks can mimic cooling and defrost problems.
• Allow 24 hours after any control change for temperatures to stabilize.

Why it matters

If you go looking for a mechanical defrost timer on FFSS2615TE4, you can waste time and still miss the real cause. This model’s automatic defrost depends on the electronic control, proper evaporator airflow, and the defrost safety thermostat working together.

Last updated: February 2026

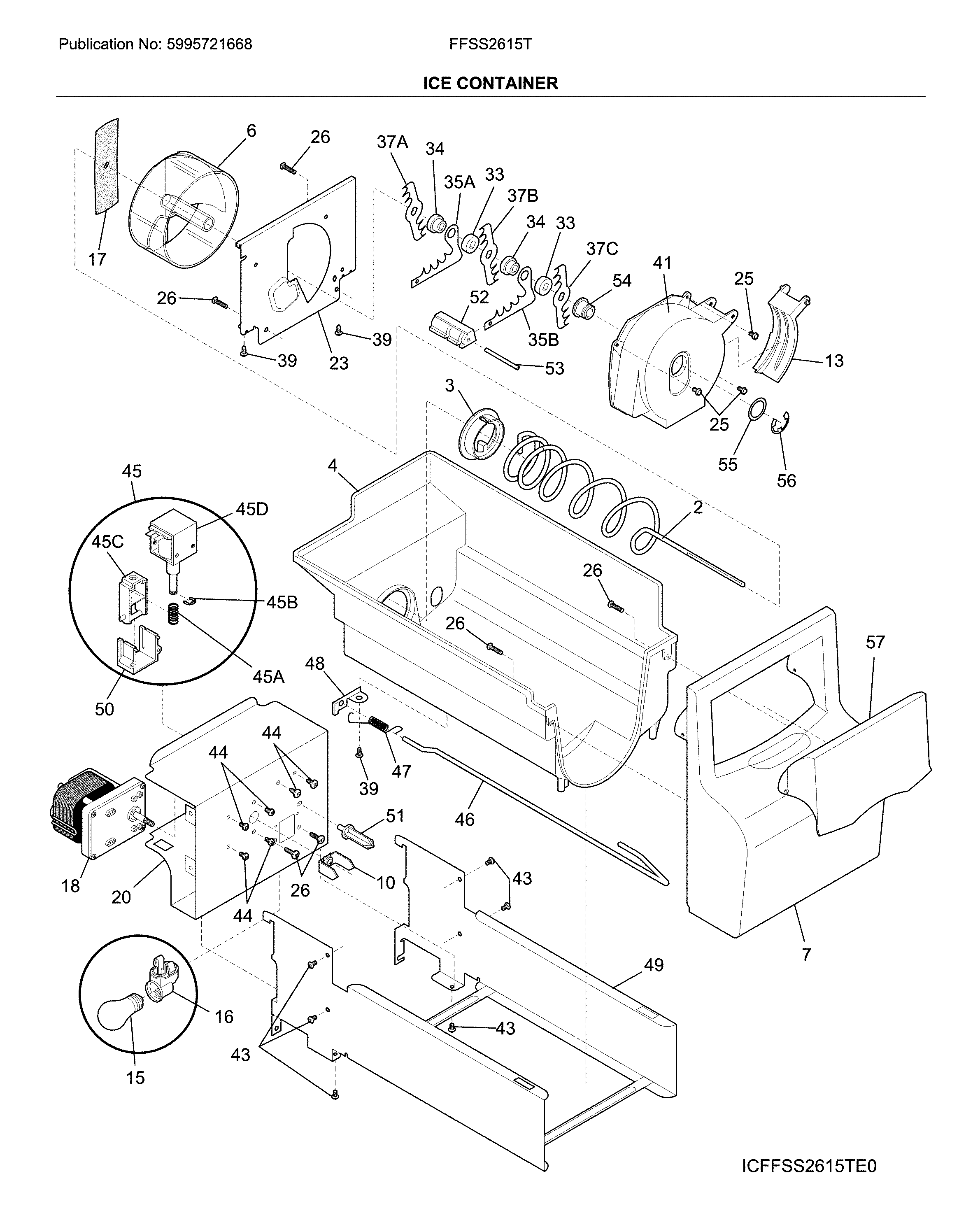

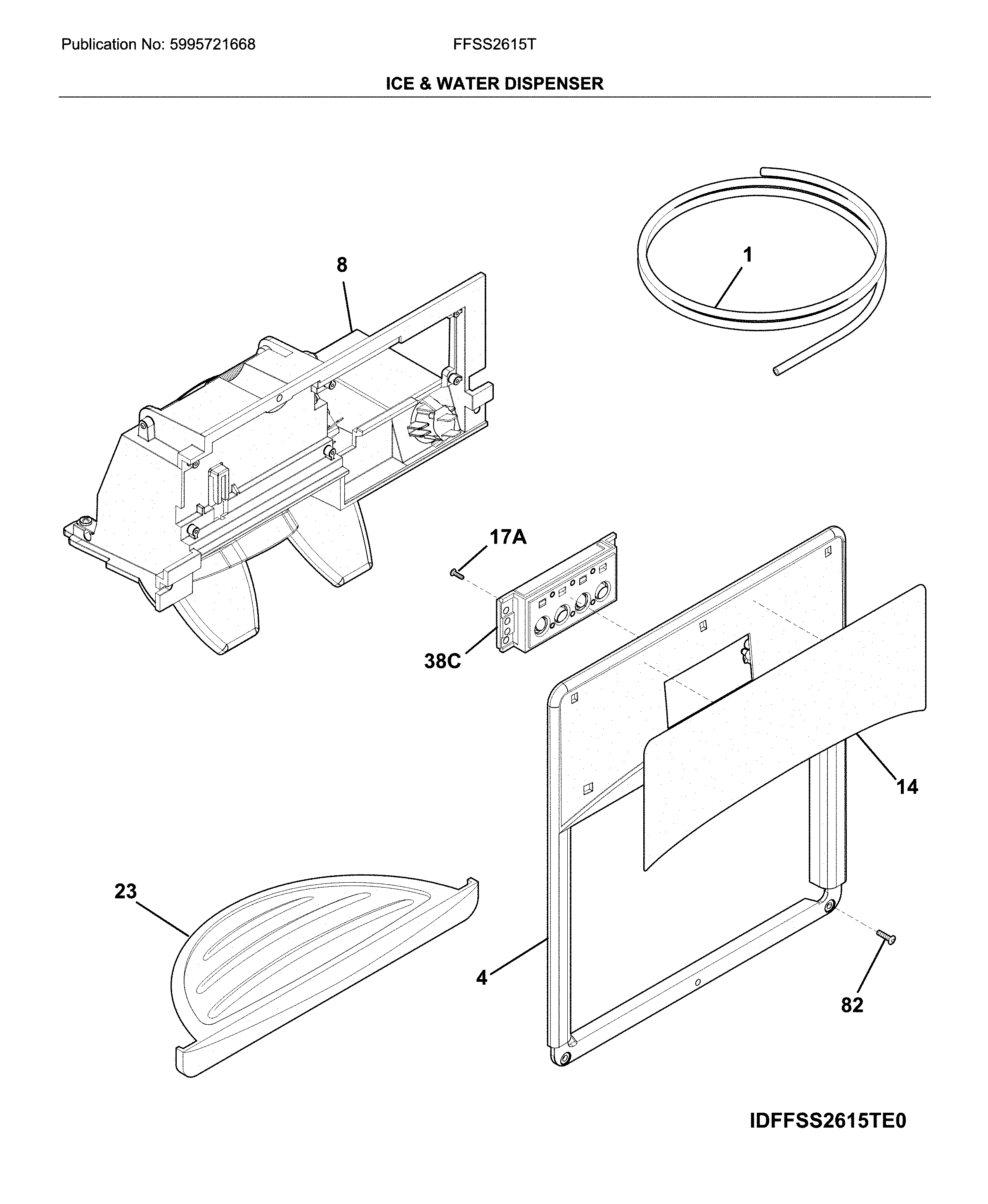

On the Frigidaire FFSS2615TE4, D1 SP points to a problem in the ice and water dispenser system, commonly tied to the dispenser door (ice chute door) sensing open or closed. The dispenser may stop dispensing ice properly until the door/sensor issue is corrected.

What you’ll notice when D1 SP is showing

• Ice may not dispense, or it dispenses inconsistently
• You may hear the dispenser area clicking or trying to actuate
• The ice door may not fully close, which can lead to frost buildup in the chute
• The display may continue to show the code until the underlying issue is fixed

Quick checks we recommend first

1. Power reset: Unplug the refrigerator (or switch off the breaker) for 2 minutes, then restore power.
2. Inspect the ice chute door: Look for ice chunks or frost preventing the flap from sealing.
3. Clean and dry the chute area: Warm, damp cloth, then dry thoroughly.
4. Check for binding: Press the dispenser lever and listen for smooth operation.
5. Confirm normal operation settings: Review dispenser and control behavior in the FFSS2615TE4 owner’s manual.

Parts that commonly relate to dispenser sensing issues

D1 SP is often caused by a dispenser door not closing fully, a sensor/actuator problem, or a control issue. If troubleshooting points to a control problem, the model uses an electronic control board for dispenser functions.

Symptom	Most likely area	What to do next
Ice door does not seal	Ice chute door/flap area	Remove frost, check for obstructions
Dispenser acts erratic	Dispenser controls	Check wiring connections, then test components
Code returns after reset	Control or sensing circuit	Follow diagnostics in the manual

If diagnostics indicate a failed control, we match this model to the refrigerator electronic control A01078804.

Why it matters

When the dispenser door does not register correctly, warm air can enter the freezer through the chute. That can cause frost buildup, clumping ice, and repeated dispenser problems even after you clear the code.

Related help

For code interpretation patterns and what to check next, use our Frigidaire refrigerator error codes reference alongside the model’s manual.

Last updated: February 2026

To clear an SY EF error on your Frigidaire FFSS2615TE4 side-by-side refrigerator, start with a full power reset (unplug for 5 to 10 minutes, then restore power). If the code returns, focus on the evaporator fan and airflow system because SY EF commonly points to a fan or feedback issue.

Quick reset steps (in order)

• Unplug the refrigerator (or switch off the breaker) for 5 to 10 minutes.
• Restore power and wait a few minutes for the control to boot.
• Confirm the doors are fully closed and nothing is blocking vents.
• If the unit shows a temperature alarm such as “HI”, press any key to silence and acknowledge it.
• If SY EF returns, move to the checks below.

What to check if SY EF comes back

SY EF is typically tied to the evaporator fan circuit, airflow restriction, or a control sensing problem.

• Evaporator fan operation: Listen for the fan in the freezer section; no fan noise or intermittent noise points to a fan motor issue.
• Ice buildup restricting airflow: Heavy frost on the freezer back wall can indicate a defrost problem.
• Wiring connections: Check for loose connectors at the fan motor and control (unplug power first).
• Defrost components: A failed defrost thermostat can contribute to frost buildup.

Symptom you notice	Most likely area to inspect	Common next step
SY EF returns after power reset	Evaporator fan circuit	Inspect/replace fan motor
Warm freezer, frost on back panel	Defrost system	Check defrost thermostat
Fan runs but cooling is uneven	Airflow control	Inspect damper and vents

Parts that commonly relate to SY EF on this model

If troubleshooting points to a failed component, these model-matched parts are commonly involved:

• Frigidaire refrigerator evaporator fan motor 242077705 (fan not running, noisy, or intermittent)
• Refrigerator evaporator fan blade 5308000010 (blade cracked, rubbing, or slipping)
• Refrigerator defrost bi-metal thermostat 5303918214 (heavy frost, recurring airflow restriction)

Why it matters

When the evaporator fan cannot move cold air correctly, temperatures rise and the refrigerator may trigger alarms or error codes. Addressing airflow and defrost issues early helps protect food temperatures and reduces compressor run time.

Helpful references

• Use the control and alarm guidance in the FFSS2615TE4 owner’s manual.
• For model-specific code meanings and symptom patterns, see Frigidaire refrigerator error codes.

Last updated: February 2026

The Frigidaire FFSS2615TE4 is a 36-inch class side-by-side refrigerator. For installation fit, plan on the clearances specified for this model: 3/8 inch at the sides and top, and 1 inch at the back; confirm full exterior dimensions in the FFSS2615TE4 installation guide.

Installation space you should plan for

These minimum clearances support airflow and room for plumbing and electrical connections:

Location	Minimum clearance
Sides and top	3/8 inch
Back	1 inch

Also allow enough room for the doors to open fully so you can remove drawers and freezer baskets.

What to measure at home (before delivery)

Measure both the final location and the path to get it there:

• Opening width at the narrowest point (cabinets, trim, baseboards)
• Height to the lowest obstruction (soffit, cabinet, doorway)
• Depth to the wall (include baseboard thickness and any shutoff valve)
• Door swing space in front of the refrigerator
• Water supply access for the ice and water dispenser

If it will not fit through a doorway

The installation instructions for FFSS2615TE4 recommend two common options:

• Remove the entrance door (if possible)
• Remove the refrigerator doors (steps are in the FFSS2615TE4 owner’s manual)
• Use a hand truck and move the refrigerator from the side of the cabinet (not by the handles)

Why it matters

Correct sizing prevents delivery-day surprises, protects the water line and power cord during positioning, and ensures proper air circulation so the compressor and evaporator fan can cool efficiently.

Last updated: February 2026
