Kenmore 2538283680 upright freezer Parts
Here are the diagrams and repair parts for Kenmore 2538283680 upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 2538283680 Freestanding Freezers

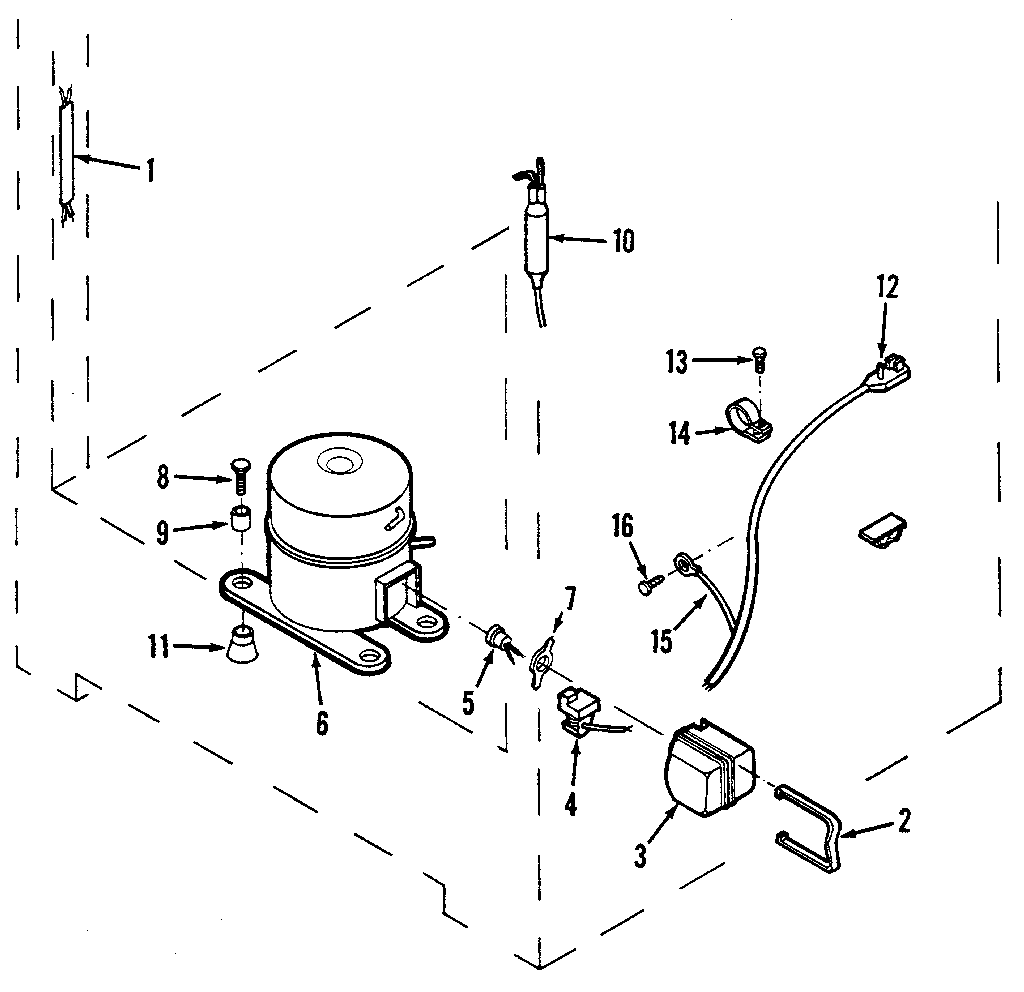

Unit diagram
Bale Strap
Part #166057Replaced by #5303006412
Manufacturer substitutionThis part replaces 166057. Substitute parts can look different from the original.This item is not returnableIn Stock$27.06
Qty

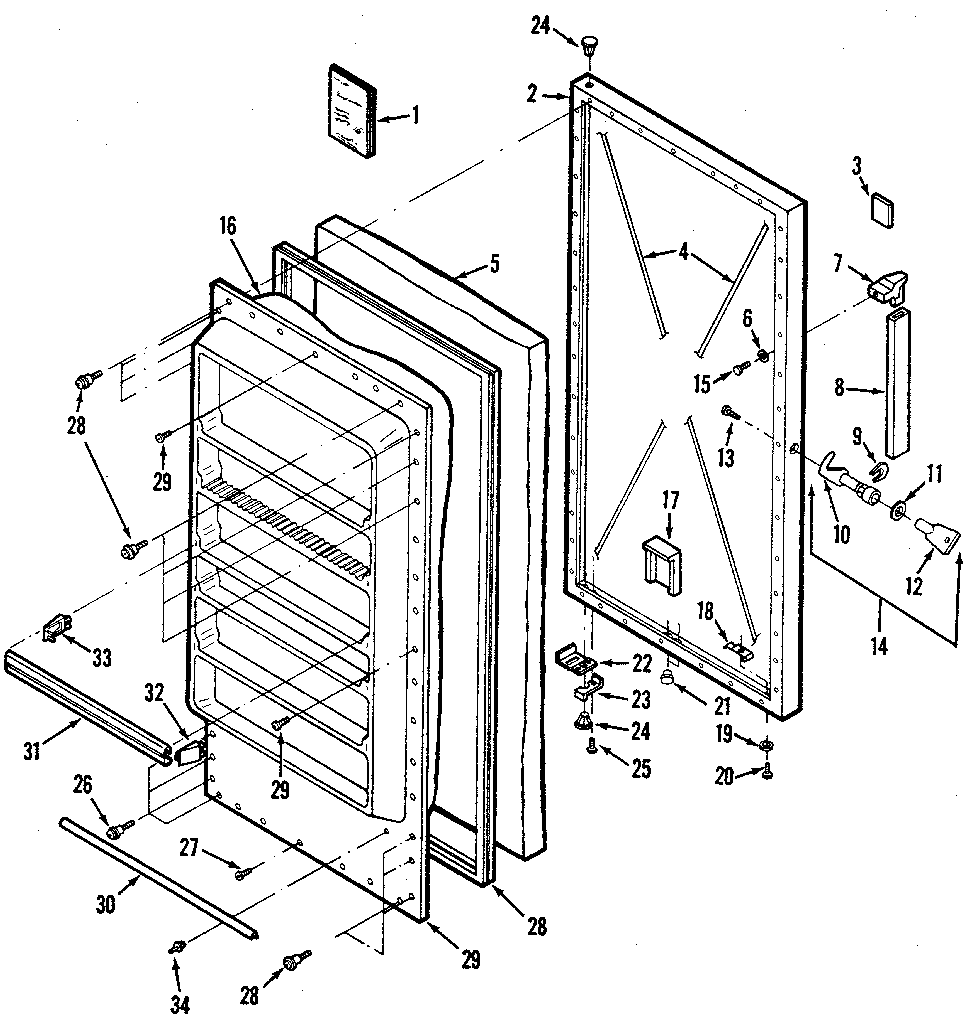

Door diagram
Clip
Part #300792Replaced by #5304406520
Manufacturer substitutionThis part replaces 300792. Substitute parts can look different from the original.In Stock$74.607% OFF Phone Price : $80.60

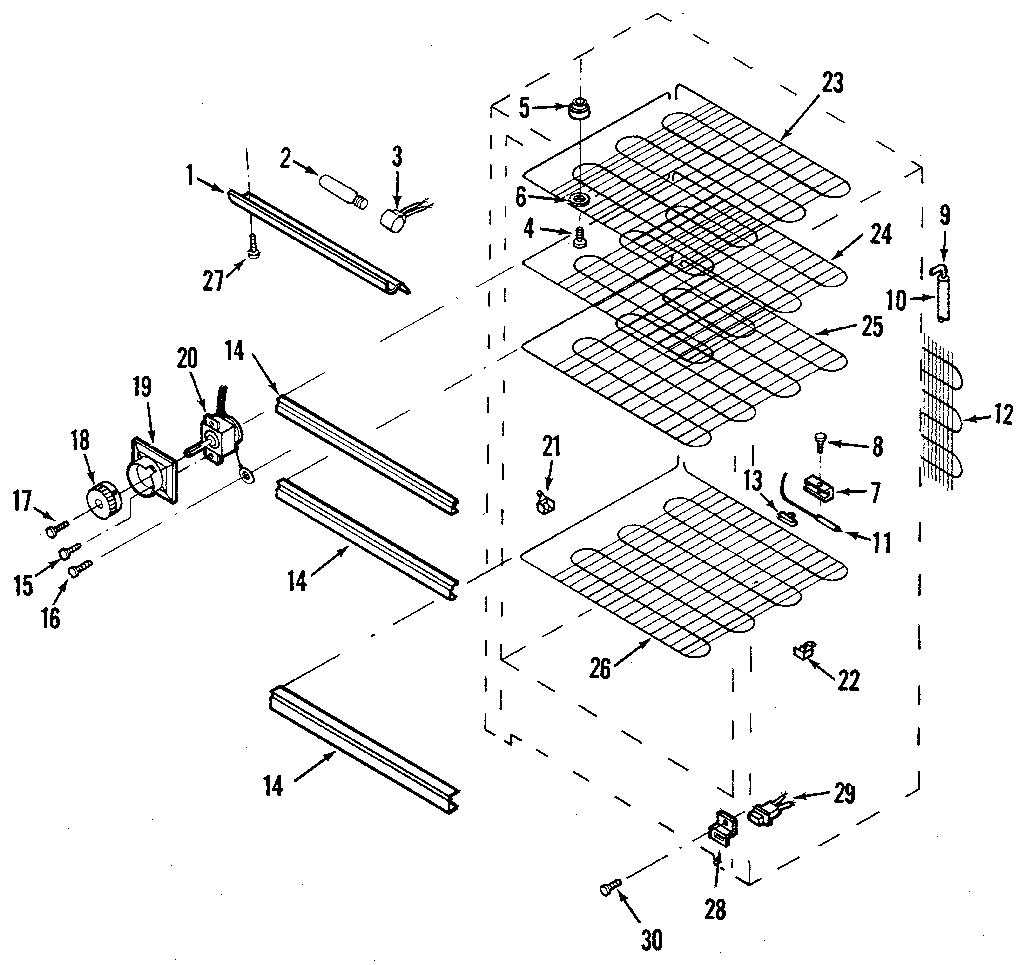

QtyLiner diagram
Shelf
Part #129807Replaced by #08037940
Manufacturer substitutionThis part replaces 129807. Substitute parts can look different from the original.In Stock$152.20QtyInsulation
Part #116171-50Replaced by #5303925098
Manufacturer substitutionThis part replaces 116171-50. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52QtyUnit diagram
Screw
Part #154589Replaced by #5300183344
Manufacturer substitutionThis part replaces 154589. Substitute parts can look different from the original.In Stock$33.19QtyLiner diagram
Light Shield
Part #3016805Replaced by #216312301
Manufacturer substitutionThis part replaces 3016805. Substitute parts can look different from the original.In Stock$32.03QtyDoor diagram
Extension Panel
Part #3016799Replaced by #5303925140

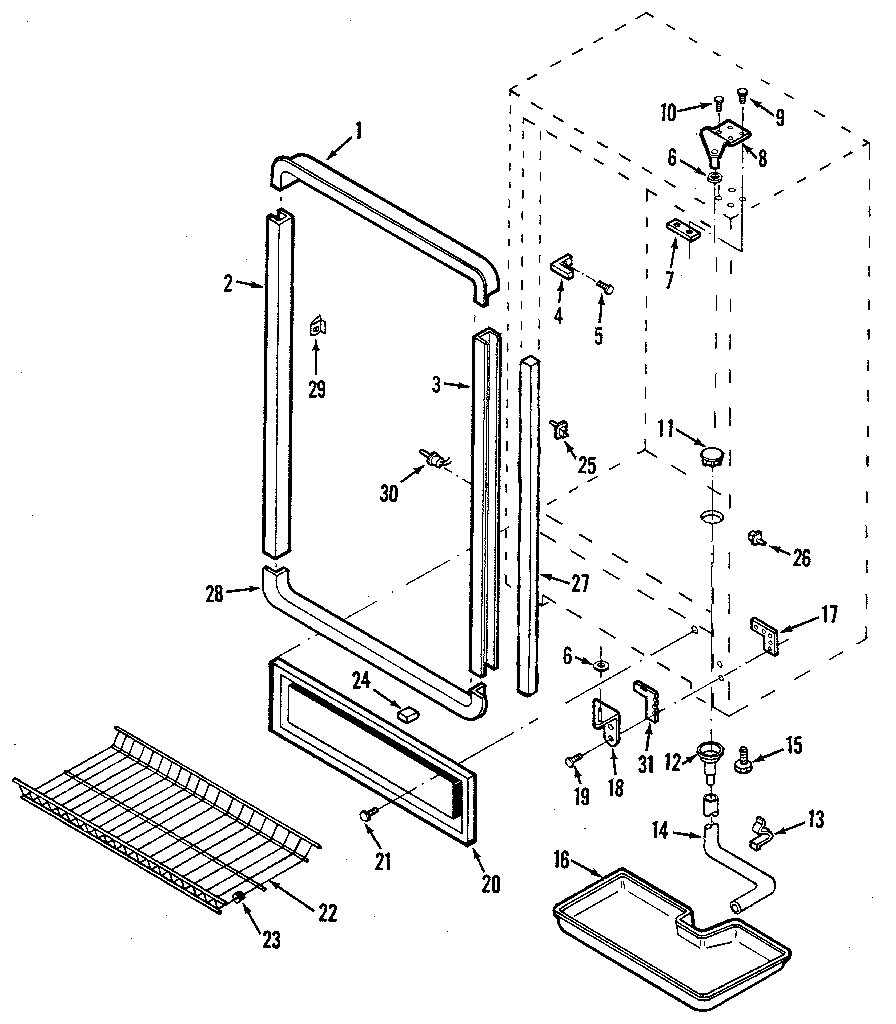

Manufacturer substitutionThis part replaces 3016799. Substitute parts can look different from the original.In Stock$160.16QtyCabinet diagram
Screw
Part #300459Replaced by #08037848
Manufacturer substitutionThis part replaces 300459. Substitute parts can look different from the original.In Stock$25.37QtyDoor diagram
Insulation
Part #58187Replaced by #5303925098
Manufacturer substitutionThis part replaces 58187. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52QtyCabinet diagram
Clip
Part #126240Replaced by #06594680
Manufacturer substitutionThis part replaces 126240. Substitute parts can look different from the original.In Stock$25.60Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
