Amana ARDS802E-P1131943NE electric range Parts
Here are the diagrams and repair parts for Amana ARDS802E-P1131943NE electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

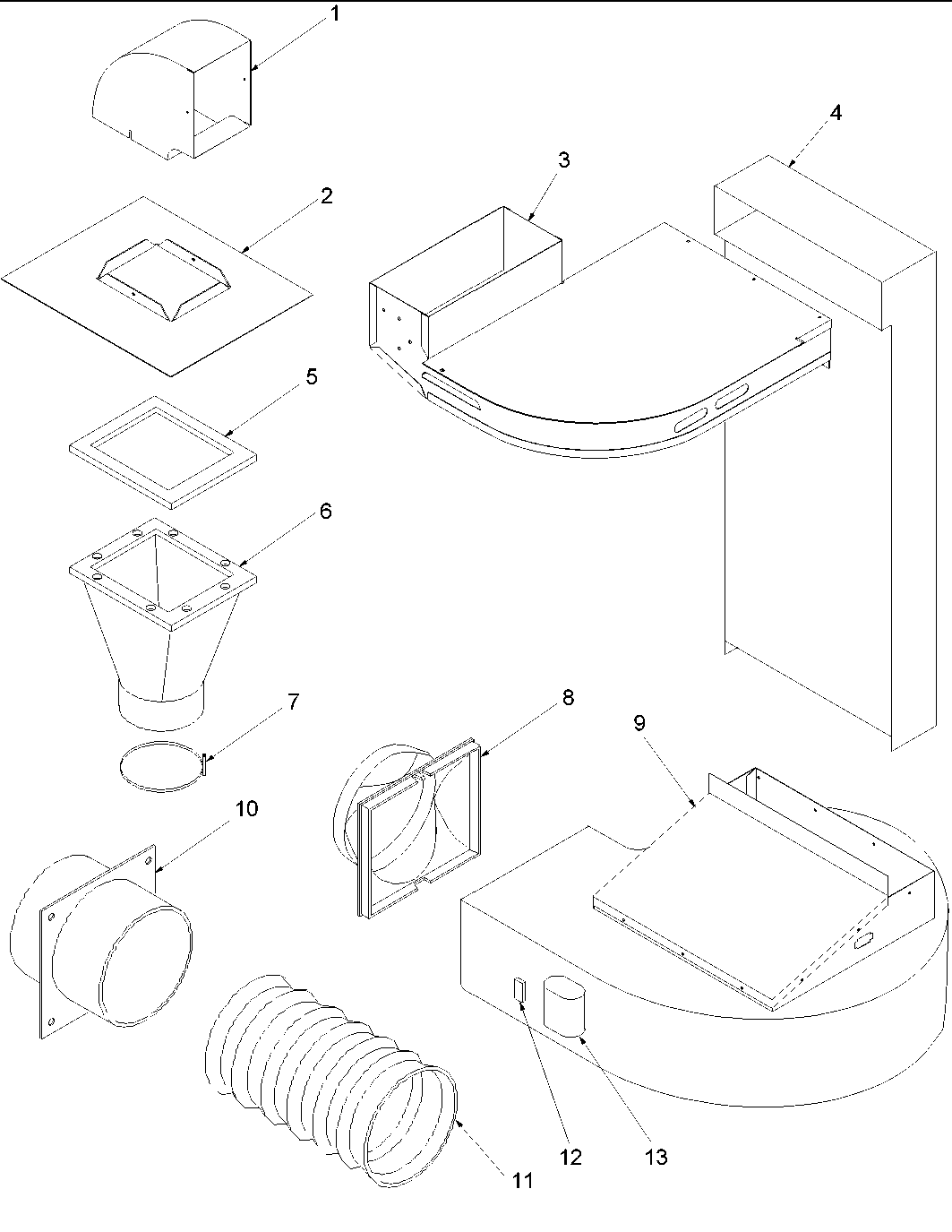

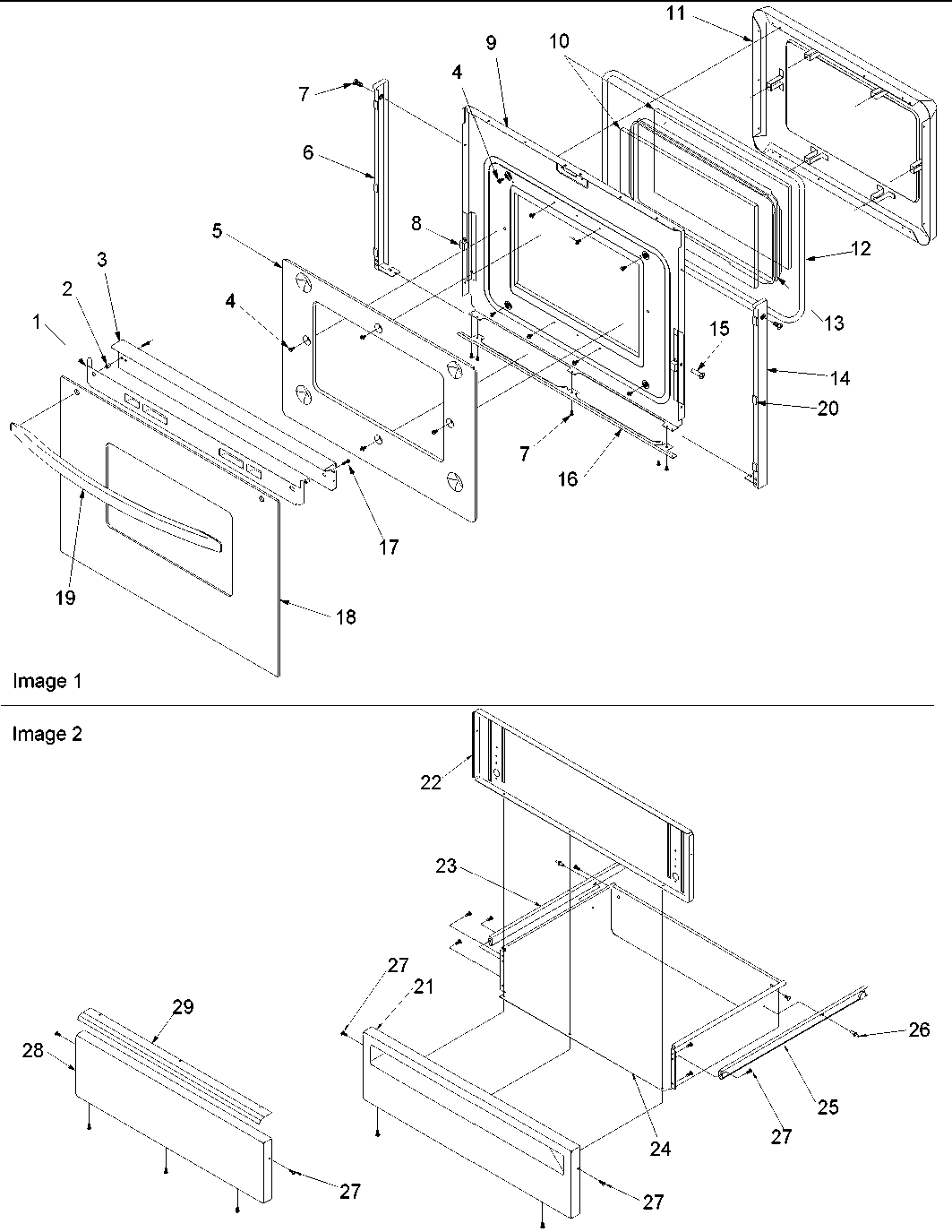

Browse Parts for ARDS802E-P1131943NE Ranges

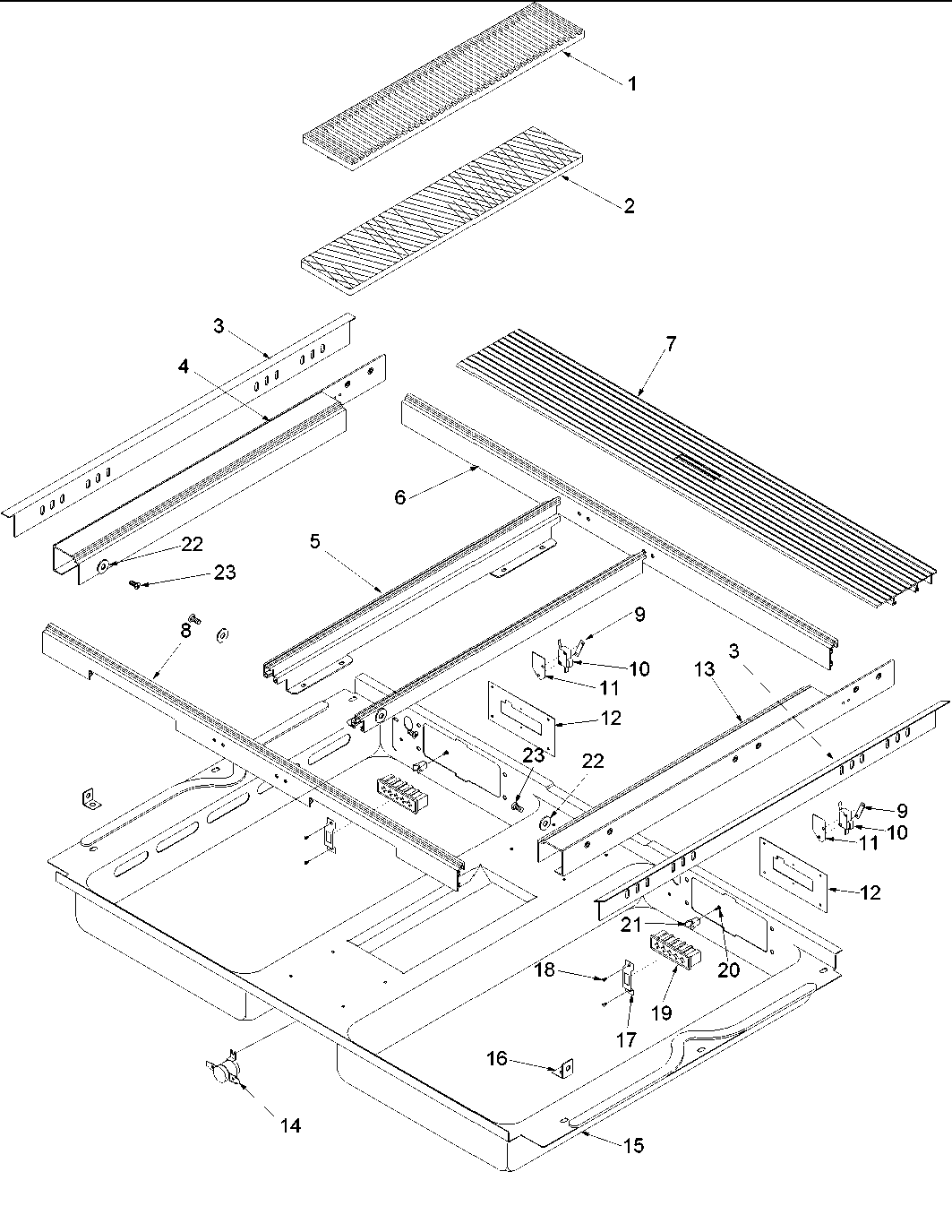

Main top assembly diagram
Block
Part #0042210
The manufacturer no longer makes this part, and there's no substitute part
Main top assembly diagram
Backrail Lo
Part #315081B
The manufacturer no longer makes this part, and there's no substitute part

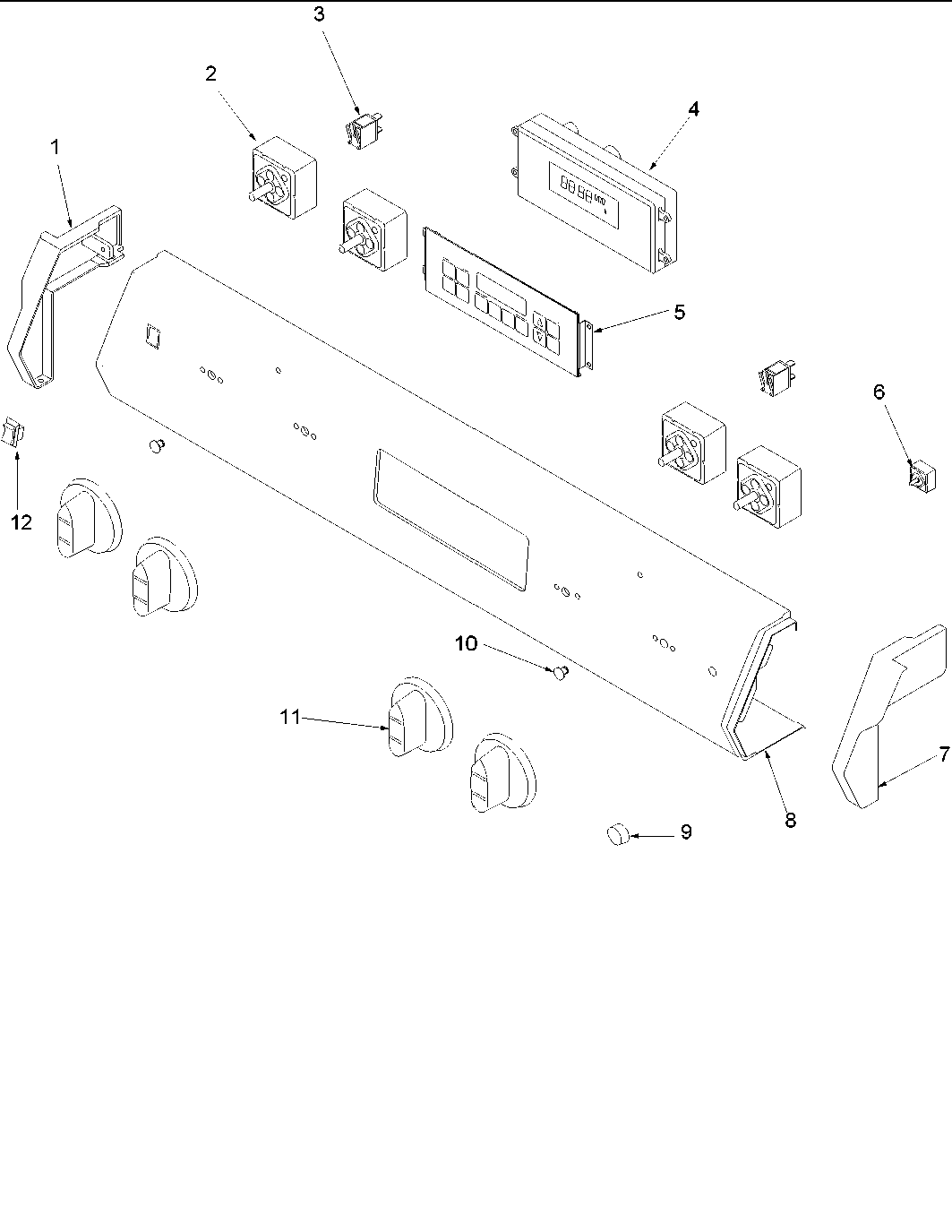

Backguard diagram
Wire Harness,inf Sw (non-illus)
Part #0315407
The manufacturer no longer makes this part, and there's no substitute part

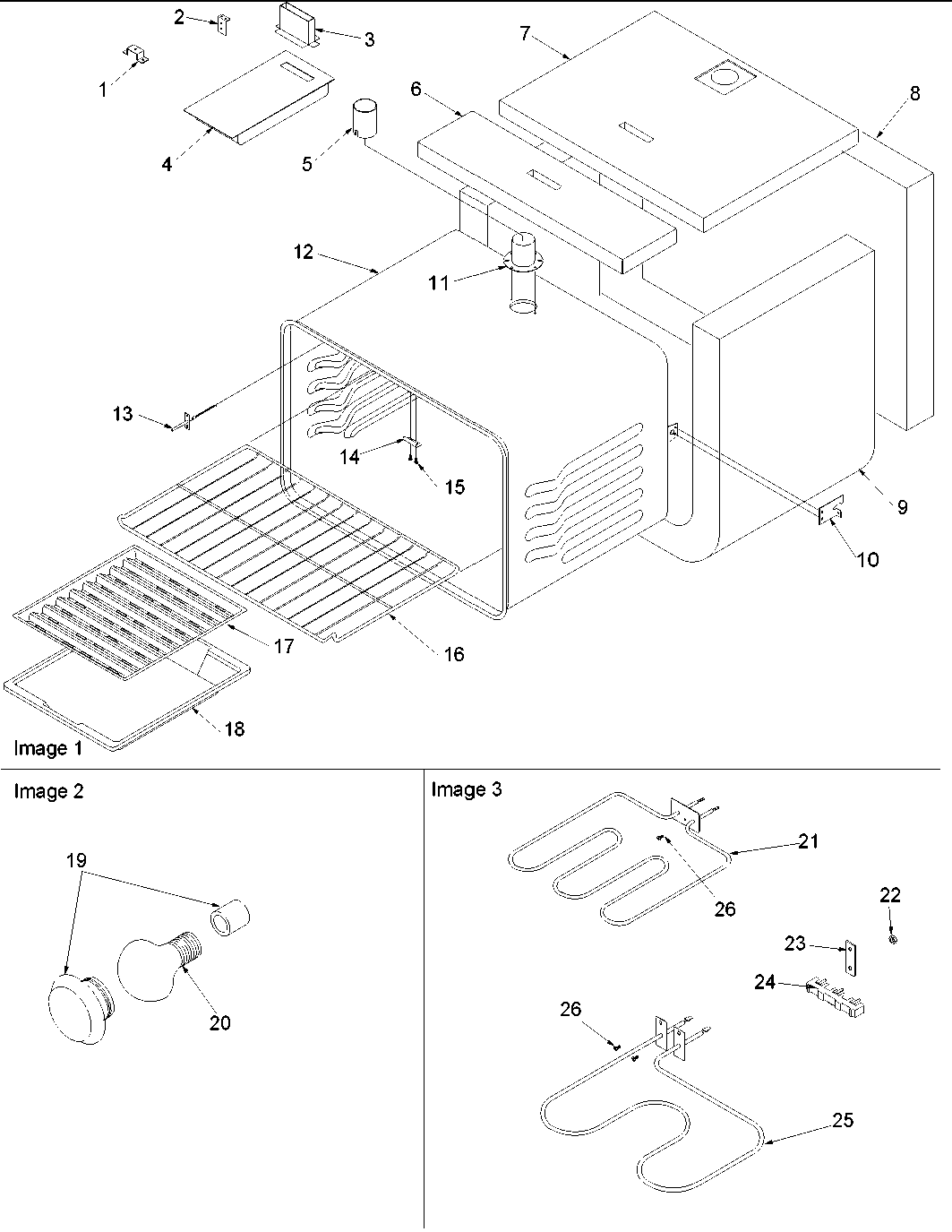

Cavity diagram
Cover, Chip
Part #0315022
The manufacturer no longer makes this part, and there's no substitute part

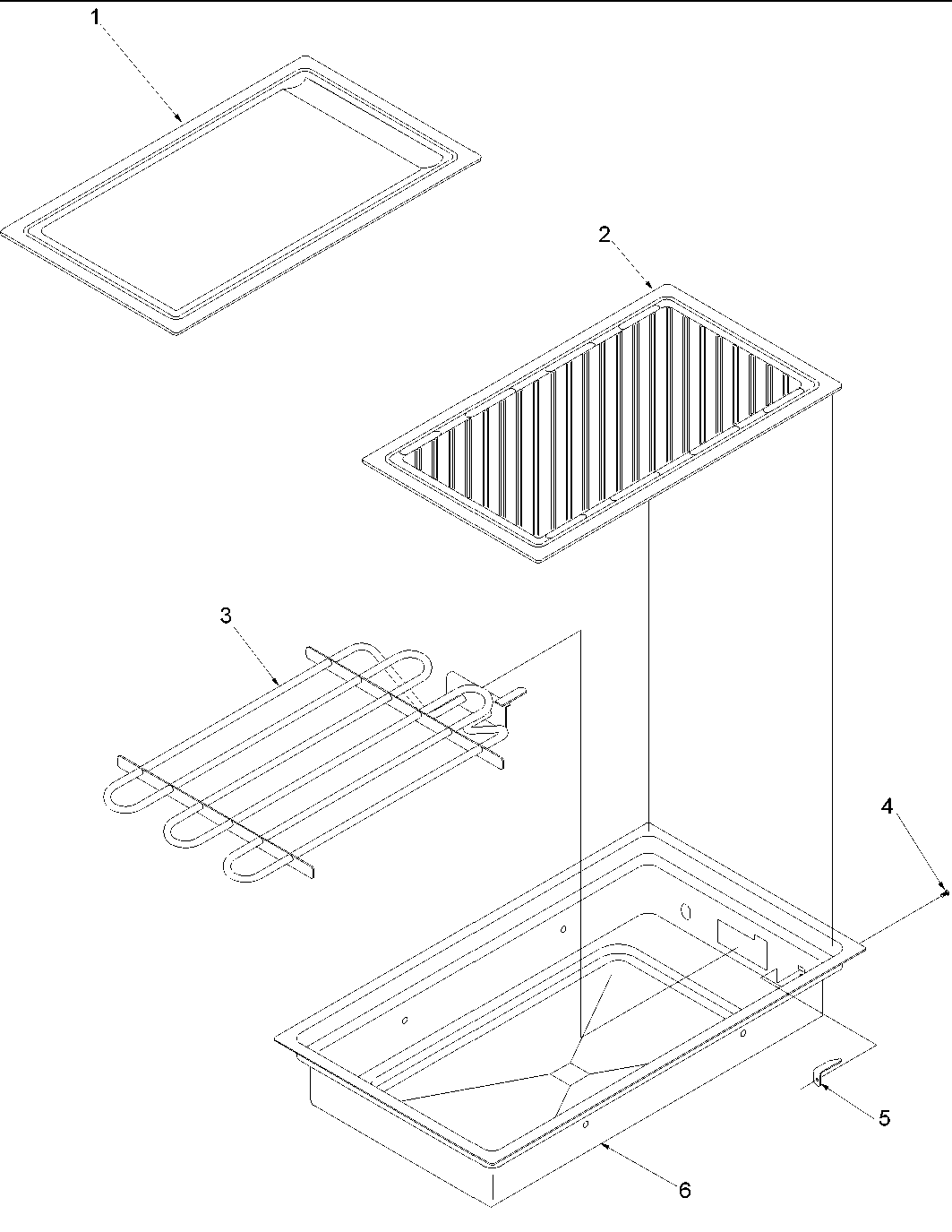

Grille module acl100 and acg100 griddle diagram
Strike
Part #0315593
The manufacturer no longer makes this part, and there's no substitute part
Cavity diagram
Bracket, Oven Cavity (qty 2)
Part #0058852
The manufacturer no longer makes this part, and there's no substitute part
Main top assembly diagram
Bracket, Frame Trim
Part #0301154
The manufacturer no longer makes this part, and there's no substitute part

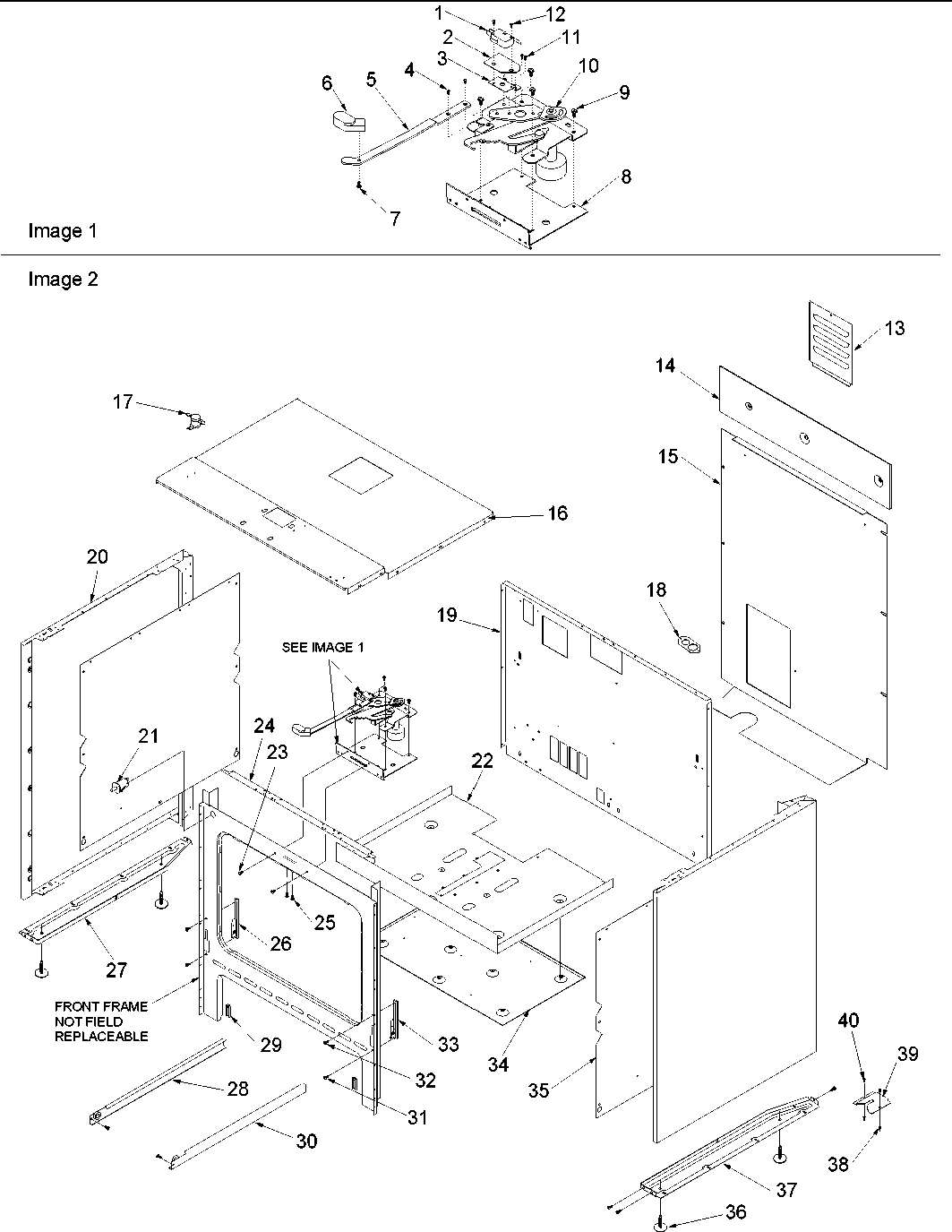

Cabinet diagram
Support, Stg Dwr Trk
Part #0315150
The manufacturer no longer makes this part, and there's no substitute part
Backguard diagram
Touch Pad
Part #31943901B
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Oven Light Switch
Part #0314367
The manufacturer no longer makes this part, and there's no substitute part
