KitchenAid KRFC704FBS02 bottom-mount refrigerator Parts

On your KitchenAid KRFC704FBS02 refrigerator, the model number (and serial number) are printed on a label on the inside wall of the refrigerator compartment. Open the fresh food doors and look along the interior side wall for the rating label; it is meant to be readable without moving the appliance.

How to find it quickly

• Open both refrigerator (fresh food) doors.
• Look on the inside wall of the refrigerator compartment (not the freezer drawer).
• Check the left and right interior side walls at about eye level.
• If you do not see it, look behind the crisper drawers or near the lower side wall area.
• Wipe the area with a damp cloth; labels can be hard to read if dusty.

What the label typically includes

Item on the label	What it’s used for
Model number	Matching the correct parts list and diagrams
Serial number	Identifying the production unit for service history
Electrical ratings	Verifying power requirements and safe testing

Why it matters

We use the model number to match the exact KitchenAid parts that fit your KRFC704FBS02, such as the correct refrigerator water filter, air filter, door gasket, or ice maker assembly. Using the full model number helps avoid ordering a similar looking part that will not mount or connect correctly.

Tip for ordering parts

Write the model and serial numbers down exactly as shown (including any letters and numbers) and keep them with your paperwork; the owner's manual also has a spot to record them for future reference.

Last updated: February 2026

To reset the water filter light on your KitchenAid KRFC704FBS02 bottom-mount refrigerator, touch MAX COOL and MAX ICE at the same time for 3 seconds. The display runs a short countdown, then the “Good” indicator blinks and stays lit when the reset is accepted (see the owner's manual).

Quick reset steps

• Close the refrigerator doors so the control panel is awake.
• Locate MAX COOL and MAX ICE on the temperature control display.
• Touch and hold MAX COOL + MAX ICE together for 3 seconds.
• Watch for the 3-second countdown on the display.
• Confirm the reset: the Good icon blinks (typically 3 times) and remains on.

What the filter light is telling you

Your KRFC704FBS02 uses filter status indicators to prompt replacement and reset:

Light/message	What it means	What to do
Order filter (yellow)	Filter is nearing end of life	Plan to replace soon
Replace filter (red)	Filter life is used up	Replace the filter, then reset
Replace filter flashing while dispensing	Filter is overdue	Replace and reset right away

If Replace filter stays on after you install a new filter, the reset above is the fix.

Why it matters

Resetting the filter light after a filter change keeps the reminder accurate, helps protect water taste and flow, and prevents the control from continuing to signal “Replace filter” even when the new filter is installed.

Related part and how-to help

• If you are replacing the filter itself, the model-listed filter is the refrigerator cartridge wrap assembly EDR2RXD1.
• For step-by-step filter replacement tips, use how to replace the water filter in a KitchenAid refrigerator.

Last updated: February 2026

For your KitchenAid KRFC704FBS02 bottom-mount refrigerator, we recommend ordering replacement parts by matching your model number first, then selecting the exact part ID from the parts list for your unit. This helps ensure fit and function for items like filters, gaskets, and ice maker components.

The fastest way to find the right part

• Confirm the model number on the inside wall of the fresh food compartment: KRFC704FBS02.
• Use the parts list for this model to locate the part by name or symptom.
• Match the part ID (not just a description) before ordering.
• Check whether the part is a consumable (filter) or a repair part (motor, thermistor).

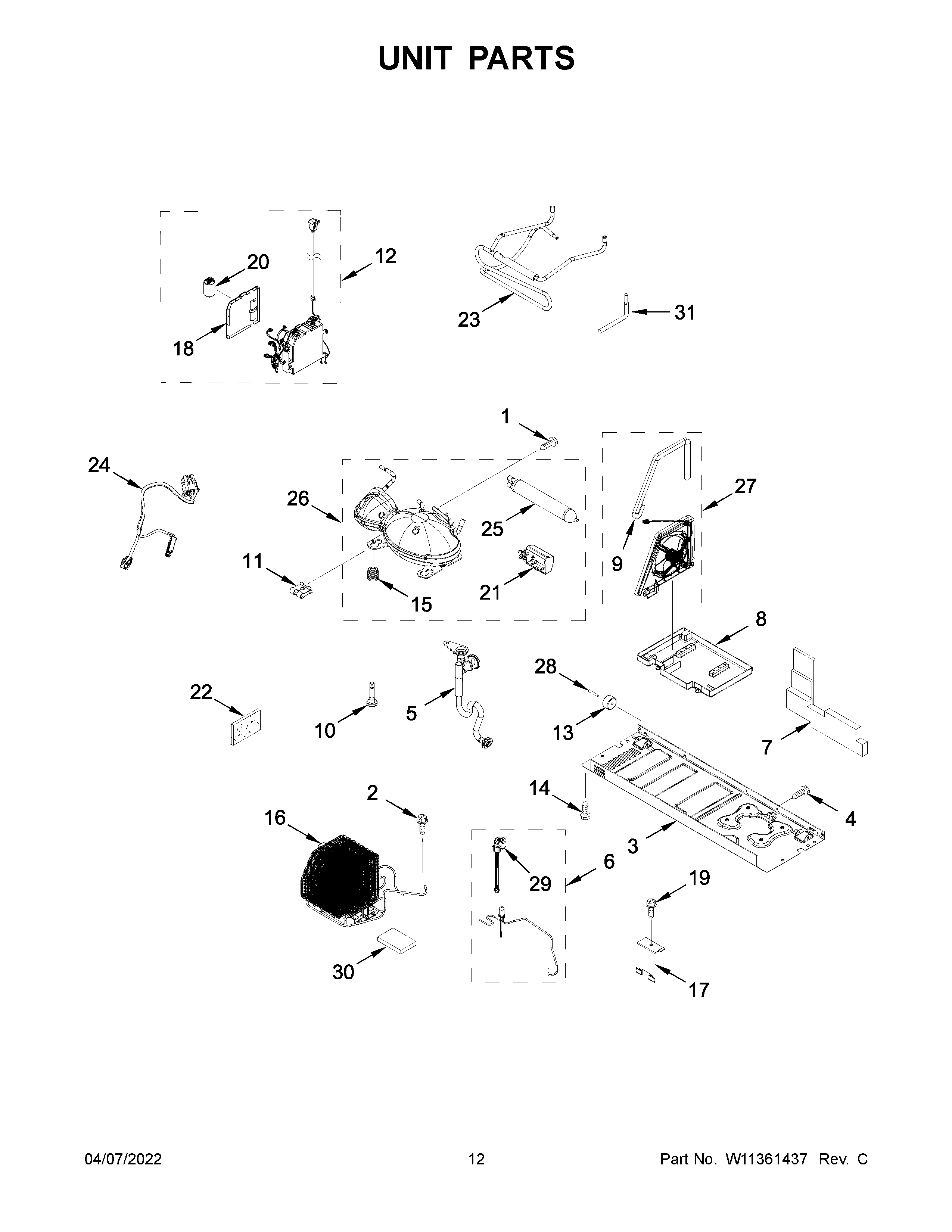

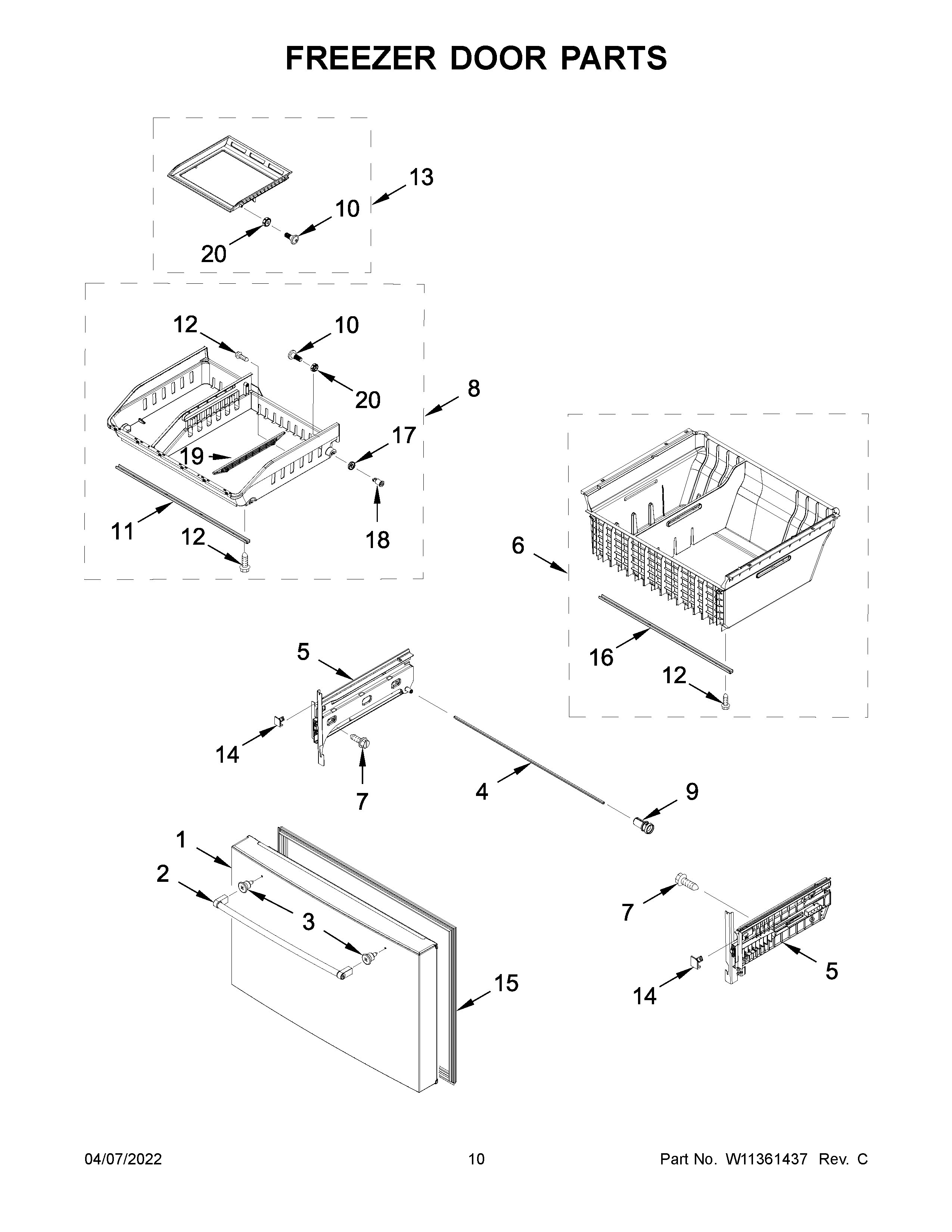

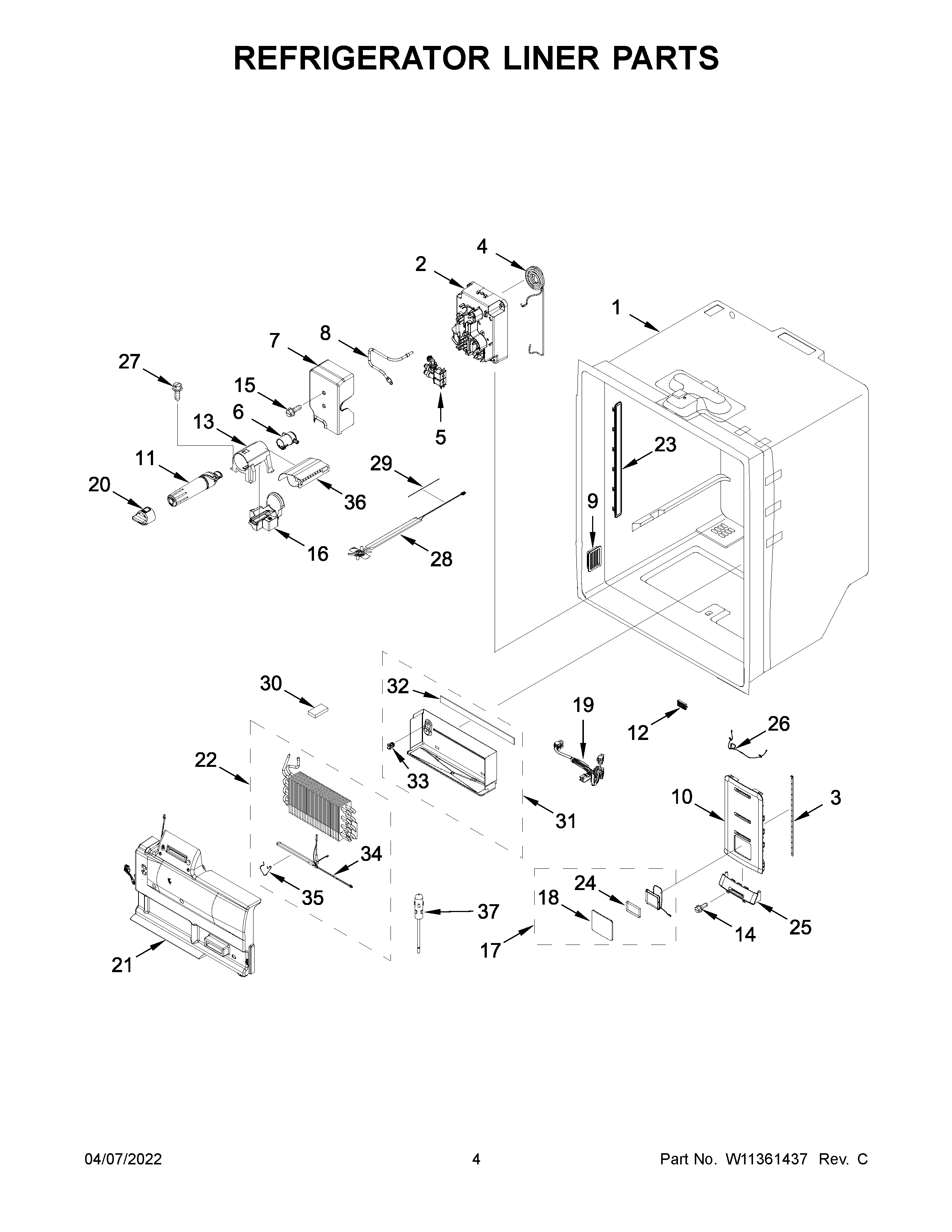

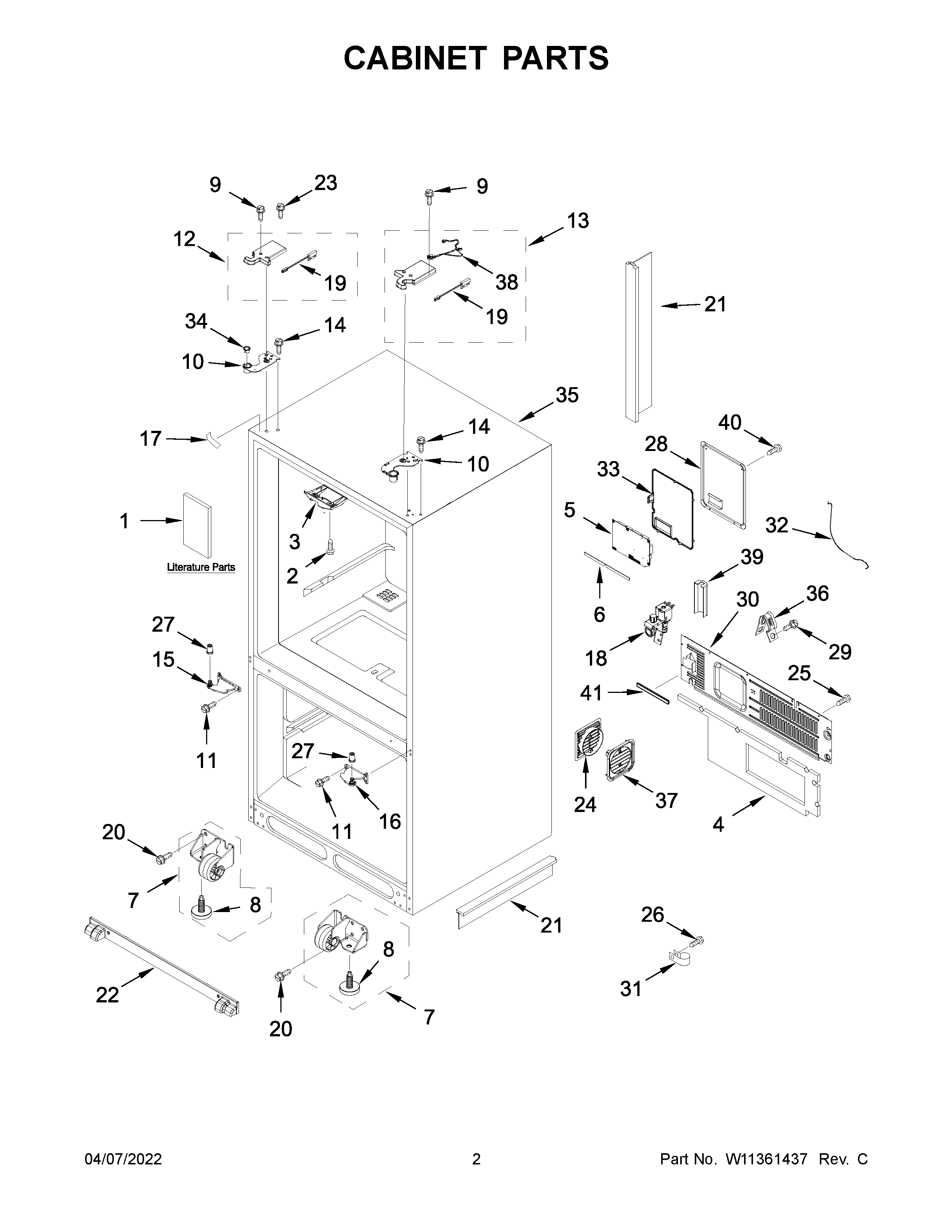

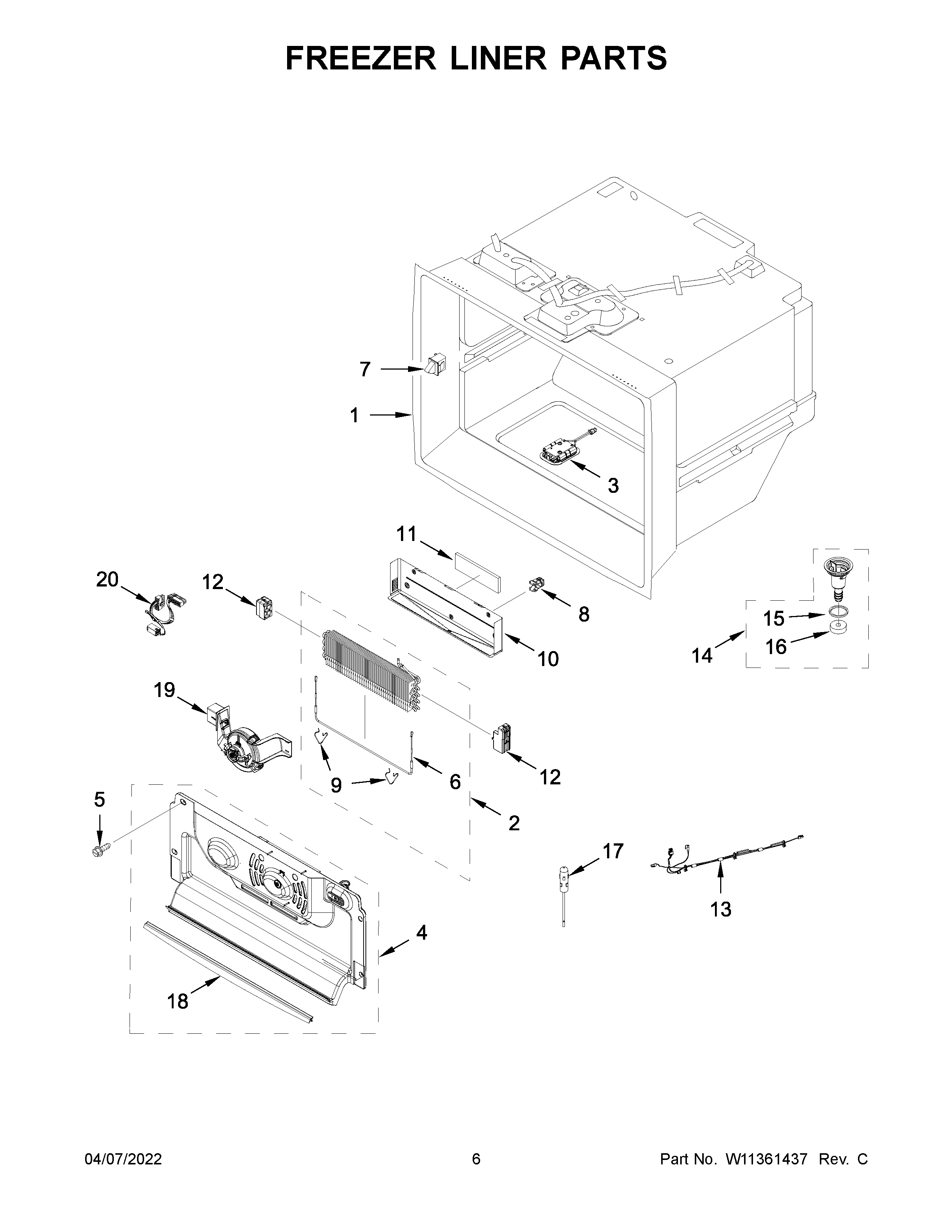

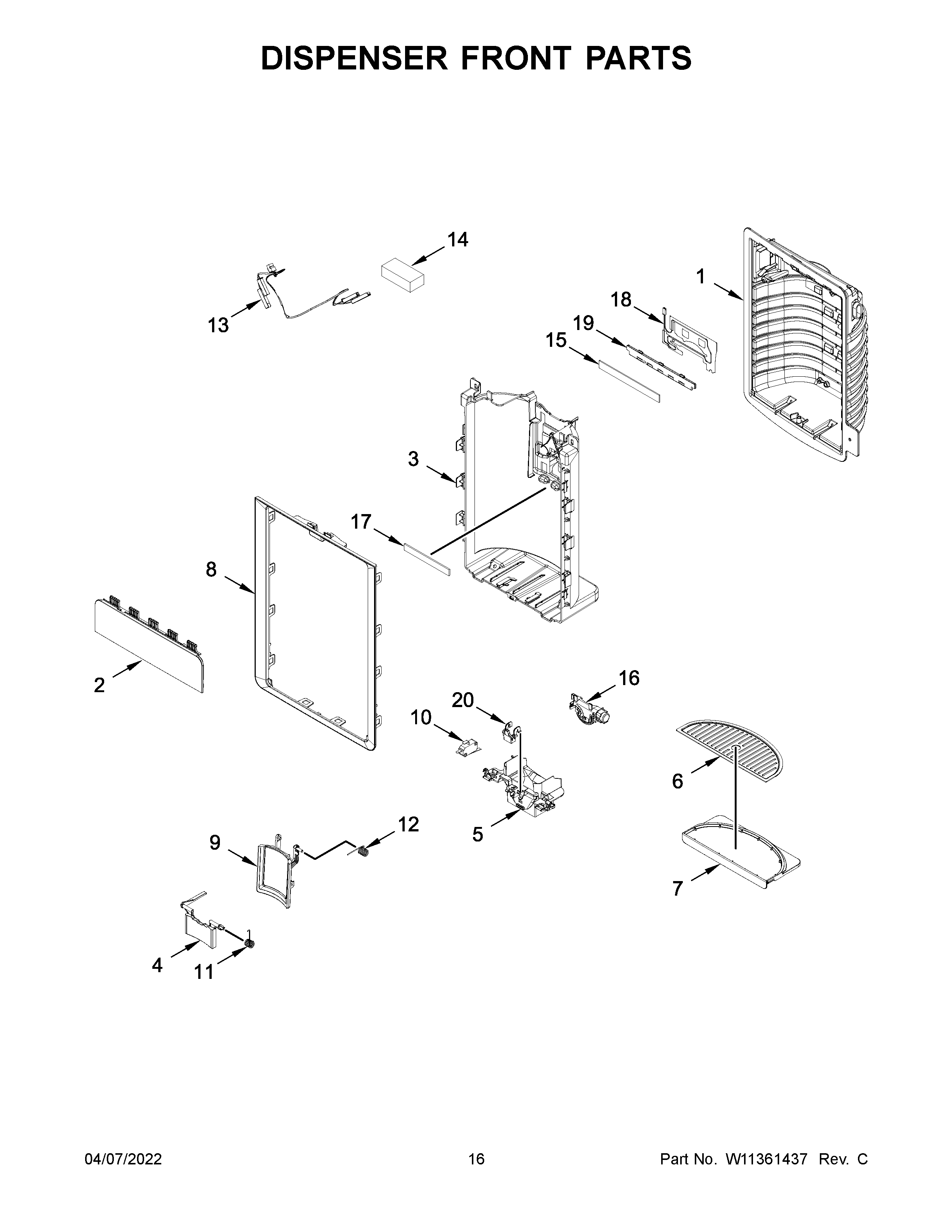

• Use the diagrams to confirm location and quantity.

For model-specific part identification and diagrams, use the owner's manual.

Common KRFC704FBS02 parts customers replace

These are examples of parts available for this model that are commonly ordered:

What you are replacing	What it affects	Example part for this model
Air filter	Odors in fresh food section	Refrigerator air filter W10311524
Water filter	Water taste, flow, ice quality	Refrigerator cartridge wrap assembly EDR2RXD1
Ice maker	No ice, small batches, odd-shaped cubes	Refrigerator ice maker assembly W11557001
Door gasket	Warm spots, moisture, poor sealing	Refrigerator door gasket (gray) W10917313

Tips to avoid ordering the wrong part

• Do not order by “looks similar”; always match the part ID.
• If your issue is temperature-related, confirm symptoms before buying sensors; a refrigerator thermistor W11724692 is only helpful when the diagnosis points to a sensing problem.
• If you recently removed doors, recheck water line connections and leveling; loose connections and alignment issues can mimic part failures.

Why it matters

Using the correct KRFC704FBS02 part ID reduces repeat repairs, prevents leaks or fit issues, and helps your refrigerator maintain stable temperatures for food safety and ice production.

Last updated: February 2026

On KitchenAid refrigerators like model KRFC704FBS02, the most common service issues we see are cooling or temperature inconsistency, ice maker and water dispensing problems, and water leaks. These symptoms often trace back to airflow, water supply, or sensor and filter maintenance covered in the owner's manual.

Most common issues (and what they look like)

• Temperature too warm or uneven: fresh food warms up, freezer softens, or the unit runs a lot.
• Ice maker not producing enough ice: slow production, hollow or small cubes, or jams.
• Water leaking: water under the unit, in the hinge area, or dripping after dispensing.
• Noisy operation concerns: buzzing, clicking, gurgling, or cracking that can be normal during defrost or ice making.

Quick checks we recommend first

1. Give a new install time: allow 24 hours after installation for full cooling.
2. Confirm power and controls: use a grounded 3-prong outlet; make sure controls are turned on.
3. Check doors and airflow: bins or food packages can block the doors from closing fully.
4. Inspect water supply basics: a partially closed shut-off valve or low pressure can cause small or hollow cubes.
5. Rule out a clogged filter: if ice volume improves with the filter removed, replace or reinstall the filter correctly.

Common causes and the best “next step”

Symptom	Common cause	Best next step
Fridge too warm	Doors not sealing, warm food load, control settings	Verify door closing and settings in the owner's manual
Low ice production	Low water pressure, filter restriction, jam	Clear jam; check shut-off valve; replace filter if needed
Leaking water	Loose water line connection, dispenser drip	Tighten connections; flush water system per manual
“Too much” running	High-efficiency compressor, hot room, warm food	Confirm room conditions and allow time to stabilize

Parts that commonly help with these symptoms

If troubleshooting points to a maintenance or sensor issue, these model-compatible parts are often involved:

• Refrigerator air filter W10311524 (odor control and airflow freshness)
• Refrigerator cartridge wrap assembly EDR2RXD1 (water filtration)
• Refrigerator thermistor W11724692 (temperature sensing)
• Refrigerator ice maker assembly W11557001 (ice production)

Why it matters

Temperature swings can shorten food life, and water system restrictions can reduce ice output and cause dispenser dripping. Catching door-seal, filter, and water-supply issues early helps your KRFC704FBS02 cool more consistently and run more efficiently.

Last updated: February 2026
