Model #RCS3614RS01 Whirlpool electric counter unit

Here are the diagrams and repair parts for Whirlpool RCS3614RS01 electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 36 parts

    Cooktop Element Control Switch Seal

    #15

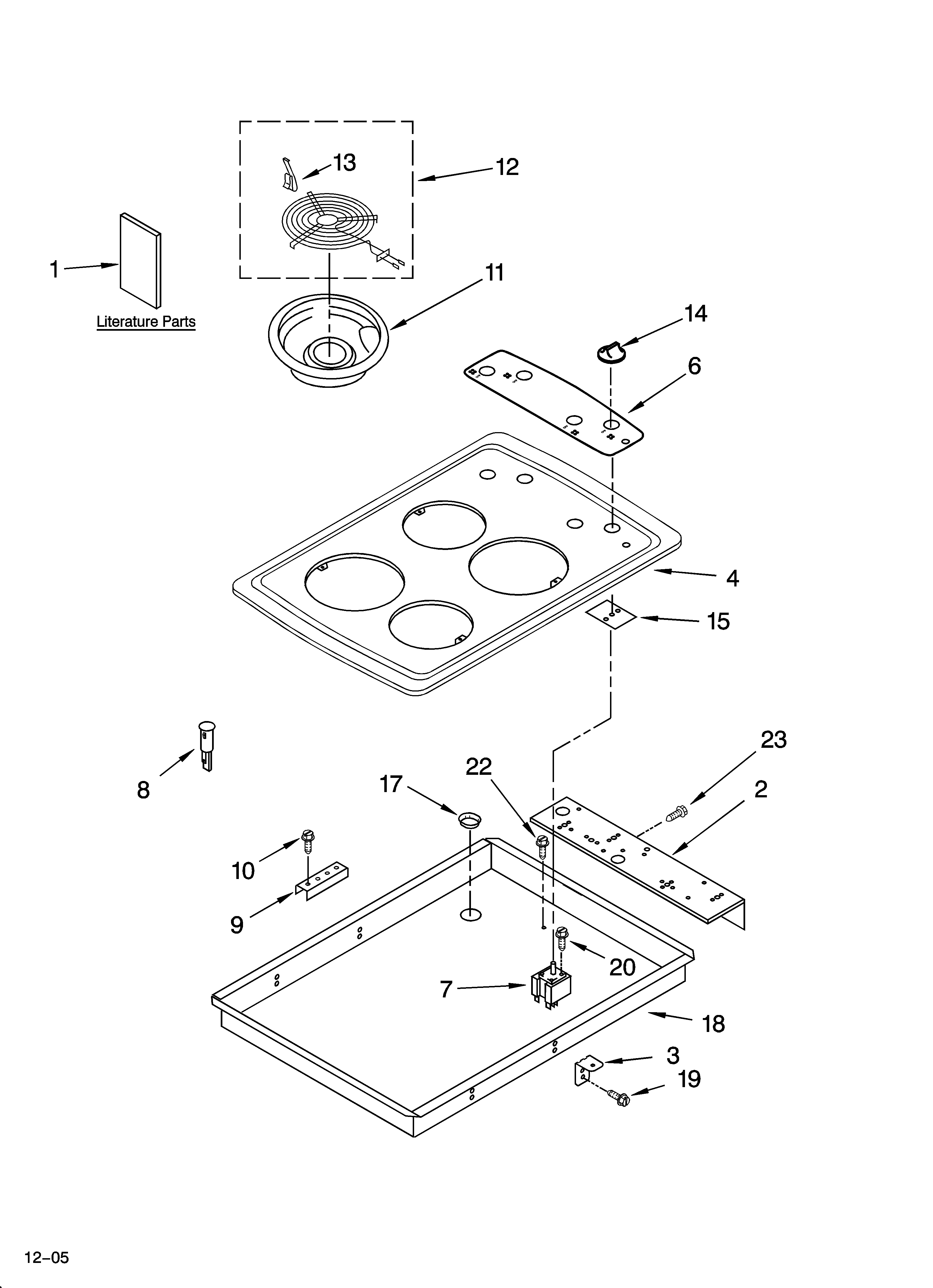

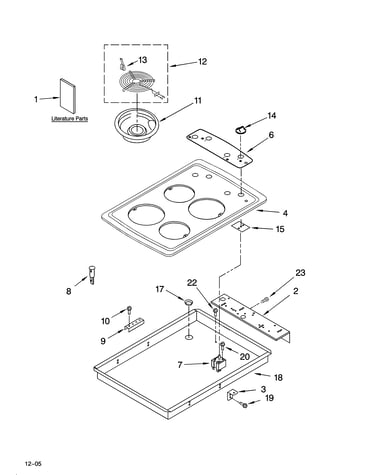

    Cooktop parts Diagram

    $16.99 |
    35% OFF MSRP:$26.00

    In Stock

    Cooktop Bracket

    #3

    Cooktop parts Diagram

    Cooktop bracket

    Part #3192454
    $34.57

    In Stock

    Screw

    #20

    Cooktop parts Diagram

    Screw

    Part #3400855
    This item is not returnable
    $5.99

    In Stock

    Range Surface Burner Knob

    #14A

    Cooktop parts Diagram

    $14.27 |
    8% OFF MSRP:$15.49

    In Stock

    Cooktop Burner Knob (Biscuit)

    #14B

    Cooktop parts Diagram

    $30.21 |
    30% OFF MSRP:$43.00

    In Stock

    Screw

    #22

    Cooktop parts Diagram

    Screw

    Part #WP3400015
    ?
    Manufacturer substitution
    This part replaces 3400015. Substitute parts can look different from the original.
    This part replaces 3400015
    This item is not returnable
    $3.29

    In Stock

    Cooktop Element Control Switch

    #7

    Cooktop parts Diagram

    Cooktop element control switch

    Part #WP3191472
    ?
    Manufacturer substitution
    This part replaces 3191472. Substitute parts can look different from the original.
    This part replaces 3191472
    $54.63 |
    22% OFF MSRP:$70.00

    In Stock

    Range Screw

    #19

    Cooktop parts Diagram

    Range screw

    Part #WP3196557
    ?
    Manufacturer substitution
    This part replaces 3196537. Substitute parts can look different from the original.
    This part replaces 3196537
    This item is not returnable
    $4.39

    In Stock

    Range Drip Pan

    #11

    Cooktop parts Diagram

    Range drip pan

    Part #W10196406RW
    ?
    Manufacturer substitution
    This part replaces 3195208. Substitute parts can look different from the original.
    This part replaces 3195208
    $9.49

    In Stock

    Range Surface Element Mounting Spring

    #13

    Cooktop parts Diagram

    Range surface element mounting spring

    Part #WP3195917
    ?
    Manufacturer substitution
    This part replaces 3195917. Substitute parts can look different from the original.
    This part replaces 3195917
    This item is not returnable
    $4.08 |
    17% OFF MSRP:$4.89

    Back Order
