Model #91760009 Craftsman chainsaw

Here are the diagrams and repair parts for Craftsman 91760009 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

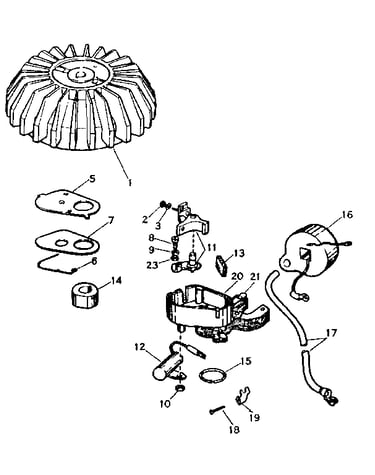

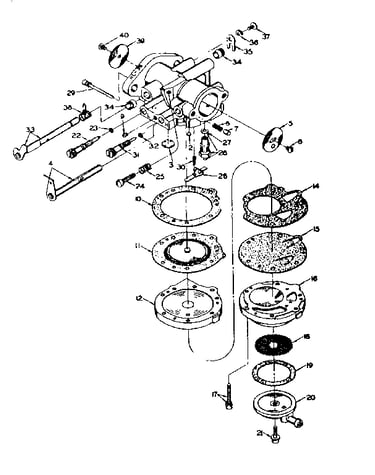

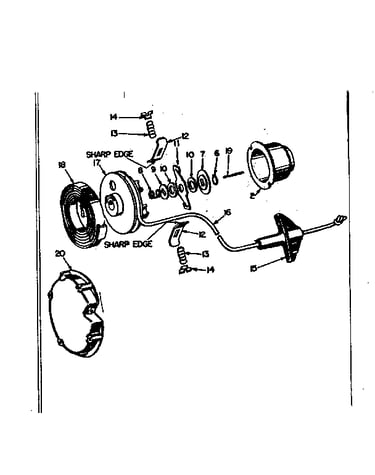

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 263 parts

    Lawn & Garden Equipment Engine Crankshaft Seal Retainer

    #15

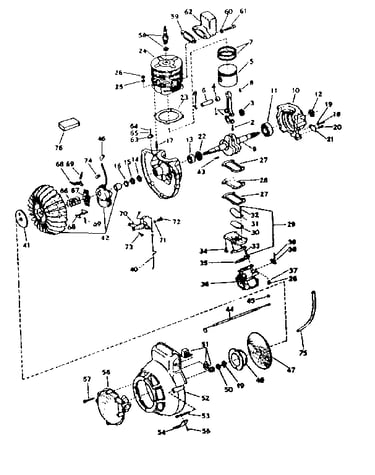

    Engine type 40005a-model h81 Diagram

    Lawn & garden equipment engine crankshaft seal retainer

    Part #510106A
    ?
    Manufacturer substitution
    This part replaces 510106. Substitute parts can look different from the original.
    This part replaces 510106
    This item is not returnable
    $2.67

    In Stock

    Cap

    #85

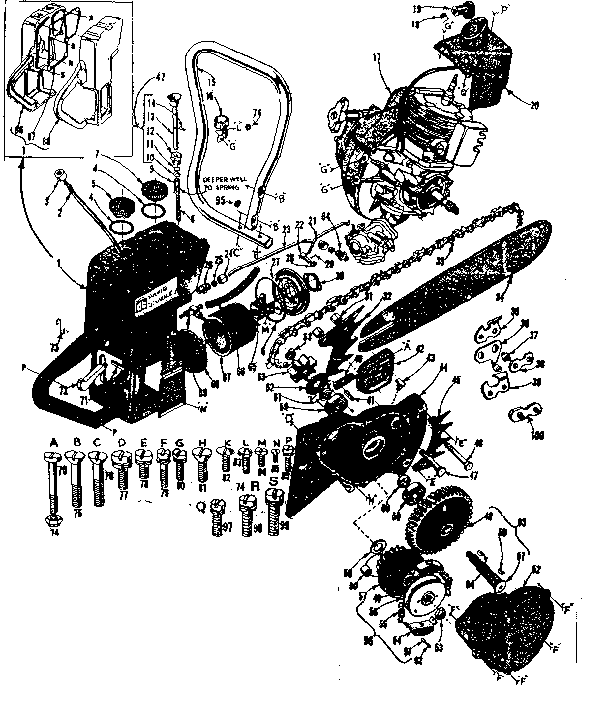

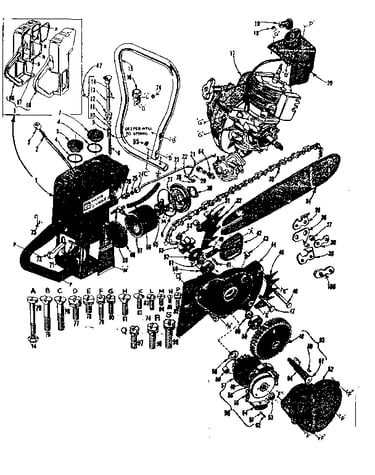

    Main frame Diagram

    Cap

    Part #04490606

    The manufacturer no longer makes this part, and there's no substitute part

    Machine Screw

    #76

    Main frame Diagram

    Machine screw

    Part #17070524

    The manufacturer no longer makes this part, and there's no substitute part

    Flat Washer

    #62

    Main frame Diagram

    Flat washer

    Part #09192814

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #74

    Main frame Diagram

    Nut

    Part #347H

    The manufacturer no longer makes this part, and there's no substitute part

    Machine Screw

    #NI

    All parts Diagram

    Machine screw

    Part #04380816

    The manufacturer no longer makes this part, and there's no substitute part

    Piston Pin Retaining Ring

    #8

    Engine type 40005a-model h81 Diagram

    Piston pin retaining ring

    Part #310296
    ?
    Manufacturer substitution
    This part replaces 310167. Substitute parts can look different from the original.
    This part replaces 310167
    This item is not returnable
    $2.16

    In Stock

    Spring Retainer

    #16

    Engine type 40005a-model h81 Diagram

    Spring retainer

    Part #510109A
    ?
    Manufacturer substitution
    This part replaces 510109. Substitute parts can look different from the original.
    This part replaces 510109
    This item is not returnable
    $2.67

    In Stock

    Woodruff Key

    #50

    Main frame Diagram

    Woodruff key

    Part #102M

    The manufacturer no longer makes this part, and there's no substitute part

    Nut

    #NI

    All parts Diagram

    Nut

    Part #03270800

    The manufacturer no longer makes this part, and there's no substitute part
