Hardwick
Electric Range

Model # EG9-57A439 Official Hardwick electric range

Here are the diagrams and repair parts for Official Hardwick EG9-57A439 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Terminal Block 7401P002-60
#2

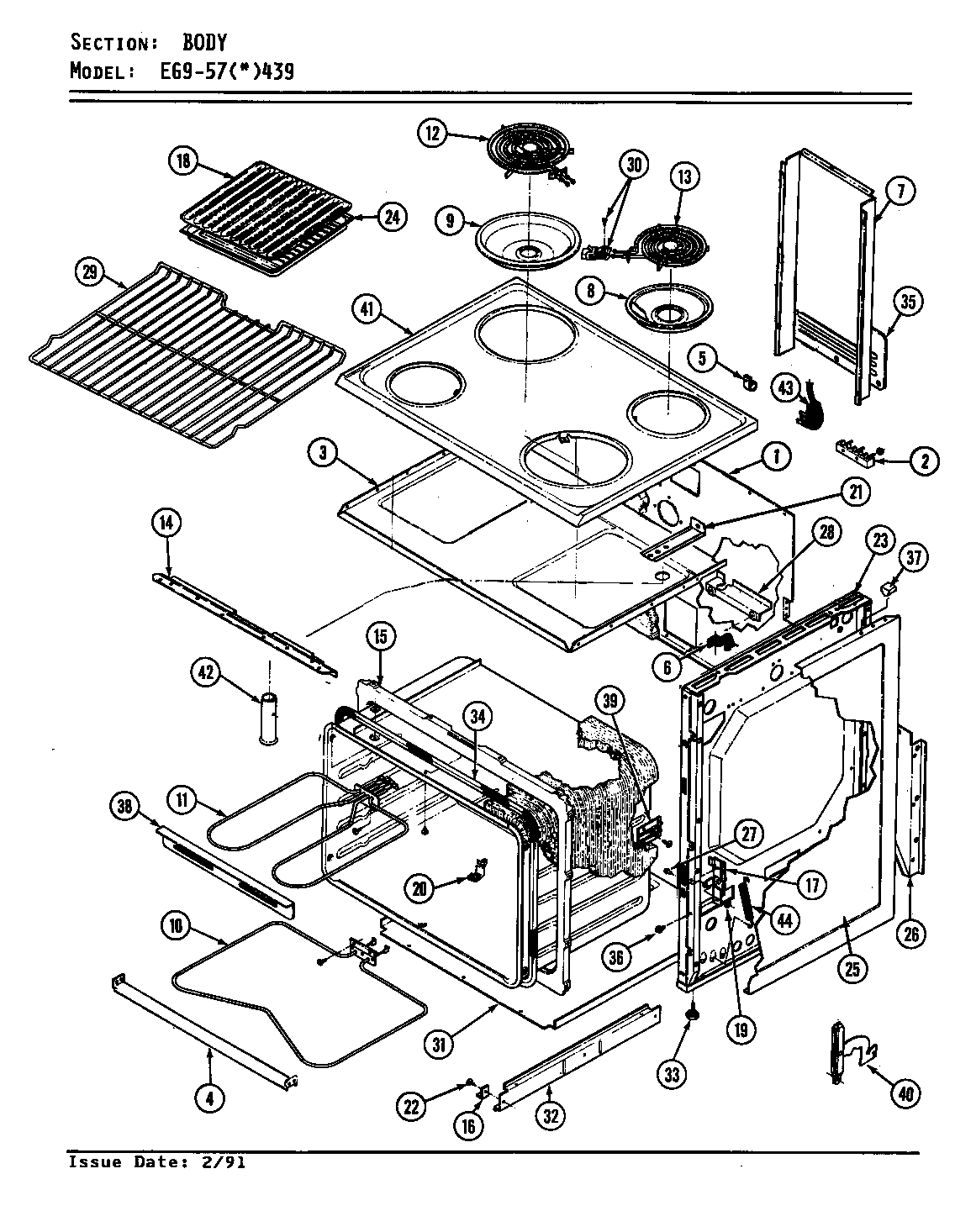

Body diagram

Terminal block

Part #7401P002-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P002-60. Substitute parts can look different from the original.
BEST SELLER
$34.10
15% OFF Phone Price : $40.10
In Stock
Infinite Switch 7403P262-60
#7A

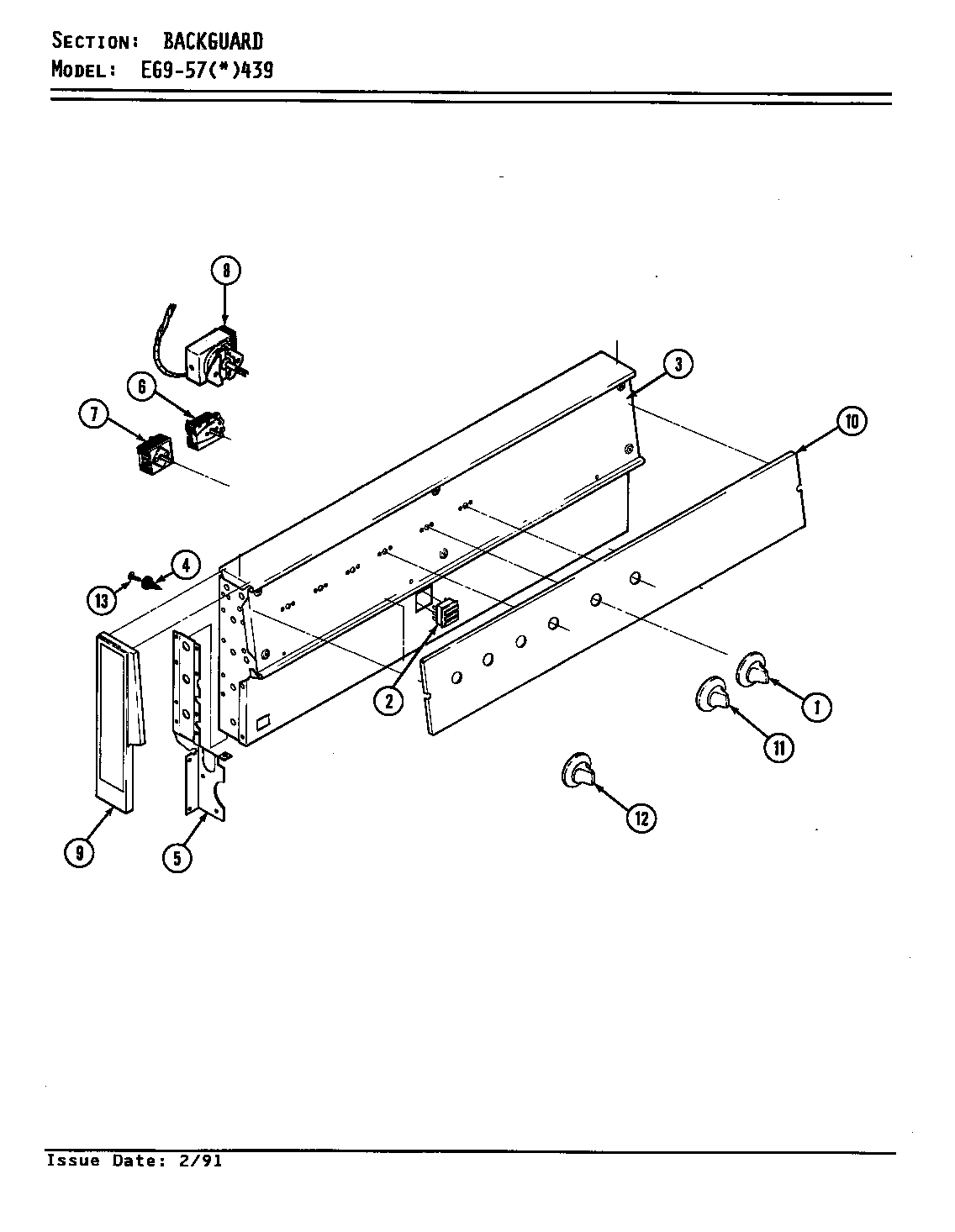

Control panel diagram

Infinite switch

Part #7403P262-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P262-60. Substitute parts can look different from the original.
BEST SELLER
$50.39
11% OFF Phone Price : $56.39
In Stock
Receptacle 1430306K
#30

Body diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73
16% OFF Phone Price : $12.73
In Stock
Panel Screw 7101P041-60
#13

Control panel diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Screw 7101P112-60
#36

Body diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06
17% OFF Phone Price : $6.06
In Stock
Oven Broiler Element 7406P076-60
#11A

Body diagram

Oven broiler element

Part #7406P076-60

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 7406P076-60. Substitute parts can look different from the original.
$89.92
6% OFF Phone Price : $95.92
In Stock
Broiler Element 7406P003-60
#11

Body diagram

Broiler element

Part #7406P003-60

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 7406P003-60. Substitute parts can look different from the original.
$89.92
6% OFF Phone Price : $95.92
In Stock
Range Burner Control Switch 7403P181-60
#7

Control panel diagram

Range burner control switch

Part #7403P181-60

Replaced by #W11122006

?
Manufacturer substitution
This part replaces 7403P181-60. Substitute parts can look different from the original.
$69.58
8% OFF Phone Price : $75.58
In Stock
Element (8") 7406P040-60
#12

Body diagram

Element (8")

Part #7406P040-60

Replaced by #WPY04000035

?
Manufacturer substitution
This part replaces 7406P040-60. Substitute parts can look different from the original.
$65.19
8% OFF Phone Price : $71.19
In Stock
Element, 6-in 7406P038-60
#13

Body diagram

Element, 6-in

Part #7406P038-60

Replaced by #WPY04000036

?
Manufacturer substitution
This part replaces 7406P038-60. Substitute parts can look different from the original.
$58.59
9% OFF Phone Price : $64.59
In Stock
