GE
Electric Wall Oven

Model #JTP30BM2BB GE electric oven

Here are the diagrams and repair parts for GE JTP30BM2BB electric oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 90 parts

Wall Oven Temperature Sensor

#253

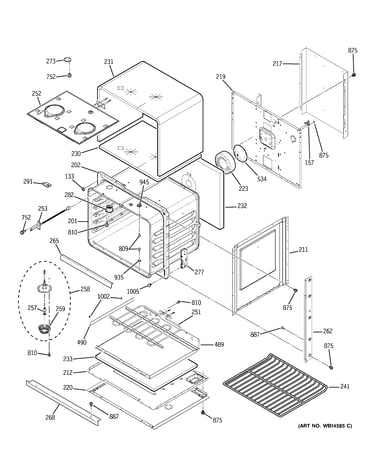

Body parts Diagram

$17.55

In Stock

Range Oven Control Board

#1016

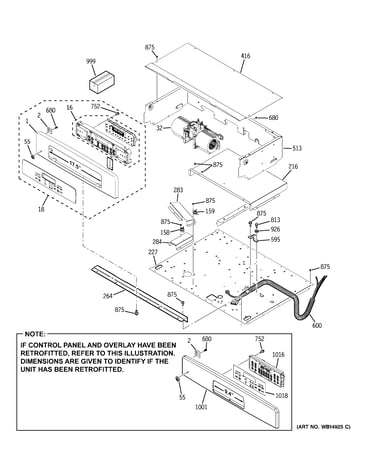

Control panel Diagram

Range oven control board

Part #WB27T11161
$158.62

In Stock

Wall Oven Control Board

#16

Control panel Diagram

Wall oven control board

Part #WB27T10911
$156.97

In Stock

Range Broil Element

#252

Body parts Diagram

Range broil element

Part #WB44T10078
$85.54

In Stock

Cooking Appliance Screw, #10-32

#1005

Body parts Diagram

Cooking appliance screw, #10-32

Part #WB01T10008
This item is not returnable
$4.33

In Stock

Range Nameplate

#55

Control panel Diagram

Range nameplate

Part #WB02T10359
$7.89

In Stock

Range Screw

#694

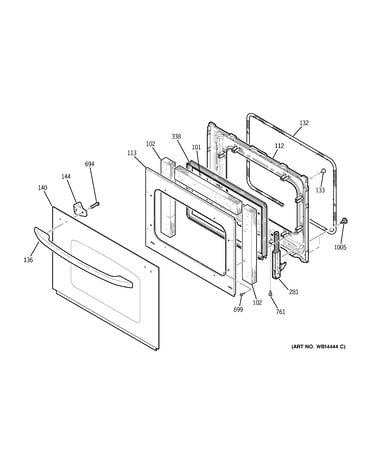

Door Diagram

Range screw

Part #WB01T10066
This item is not returnable
$2.87

In Stock

Range Oven Liner

#201

Body parts Diagram

Range oven liner

Part #WB63T10128
$167.20

In Stock

Range Oven Rack

#241

Body parts Diagram

Range oven rack

Part #WB48T10050
$58.22

In Stock

Oven Insulation

#232

Body parts Diagram

Oven insulation

Part #WB35T10182
$43.79

In Stock
