Model #MW840BC/XAA Samsung microwave

Here are the diagrams and repair parts for Samsung MW840BC-XAA microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 56 parts

    Microwave Door Interlock Switch

    #12

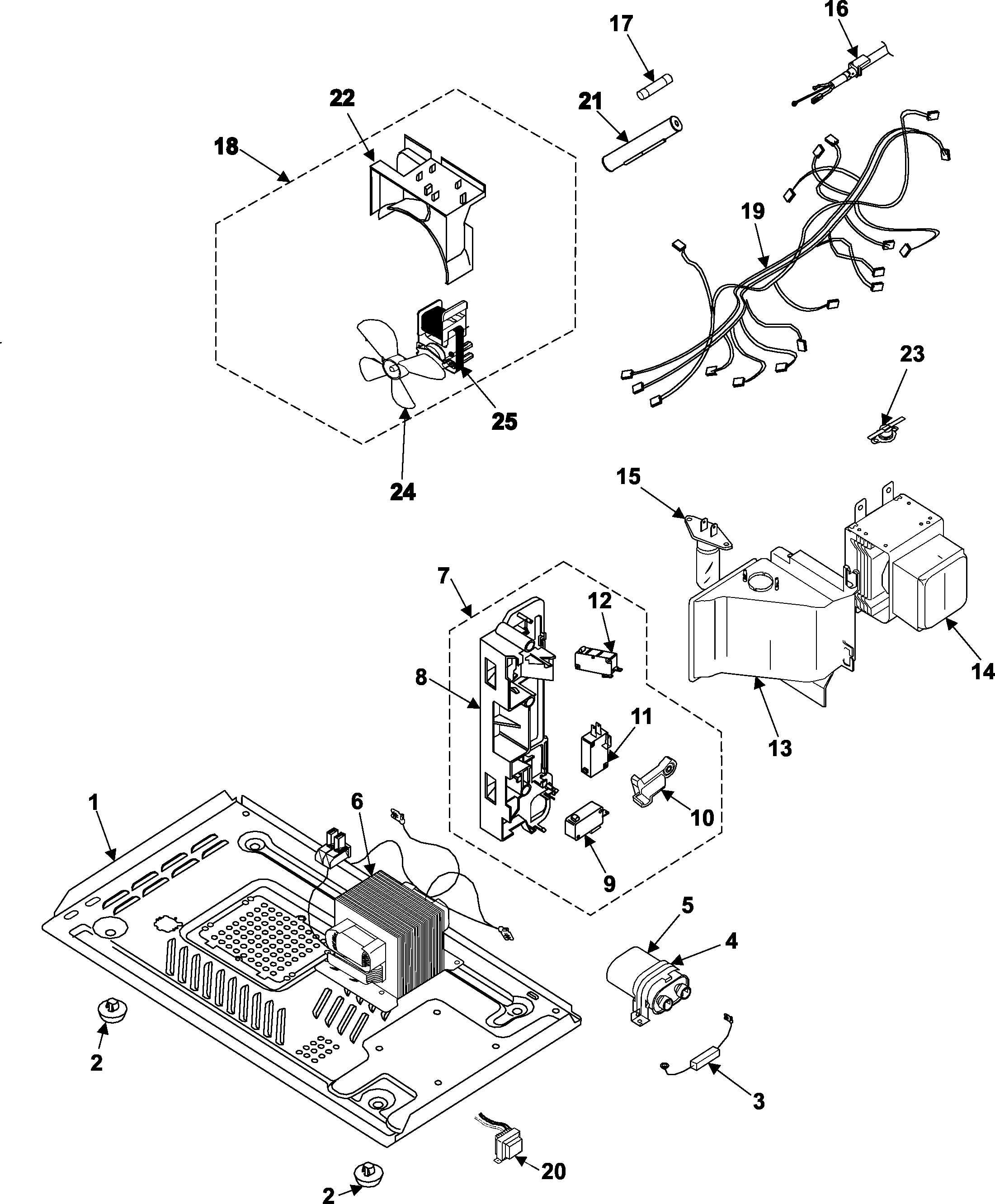

    Internal control/latch assy/base Diagram

    $10.65

    In Stock

    Microwave Thermostat

    #23

    Internal control/latch assy/base Diagram

    Microwave thermostat

    Part #DE47-20173A
    $8.00

    In Stock

    Microwave High-Voltage Capacitor

    #5

    Internal control/latch assy/base Diagram

    $52.04

    In Stock

    Spring Key

    #8

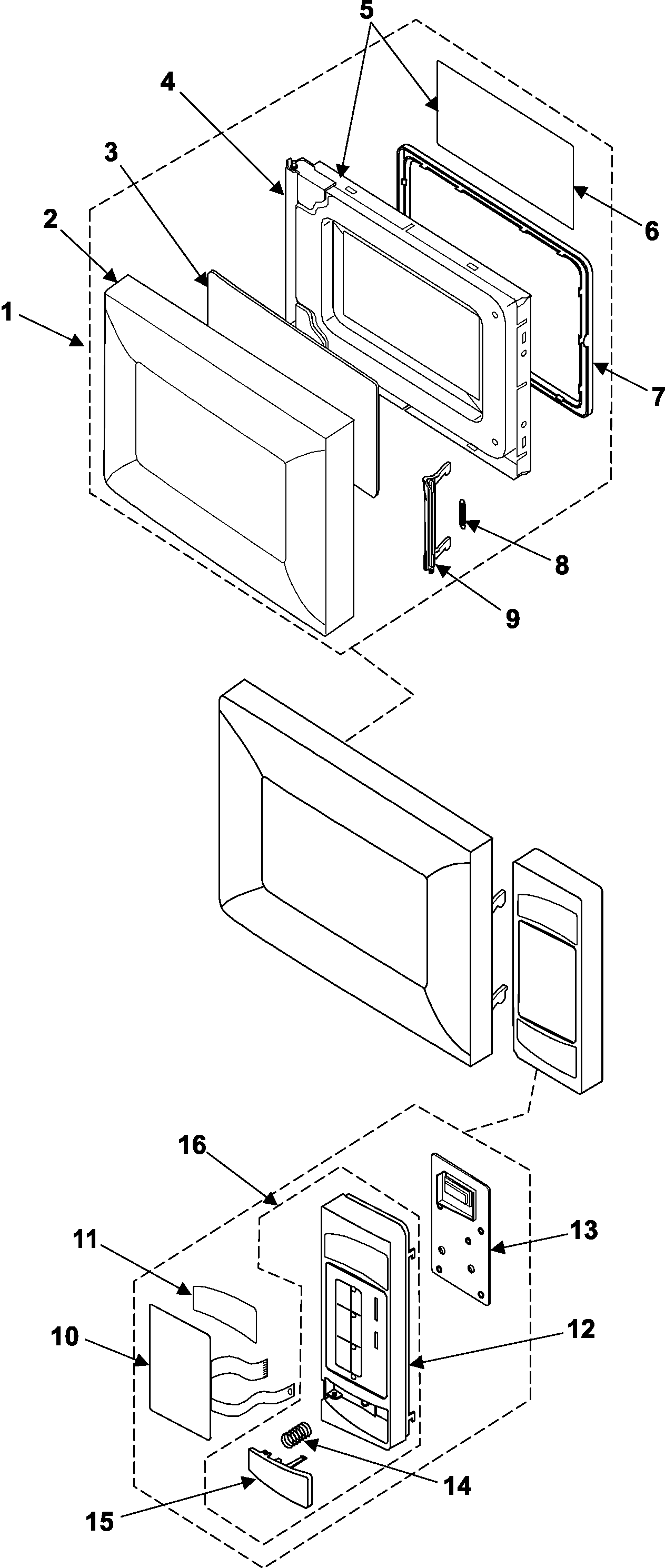

    Control panel/door assembly Diagram

    Spring key

    Part #DE61-00198A
    This item is not returnable
    $5.95

    In Stock

    Door Screen

    #3

    Control panel/door assembly Diagram

    Door screen

    Part #DE67-20196A
    This item is not returnable
    $3.49

    In Stock

    Control

    #1

    Control panel/door assembly Diagram

    Control

    Part #DE94-00687A
    $7.58

    In Stock

    Microwave Blower Cover

    #22

    Internal control/latch assy/base Diagram

    Microwave blower cover

    Part #DE71-00148A
    This item is not returnable
    $6.49

    In Stock

    Door

    #2A

    Control panel/door assembly Diagram

    Door

    Part #DE64-00524B
    $9.80

    In Stock

    Microwave Glass Turntable Tray

    #3

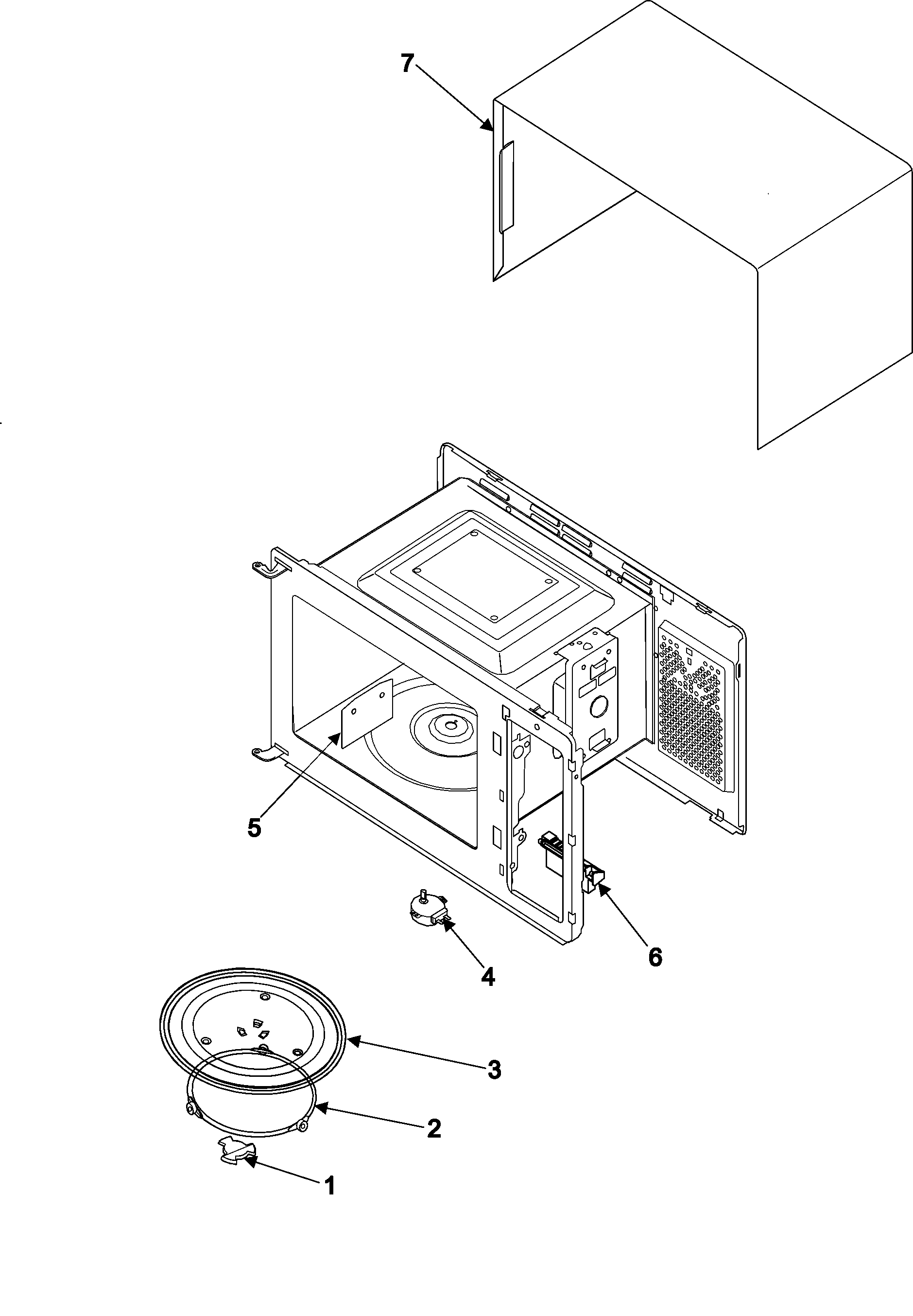

    Body/cavity/elements Diagram

    $25.33

    In Stock

    Microwave Light Bulb

    #15

    Internal control/latch assy/base Diagram

    Microwave light bulb

    Part #4713-001102
    $9.14

    In Stock
