Model #63013023018 Kenmore Elite dishwasher

Here are the diagrams and repair parts for Kenmore Elite 63013023018 dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileInstallation guide

    Showing 10 of 133 parts

    Sheet

    #390

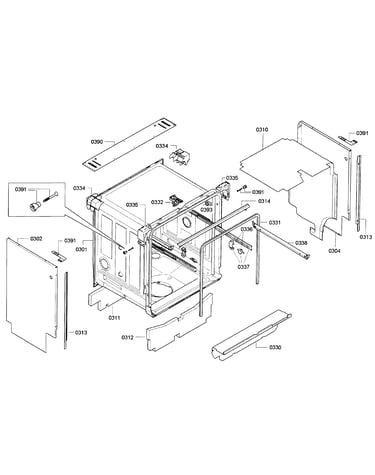

    Cabinet Diagram

    Sheet

    Part #00114294
    ?
    Manufacturer substitution
    This part replaces 114294. Substitute parts can look different from the original.
    This part replaces 114294
    $20.96

    In Stock

    Insert Plate

    #250

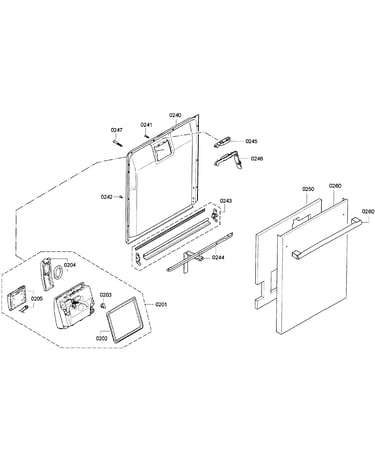

    Door assy Diagram

    Insert plate

    Part #00680312
    ?
    Manufacturer substitution
    This part replaces 680312. Substitute parts can look different from the original.
    This part replaces 680312
    $21.90

    In Stock

    Dishwasher Water Inlet Port

    #401

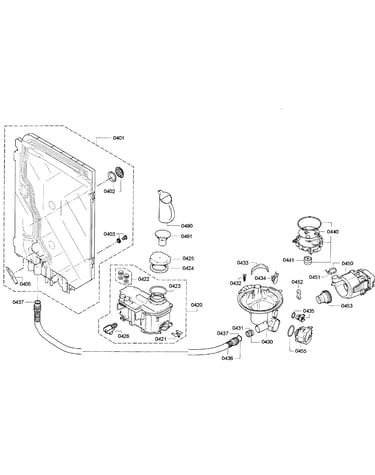

    Pump assy Diagram

    Dishwasher water inlet port

    Part #00682111
    ?
    Manufacturer substitution
    This part replaces 682111. Substitute parts can look different from the original.
    This part replaces 682111
    $146.98

    In Stock

    Dishwasher Door Inner Panel Assembly

    #240

    Door assy Diagram

    Dishwasher door inner panel assembly

    Part #00682298
    ?
    Manufacturer substitution
    This part replaces 682298. Substitute parts can look different from the original.
    This part replaces 682298
    $194.29

    In Stock

    Dishwasher Silverware Basket Assembly

    #660

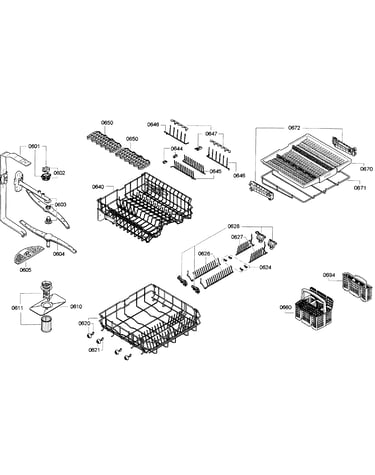

    Baskets Diagram

    Dishwasher silverware basket assembly

    Part #00701918
    ?
    Manufacturer substitution
    This part replaces 701918. Substitute parts can look different from the original.
    This part replaces 701918
    $18.08

    In Stock

    Dishwasher Dishrack Roller, Lower

    #621

    Baskets Diagram

    Dishwasher dishrack roller, lower

    Part #00611475
    ?
    Manufacturer substitution
    This part replaces 611475. Substitute parts can look different from the original.
    This part replaces 611475
    $8.72

    In Stock

    Sealing

    #423

    Pump assy Diagram

    Sealing

    Part #00611915
    ?
    Manufacturer substitution
    This part replaces 611915. Substitute parts can look different from the original.
    This part replaces 611915
    $8.76

    In Stock

    Dishwasher Water Inlet Valve Adapter, 3/4 x 1/4-in

    #505

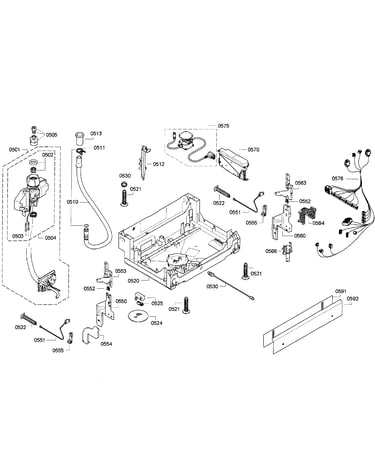

    Base assy Diagram

    Dishwasher water inlet valve adapter, 3/4 x 1/4-in

    Part #00614299
    ?
    Manufacturer substitution
    This part replaces 614299. Substitute parts can look different from the original.
    This part replaces 614299
    $35.27

    In Stock

    Test Strip

    #NI

    Control panel Diagram

    Test strip

    Part #00056317
    ?
    Manufacturer substitution
    This part replaces 617210. Substitute parts can look different from the original.
    This part replaces 617210
    $9.87

    In Stock

    Dishwasher Utensil Rack Slide and Roller Assembly

    #672

    Baskets Diagram

    Dishwasher utensil rack slide and roller assembly

    Part #00619598
    ?
    Manufacturer substitution
    This part replaces 619598. Substitute parts can look different from the original.
    This part replaces 619598
    $23.43

    In Stock

    Symptoms common to all dishwashers

    Choose a symptom to see related dishwasher repairs.

    Main cause: damaged rack height adjuster
    Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
    Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
    Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
    Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
    Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
    Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
    Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
    Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
