Model # WFG520S0AS2 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool WFG520S0AS2 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

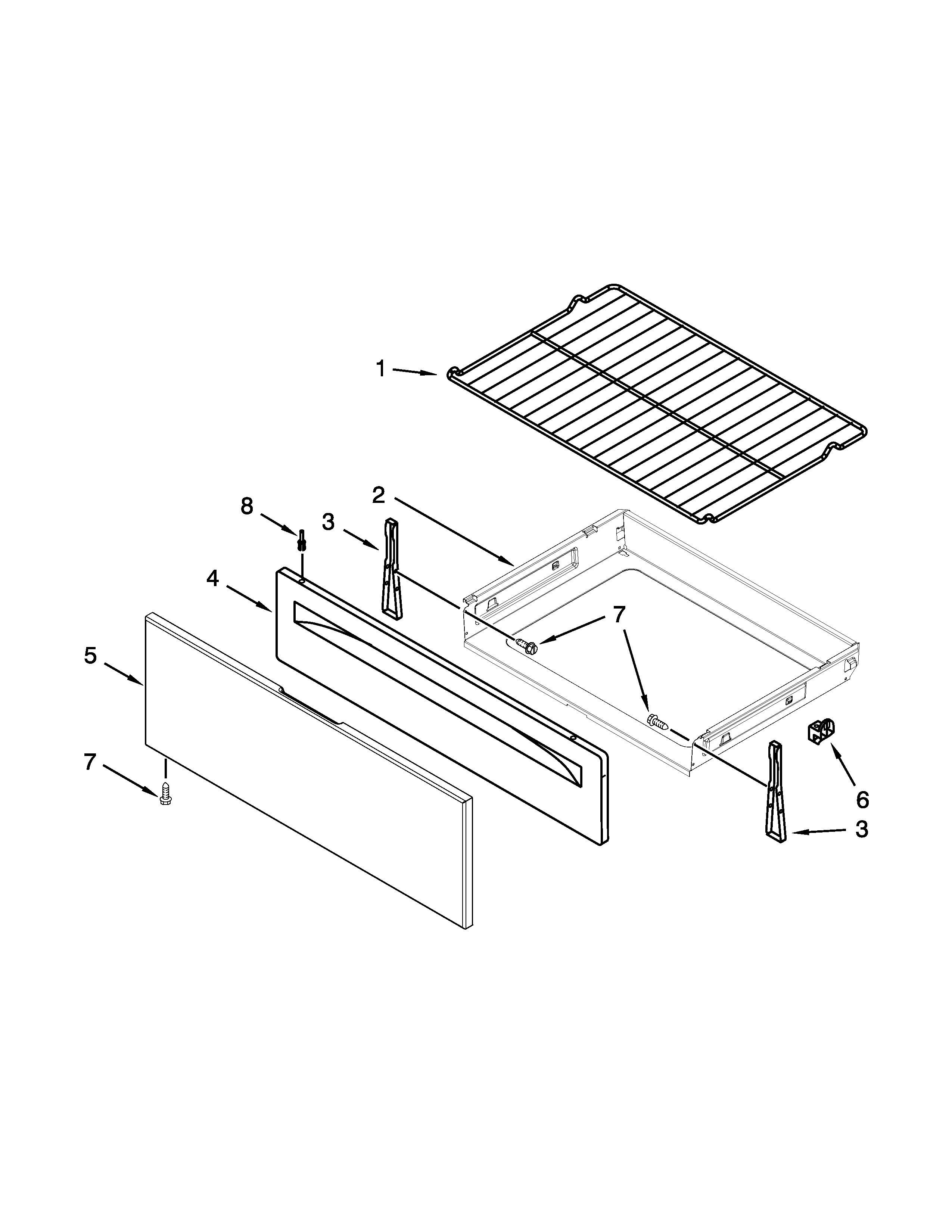

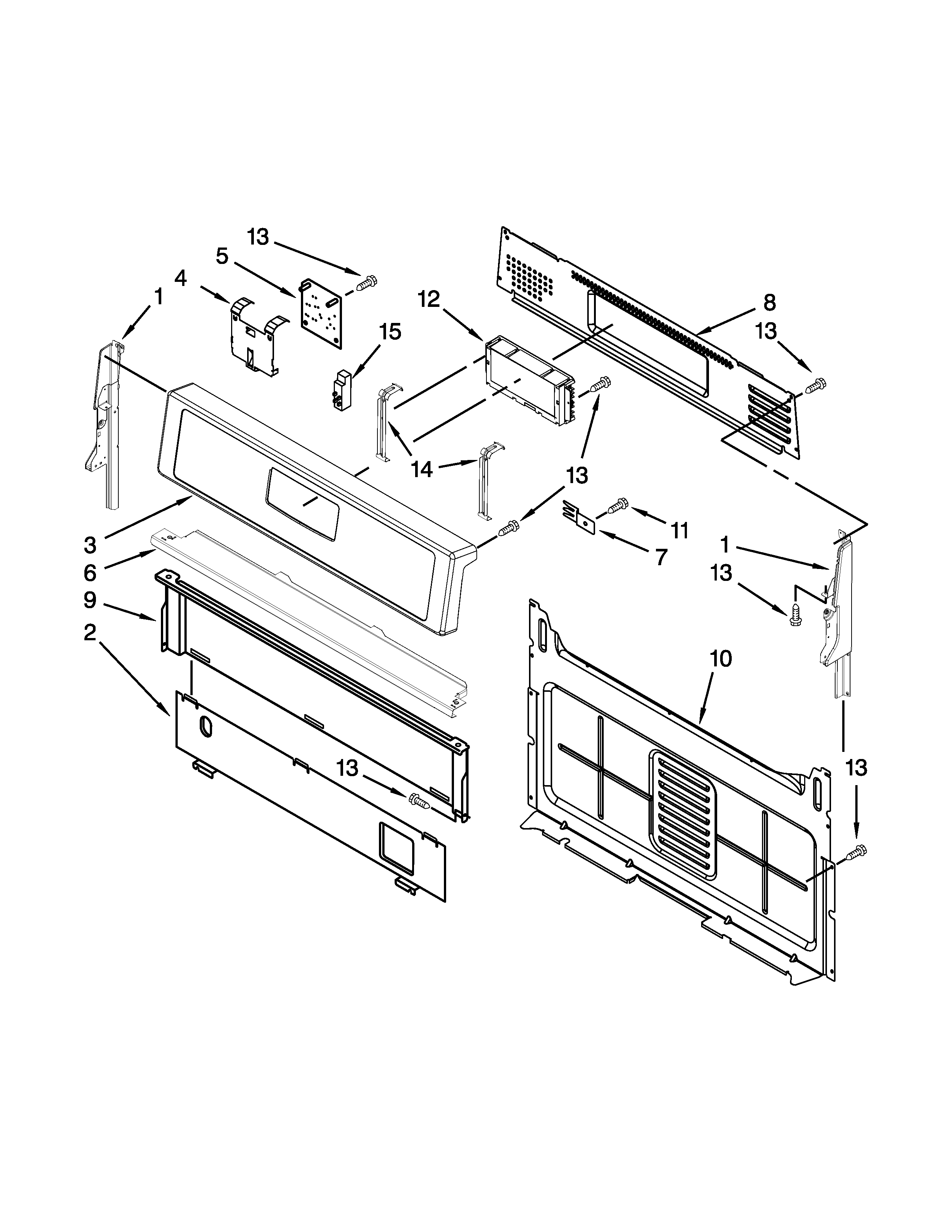

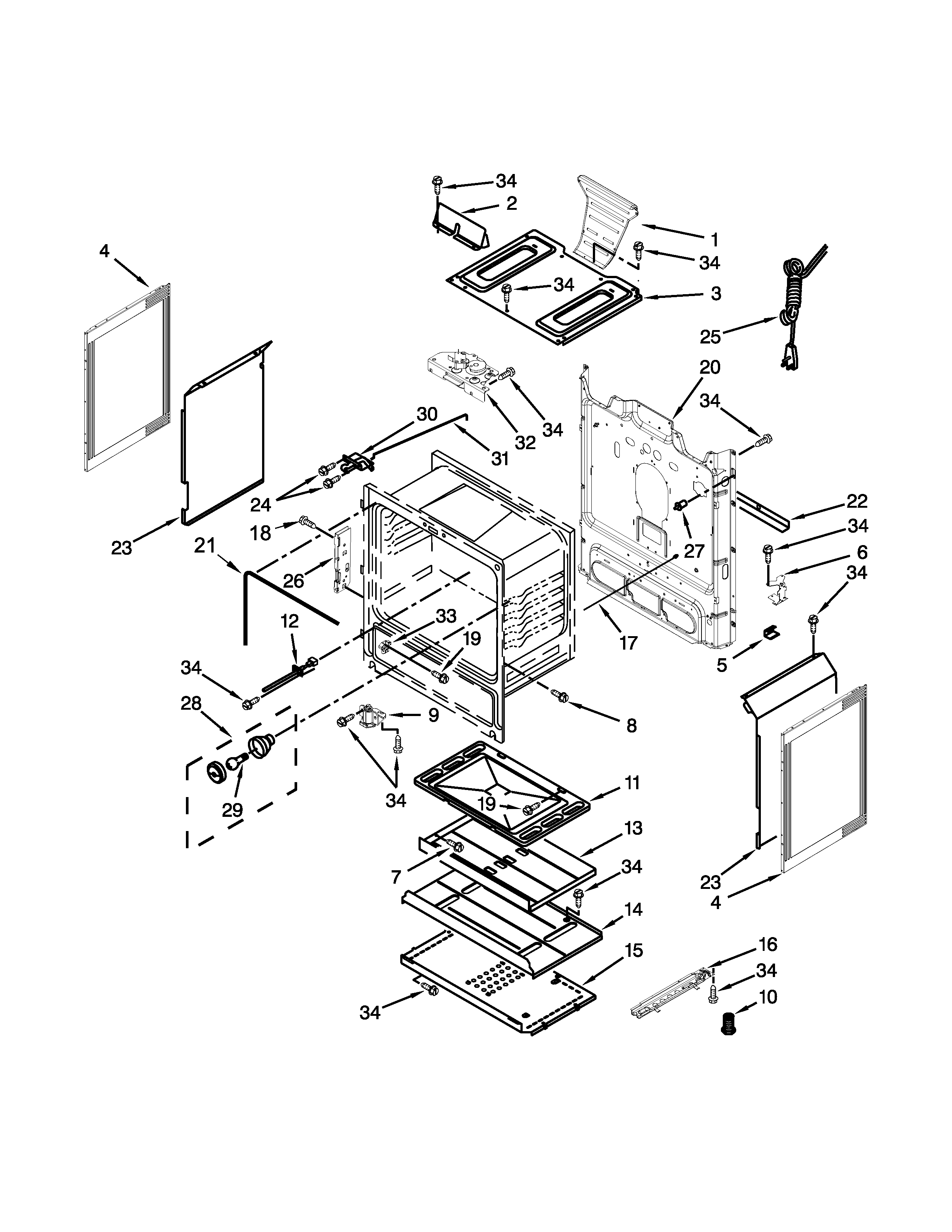

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Range Oven Igniter 9758079
#24

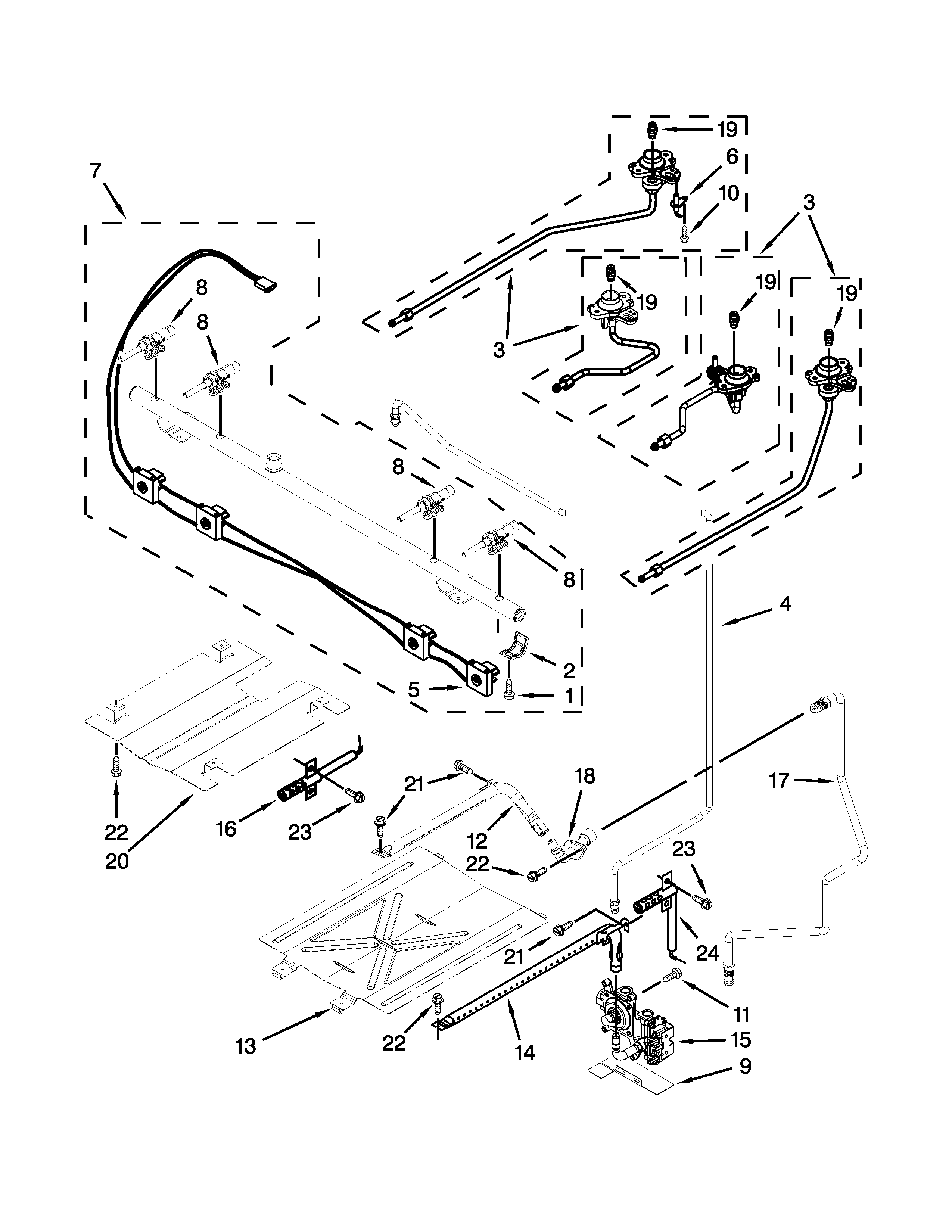

Manifold parts diagram

Range oven igniter

Part #9758079

Replaced by #WP9758079

?
Manufacturer substitution
This part replaces 9758079. Substitute parts can look different from the original.
BEST SELLER
$38.07 |
31% OFF Was : $55.00
In Stock
Screw 3400701
#8

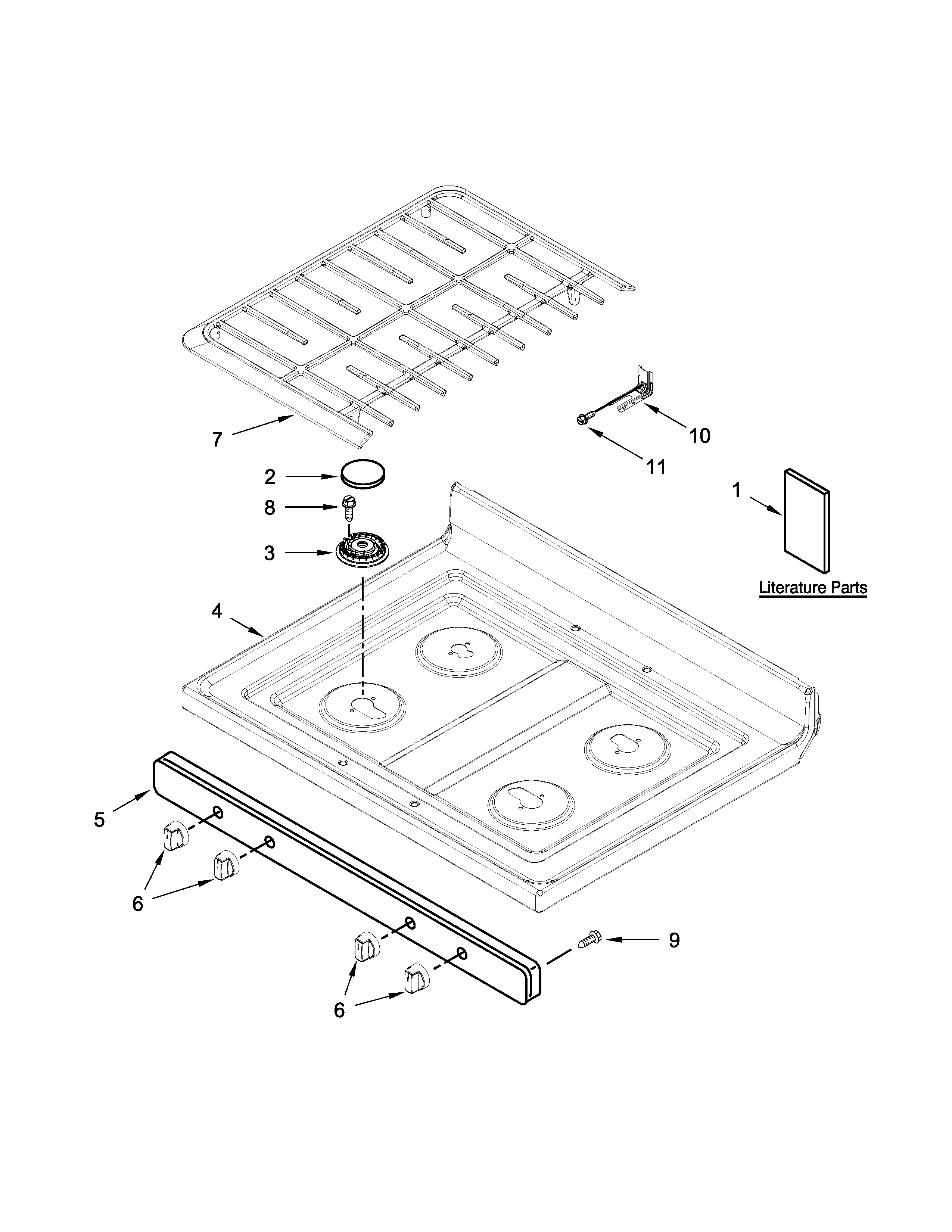

Cooktop parts diagram

Screw

Part #3400701

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3400701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.42 |
47% OFF Was : $12.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Screw 8273062
#10

Manifold parts diagram

Range screw

Part #8273062

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
74% OFF Was : $13.00
In Stock
Range Oven Igniter 8054129
#16

Manifold parts diagram

Range oven igniter

Part #8054129

Replaced by #WP8054129

?
Manufacturer substitution
This part replaces 8054129. Substitute parts can look different from the original.
BEST SELLER
$66.23 |
31% OFF Was : $96.00
In Stock
Range Door Trim, Left (black) 8523171
#12

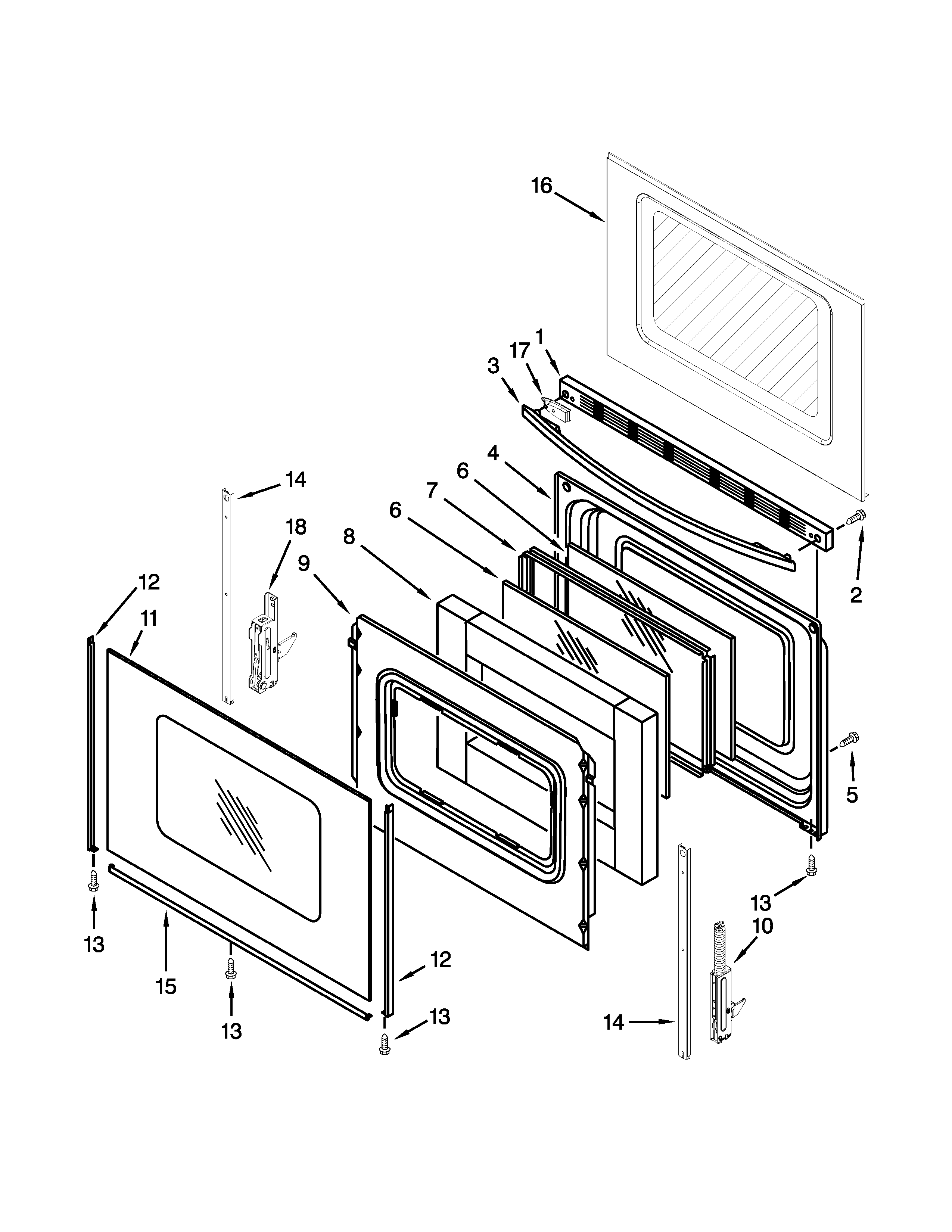

Door parts diagram

Range door trim, left (black)

Part #8523171

Replaced by #W10761018

?
Manufacturer substitution
This part replaces 8523171. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Range Burner Control Knob W10339442
#6A

Cooktop parts diagram

Range burner control knob

Part #W10339442

Replaced by #WPW10339442

?
Manufacturer substitution
This part replaces W10339442. Substitute parts can look different from the original.
BEST SELLER
$16.02 |
16% OFF Was : $19.00
In Stock
Range Screw W10200660
#2

Door parts diagram

Range screw

Part #W10200660

Replaced by #WPW10200660

?
Manufacturer substitution
This part replaces W10200660. Substitute parts can look different from the original.
This item is not returnable
$5.93 |
14% OFF Phone Price : $6.93
In Stock
Range Surface Burner Head, Front W10515455
#3

Cooktop parts diagram

Range surface burner head, front

Part #W10515455

Replaced by #WPW10515455

?
Manufacturer substitution
This part replaces W10515455. Substitute parts can look different from the original.
$56.47 |
10% OFF Phone Price : $62.47
In Stock
Electrode W10515459
#6

Manifold parts diagram

Electrode

Part #W10515459

Replaced by #WPW10515459

?
Manufacturer substitution
This part replaces W10515459. Substitute parts can look different from the original.
This item is not returnable
$31.56 |
16% OFF Phone Price : $37.56
In Stock
