Most Bosch built-in dishwashers, including the Bosch SHE7PT55UC, are designed to fit a standard 24-inch-wide dishwasher opening, while some Bosch models are 18-inch-wide for compact spaces. For the exact cutout and hookup requirements, follow the installation guide.

What “standard size” means for dishwashers

In most U.S. kitchens, “standard” refers to the cabinet opening and utility locations, not the brand.

• Standard built-in width: about 24 inches
• Compact built-in width: about 18 inches
• Typical height range: roughly 33 1/2 to 35 inches (adjustable legs)
• Typical depth: roughly 24 inches (plus door thickness)
• Hookups: hot water supply, drain connection, and electrical connection

Quick fit checklist before you buy parts or install

Use this checklist to avoid clearance and alignment problems.

• Measure the opening width at the front and back
• Measure countertop height and confirm the dishwasher can level up to it
• Confirm door clearance (adjacent cabinets, handles, toe-kick)
• Verify water line and drain hose routing (no kinks or sharp bends)
• Confirm the unit is anchored correctly to prevent tipping

Common sizes at a glance

Dishwasher type	Typical width	Typical use case
Standard built-in	24 in.	Most full-size kitchens
Compact built-in	18 in.	Apartments, small kitchens

Why it matters

A dishwasher that is even slightly too tall, too wide, or not properly leveled can cause door sealing issues, vibration, and draining problems. If you are troubleshooting a drain issue after an install, the drain path and hose routing are key; the dishwasher drain hose 00744881 is one common part involved.

Last updated: January 2026

On a Bosch dishwasher like model SHE7PT55UC, you can usually force a drain by canceling the cycle: press and hold Start for about 3 to 5 seconds until the unit begins a cancel/drain sequence. If it still will not drain, a clogged filter, drain hose, or drain pump is typically the cause.

Quick steps to force a drain (cancel/drain)

• Press Start and hold it for 3 to 5 seconds.
• Close the door fully and wait; the drain portion commonly runs for 1 to 2 minutes.
• If the dishwasher beeps or the display changes, let it finish the cancel/drain.
• If water remains, turn the dishwasher off, then back on, and repeat the cancel/drain.
• For model-specific button sequences and indicator meanings, follow the SHE7PT55UC installation guide.

If it will not drain: what to check first

These checks solve most “won’t drain” complaints without replacing parts:

• Filter area: Remove and clean the filter and sump area; clear glass, labels, and food debris.
• Drain hose routing: Make sure the hose is not kinked, crushed, or sagging; confirm a proper high loop/air gap setup.
• Garbage disposal inlet (if connected): Confirm the knockout plug was removed.
• Sink drain/air gap: Clear any blockage that restricts flow.
• Standing water level: If it is above the filter area, the drain path is likely blocked or the pump is not moving water.

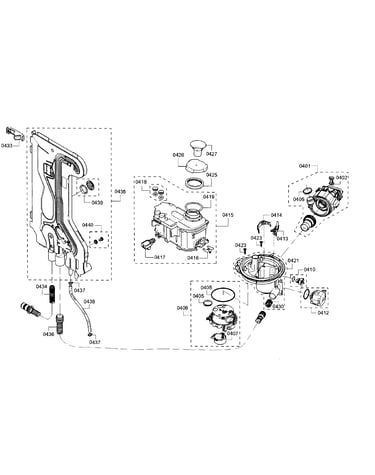

Parts that commonly fix a no-drain problem

If the drain path is clear but the dishwasher still will not pump out, these parts are common suspects.

Symptom	Most likely area	Example part for SHE7PT55UC
Hums but little or no water leaves	Drain pump jammed or failed	Dishwasher drain pump 00631200
Drains slowly or backs up	Drain hose restricted or kinked	Dishwasher drain hose (inspect routing)
Intermittent drain issues	Debris in sump or check valve area	Clean-out and inspection

Why it matters

Forcing a drain clears standing water so you can safely inspect the filter and drain path. It also helps reset a stalled cycle and prevents odors and rewash issues caused by dirty water sitting in the tub.

Last updated: January 2026

Drain problems are the most common issue we see with Bosch dishwashers like model SHE7PT55UC: water stays in the tub because the filter area is clogged, the drain hose is kinked, or the drain pump cannot move water out.

What to check first (fast, no parts)

• Cancel the cycle and listen for the drain motor running.
• Remove and clean the filter area in the bottom of the tub (food and glass are common).
• Check the sink drain or garbage disposal inlet for a blockage (new disposals often have a knockout plug).
• Inspect the drain hose for kinks, crushing, or a low loop that is missing.
• Make sure the dishwasher is level; poor leveling can affect draining and door sealing.

For installation-related drain routing and the high-loop requirement, follow the installation guide.

If it still will not drain (common part causes)

If the basics look good, these parts are the usual suspects on a Bosch dishwasher:

• Drain pump: runs but cannot push water out, or hums and stops.
• Drain hose: internal restriction, pinhole leak, or collapsed section.
• Control issue: drain command not being sent consistently.

Quick symptom-to-part guide

Symptom	Most likely cause	What we do next
Standing water, pump is silent	Control or wiring issue	Check error display and power, then diagnostics
Standing water, pump hums	Jammed or failed drain pump	Inspect sump for debris, then replace pump
Drains slowly, intermittent	Partial clog or restricted hose	Clear hose and air gap/high loop

If you need a replacement, the model-specific match is the dishwasher drain pump 00631200 or the dishwasher drain hose 00744881.

Don’t overlook filling problems (second most common)

A dishwasher that does not fill correctly can seem like a wash or drain failure. If you hear no water entering, check the shutoff valve and inlet screen; a failing inlet valve can also cause weak fills. The model-matched part is the dishwasher water inlet valve 10023852.

Why it matters

Drain and fill issues can leave dirty water in the tub, trigger Bosch error codes, and cause odors. If an error code is showing, use the Bosch dishwasher error codes guide to narrow the failure to a drain, fill, or heating circuit.

Last updated: January 2026

To help prevent a Bosch E25 error on your Bosch SHE7PT55UC dishwasher, keep the drain path clear and the filters clean so the unit can pump water out freely. Most repeat E25 issues come from debris in the sump area, a restricted drain hose, or a struggling drain pump.

What to do regularly (best prevention)

• Clean the filter assembly and rinse it with warm water; scrub off grease and film.
• Check the sump area under the filter for glass, labels, bones, and twist ties.
• Run hot water at the sink for 30 to 60 seconds before starting a cycle (helps reduce grease buildup).
• Use the correct detergent amount; too much can create sludge that traps debris.
• Run a monthly cleaning cycle with a dishwasher cleaner to reduce buildup.

Drain system checks that stop E25 from coming back

A restricted drain line can mimic a bad pump. Use these quick checks:

• Make sure the drain hose is not kinked, crushed, or sagging.
• Verify the high loop or air gap is installed correctly (prevents backflow and slow draining).
• Clean the sink/disposer inlet where the dishwasher drain connects.

If the hose is damaged or permanently restricted, replacing the dishwasher drain hose 00744881 is a common fix.

When a part is likely involved

If you keep getting E25 after cleaning filters and confirming the drain hose routing, the drain pump area is the next place to focus.

Symptom you notice	Most common cause	What we recommend
Hums but drains slowly	Debris in pump/sump	Clean sump and recheck drain path
Won’t drain at all	Pump jammed or failing	Inspect and consider replacing pump
Drains sometimes	Partial restriction	Check hose routing and connection points

For a confirmed pump problem, the dishwasher drain pump 00631200 is the drain component used on this model.

Why it matters

E25 is a drain protection condition; preventing it protects the circulation system, reduces odors from standing water, and helps your Bosch dishwasher finish cycles normally.

For installation-related drain routing details (high loop, air gap, and connection basics), follow the installation guide.
