Carrier
Central Air Conditioner

Model # 38HDC018350 Official Carrier air conditioner

Here are the diagrams and repair parts for Official Carrier 38HDC018350 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

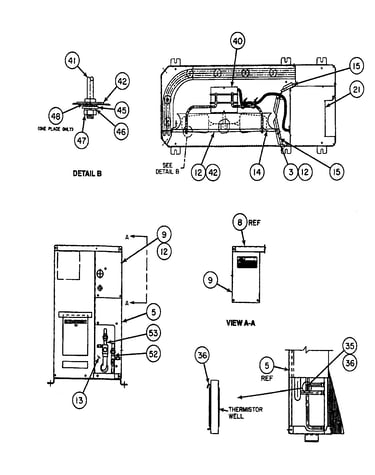

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Contactor HN51KB024
#32

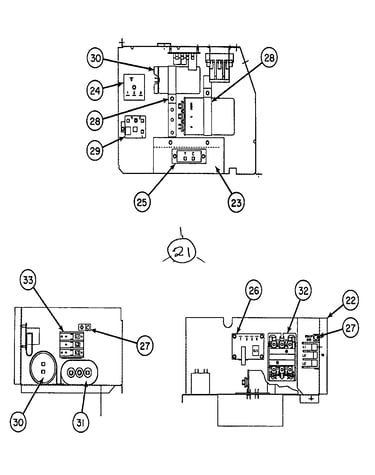

Control panel diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Capactr Duel P291-3053RS
#31

Control panel diagram

Capactr duel

Part #P291-3053RS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces P291-3053RS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
13% OFF Phone Price : $39.08
In Stock
Grille 38QR400944
#6

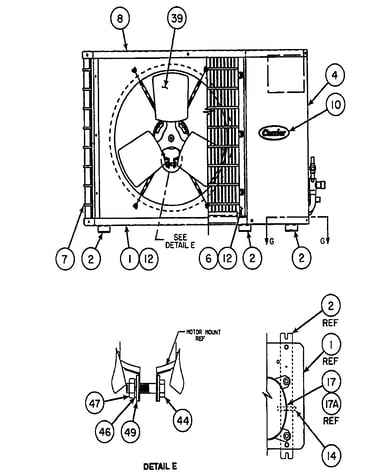

Outside view diagram

Grille

Part #38QR400944

$270.49
In Stock
Relay Sensin 38HQ660014
#26

Control panel diagram

Relay sensin

Part #38HQ660014

$136.98
In Stock
Connector HY90AZ021
#27

Control panel diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
Coil EF19ZE335
#NI

Outside view diagram

Coil

Part #EF19ZE335

$170.32
In Stock
Accumulatr KH71FP140
#55

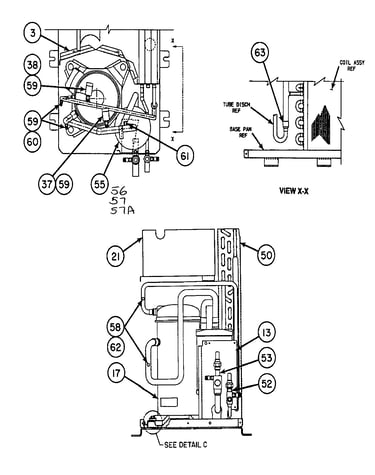

Compressor 1 diagram

Accumulatr

Part #KH71FP140

$207.64
In Stock
Grille 38QR400945
#7

Outside view diagram

Grille

Part #38QR400945

$197.20
In Stock
Grommet P041-5107
#19

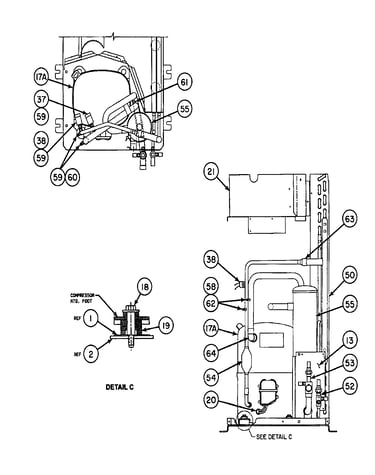

Compressor 2 diagram

Grommet

Part #P041-5107

$10.51
In Stock
Lp Switch HK02ZB038
#37

Compressor 1 diagram

Lp switch

Part #HK02ZB038

$56.71
In Stock
