Model # FGGC3045KSC Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FGGC3045KSC cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

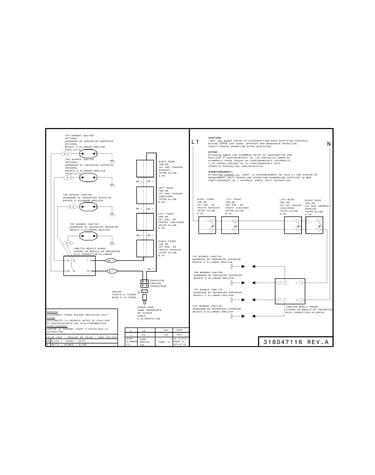

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22B

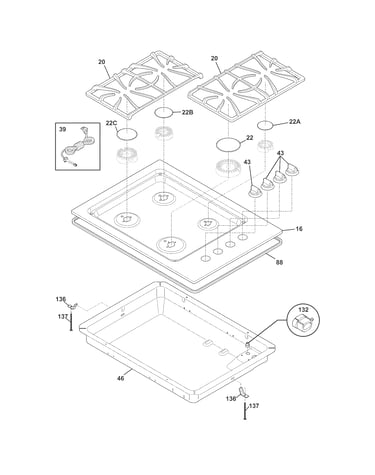

Cooktop diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
16% OFF Phone Price : $31.31
In Stock
Range Surface Burner Orifice (replaces 7316527500) 316527500
#44B

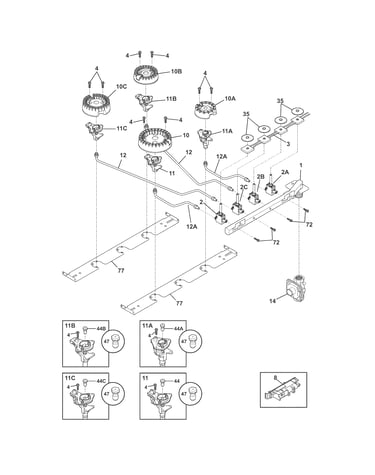

Burner diagram

Range surface burner orifice (replaces 7316527500)

Part #316527500

BEST SELLER
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Range Surface Burner Orifice (replaces 7316527504) 316527504
#44A

Burner diagram

Range surface burner orifice (replaces 7316527504)

Part #316527504

BEST SELLER
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Range Surface Burner Cap, 12,000-btu (black) 316261904
#22C

Cooktop diagram

Range surface burner cap, 12,000-btu (black)

Part #316261904

Replaced by #5304508510

?
Manufacturer substitution
This part replaces 316261904. Substitute parts can look different from the original.
BEST SELLER
$30.67 |
14% OFF Phone Price : $35.67
In Stock
Range Surface Burner Orifice 316527502
#44C

Burner diagram

Range surface burner orifice

Part #316527502

This item is not returnable
$23.41 |
18% OFF Phone Price : $28.41
In Stock
Range Screw 5303323140
Range screw

Part #5303323140

$11.17
In Stock
Cooktop Burner Valve, 9,500- To 12,500-btu 316271301
#2B

Burner diagram

Cooktop burner valve, 9,500- to 12,500-btu

Part #316271301

$115.99 |
8% OFF Phone Price : $125.99
In Stock
Cooktop Firebox Support 318264301
#136

Cooktop diagram

Cooktop firebox support

Part #318264301

$36.11 |
12% OFF Phone Price : $41.11
In Stock
Range Screw 316215600
#72

Burner diagram

Range screw

Part #316215600

$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Surface Burner Igniter 316543203
#11

Burner diagram

Range surface burner igniter

Part #316543203

$123.44
In Stock
