Electric Cooktop

Model # JP3899R1WH Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP3899R1WH electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

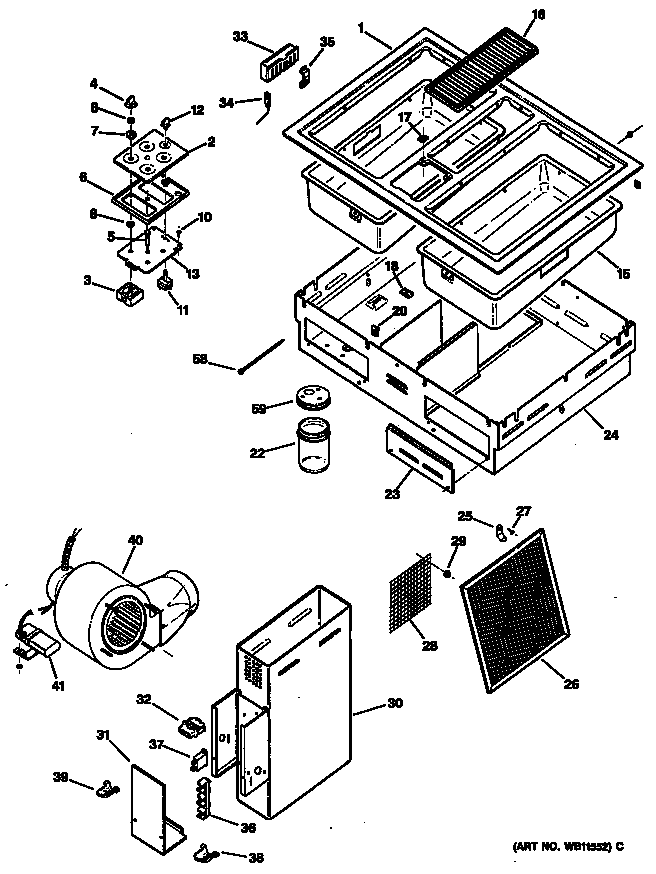

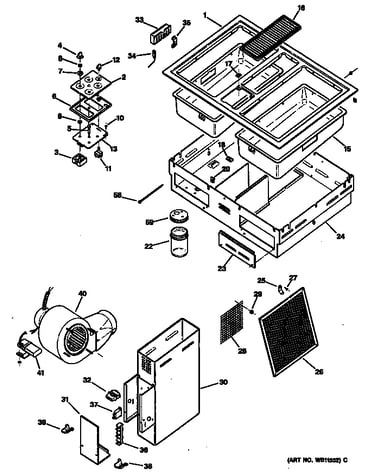

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Terminal Housing WB17X5096
#33A

Grill diagram

Terminal housing

Part #WB17X5096

$175.39
5% OFF Phone Price : $185.39
In Stock
Cooktop Downdraft Vent Grille WB7X7151
#16

Grill diagram

Cooktop downdraft vent grille

Part #WB7X7151

The manufacturer no longer makes this part, and there's no substitute part

Glass C.p.dd WB56X7046
#2

Grill diagram

Glass c.p.dd

Part #WB56X7046

The manufacturer no longer makes this part, and there's no substitute part

Filter Clip WB2X7815
#25

Grill diagram

Filter clip

Part #WB2X7815

The manufacturer no longer makes this part, and there's no substitute part

Infinite Heat Switch WB21X5302
#3

Grill diagram

Infinite heat switch

Part #WB21X5302

The manufacturer no longer makes this part, and there's no substitute part

30" Dsn Case WB49X5507
#24

Grill diagram

30" dsn case

Part #WB49X5507

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Blower Switch WB24X5283
#19

Grill diagram

Cooktop blower switch

Part #WB24X5283

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block WB17X167
#36

Grill diagram

Terminal block

Part #WB17X167

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover WB2X8135
#31

Grill diagram

Wire cover

Part #WB2X8135

The manufacturer no longer makes this part, and there's no substitute part

Clamp WB2X3014
#39

Grill diagram

Clamp

Part #WB2X3014

The manufacturer no longer makes this part, and there's no substitute part
