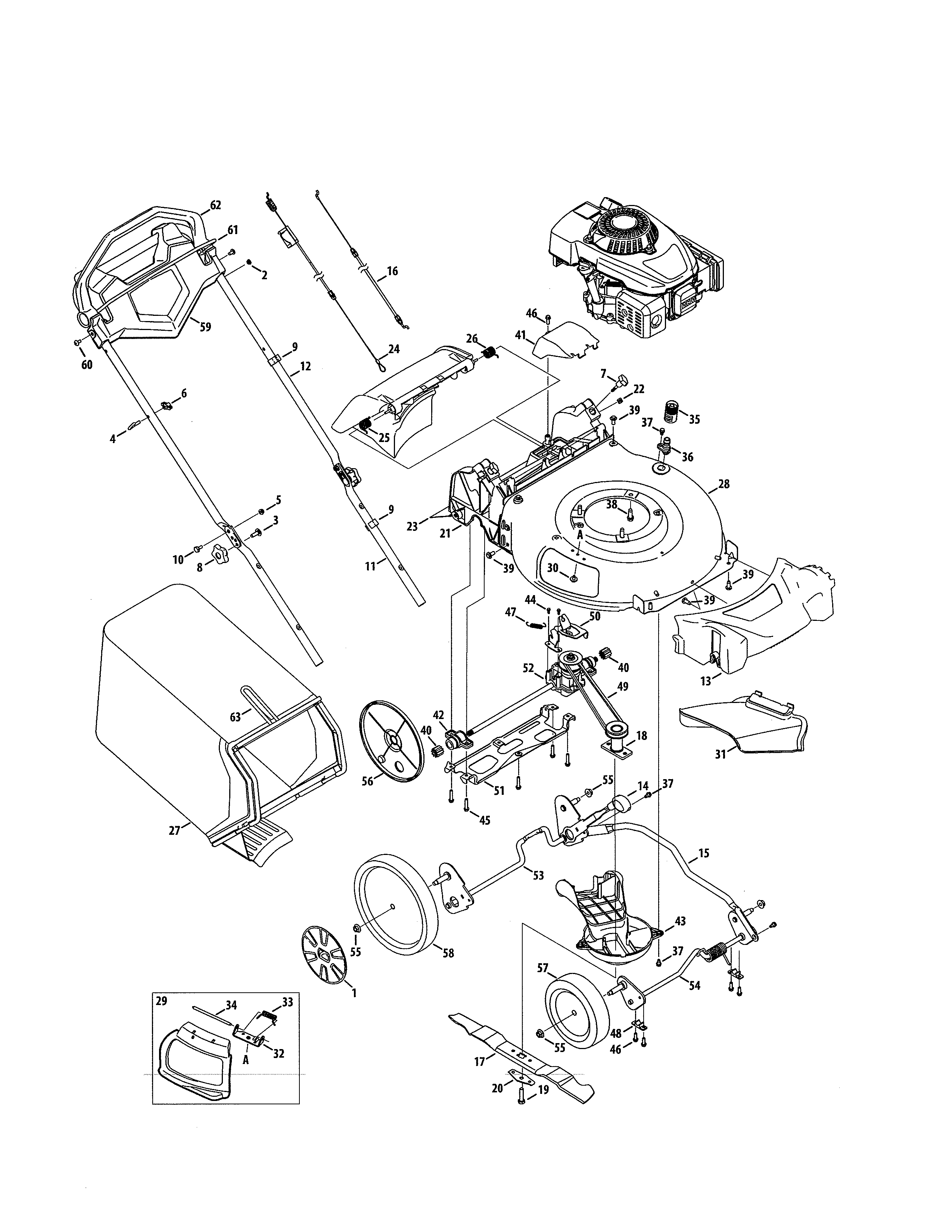

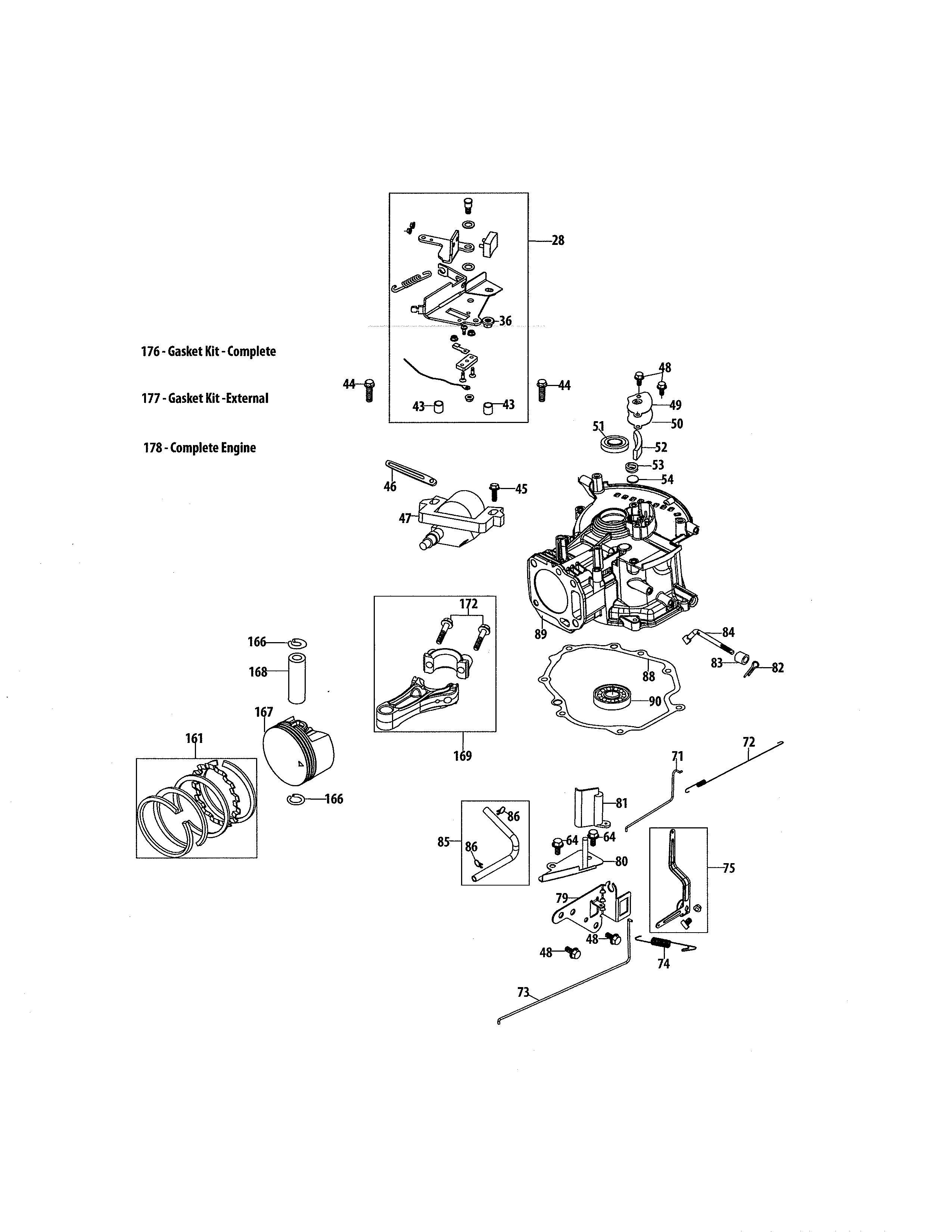

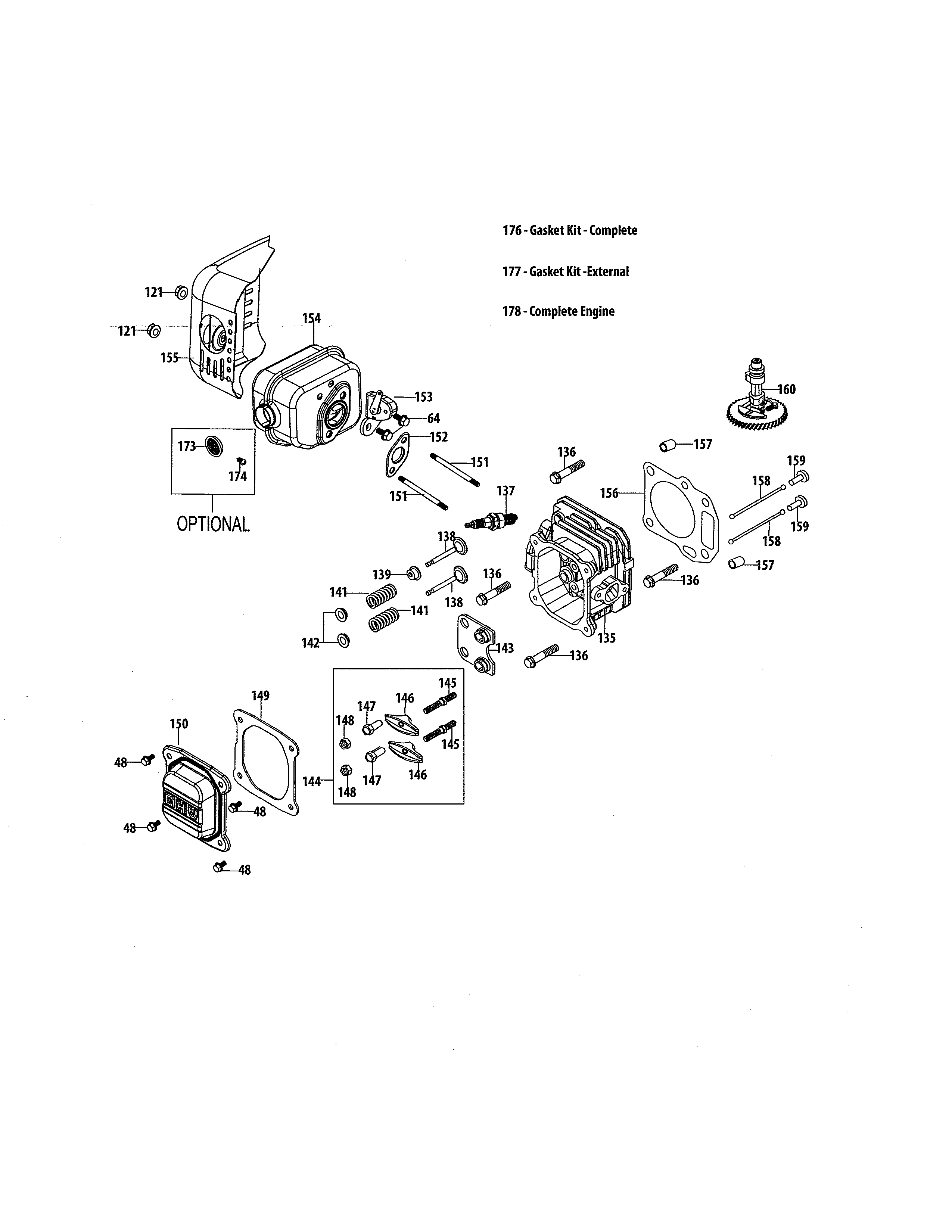

Craftsman 247375910 lawn mower Parts

For the Craftsman 247375910 walk-behind mower, use fresh, clean unleaded gasoline; in normal conditions, 87 octane is the right choice and higher octane (like 91) does not improve performance. Follow the fueling and storage steps in the 247375910 owner's manual to avoid hard starting and fuel-system problems.

• Use unleaded gasoline.
• Use fresh, clean fuel; do not use gas left from last season.
• Do not mix oil with fuel (this is a 4-cycle mower engine setup).
• Avoid fuel that has been stored a long time; stale fuel can gum up the carburetor.
• If you store fuel in the tank for extended periods, use a fuel stabilizer and run the engine a few minutes to circulate it.

Gasoline is extremely flammable, so refuel with the same safety habits every time.

• Let the engine cool (the manual calls out about 2 minutes before refueling).

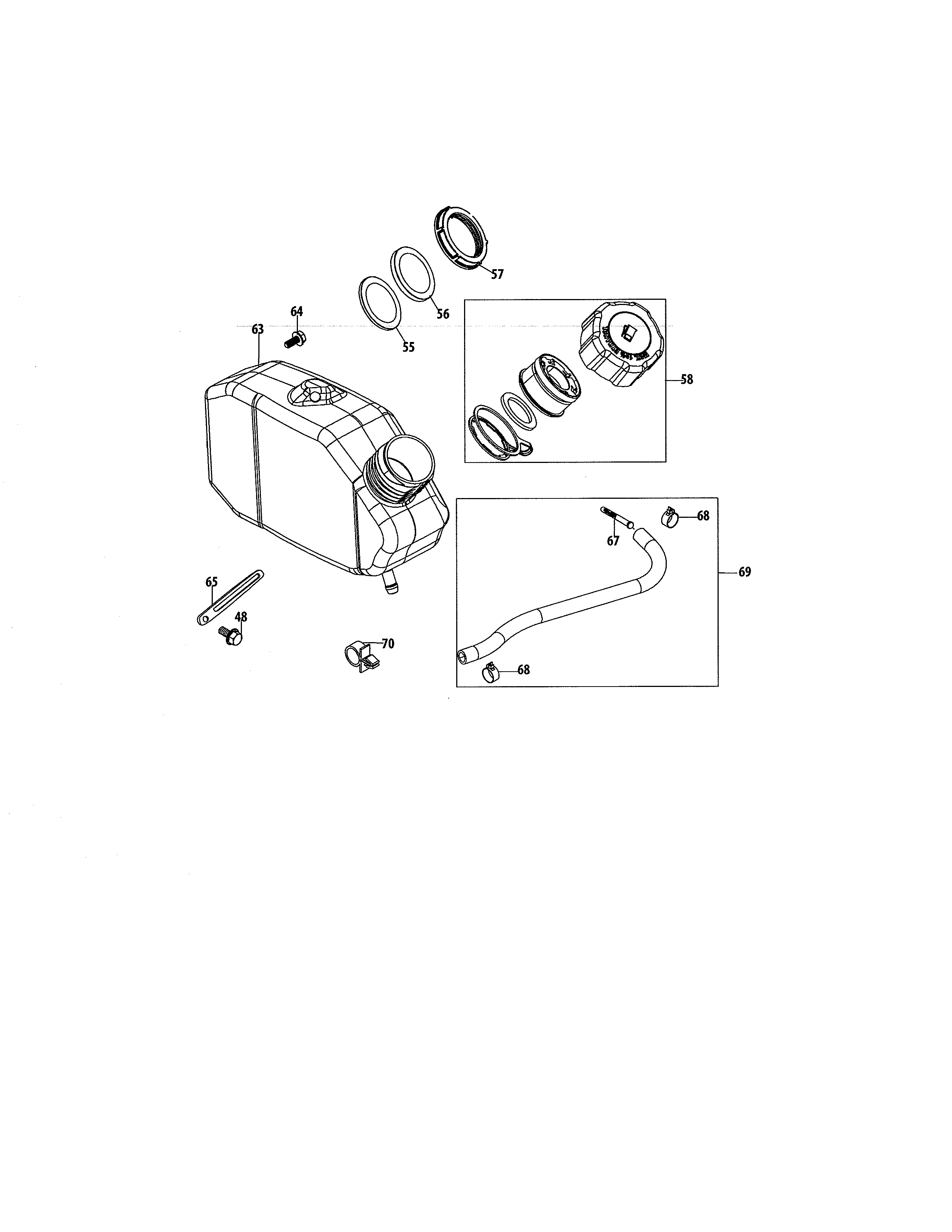

• Fill the tank to about 1/2 inch below the bottom of the filler neck (room for expansion).
• Tighten the cap securely and wipe up spills.
• If you spill fuel, move the mower away and wait for vapors to clear before starting.

Most “won’t start” and “runs rough” complaints trace back to stale fuel, contamination, or unsafe refueling practices, not octane rating. Using the right fuel and handling it correctly helps protect the carburetor, makes starting easier, and reduces downtime.

Last updated: February 2026

Common problems on the Craftsman 247375910 gas walk-behind mower are no-start conditions (fuel, spark, air), poor cut quality (dull or damaged blade), abnormal vibration after impact, and self-propel issues caused by debris or a worn drive belt. Our 247375910 owner's manual also stresses stopping the engine and inspecting immediately if vibration starts.

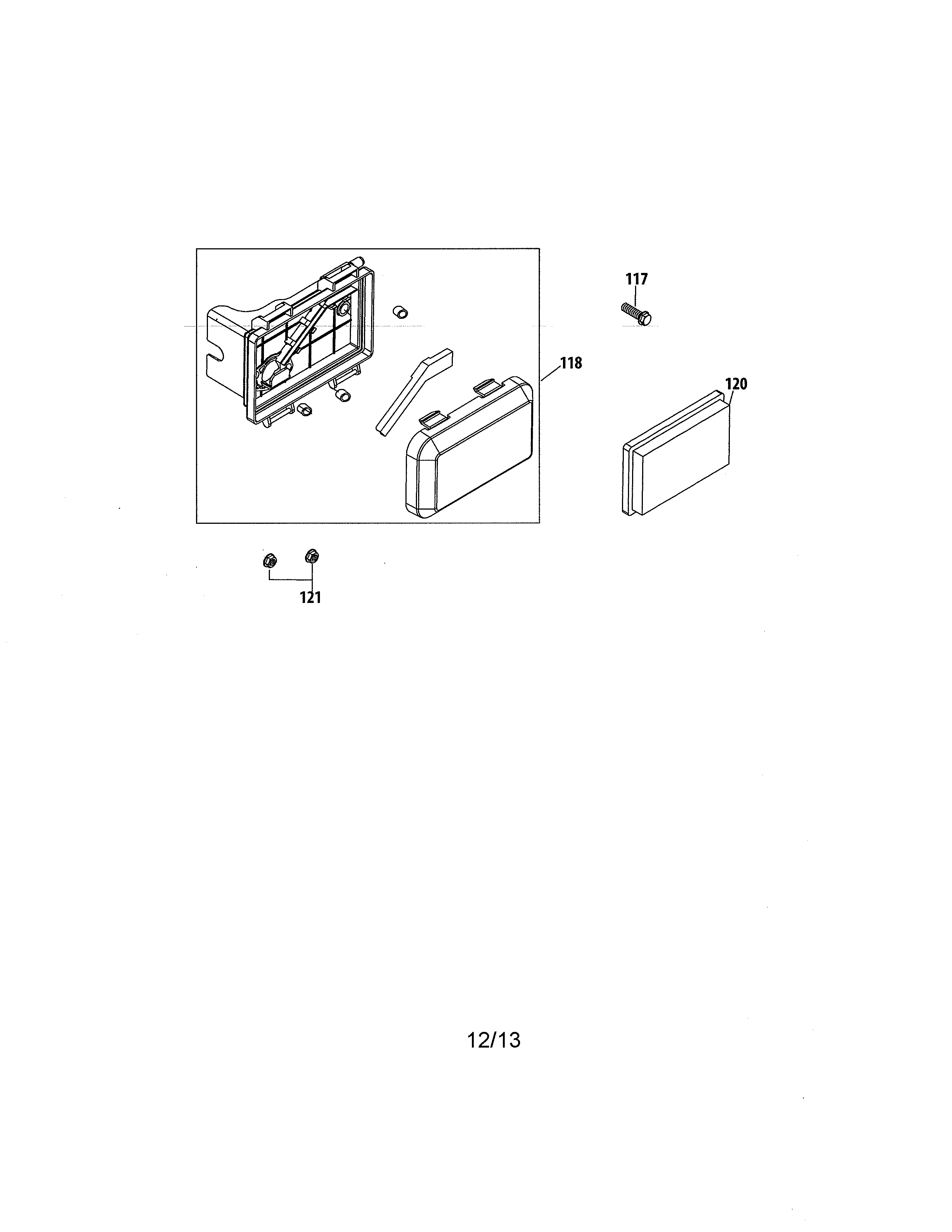

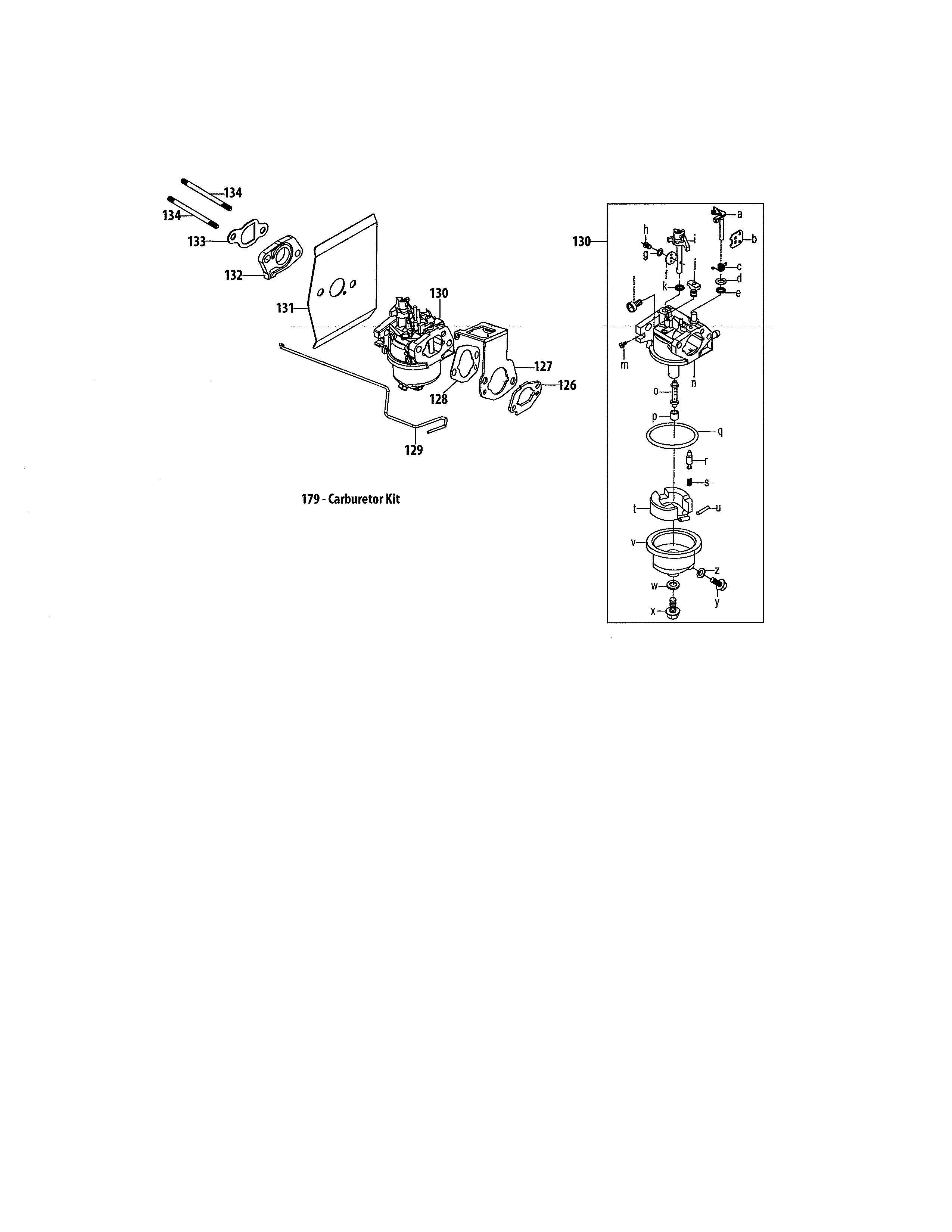

• Won’t start or starts then dies: old fuel, dirty carburetor, fouled spark plug, clogged air filter

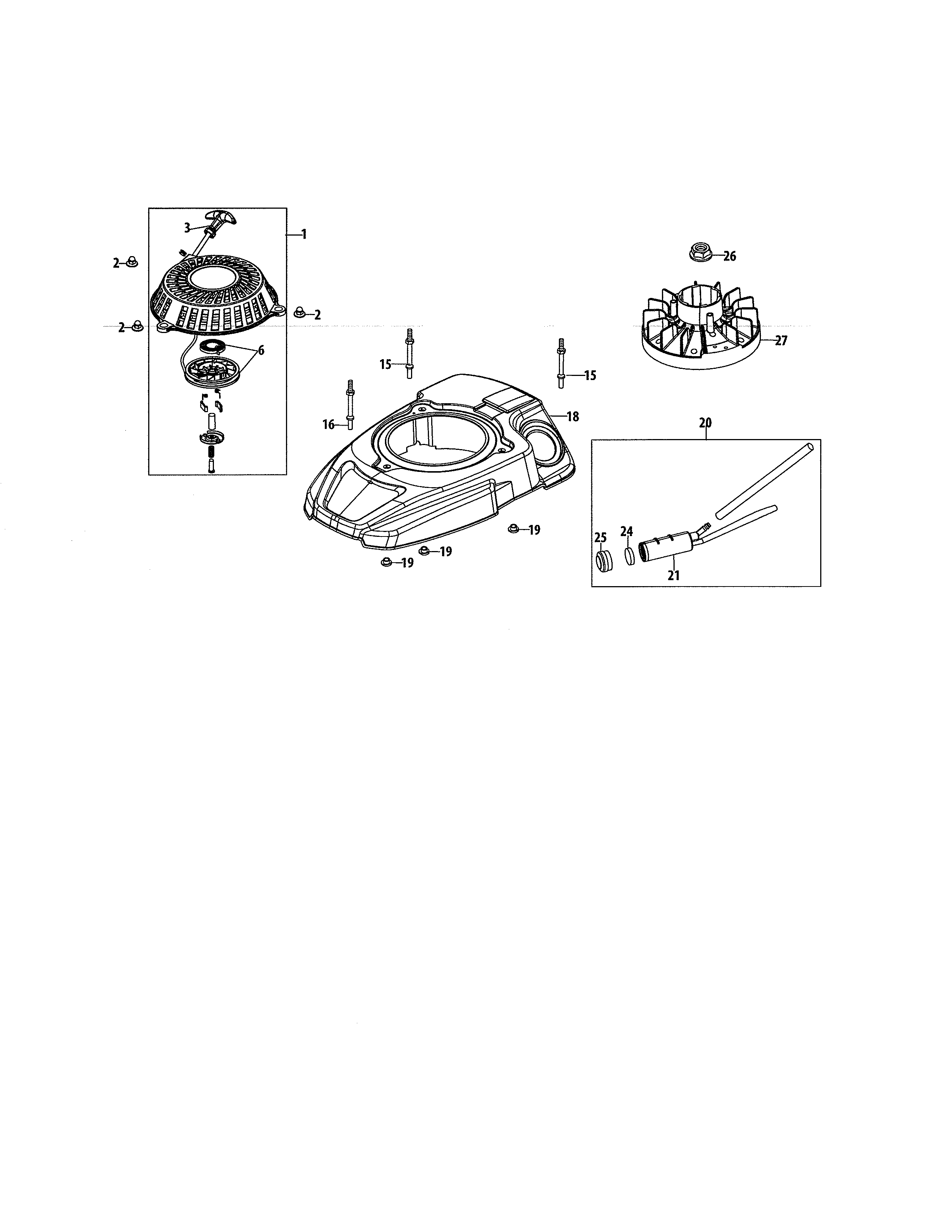

• Hard to pull starter rope (kickback risk): pulling incorrectly, engine issue after impact, blade obstruction
• Vibrates or shakes: bent blade, loose blade hardware, damaged blade adapter, impact damage
• Uneven cut or poor mulching: dull blade, mowing wet or overly tall grass
• Won’t self-propel: debris in drive area, belt off pulleys, worn belt, drive control out of adjustment

1. Stop the engine, wait for the blade to fully stop, then disconnect and ground the spark plug wire.
2. Check for loose or missing hardware and tighten as needed.
3. Inspect the blade for bends, cracks, or heavy wear; replace if damaged.
4. For self-propel problems, clear packed grass and debris around the drive and transmission area.
5. If the mower sat with fuel, drain old gas and refill with fresh fuel.

The manual’s troubleshooting points to belt installation, debris, belt wear, and drive adjustment.

Ignoring vibration, a damaged blade, or a slipping drive system can quickly turn a small repair into bigger damage. The manual specifically treats abnormal vibration as a warning sign and calls for immediate inspection after striking an object.

Last updated: February 2026

The model number is 247375910. This Craftsman walk-behind mower is identified in the operator documentation as a 21-inch lawn mower, Model No. 247.375910 (commonly written without the decimal as 247375910). See the 247375910 operator's manual for the exact model identification format.

You will typically find the model and serial information on a label or tag on the mower. Check these common spots:

• Rear of the deck near the discharge opening
• On the deck housing above the blade area (not underneath)
• Near the rear wheels or height adjuster area
• On the handle support or handle bracket area
• In the documentation packet that came with the mower

Craftsman and MTD-built walk-behind mowers often show the same model in slightly different formats.

Using the exact model number ensures you get the right parts and diagrams for your mower, especially for fit-critical items like a drive belt, transmission assembly, blade adapter, or control cables.

Last updated: February 2026

The Craftsman lawn mower model 247375910 is documented in an Operator’s Manual with a form date of November 25, 2013, so this model was in production by (or before) 2013. For the exact build year of your specific mower, match the serial number/date code format shown in the 247375910 operator’s manual.

The manual for this 21-inch Craftsman walk-behind mower includes a printed form number and date, which is the most reliable way to place the model in time.

• Operator’s Manual form: 769-09384
• Manual form date: November 25, 2013
• Model covered: 247375910
• Product type: 21" gas walk-behind lawn mower

Most Craftsman and MTD-built walk-behind mowers use a serial number label that includes a date code. Use these steps:

• Locate the model/serial label (commonly on the rear of the deck, near the rear discharge area, or on the handle bracket).
• Write down the full serial number exactly as shown.
• Compare the serial/date code format to the identification guidance in the manual.
• If the label is dirty or faded, clean it gently and take a clear photo before decoding.

The year of manufacture helps us match the correct parts and revisions for your mower, especially for wear items and controls like the drive system and safety shutoff.

• Drive components can change by production run (belt routing, transmission versions).
• Control cables and handle hardware can vary by year.
• Correct identification prevents ordering the wrong replacement part.

Last updated: February 2026

On the Craftsman walk-behind mower model 247375910, the model number is printed on the mower’s model-and-serial label on the mower deck (the main housing above the blade area). Use that label when ordering non-engine parts and looking up diagrams in the 247375910 operator’s manual.

Check these common label locations on walk-behind mowers like model 247375910:

• On top of the mower deck near the rear discharge opening
• On the left or right side of the deck, near the wheel height adjuster
• Near the engine mounting area on the deck surface
• On the rear of the deck near the bagging or mulching door
• Under the grass bag area (if equipped), on the deck panel

The label typically includes both identifiers you need for parts and service.

Craftsman walk-behind mowers often have separate identifiers for the mower and the engine. For parts such as a drive belt, wheel, handle, or chute, we use the mower model number to ensure the correct fit and hardware.

• Write down the model and serial number exactly as shown
• Take a clear photo of the label for reference
• Use the model number to match parts like the lawn mower ground drive belt 954-04282 or the mtd lawn mower zone control cable 946-05105A

Last updated: February 2026
