Model #CV825B Official Eureka built-in vacuum cleaner

Here are the diagrams and repair parts for Eureka CV825B built-in vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 38 parts

Clamp#14

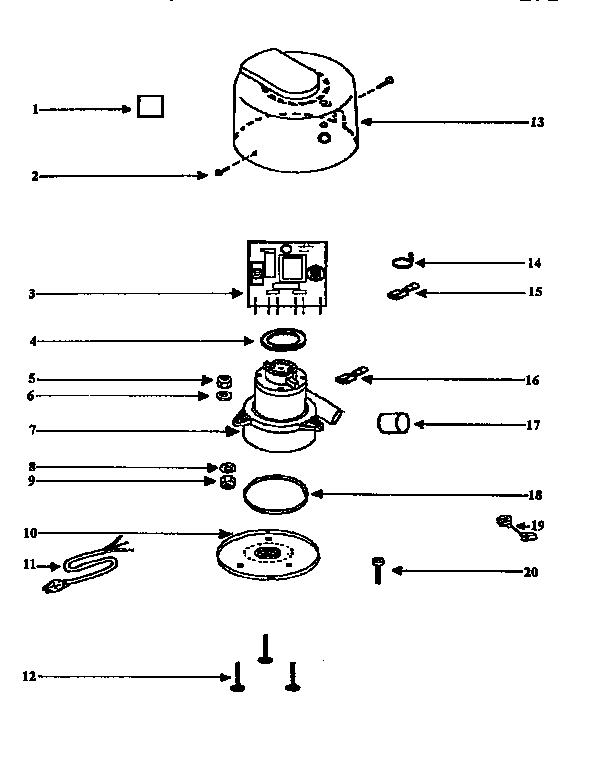

Motor assembly Diagram

Clamp

Part #46713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw, 10-pack

See All Related Diagrams

Vacuum screw, 10-pack

Part #53238-8

The manufacturer no longer makes this part, and there's no substitute part

Cord#11

Motor assembly Diagram

Cord

Part #54622

The manufacturer no longer makes this part, and there's no substitute part

Screw#15

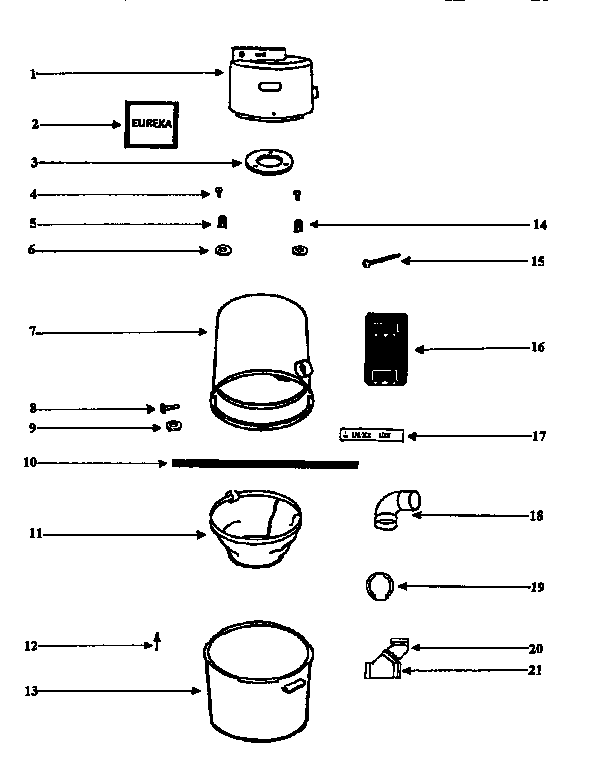

Unit parts Diagram

Screw

Part #60137

The manufacturer no longer makes this part, and there's no substitute part

Spigot#20

Unit parts Diagram

Spigot

Part #56838

The manufacturer no longer makes this part, and there's no substitute part

Label#12

Unit parts Diagram

Label

Part #57064-1

The manufacturer no longer makes this part, and there's no substitute part

Pipe#21

Unit parts Diagram

Pipe

Part #56839

The manufacturer no longer makes this part, and there's no substitute part

Tab#5

Unit parts Diagram

Tab

Part #57490

The manufacturer no longer makes this part, and there's no substitute part

Bracket#16

Unit parts Diagram

Bracket

Part #220-716

The manufacturer no longer makes this part, and there's no substitute part

Tab#14

Unit parts Diagram

Tab

Part #57449

The manufacturer no longer makes this part, and there's no substitute part
