Whirlpool
Top-Mount Refrigerator

Model # ET22DQRBW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool ET22DQRBW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

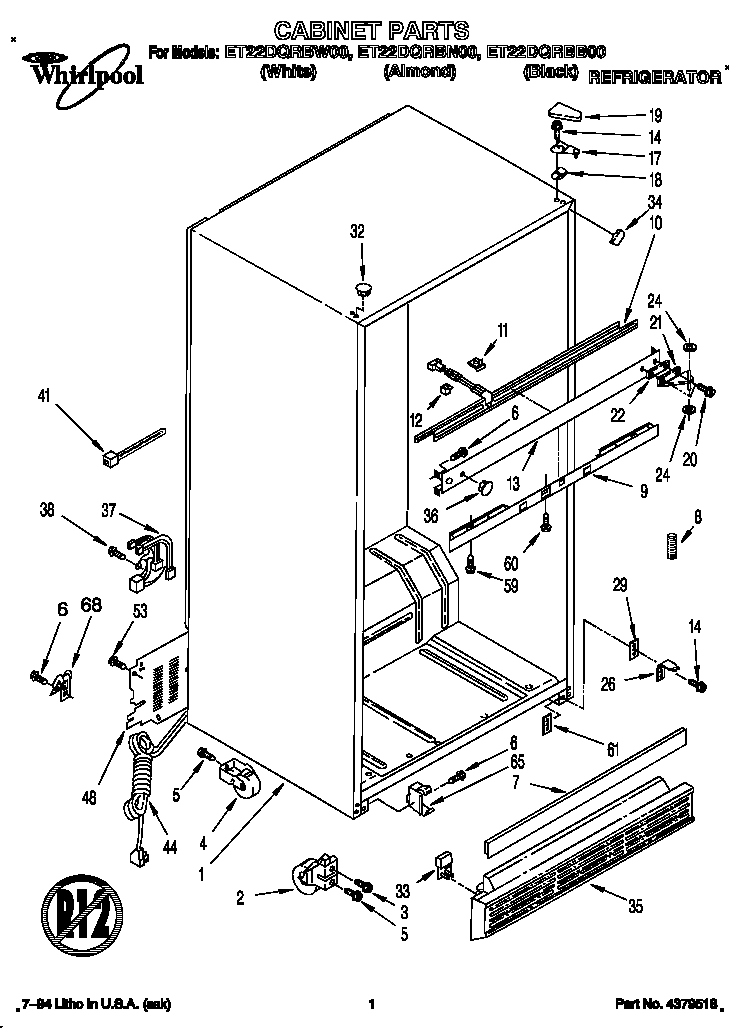

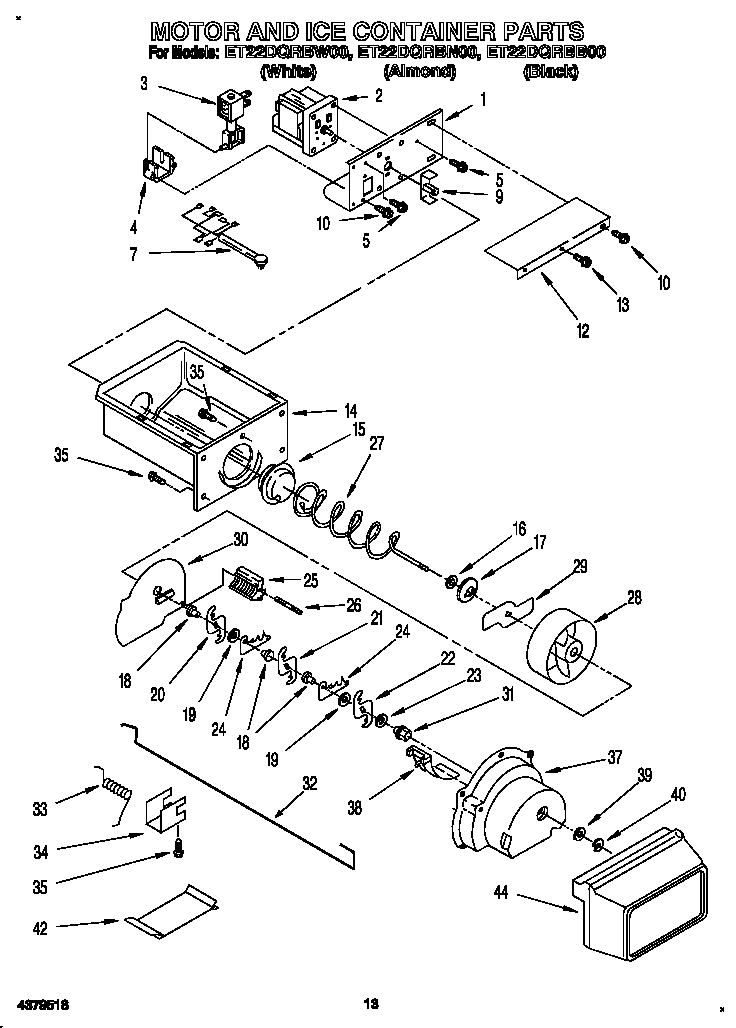

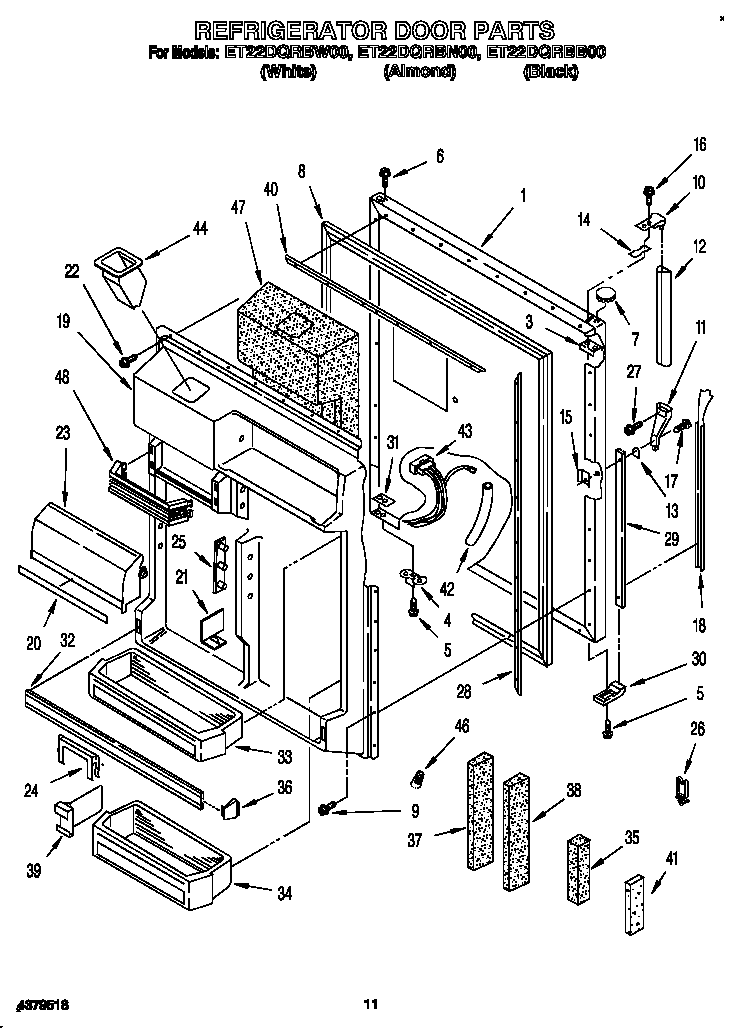

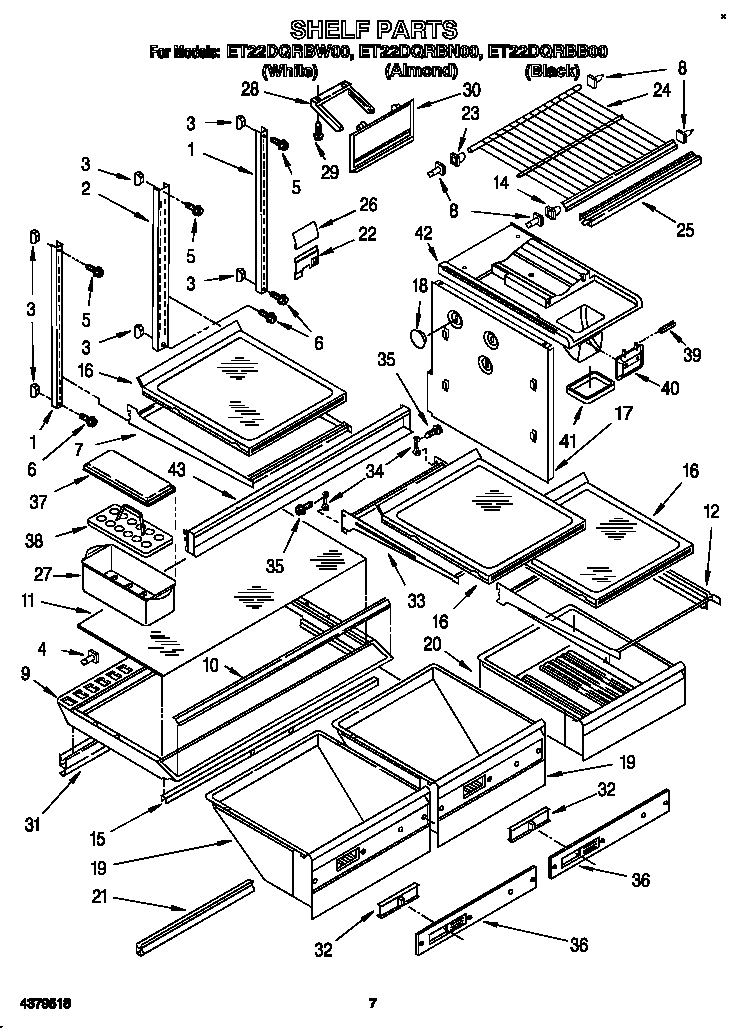

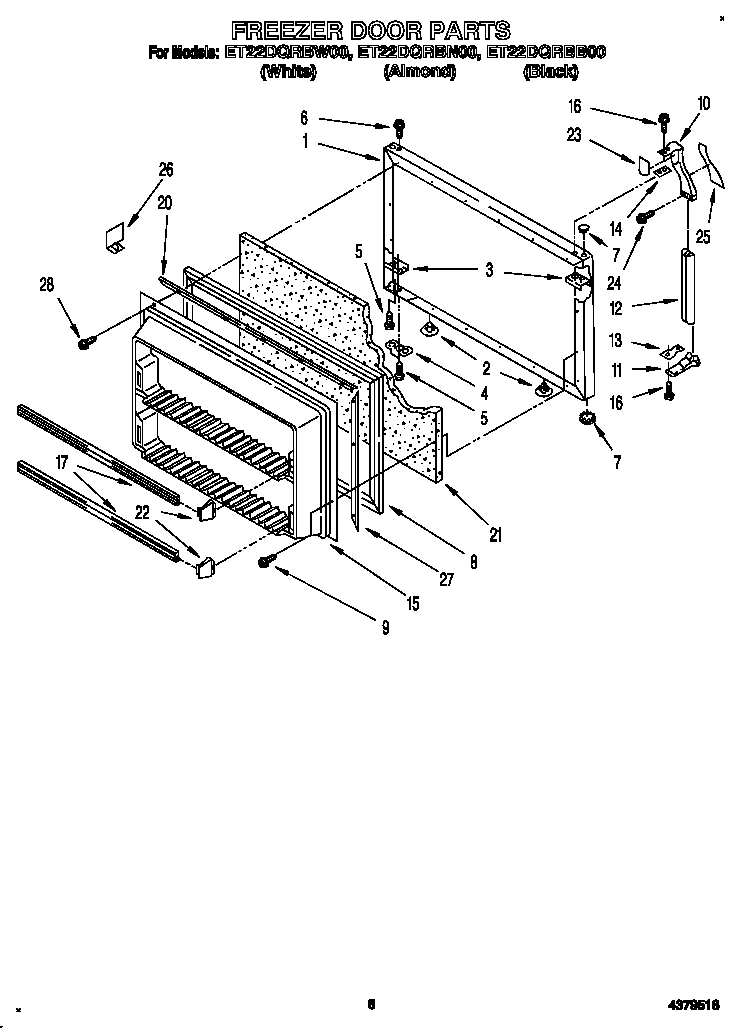

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 439 parts  |

Refrigerator Ice Maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, M626687, W10122496, W10190952, W10281545, W10632400) 4317943
#100

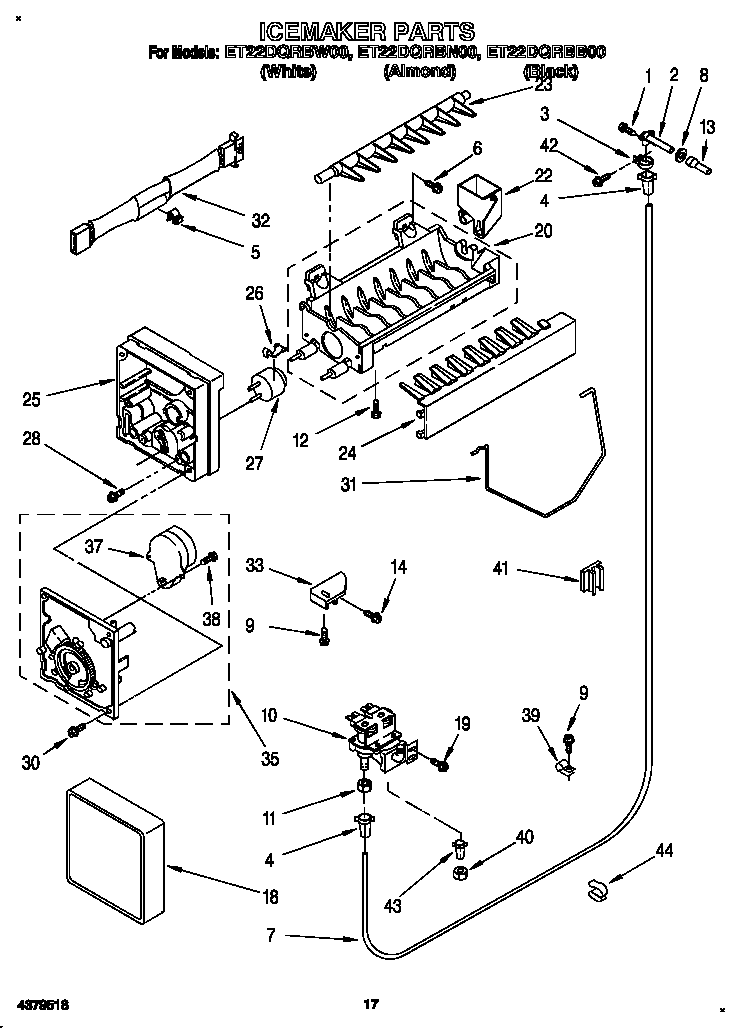

Icemaker diagram

Refrigerator ice maker (replaces 4317913, 626636, 626670, 626687, 68972-4, 8114, 8114r, m626687, w10122496, w10190952, w10281545, w10632400)

Part #4317943

BEST SELLER
$113.36
19% OFF MSRP : $140.00
In Stock
Drier Tube 2164409
#27

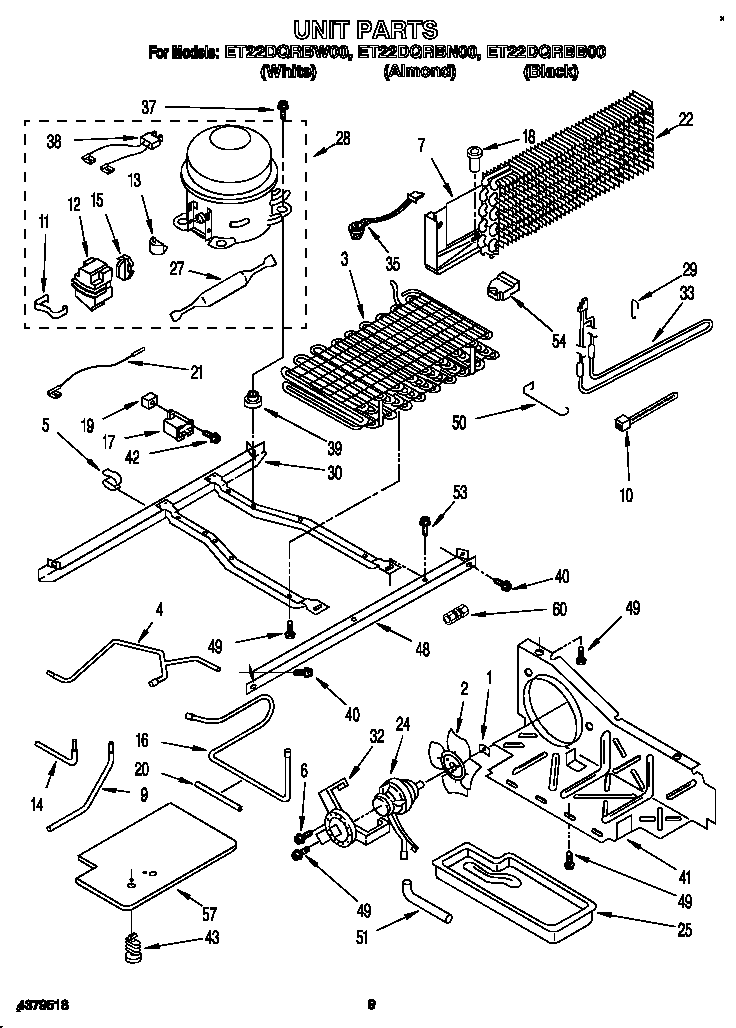

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58
31% OFF MSRP : $46.00
In Stock
Refrigerator Tube 983370
#7

Icemaker diagram

Refrigerator tube

Part #983370

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 983370. Substitute parts can look different from the original.
BEST SELLER
$37.16
12% OFF Phone Price : $42.16
In Stock
Refrigerator Tube 653200
#34

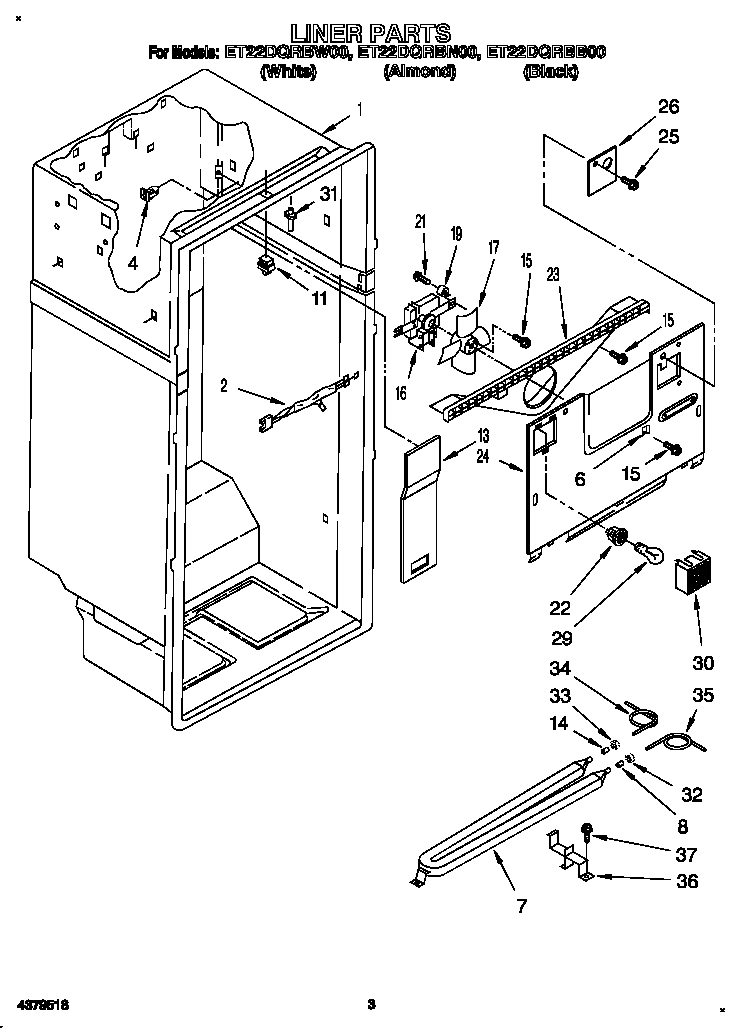

Liner diagram

Refrigerator tube

Part #653200

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 653200. Substitute parts can look different from the original.
BEST SELLER
$37.16
12% OFF Phone Price : $42.16
In Stock
Refrigerator Compressor 2162354
#28

Unit diagram

Refrigerator compressor

Part #2162354

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2162354. Substitute parts can look different from the original.
BEST SELLER
$387.84
12% OFF MSRP : $440.00
In Stock
Bimetl-del 2149641
#35

Unit diagram

Bimetl-del

Part #2149641

Replaced by #WP4387503

?
Manufacturer substitution
This part replaces 2149641. Substitute parts can look different from the original.
BEST SELLER
$39.71
11% OFF Phone Price : $44.71
In Stock

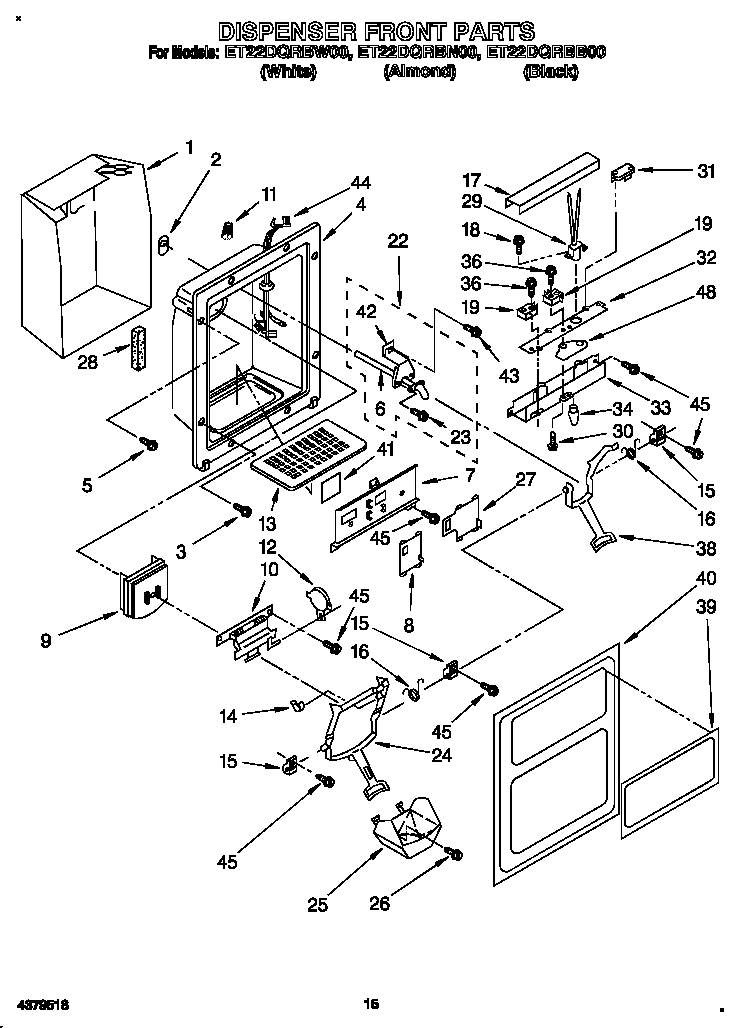

Refrigerator Dispenser Switch 2162361
Refrigerator dispenser switch

Part #2162361

Replaced by #WP2162361

?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
BEST SELLER
$19.03
30% OFF MSRP : $27.00
In Stock
Refrigerator Service Valve (replaces 876620) 876764
#60G

Unit diagram

Refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12
44% OFF MSRP : $47.00
In Stock
Refrigerator Inlet Valve 2155062
#10

Icemaker diagram

Refrigerator inlet valve

Part #2155062

Replaced by #W10853654

?
Manufacturer substitution
This part replaces 2155062. Substitute parts can look different from the original.
BEST SELLER
$95.01
27% OFF MSRP : $130.00
In Stock
Refrigerator Door Switch 2149705
#3

Compartment separator diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$29.50
24% OFF MSRP : $39.00
In Stock
