Kelvinator AW300C2D 28" top-loading washer - lk31288030 Parts
Here are the diagrams and repair parts for Kelvinator AW300C2D 28" top-loading washer - lk31288030, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

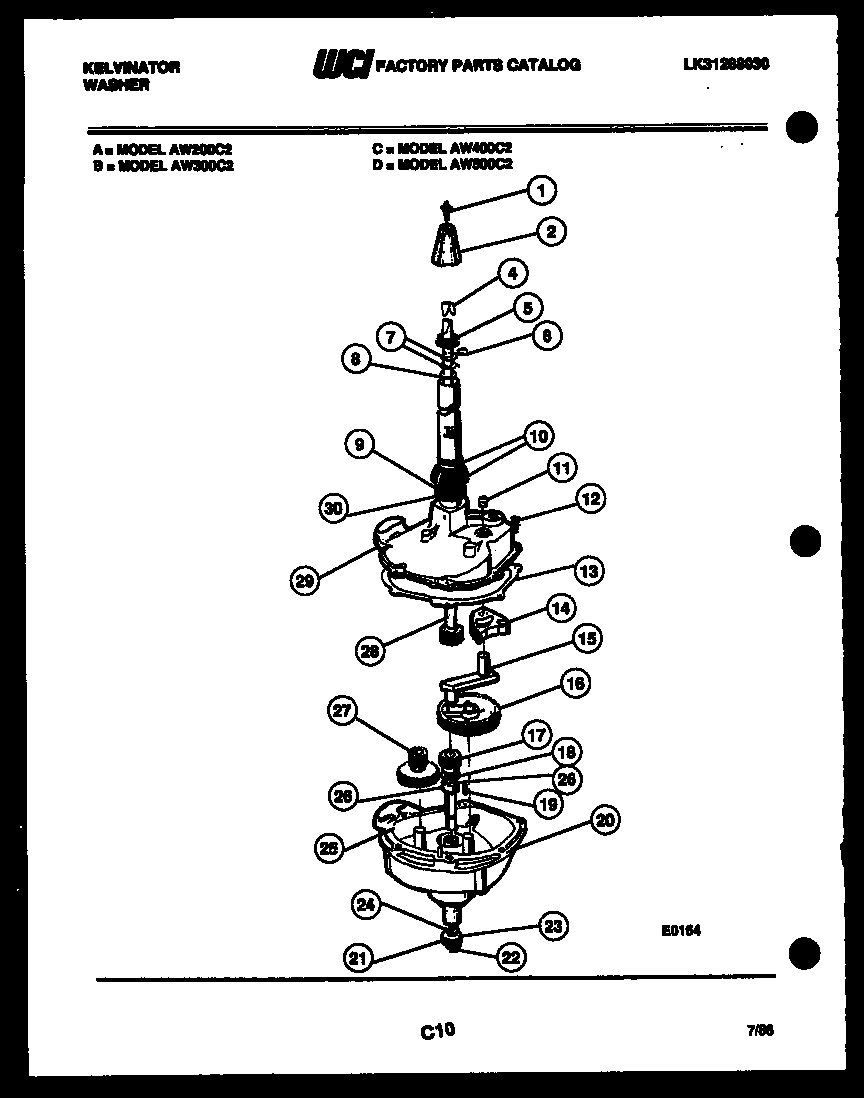

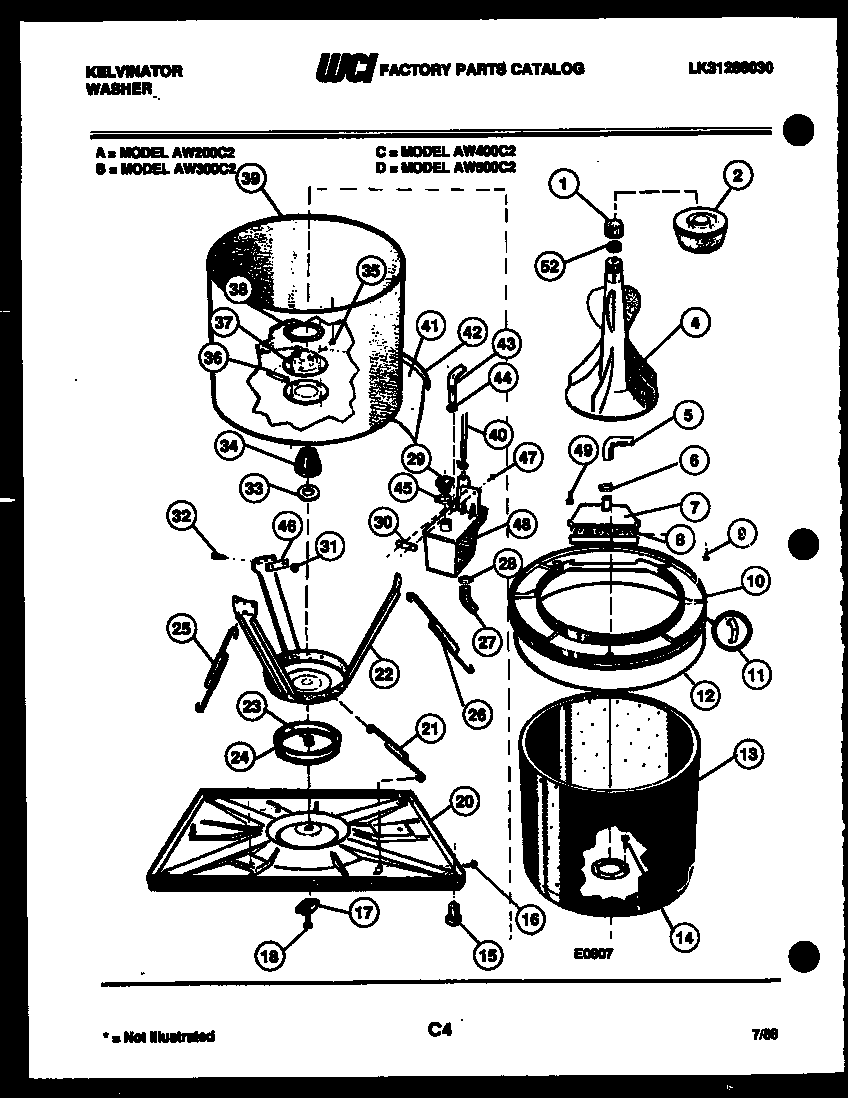

Browse Parts for AW300C2D 28" Top-Loading Washer - LK31288030

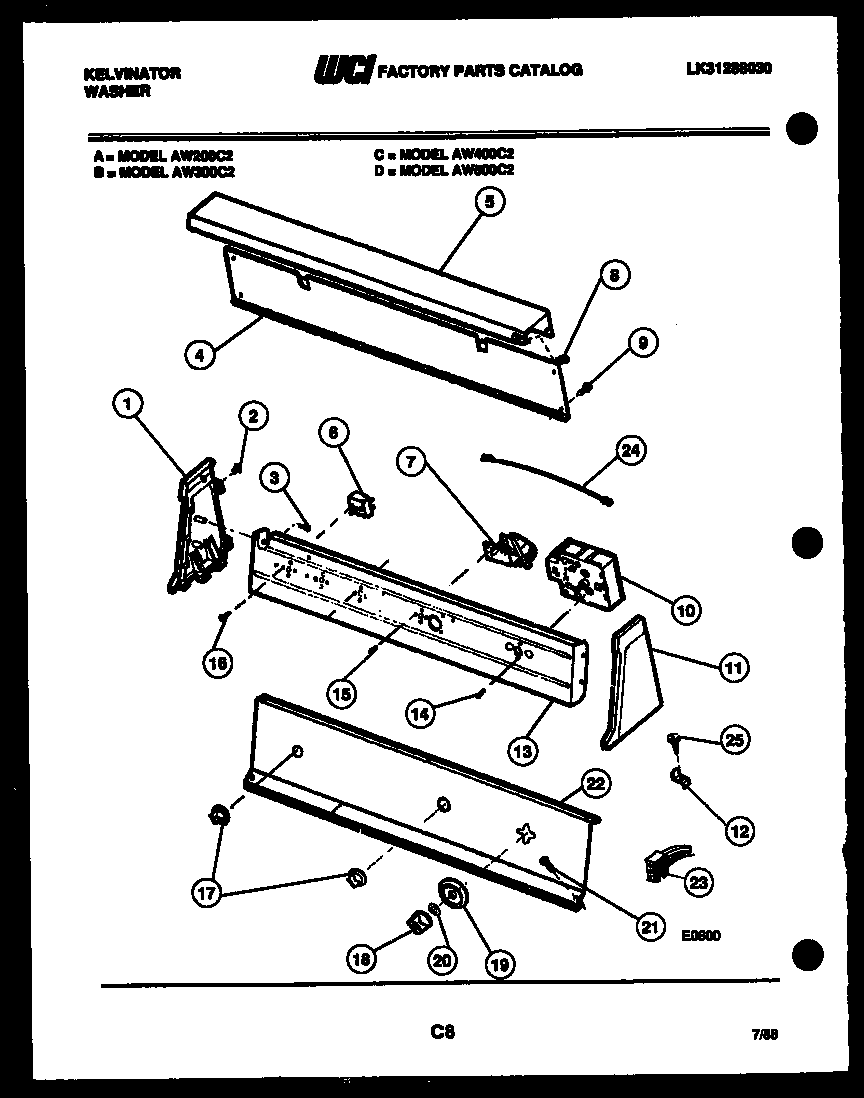

Console and control parts diagram
Screw
Part #F073325-000Replaced by #131168200
Manufacturer substitutionThis part replaces F073325-000. Substitute parts can look different from the original.In Stock$14.0812% OFF Phone Price : $16.08
Qty

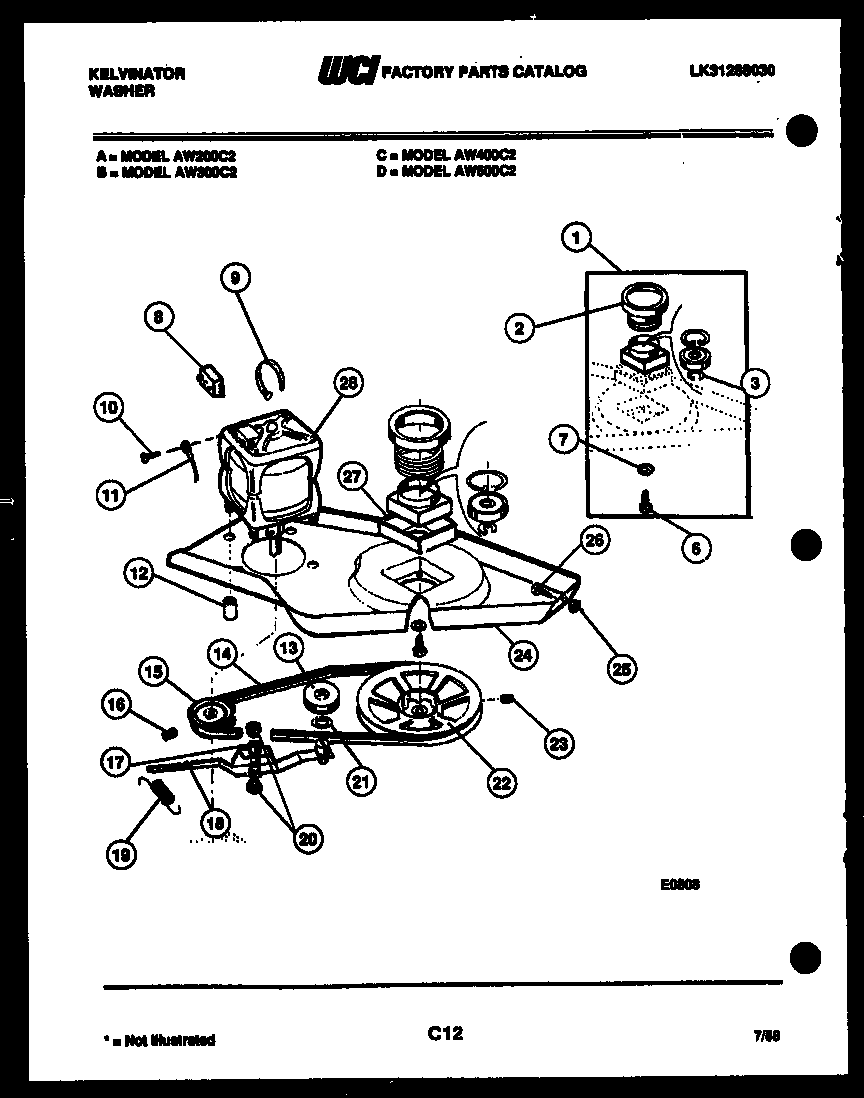

Motor and idler arm clutch diagram
Spring Washer
Part #F140083-000Replaced by #5303161306
Manufacturer substitutionThis part replaces F140083-000. Substitute parts can look different from the original.In Stock$38.71QtyMotor and idler arm clutch diagram
Belt
Part #F133171-000Replaced by #5303280326
Manufacturer substitutionThis part replaces F133171-000. Substitute parts can look different from the original.This item is not returnableIn Stock$38.3114% OFF Phone Price : $44.31QtyMotor and idler arm clutch diagram
Housing
In Stock$143.80QtyConsole and control parts diagram
Timer

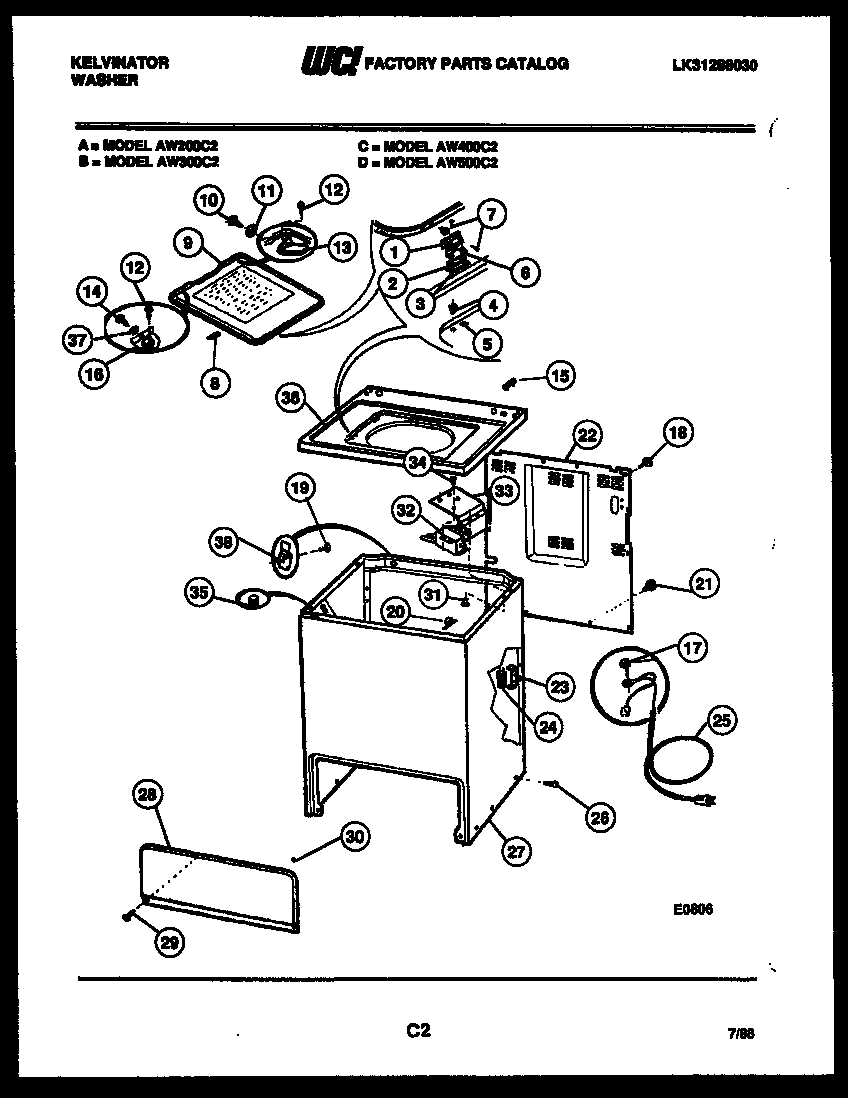

In Stock$196.14QtyCabinet parts diagram
Bracket
In Stock$45.29QtyConsole and control parts diagram
Screw
Part #F137858-000Replaced by #131205100
Manufacturer substitutionThis part replaces F137858-000. Substitute parts can look different from the original.In Stock$17.1610% OFF Phone Price : $19.16QtyCabinet parts diagram
Hinge
Part #F066964-000Replaced by #5308002412
Manufacturer substitutionThis part replaces F066964-000. Substitute parts can look different from the original.In Stock$40.76QtyScrew
Part #F137505-000Replaced by #08010804

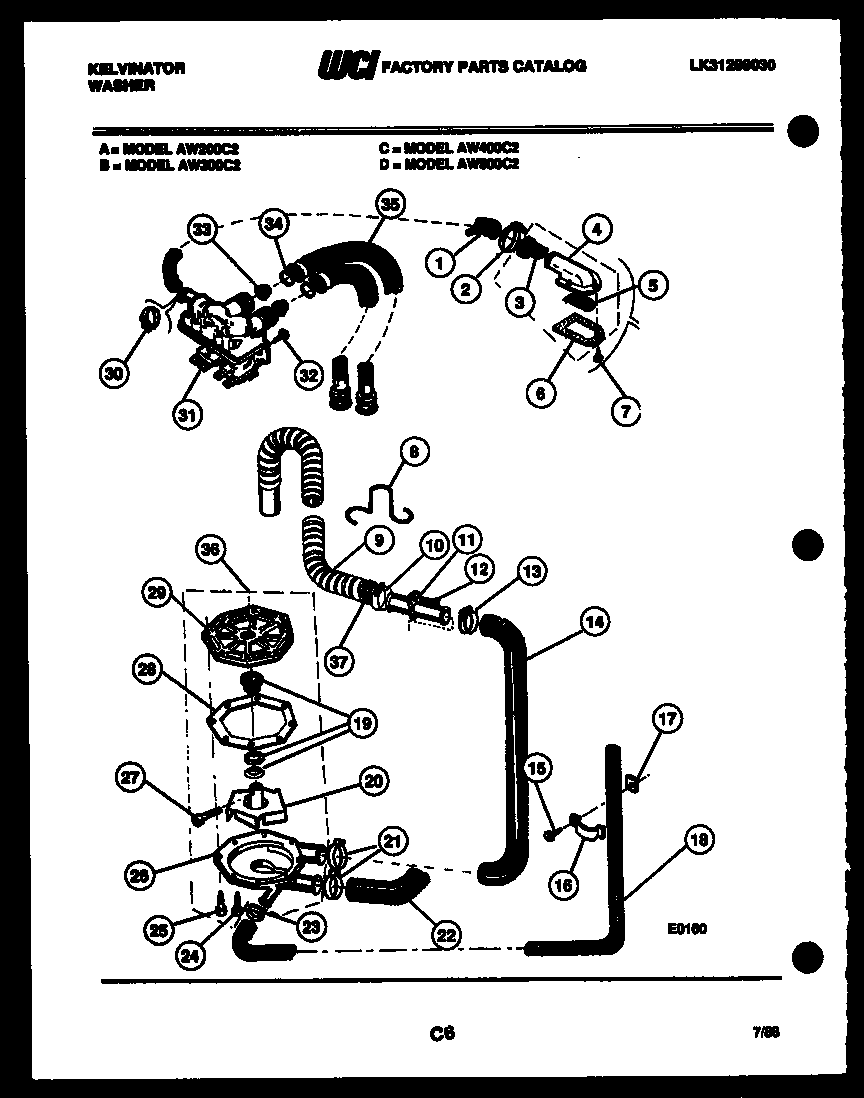

Manufacturer substitutionThis part replaces F137505-000. Substitute parts can look different from the original.In Stock$28.70QtyDrain, recirculate parts diagram
Pump Cover
Part #F077352-000Replaced by #5304401790
Manufacturer substitutionThis part replaces F077352-000. Substitute parts can look different from the original.In Stock$44.44Qty
