Model # EV200FXMQ05 Official Whirlpool upright freezer
Here are the diagrams and repair parts for Official Whirlpool EV200FXMQ05 upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
EV200FXMQ05 Freestanding Freezers
#8

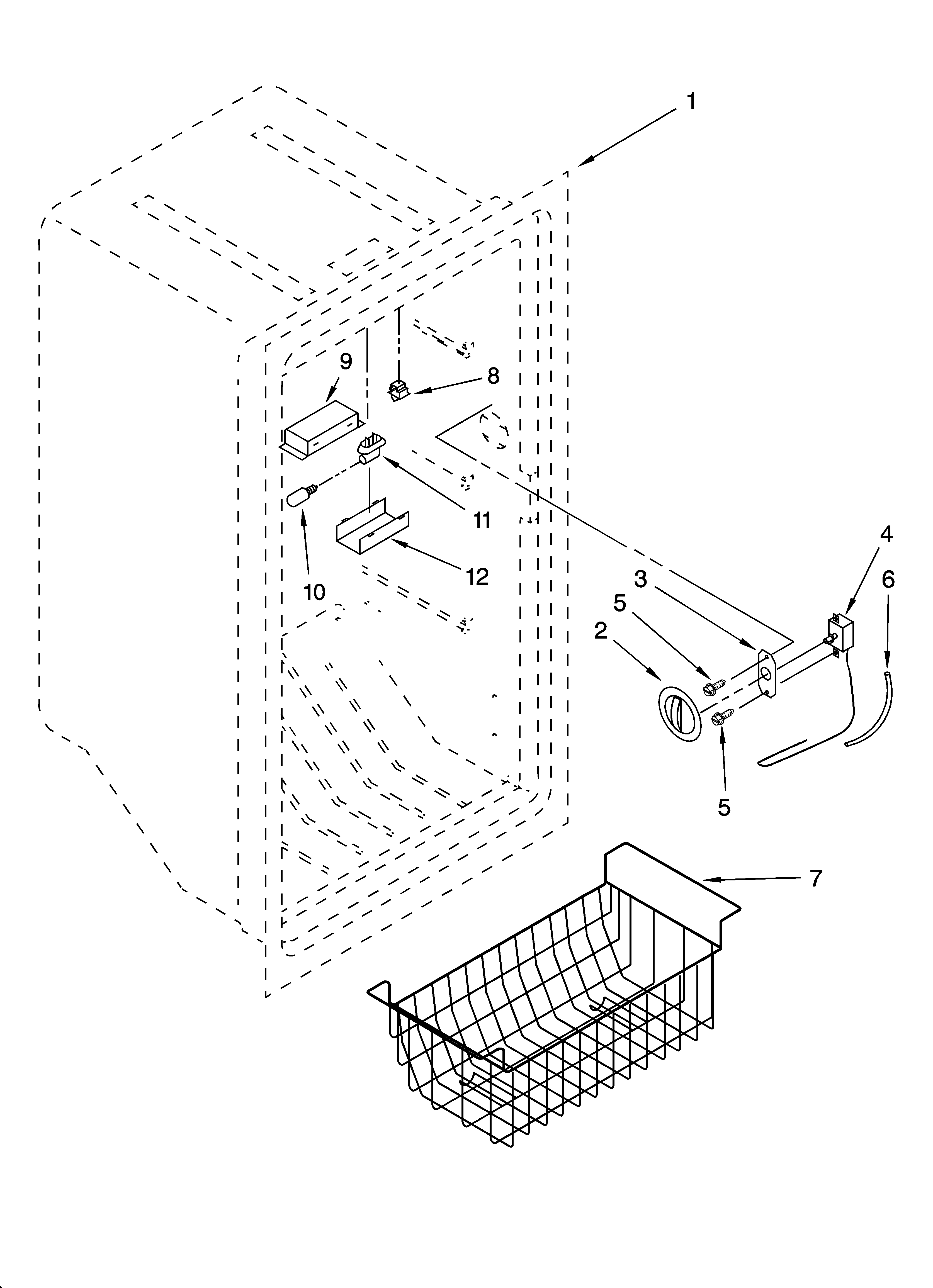

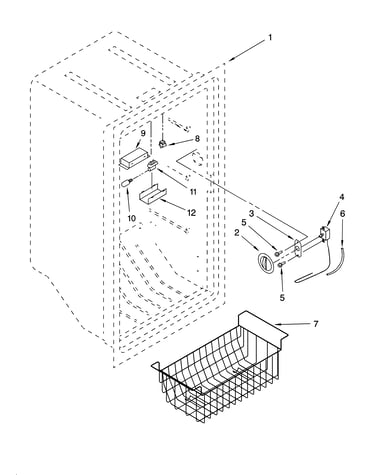

Liner parts diagram
Switch
Part #4390513
Replaced by #W11384469
?
Manufacturer substitution
This part replaces 4390513. Substitute parts can look different from the original.
$21.70 |
22% OFF Phone Price : $27.70
In Stock
#2

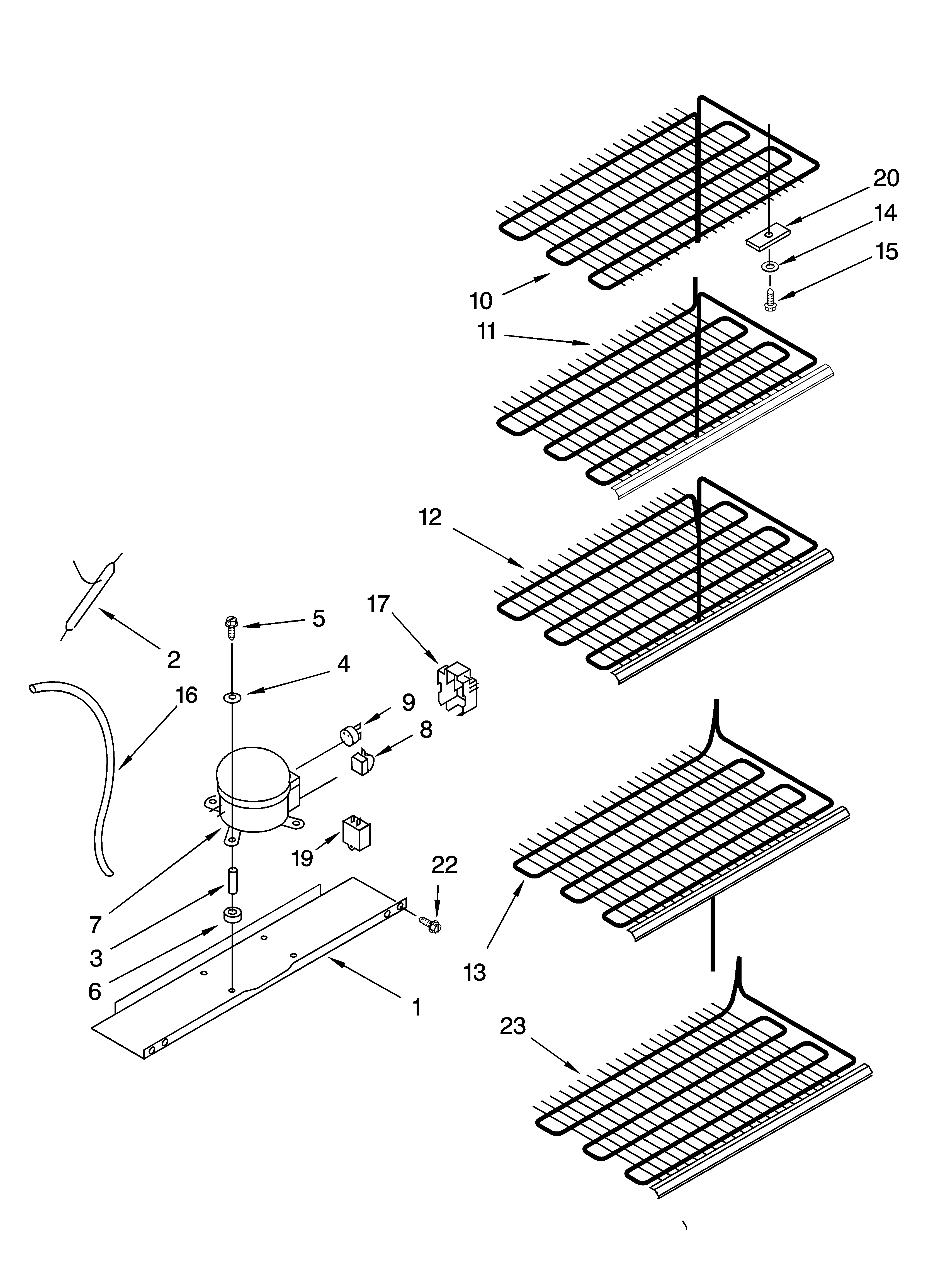

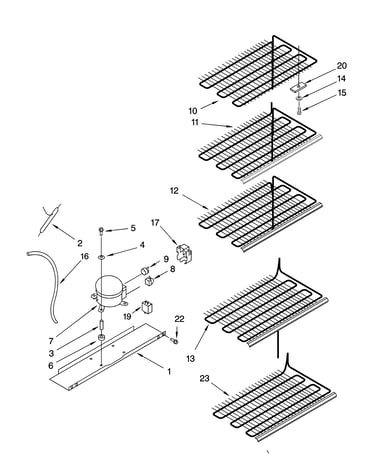

Unit parts diagram
Drier tube
Part #4357299
Replaced by #W10843121
?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
$29.20 |
17% OFF Phone Price : $35.20
In Stock
#7
Unit parts diagram
Upright freezer compressor
Part #4356775
Replaced by #W10309994
?
Manufacturer substitution
This part replaces 4356775. Substitute parts can look different from the original.
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
#NI

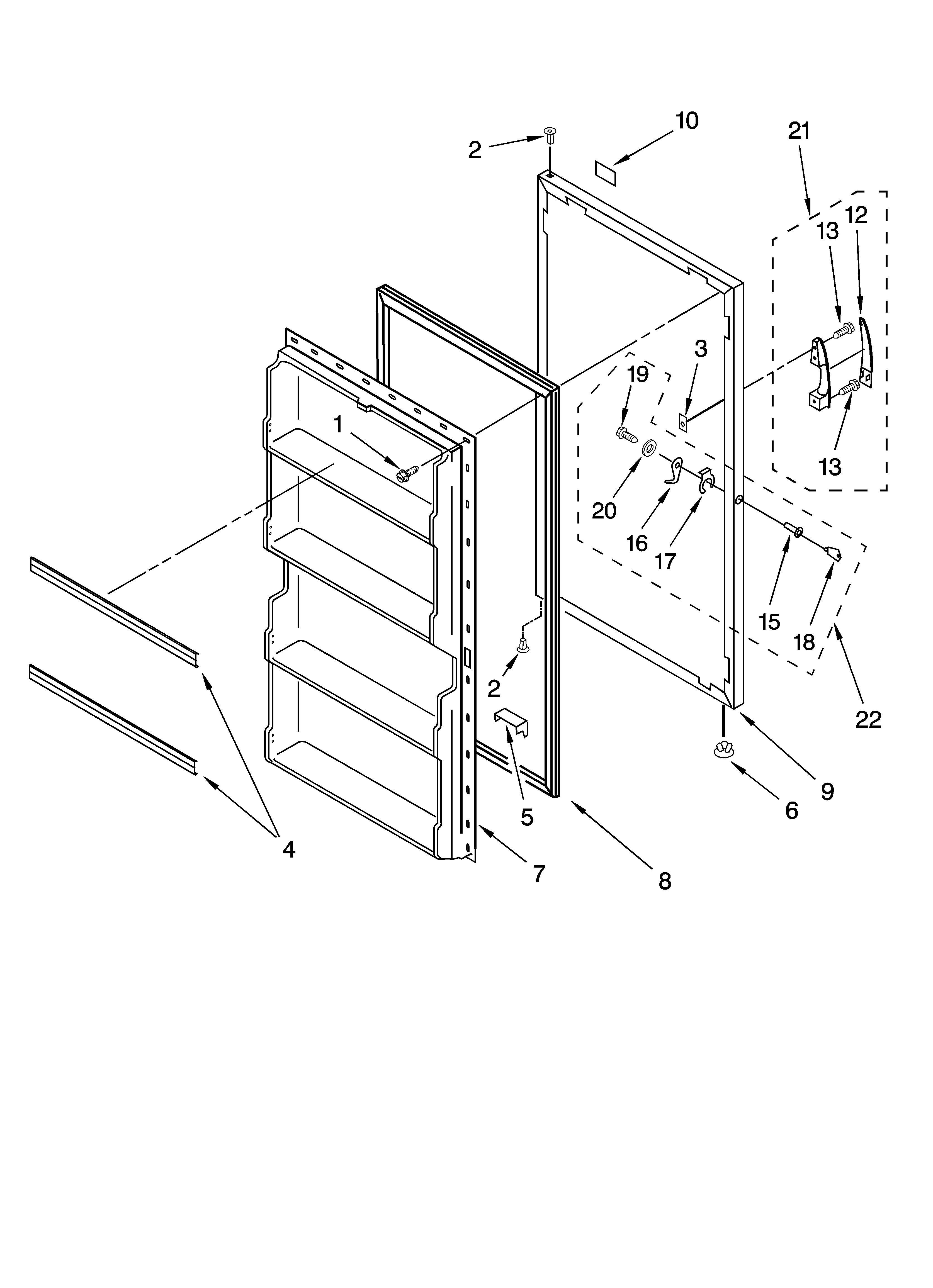

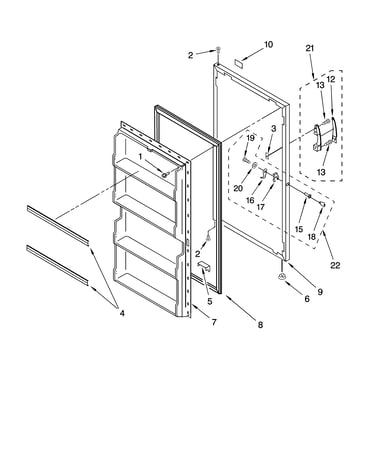

Door parts, optional parts (not included) diagram
Spray paint (white)
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#13
Door parts, optional parts (not included) diagram
Screw
Part #4390669
Replaced by #WP489491
?
Manufacturer substitution
This part replaces 4390669. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#NI
Door parts, optional parts (not included) diagram
Sears refrigerator permagum sealer
Part #212643
This item is not returnable
$45.08 |
12% OFF Phone Price : $51.08
In Stock
#10
Liner parts diagram
Light bulb
Part #4356311
Replaced by #W10873798
?
Manufacturer substitution
This part replaces 4356311. Substitute parts can look different from the original.
$8.66
In Stock
#8

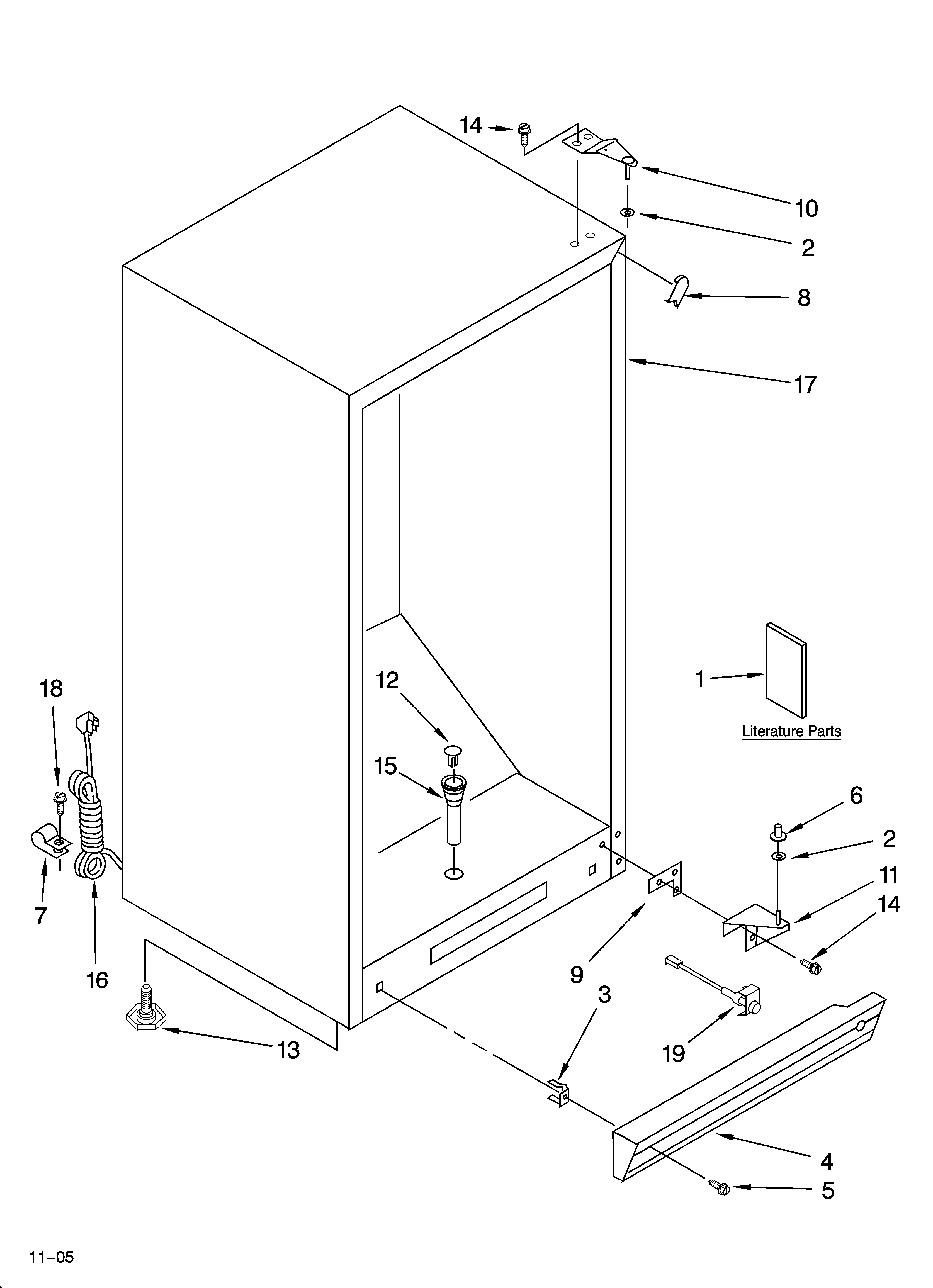

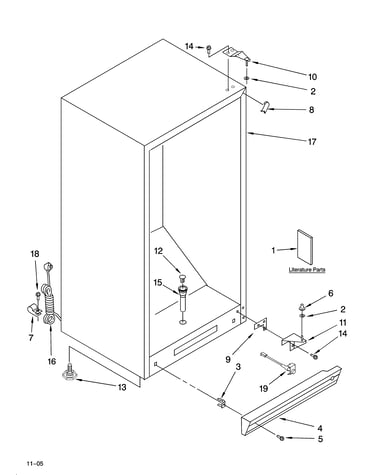

Cabinet parts diagram
Amana filler
Part #8210227
This item is not returnable
$5.80
In Stock
#3
Unit parts diagram
Maytag sleeve
Part #4356846
$11.39
In Stock
#22
Door parts, optional parts (not included) diagram
Door lock
Part #4357145
$23.57 |
20% OFF Phone Price : $29.57
In Stock
