Lawn-Boy 10301-4900001-4999999 walk-behind lawn mower Parts
Here are the diagrams and repair parts for Lawn-Boy 10301-4900001-4999999 walk-behind lawn mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

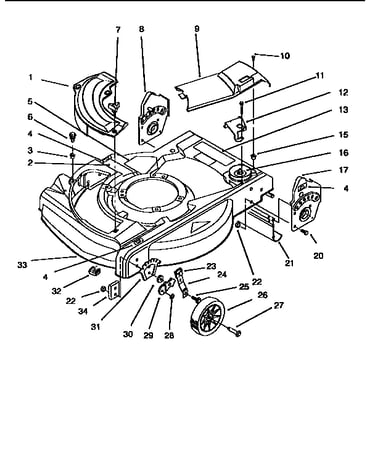

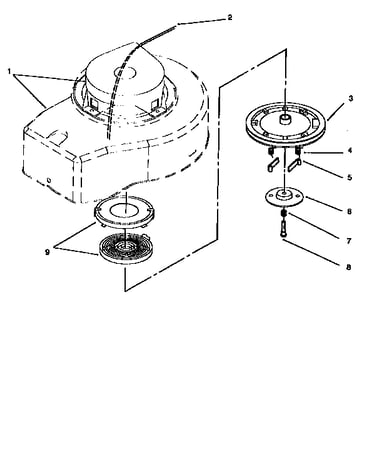

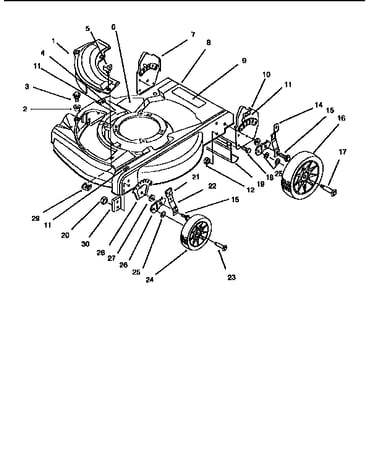

Browse Parts for10301-4900001-4999999 Walk-Behind Mowers

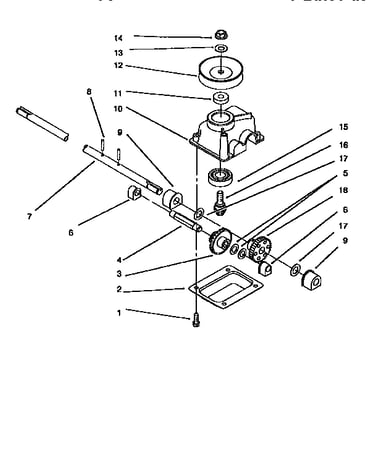

Gear case assembly diagram
Half Pulley
Part #614669Replaced by #614669
Manufacturer substitutionThis part replaces 614669. Substitute parts can look different from the original.In Stock$94.31
Qty

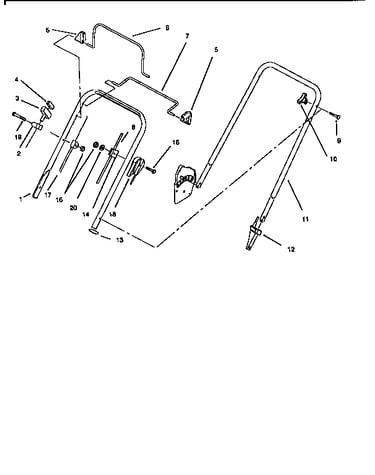

Handle assembly diagram
Pivot Stop
Part #92-5412Replaced by #107-0757

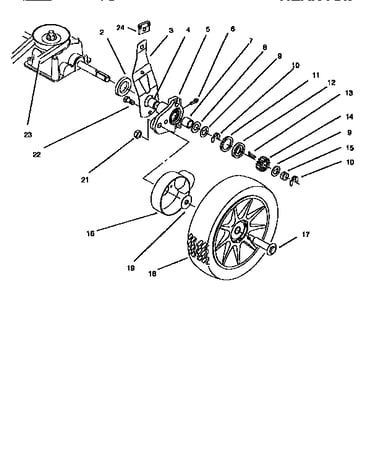

Manufacturer substitutionThis part replaces 92-5412. Substitute parts can look different from the original.In Stock$33.85QtyRear axle assembly diagram
Ht Adj Arm R
Part #92-7746Replaced by #92-7746
Manufacturer substitutionThis part replaces 92-7746. Substitute parts can look different from the original.In Stock$125.60QtyGrommet
Part #604604Replaced by #94-1610

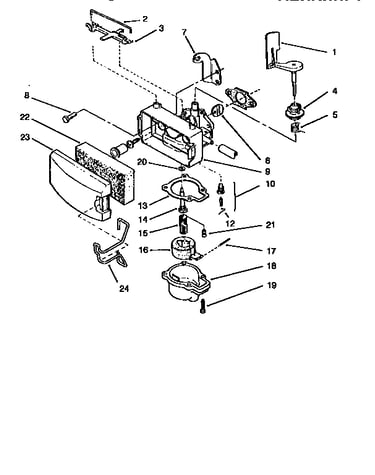

Manufacturer substitutionThis part replaces 604604. Substitute parts can look different from the original.In Stock$26.17QtyCarburetor assembly diagram
Filter
Part #611071Replaced by #611071
Manufacturer substitutionThis part replaces 611071. Substitute parts can look different from the original.In Stock$56.85QtyRear axle assembly diagram
Wheel Tire
Part #92-1042Replaced by #92-1042
Manufacturer substitutionThis part replaces 92-1042. Substitute parts can look different from the original.In Stock$77.417% OFF Phone Price : $83.41
QtyCage Nut - 1
Part #613765Replaced by #613765

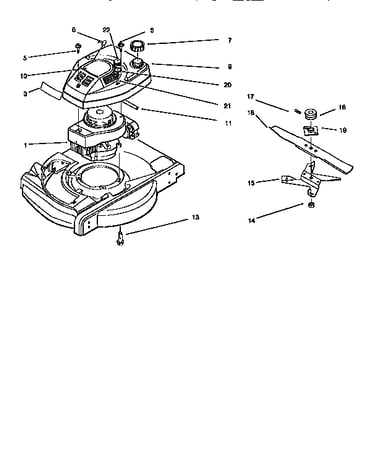

Manufacturer substitutionThis part replaces 613765. Substitute parts can look different from the original.This item is not returnableIn Stock$41.80QtyFuel tank& blade assembly diagram
Applique
Part #92-8615Replaced by #92-8615

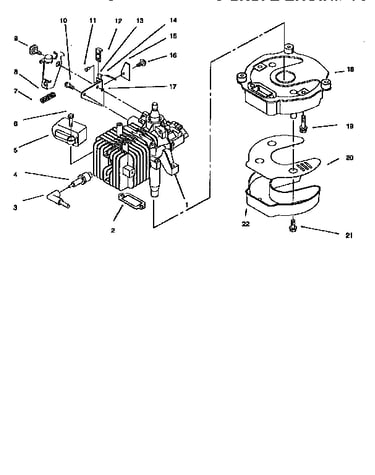

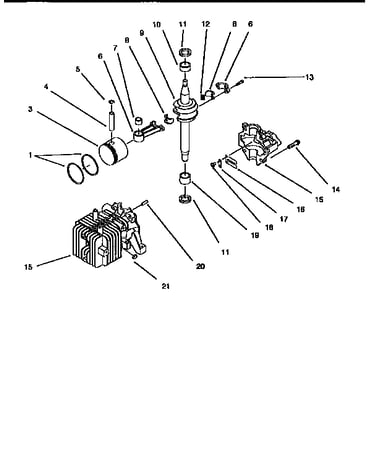

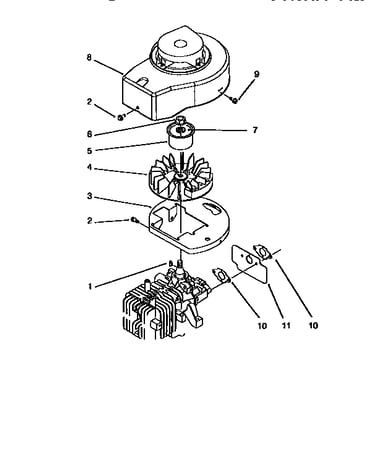

Manufacturer substitutionThis part replaces 92-8615. Substitute parts can look different from the original.In Stock$105.05Qty2 cycle engine assembly diagram
Screw
Part #12-5450Replaced by #12-5450
Manufacturer substitutionThis part replaces 12-5450. Substitute parts can look different from the original.In Stock$41.80QtyPlate Ht Aj
Part #92-4881Replaced by #92-4881-03
Manufacturer substitutionThis part replaces 92-4881. Substitute parts can look different from the original.In Stock$98.61Qty
