Electric Wall Oven

Model #ZET3058SH3SS GE electric oven

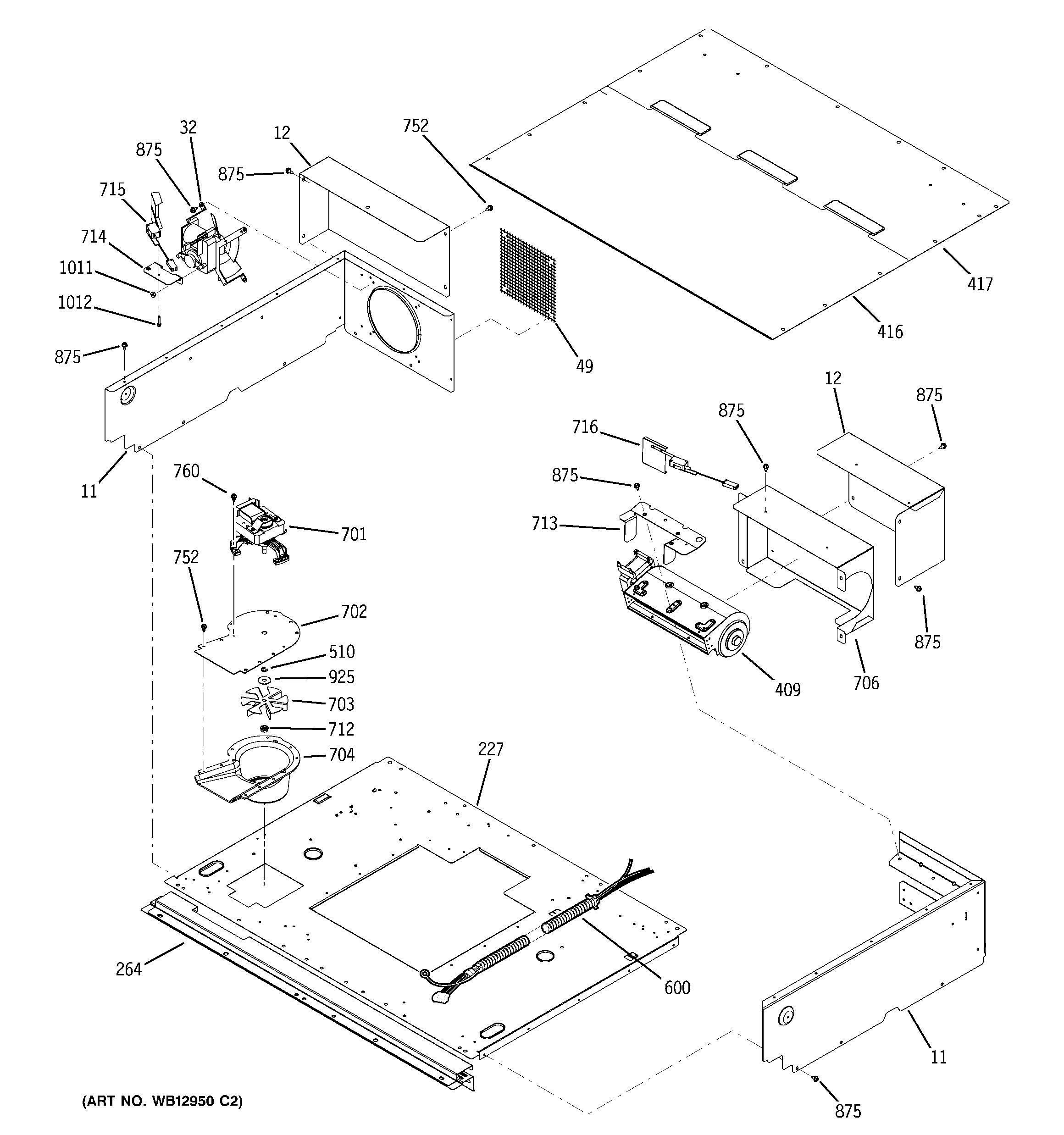

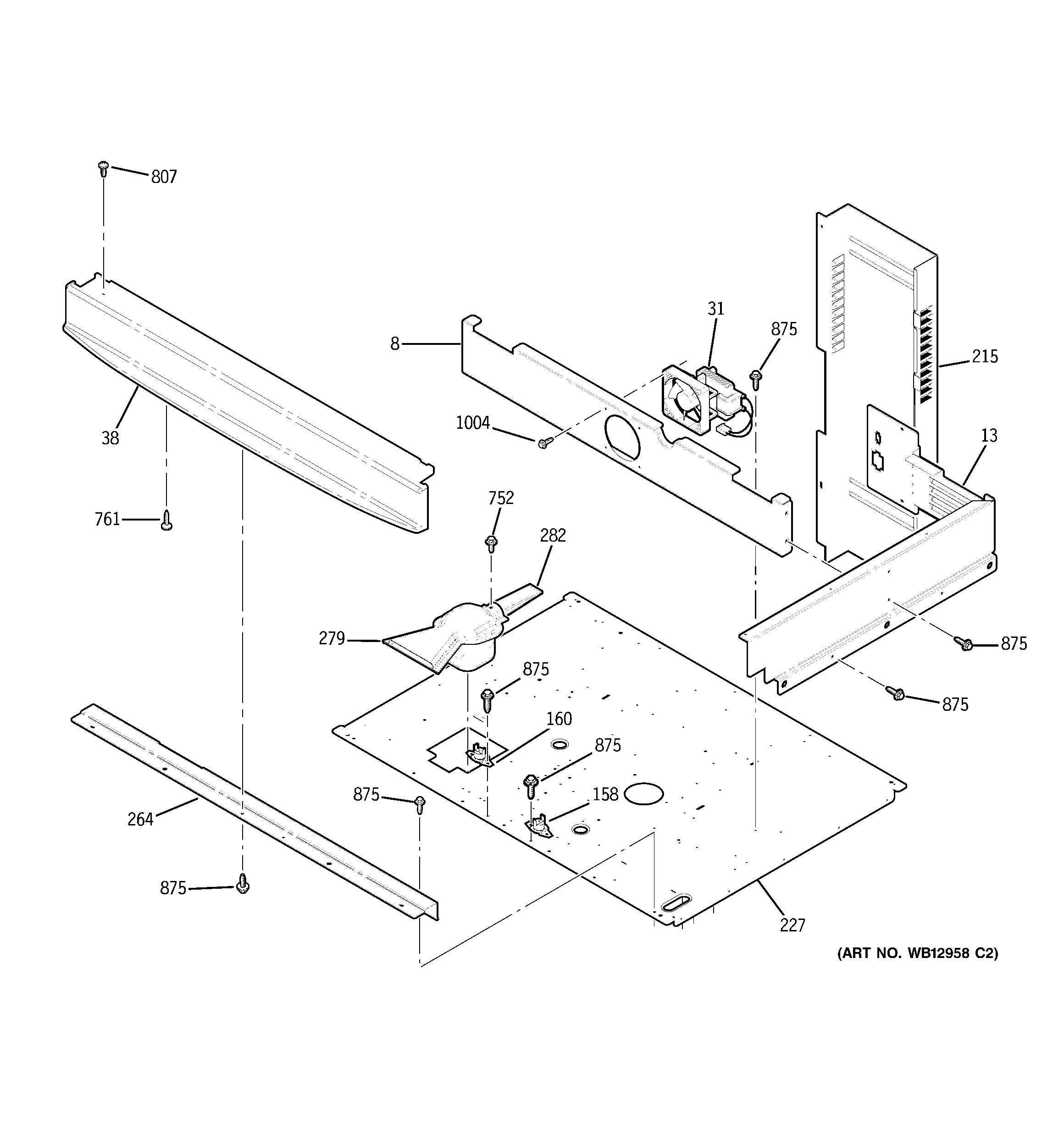

Here are the diagrams and repair parts for GE ZET3058SH3SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 187 parts

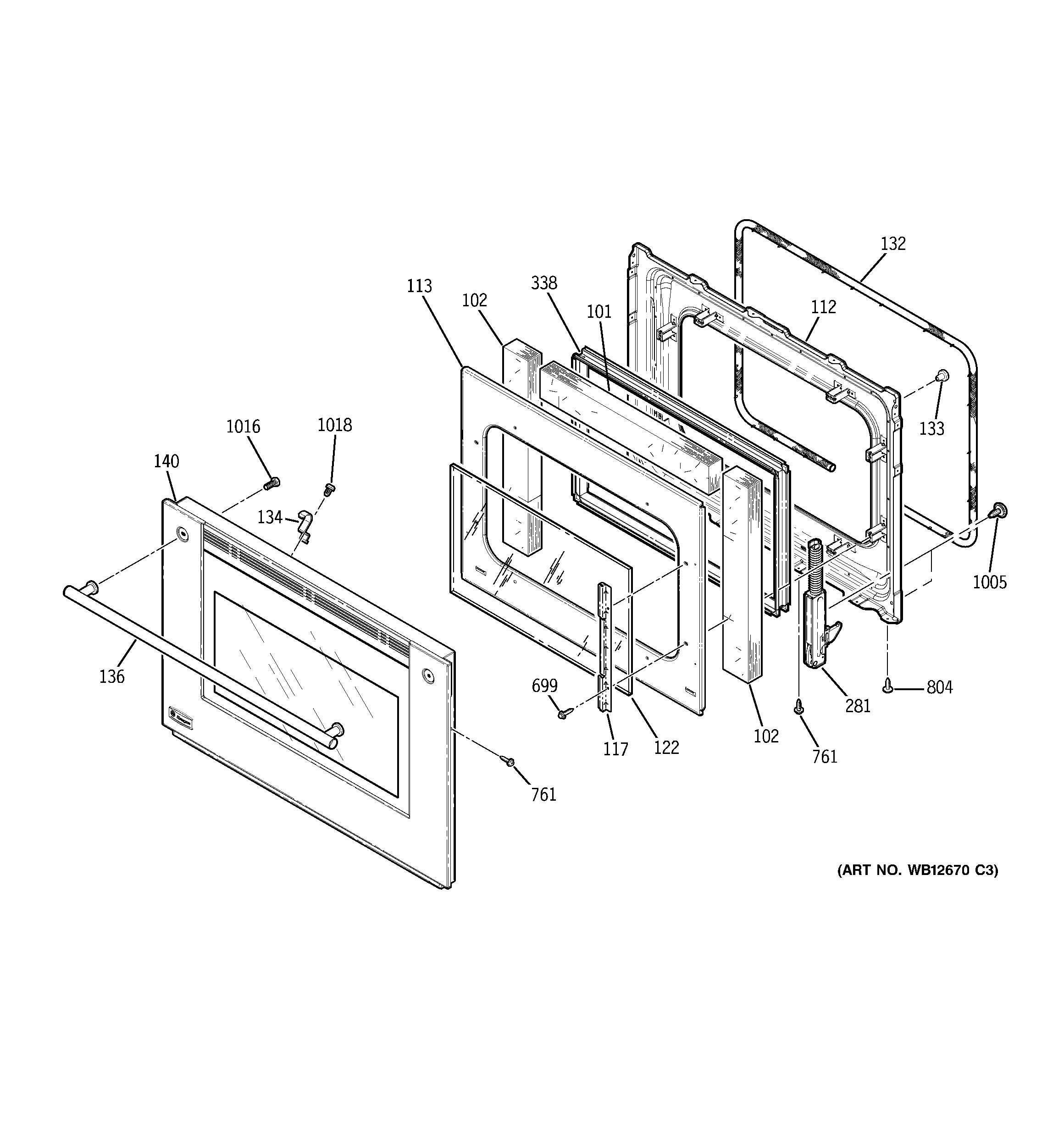

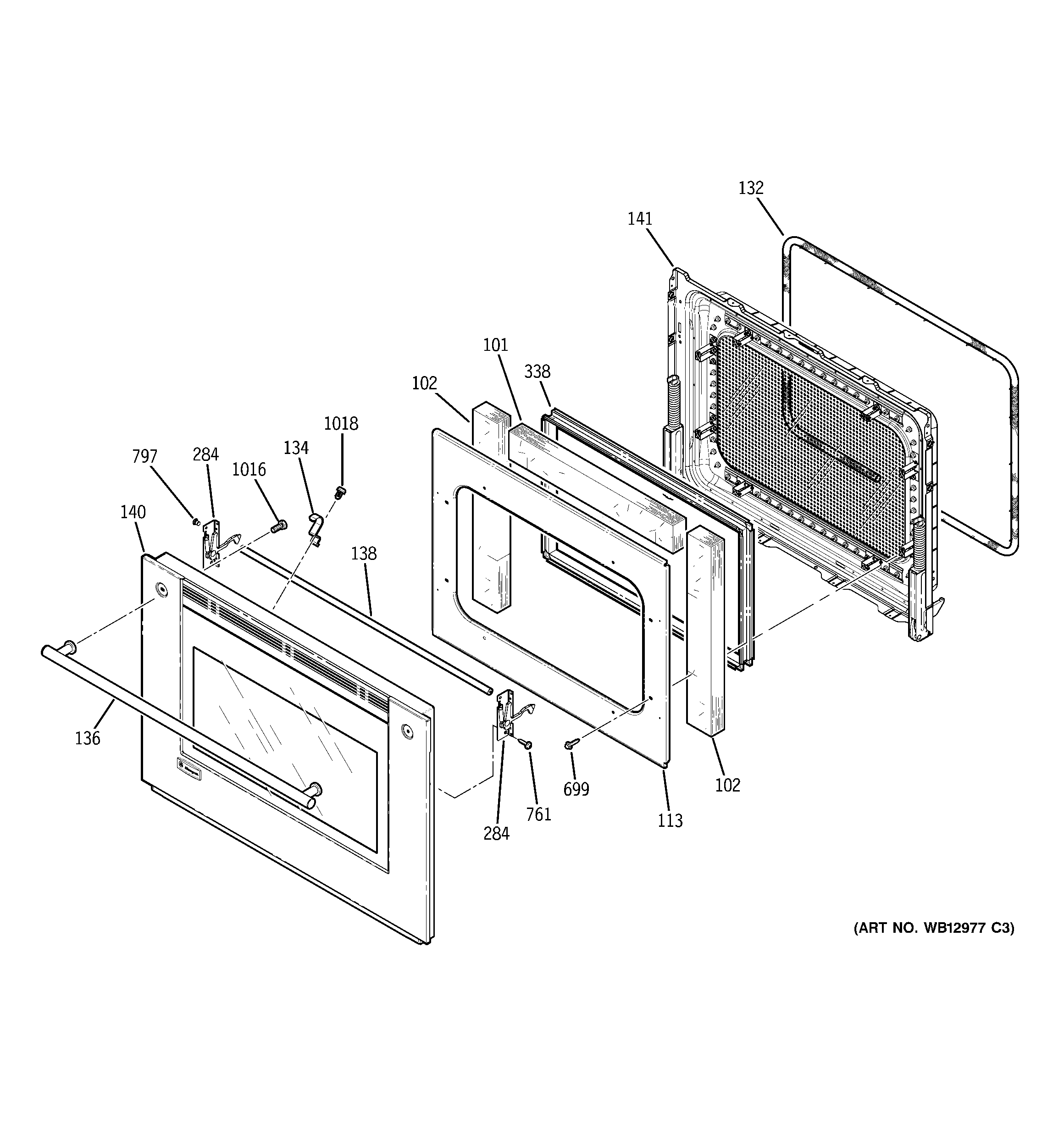

    Range Oven Door Middle Glass

    See All Related Diagrams

    Range oven door middle glass

    Part #WB56T10105
    BEST SELLER
    In Stock
    $64.84
    Range Oven Light Bulb

    See All Related Diagrams

    Light bulb

    Part #WB08T10007
    Replaced by #WB08T10023
    ?
    Manufacturer substitution
    This part replaces WB08T10007. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.99
    Range Screw

    See All Related Diagrams

    Screw

    Part #WB01K5150
    Replaced by #WB1M1
    ?
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.81
    Range Screw

    See All Related Diagrams

    Screw

    Part #WB01M0001
    Replaced by #WB1M1
    ?
    Manufacturer substitution
    This part replaces WB01M0001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.81

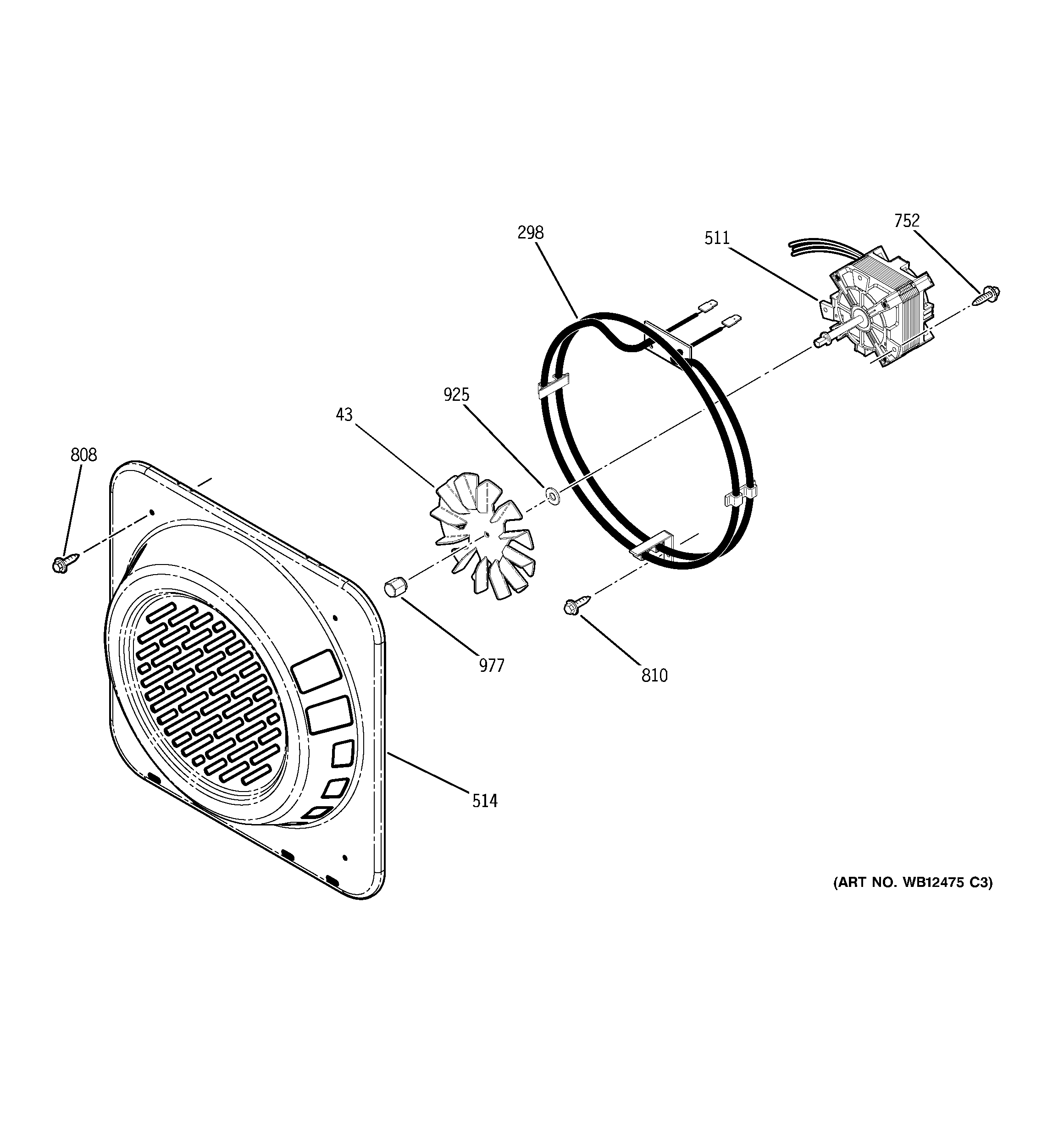

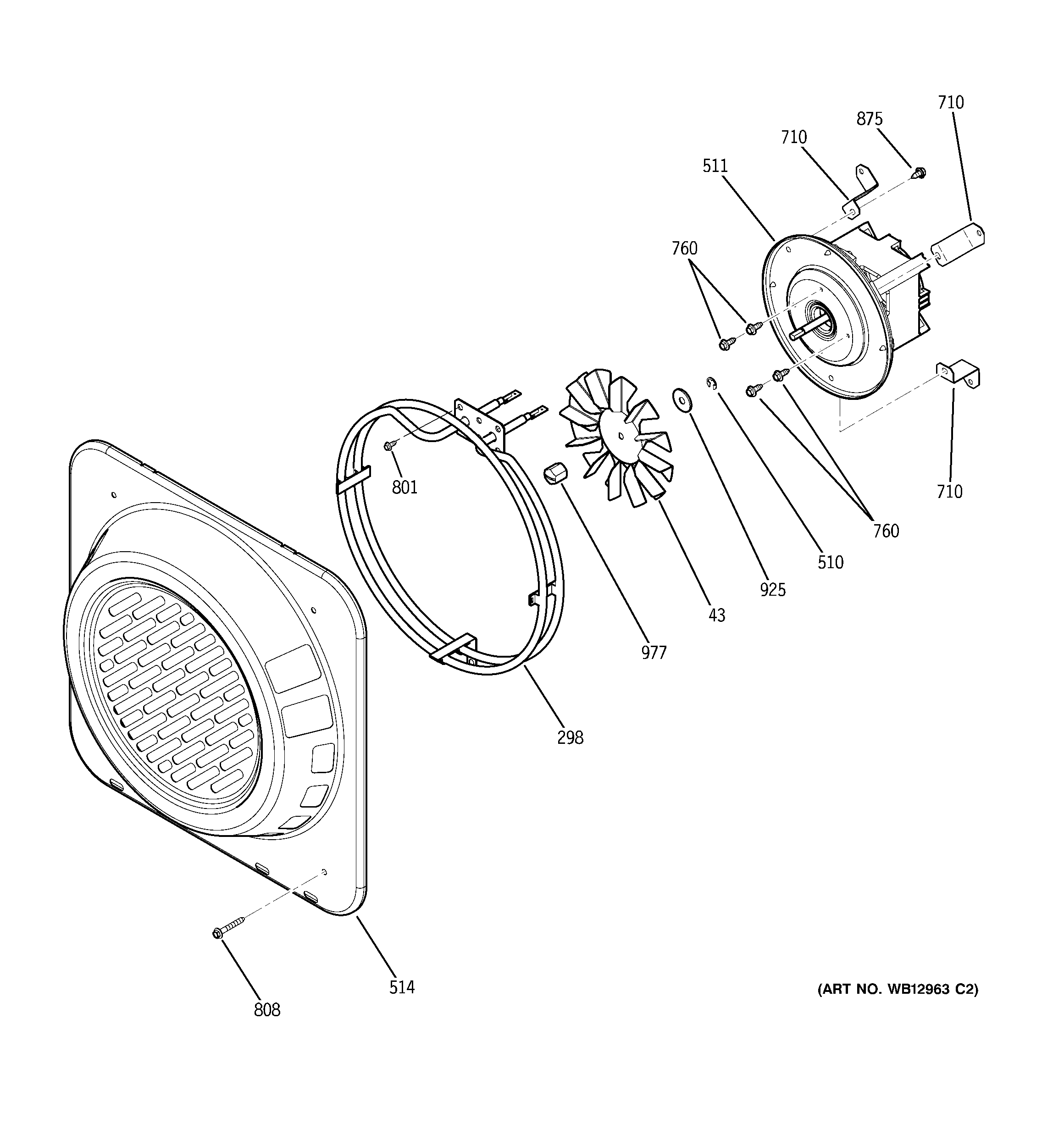

    Range Convection Fan Blade

    See All Related Diagrams

    Range convection fan blade

    Part #WB02T10289
    This item is not returnable
    In Stock
    $17.99

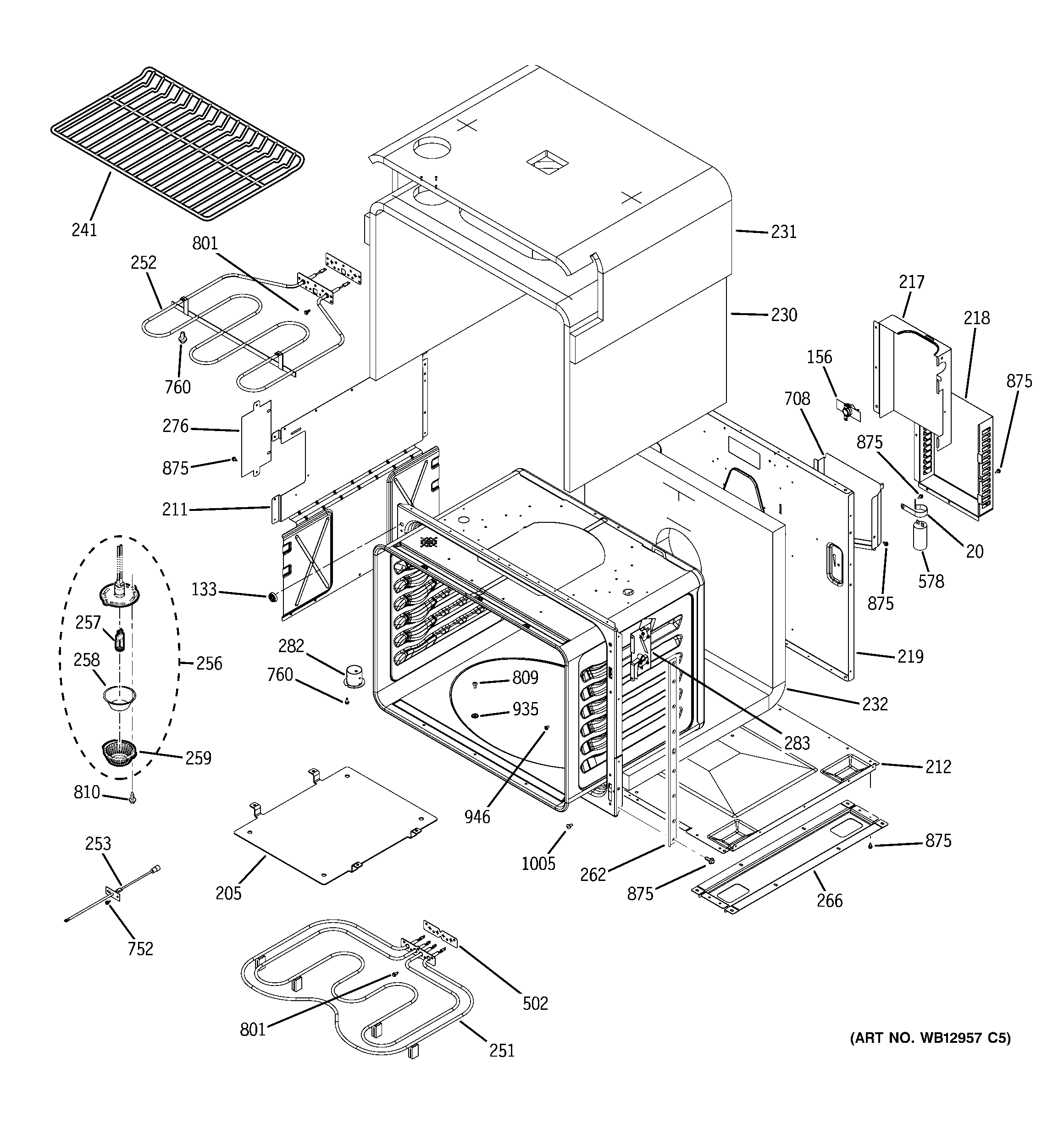

    Range Bake Element

    See All Related Diagrams

    Range bake element

    Part #WB44T10048
    In Stock
    $104.00
    Dryer Screw

    See All Related Diagrams

    Screw

    Part #WH02X0930
    Replaced by #WH2X930
    ?
    Manufacturer substitution
    This part replaces WH02X0930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.00
    Range Time and Temperature Display Board#402

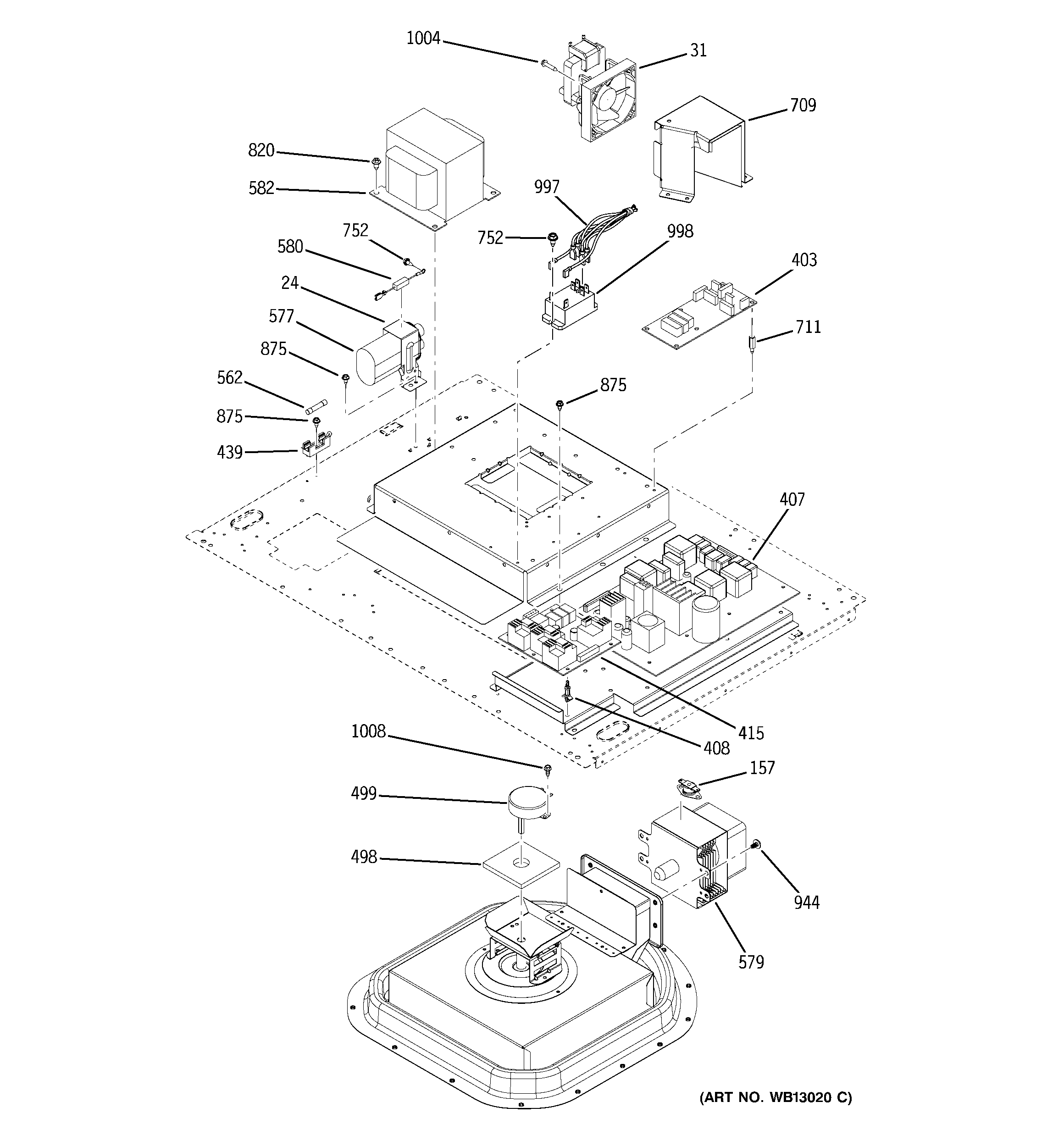

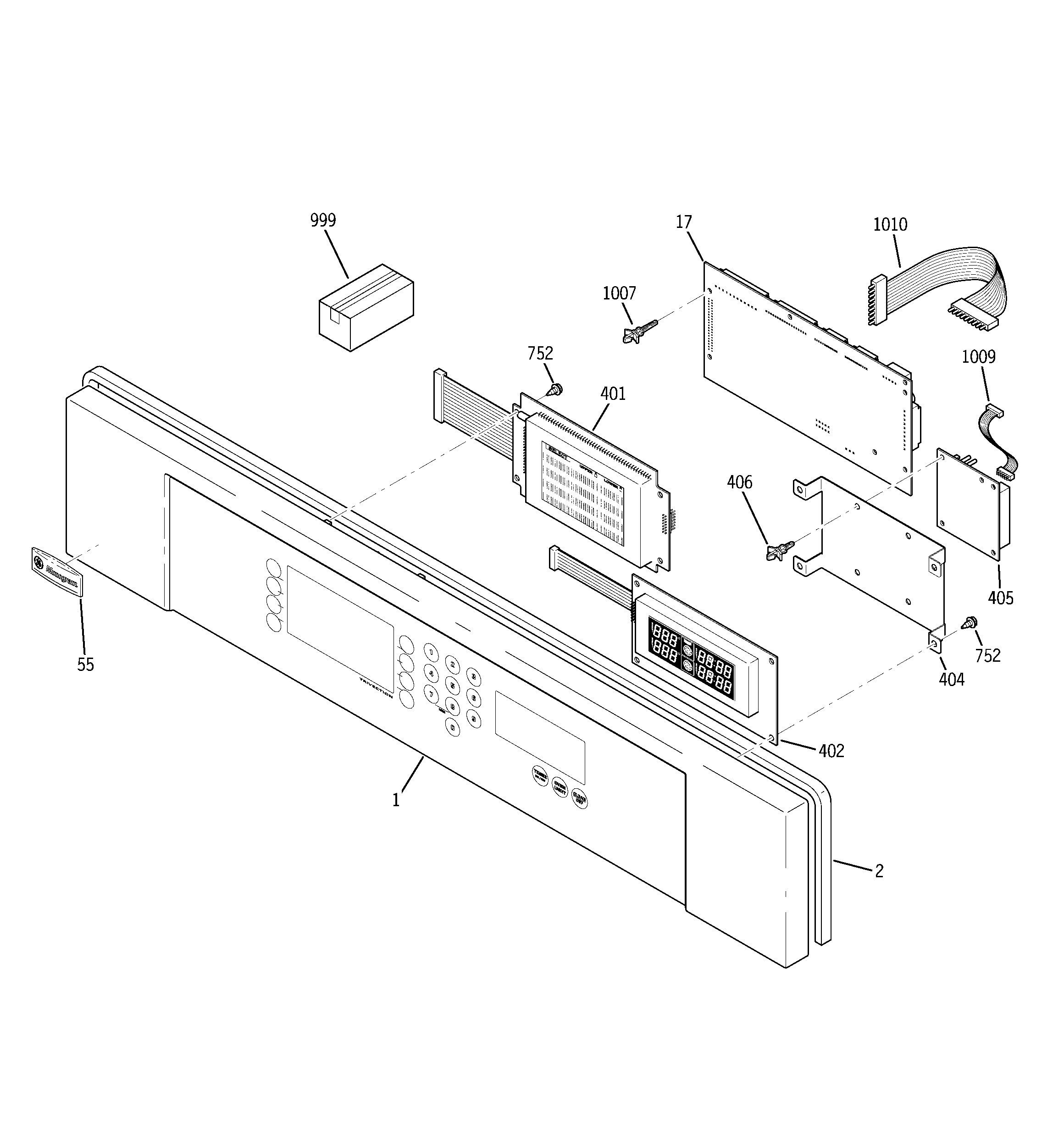

    Control panel Diagram

    In Stock
    $358.00
    Wall Oven Base Trim (Stainless)#268

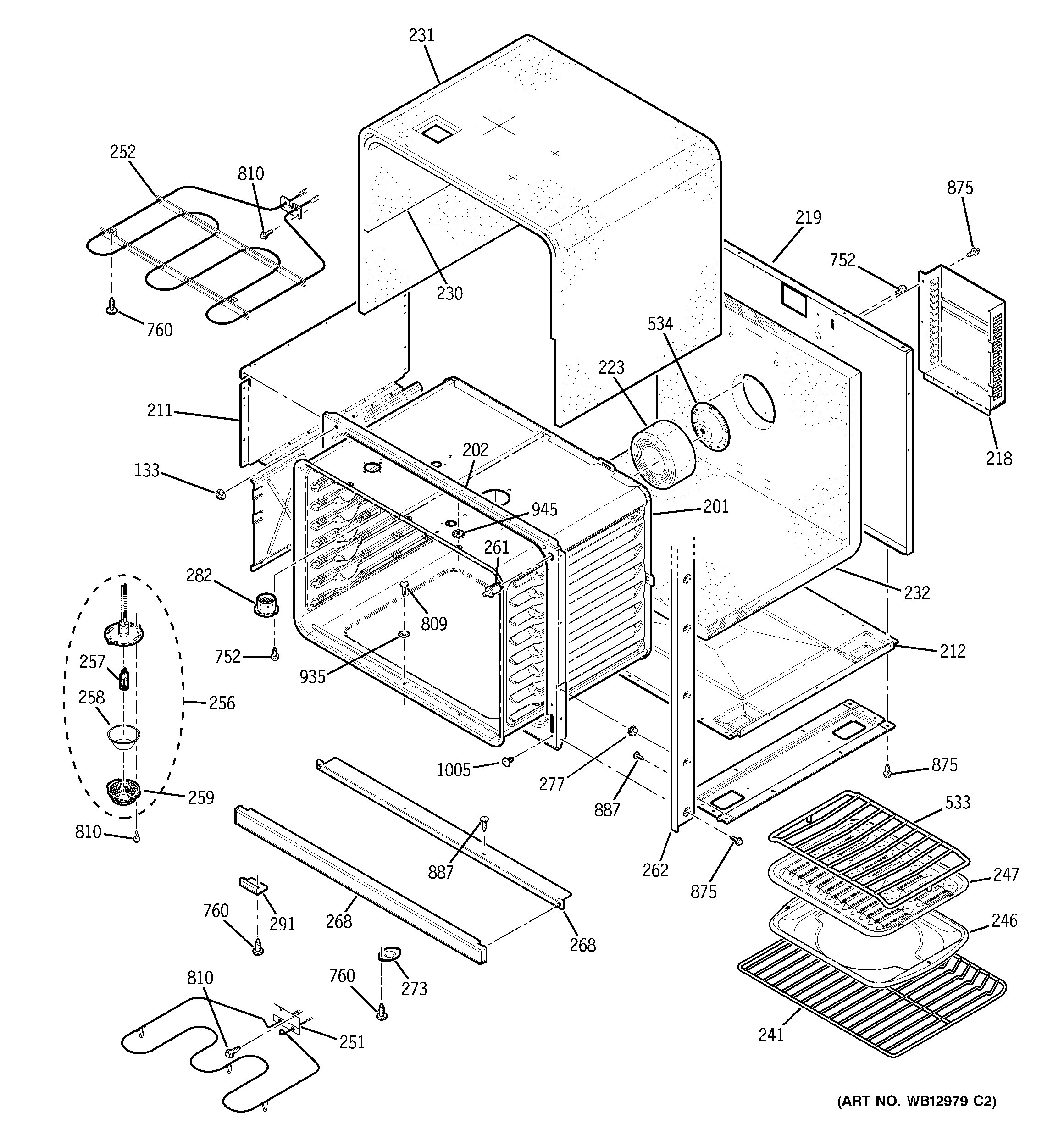

    Lower oven body Diagram

    In Stock
    $192.99
    Range Oven Control Board#17

    Control panel Diagram

    Range oven control board

    Part #WB27T10579
    In Stock
    $342.67
