Model # LCE30845 Official LG cooktop

Here are the diagrams and repair parts for Official LG LCE30845 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Microwave Screw 1TTL0402618
#W144

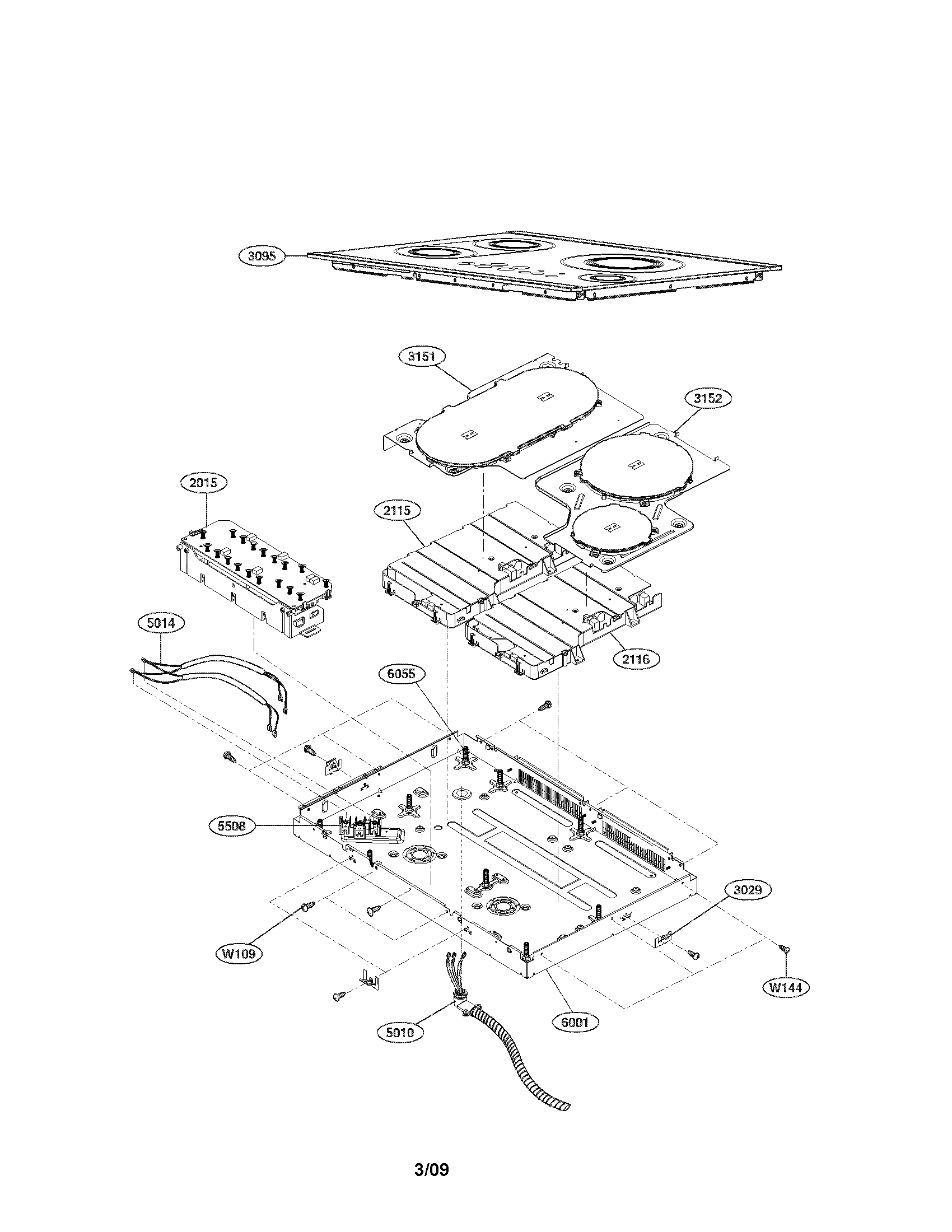

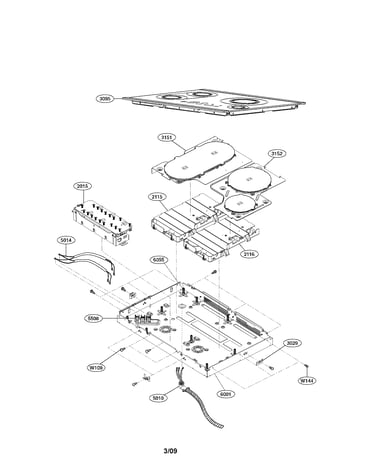

Cooktop parts diagram

Microwave screw

Part #1TTL0402618

This item is not returnable
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Microwave Screw 1TTL0402818
#W109

Cooktop parts diagram

Microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
13% OFF Phone Price : $7.06
In Stock
Bracket MAZ39601701
#3029

Cooktop parts diagram

Bracket

Part #MAZ39601701

$7.89
In Stock
Spring 4970W1N006A
#2005

Cooktop parts diagram

Spring

Part #4970W1N006A

$7.89
In Stock
Range Terminal Block EAG32629301
#5508

Cooktop parts diagram

Range terminal block

Part #EAG32629301

Replaced by #EAG32629305

?
Manufacturer substitution
This part replaces EAG32629301. Substitute parts can look different from the original.
$37.71
In Stock
Cooktop Electronic Control Board ACM34467002
#2115

Cooktop parts diagram

Cooktop electronic control board

Part #ACM34467002

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Induction Module ACM34467001
#2116

Cooktop parts diagram

Cooktop induction module

Part #ACM34467001

The manufacturer no longer makes this part, and there's no substitute part

Single Harness EAD39990101
#5014

Cooktop parts diagram

Single harness

Part #EAD39990101

The manufacturer no longer makes this part, and there's no substitute part

Burner Assembly ABF34513601
#3152

Cooktop parts diagram

Burner assembly

Part #ABF34513601

The manufacturer no longer makes this part, and there's no substitute part

Power Cord Assembly EAD39575701
#5010

Cooktop parts diagram

Power cord assembly

Part #EAD39575701

The manufacturer no longer makes this part, and there's no substitute part
