Model #11072066103 Kenmore dryer

Here are the diagrams and repair parts for Kenmore 11072066103 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

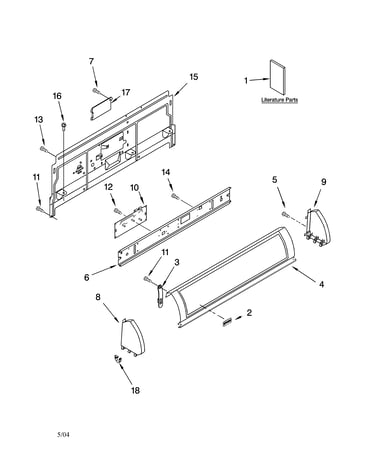

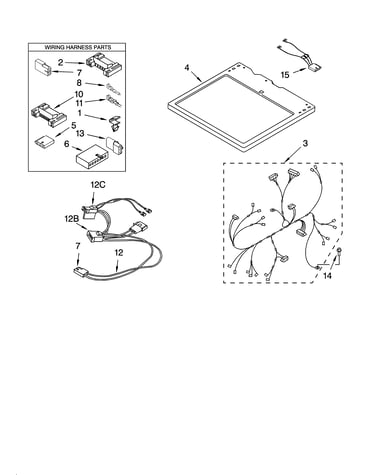

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 191 parts

    Dryer Thermal Fuse, 195-degree F#59

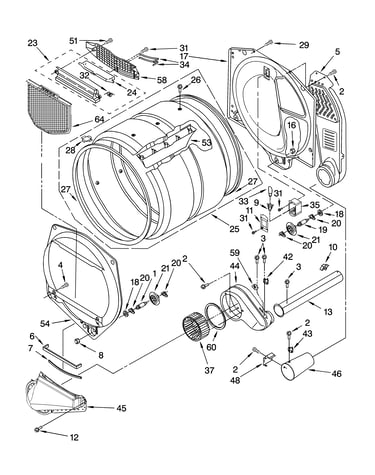

    Bulkhead parts and optional parts (not included) Diagram

    Dryer thermal fuse

    Part #3392519
    Replaced by #WP3392519
    ?
    Manufacturer substitution
    This part replaces 3392519. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $19.29
    Dryer Door Switch#41

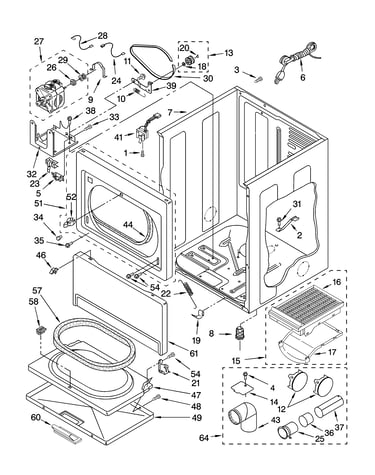

    Cabinet parts Diagram

    Dryer door switch

    Part #3406107
    Replaced by #WP3406107
    ?
    Manufacturer substitution
    This part replaces 3406107. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.89
    Dryer Door Latch Kit#52

    Cabinet parts Diagram

    Strike

    Part #696144
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 696144. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Door Latch Kit#58

    Cabinet parts Diagram

    Catch

    Part #690081
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 690081. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Lint Screen#64

    Bulkhead parts and optional parts (not included) Diagram

    Screen

    Part #8066170
    Replaced by #W10120998
    ?
    Manufacturer substitution
    This part replaces 8066170. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $55.79
    Dryer Repair Kit#NI

    Bulkhead parts and optional parts (not included) Diagram

    Dryer repair kit

    Part #80047
    Replaced by #4392067
    ?
    Manufacturer substitution
    This part replaces 80047. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $51.69
    Dryer Idler Pulley#39

    Cabinet parts Diagram

    Bracket

    Part #3388674
    Replaced by #W10837240
    ?
    Manufacturer substitution
    This part replaces 3388674. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $31.99
    Dryer Drum Support Roller#21

    Bulkhead parts and optional parts (not included) Diagram

    Support

    Part #8536973
    Replaced by #WPW10314173
    ?
    Manufacturer substitution
    This part replaces 8536973. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $23.99
    Dryer Valve Coil Kit#14

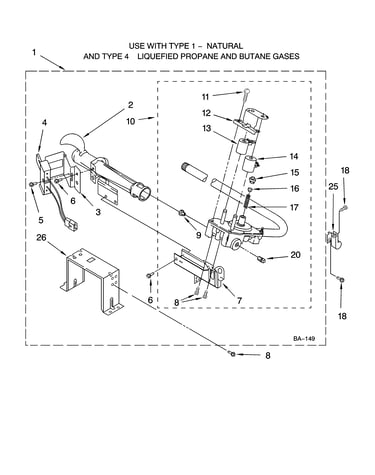

    8318276 burner assembly Diagram

    Dryer gas valve coil kit

    Part #694539
    Replaced by #279834
    ?
    Manufacturer substitution
    This part replaces 694539. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.39
    Dryer Valve Coil Kit#13

    8318276 burner assembly Diagram

    Dryer valve coil kit

    Part #694540
    Replaced by #279834
    ?
    Manufacturer substitution
    This part replaces 694540. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $27.39

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
