GE TPJ24BIBEWW refrigerator - b series

GE TPJ24BIBEWW refrigerator - b series Parts

Here are the diagrams and repair parts for GE TPJ24BIBEWW refrigerator - b series, as well as links to manuals and error code tables, if available.

By Schematic
By Part

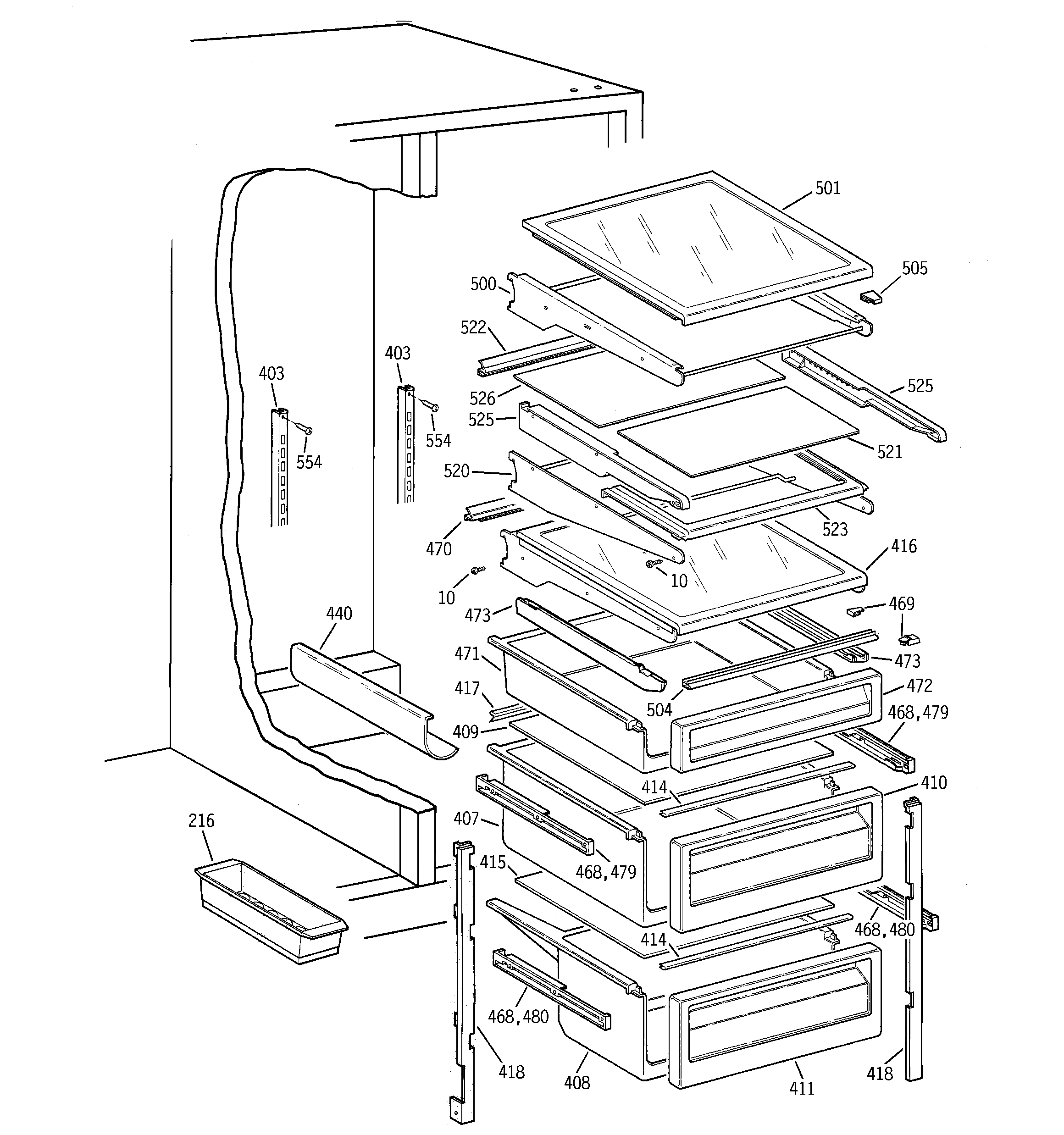

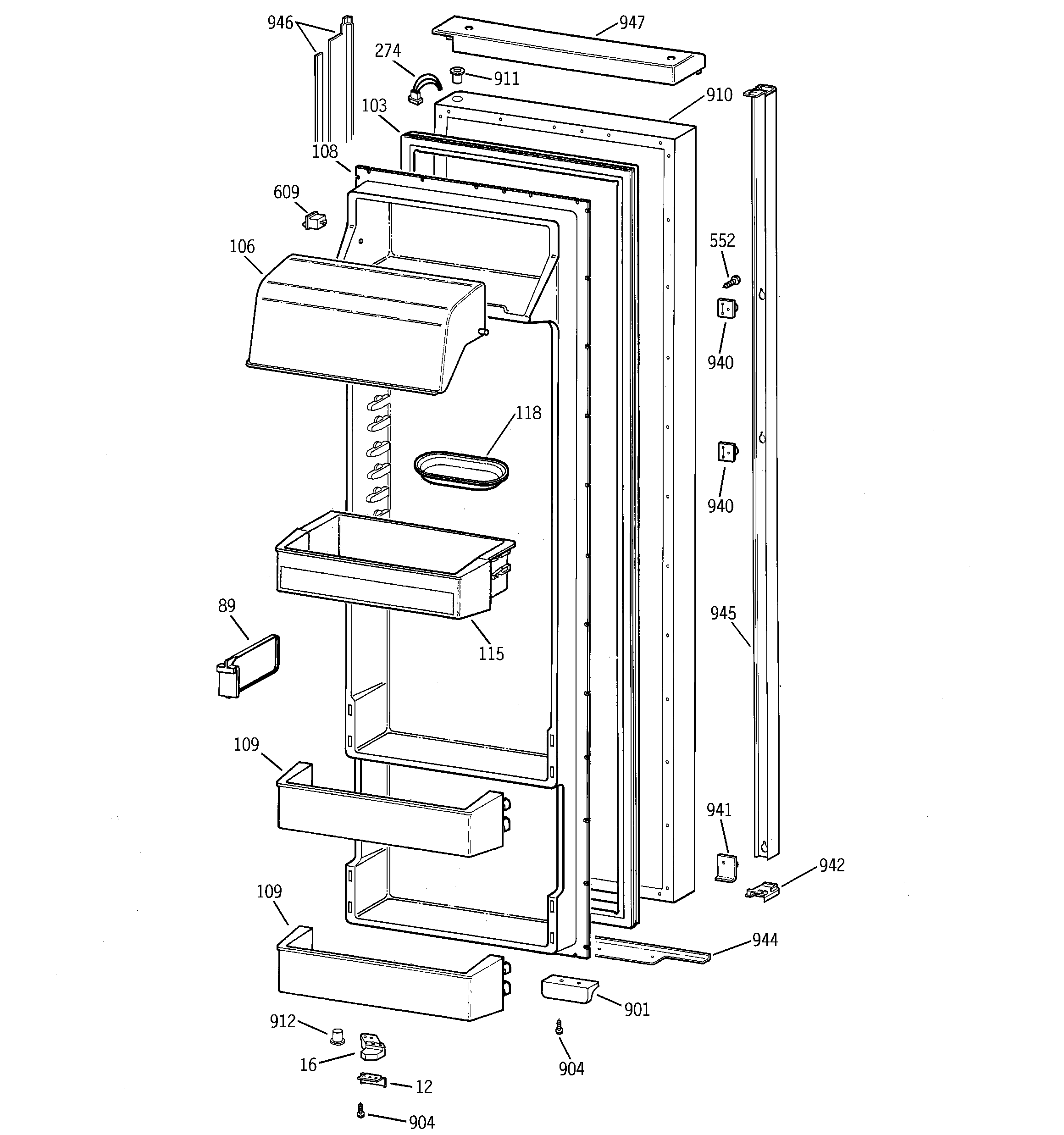

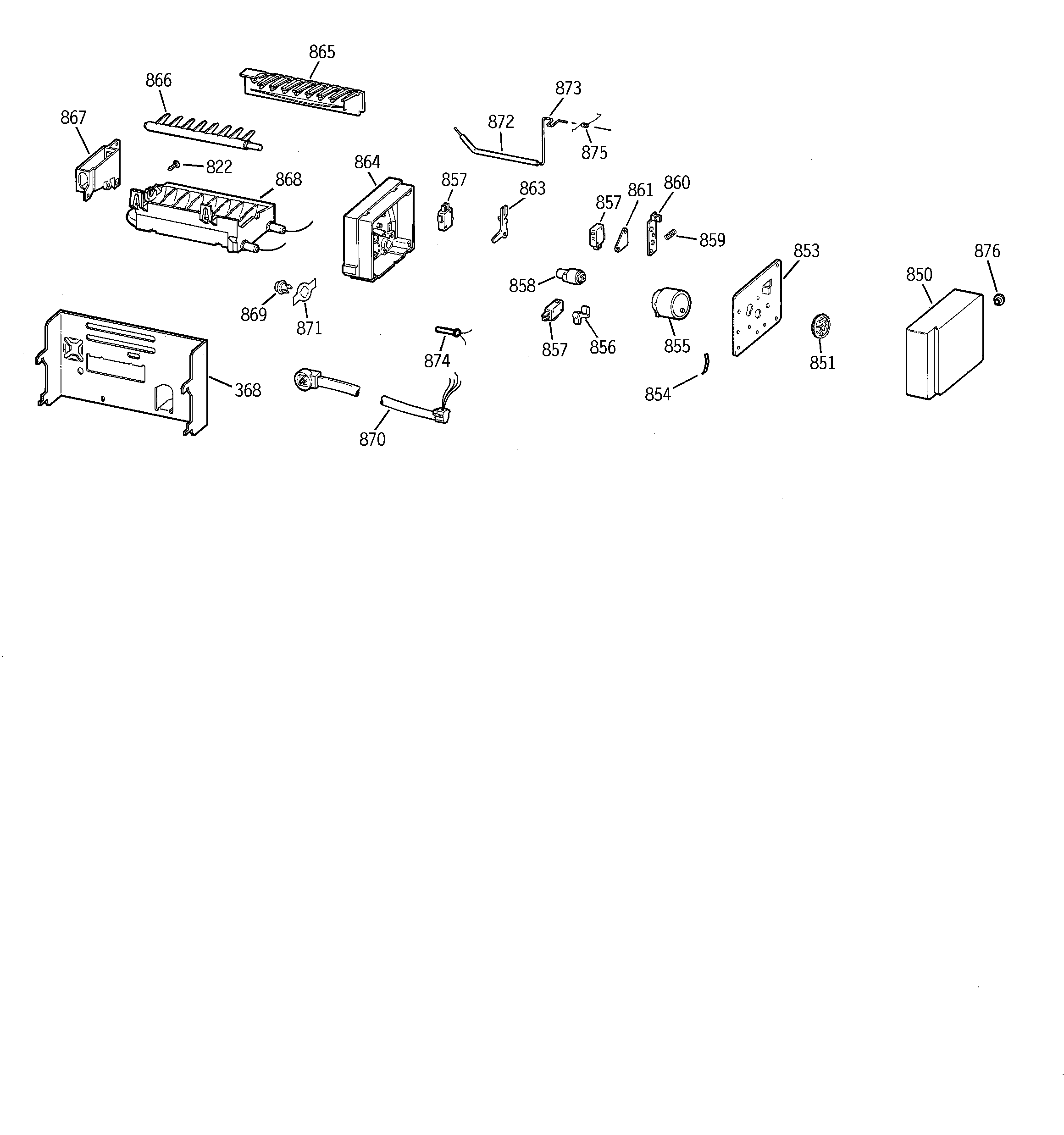

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for TPJ24BIBEWW Refrigerators

  • Refrigerator Defrost Thermostat for GE TPJ24BIBEWW - Part WR50X140

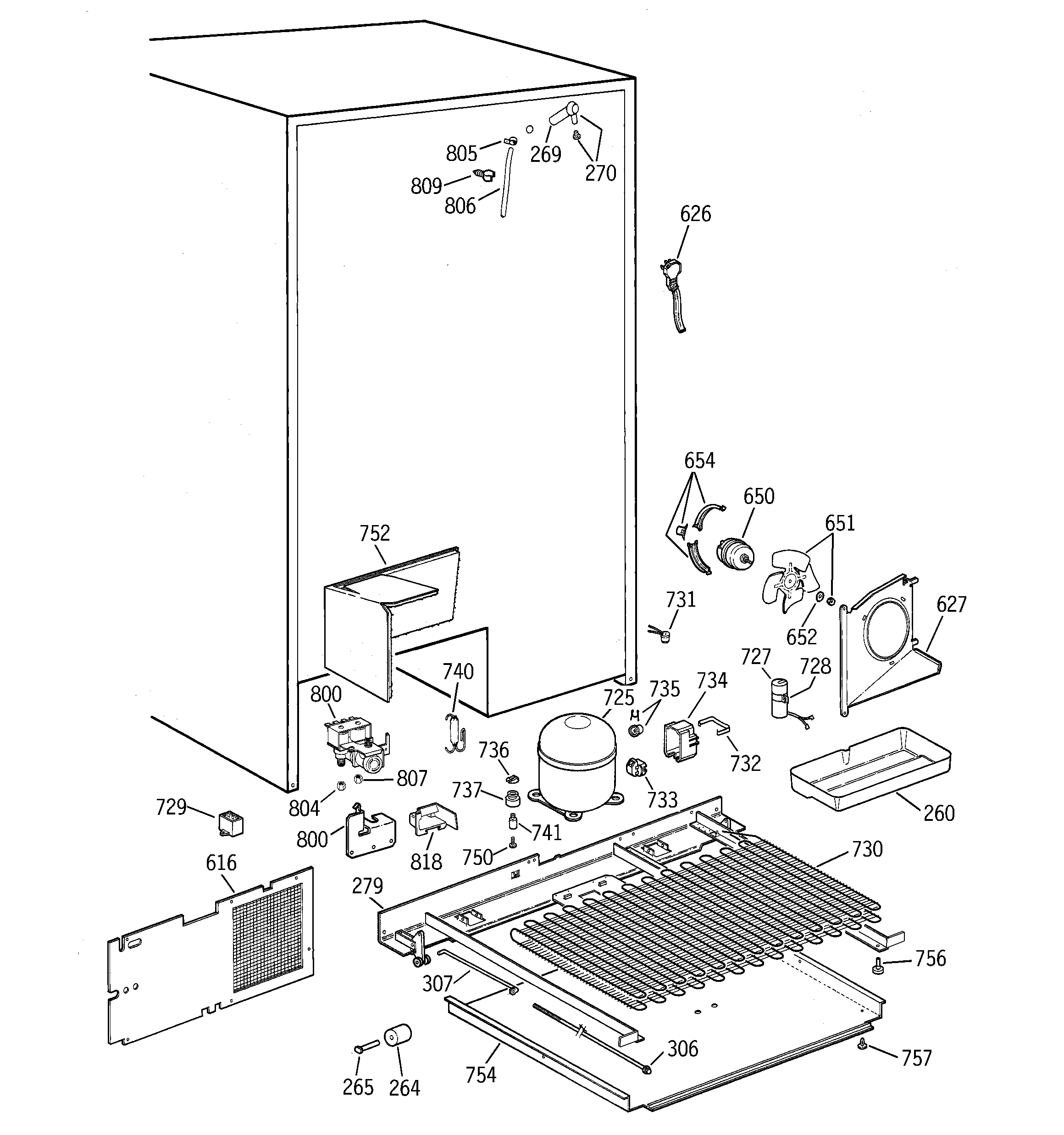

    Unit parts diagram

    Refrigerator Defrost Thermostat

    Part #WR50X0140

    Replaced by #WR50X140

    Info Icon
    Manufacturer substitution
    This part replaces WR50X0140. Substitute parts can look different from the original.
    In Stock
    $103.50
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for GE TPJ24BIBEWW - Part WR50X122

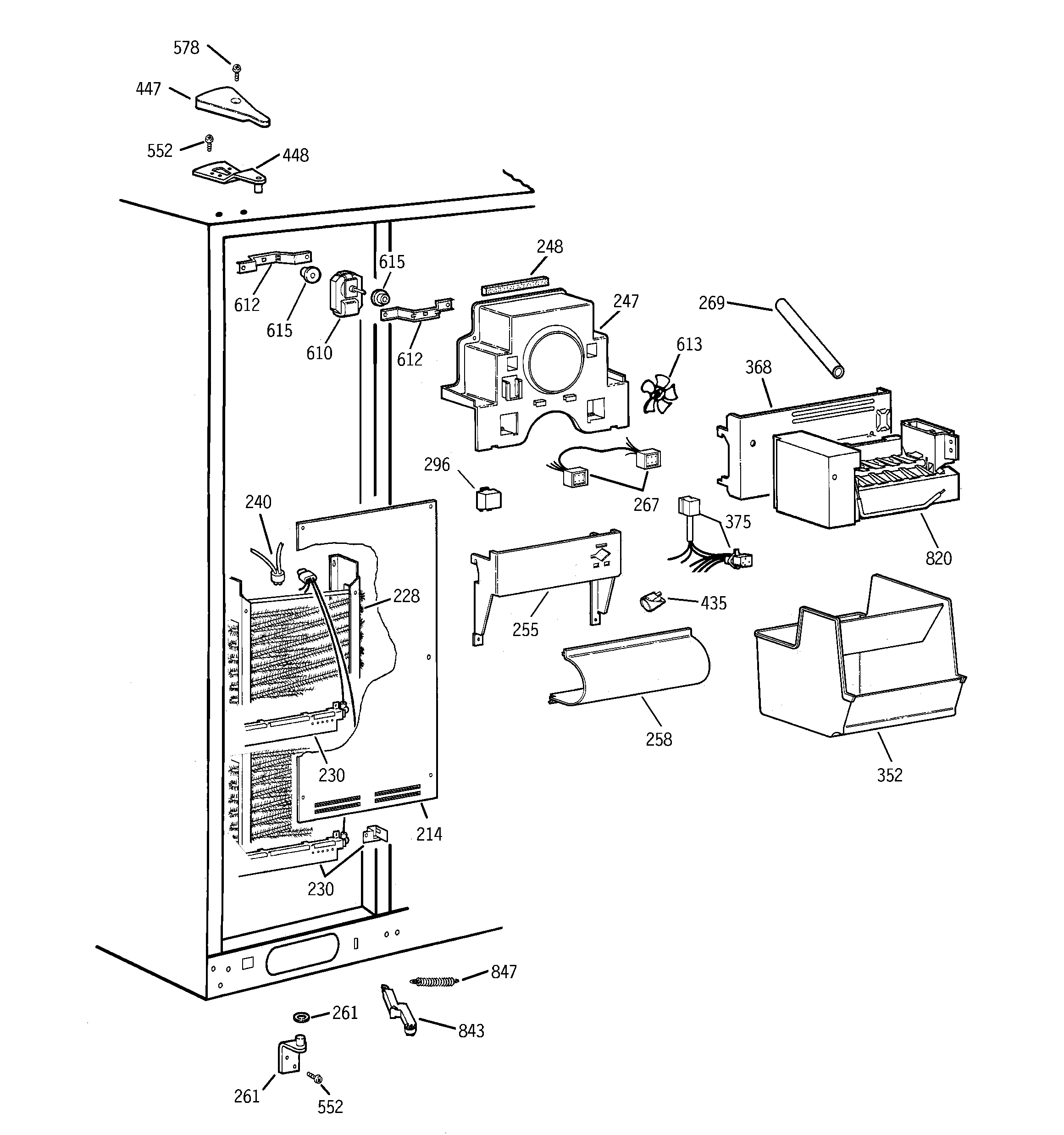

    Freezer section diagram

    Thermostat

    Part #WR50X10014

    Replaced by #WR50X122

    Info Icon
    Manufacturer substitution
    This part replaces WR50X10014. Substitute parts can look different from the original.
    In Stock
    $55.37
    10% OFF Phone Price : $61.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for GE TPJ24BIBEWW - Part WR60X114

    Freezer section diagram

    Ring/fan Bld

    Part #WR02X3198

    Replaced by #WR60X114

    Info Icon
    Manufacturer substitution
    This part replaces WR02X3198. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.44
    20% OFF Phone Price : $29.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Clip for GE TPJ24BIBEWW - Part WR1X5722

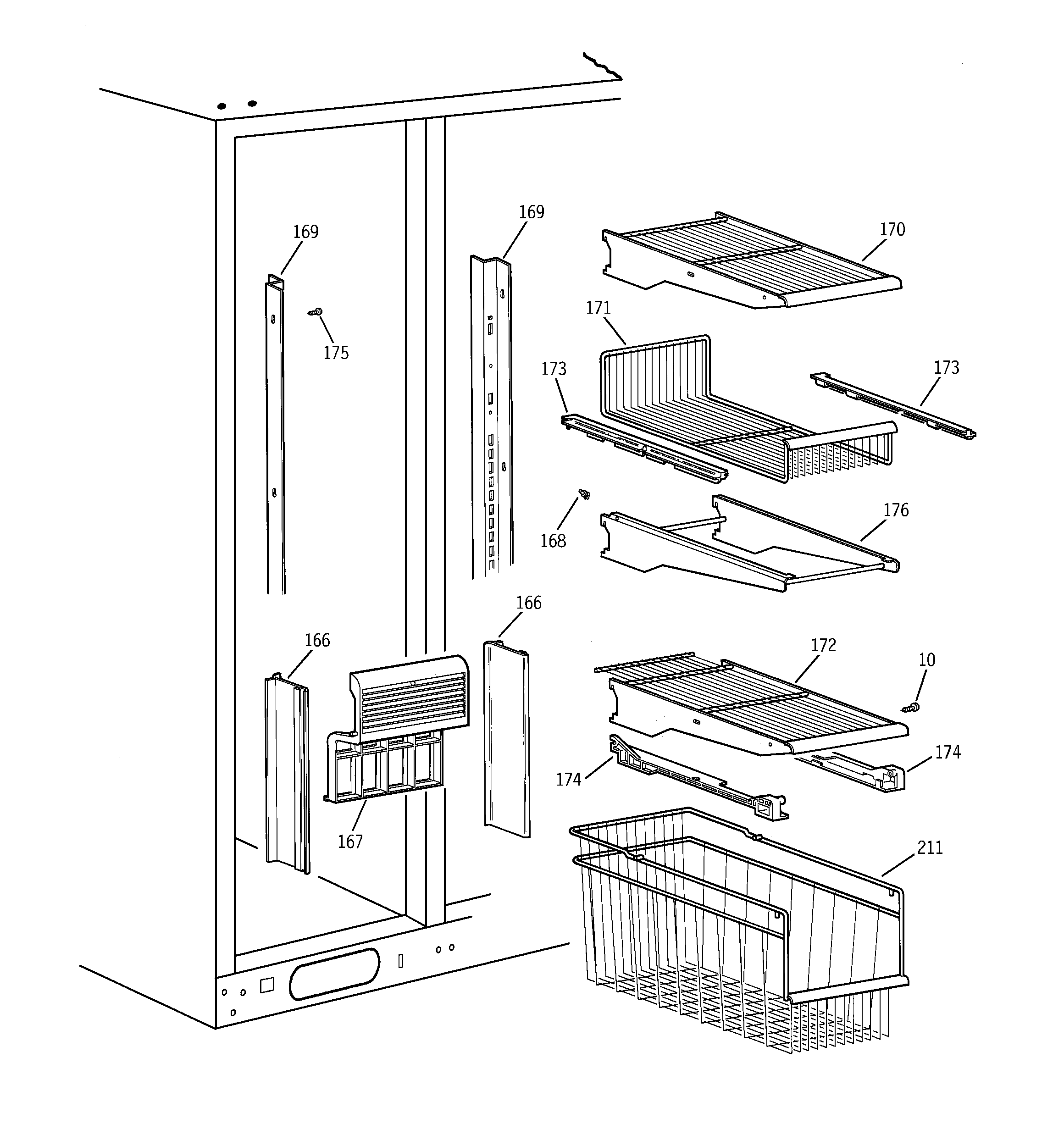

    Freezer shelves diagram

    Stop Basket

    Part #WR01X2029

    Replaced by #WR1X5722

    Info Icon
    Manufacturer substitution
    This part replaces WR01X2029. Substitute parts can look different from the original.
    In Stock
    $49.48
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Kit for GE TPJ24BIBEWW - Part WR57X10051

    Unit parts diagram

    Refrigerator Water Valve

    Part #WR57X0111

    Replaced by #WR57X10051

    Info Icon
    Manufacturer substitution
    This part replaces WR57X0111. Substitute parts can look different from the original.
    In Stock
    $81.73
    7% OFF Phone Price : $87.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Roller for GE TPJ24BIBEWW - Part WR02X10480

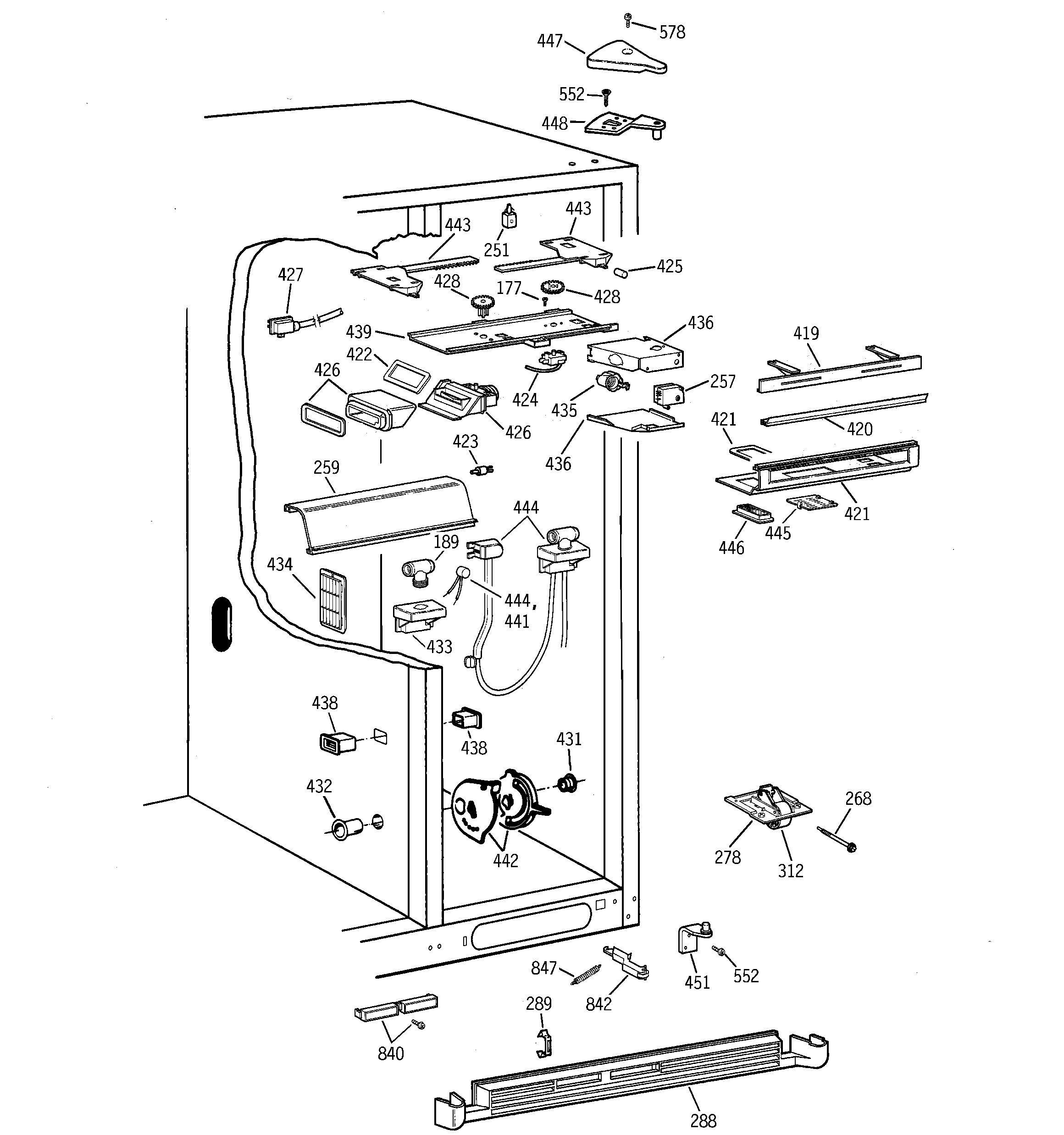

    Fresh food section diagram

    Mobility Wheel

    Part #WR02X10137

    Replaced by #WR02X10480

    Info Icon
    Manufacturer substitution
    This part replaces WR02X10137. Substitute parts can look different from the original.
    In Stock
    $35.74
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clip for GE TPJ24BIBEWW - Part WR1X5278

    Unit parts diagram

    Str Relief

    Part #WR02X3736

    Replaced by #WR1X5278

    Info Icon
    Manufacturer substitution
    This part replaces WR02X3736. Substitute parts can look different from the original.
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Blade for GE TPJ24BIBEWW - Part WR60X114

    Freezer section diagram

    Refrigerator Fan Blade

    Part #WR60X0247

    Replaced by #WR60X114

    Info Icon
    Manufacturer substitution
    This part replaces WR60X0247. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $23.44
    20% OFF Phone Price : $29.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for GE TPJ24BIBEWW - Part WZ5X246

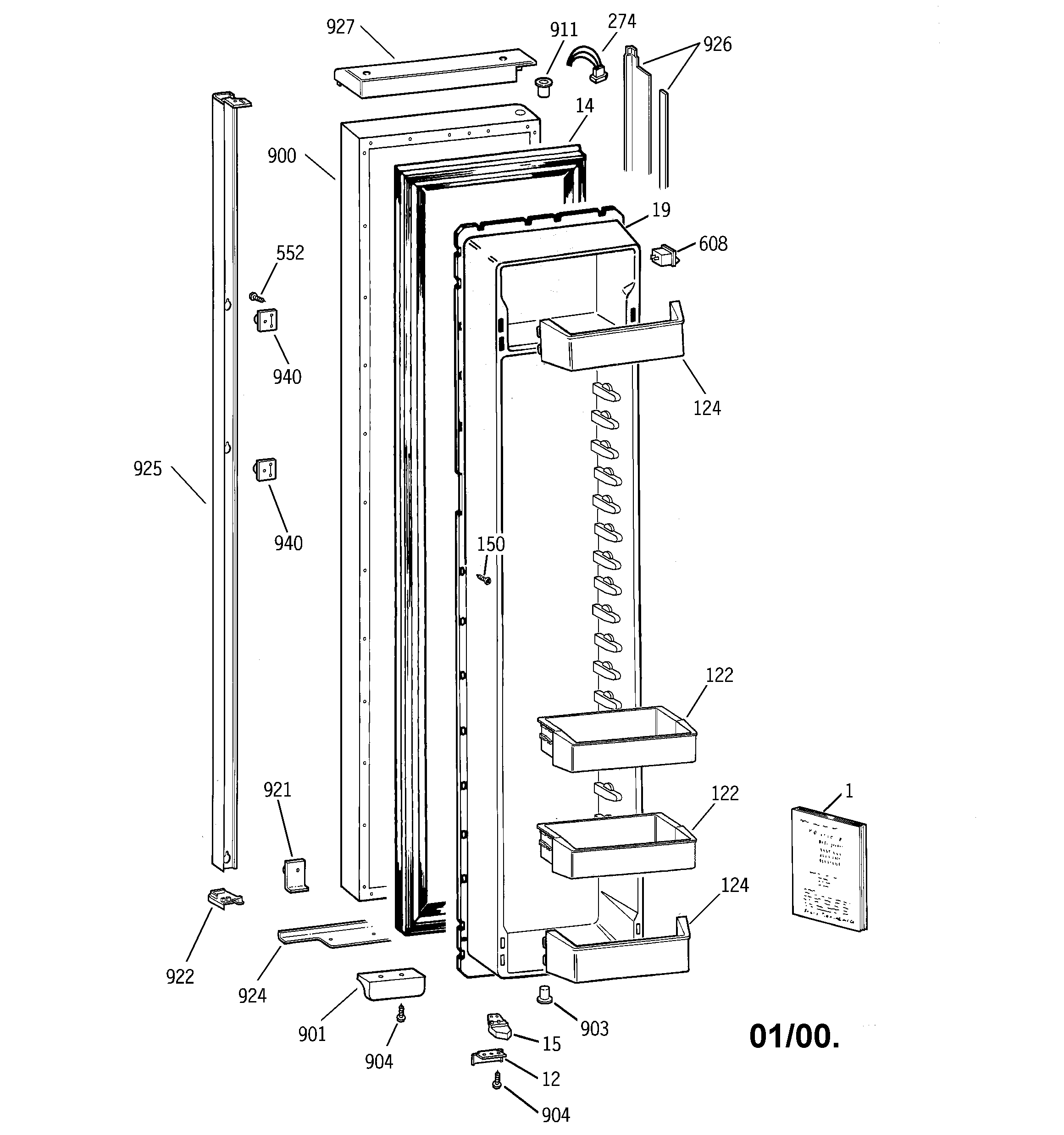

    Freezer door diagram

    Refrigerator Mounting Screw

    Part #WZ05X0246

    Replaced by #WZ5X246

    Info Icon
    Manufacturer substitution
    This part replaces WZ05X0246. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.10
    Minus Item
    Qty
    Plus Item
  • Refrigerator Mullion Air Duct Cap for GE TPJ24BIBEWW - Part WR2X9299

    Fresh food section diagram

    Refrigerator Duct Cap Mullion

    Part #WR02X9299

    Replaced by #WR2X9299

    Info Icon
    Manufacturer substitution
    This part replaces WR02X9299. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
