Frigidaire
Upright Freezer

Model # FFH17F7HWF Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFH17F7HWF freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Freezer Evaporator Fan Motor 297250000
#13

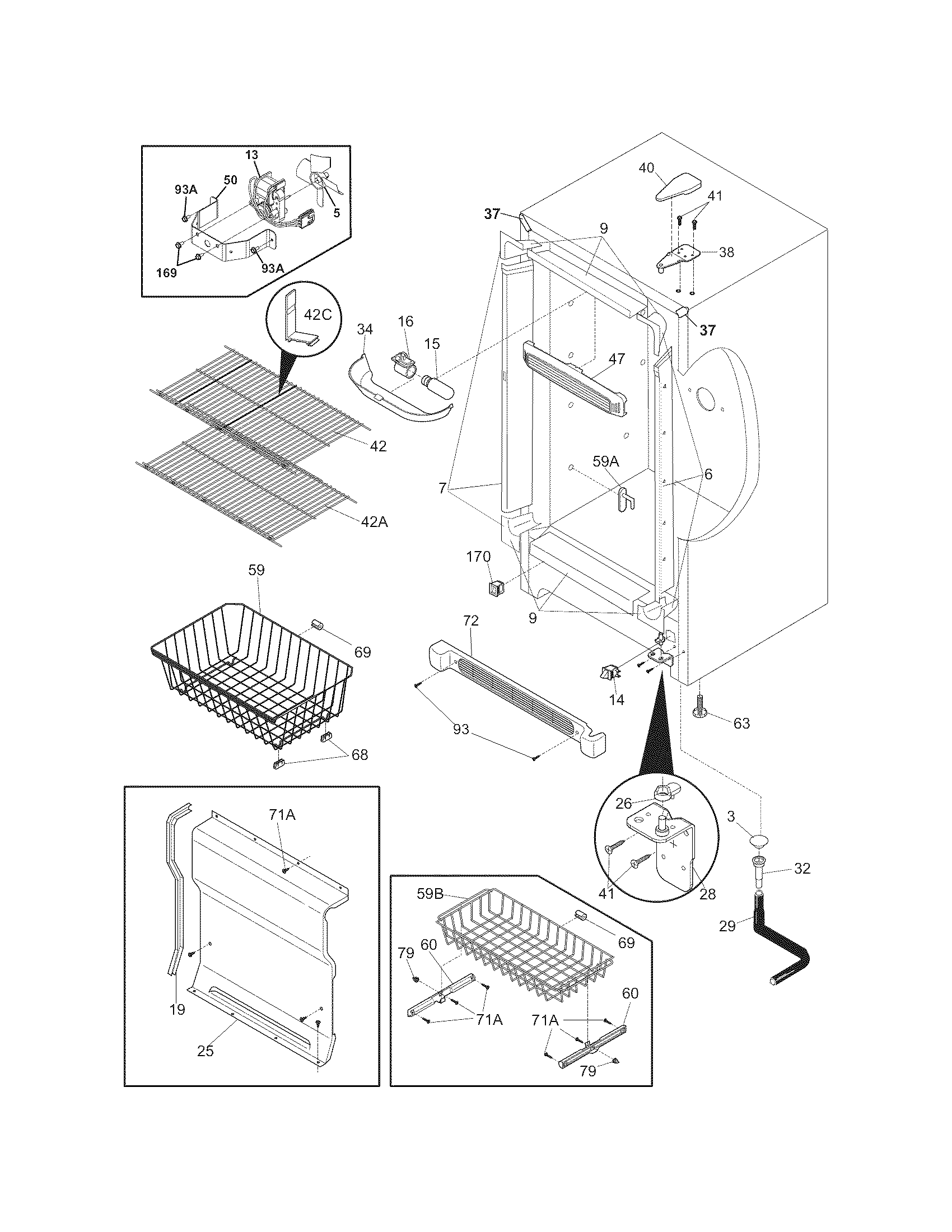

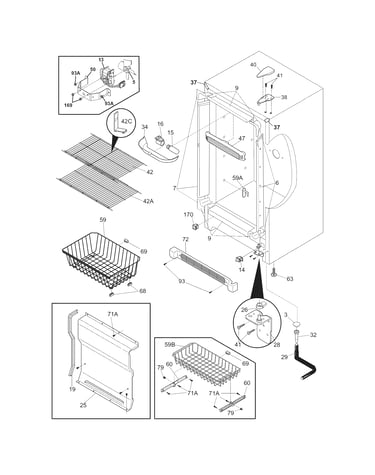

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$53.61
9% OFF Phone Price : $58.61
In Stock
Refrigeration Appliance Defrost Bi-metal Thermostat (replaces 216872200, 218969901, 7216872200) 297216600
#20

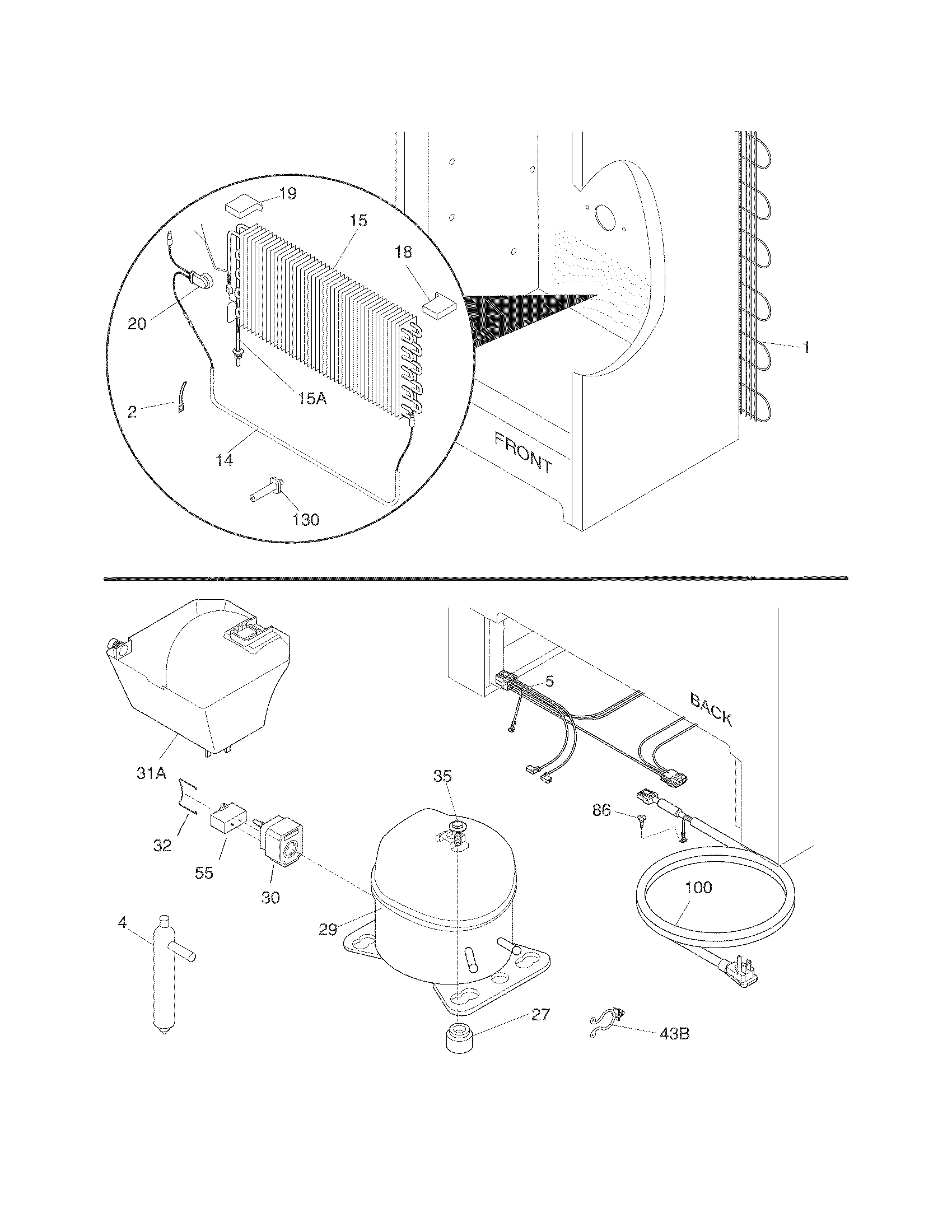

System diagram

Refrigeration appliance defrost bi-metal thermostat (replaces 216872200, 218969901, 7216872200)

Part #297216600

BEST SELLER
$19.60
9% OFF Phone Price : $21.60
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

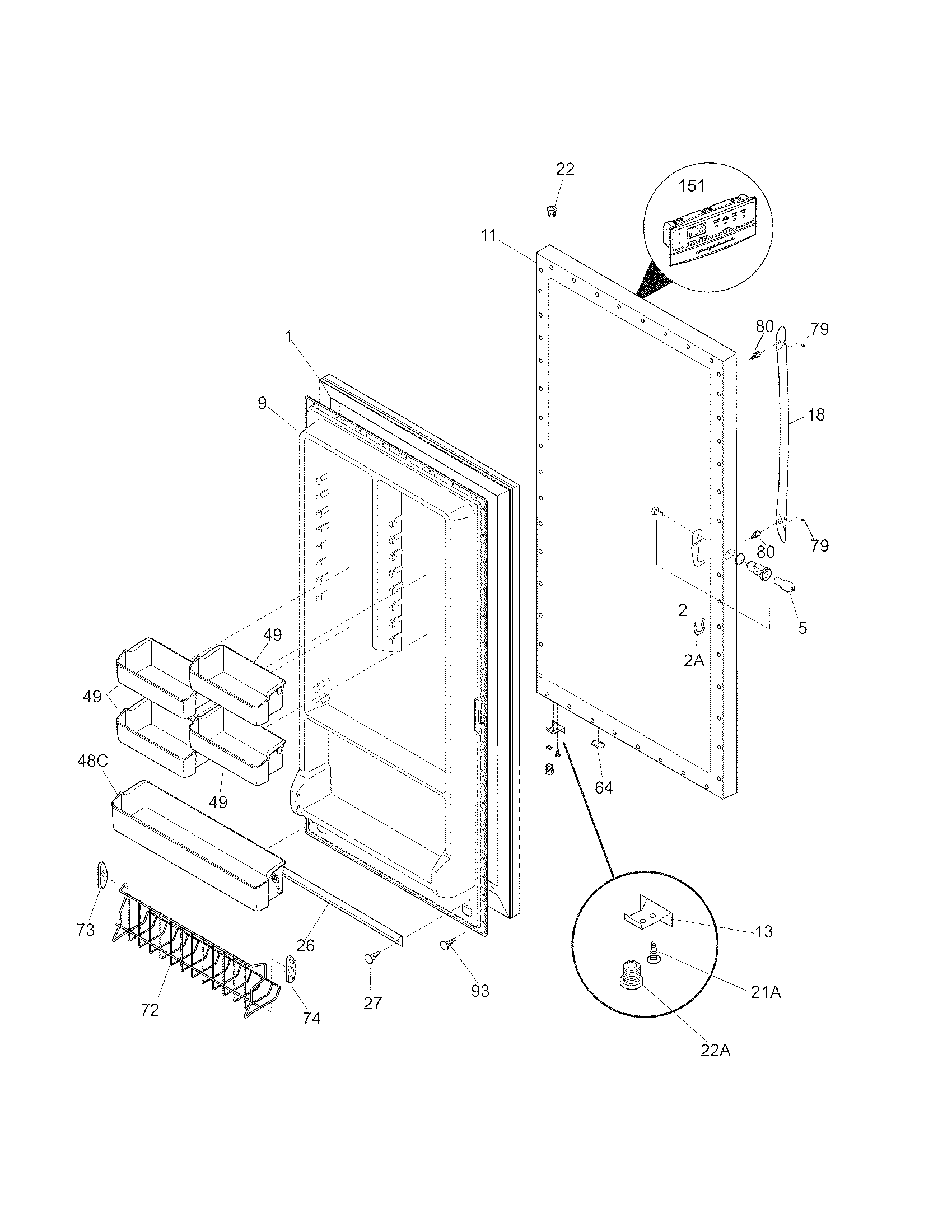

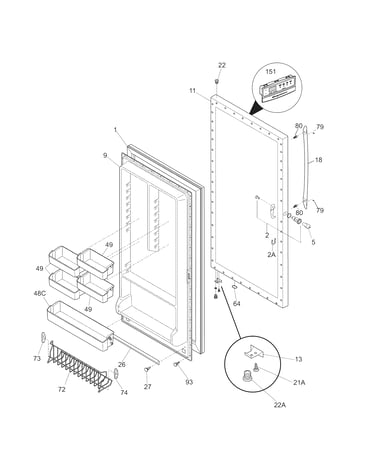

Door diagram

Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$11.40
15% OFF Phone Price : $13.40
In Stock
Blade 216325600
#5

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$38.21
12% OFF Phone Price : $43.21
In Stock
Freezer Electronic Control Board 297366300
#151

Door diagram

Freezer electronic control board

Part #297366300

Replaced by #297235200

?
Manufacturer substitution
This part replaces 297366300. Substitute parts can look different from the original.
BEST SELLER
$155.73
6% OFF Phone Price : $165.73
In Stock
Freezer Door Handle Set Screw, #10-32 X 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402) 218755402
#79

Door diagram

Freezer door handle set screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)

Part #218755402

BEST SELLER
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
Freezer Door Secondary Gasket (replaces 216524200, 7216524200, 7216524201) 216524201
#26

Door diagram

Freezer door secondary gasket (replaces 216524200, 7216524200, 7216524201)

Part #216524201

BEST SELLER
This item is not returnable
$36.81
12% OFF Phone Price : $41.81
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04
20% OFF Phone Price : $25.04
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

BEST SELLER
This item is not returnable
$12.59
14% OFF Phone Price : $14.59
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$55.91
8% OFF Phone Price : $60.91
In Stock
