Maytag A7500W washer/dryer Parts
Here are the diagrams and repair parts for Maytag A7500W washer/dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

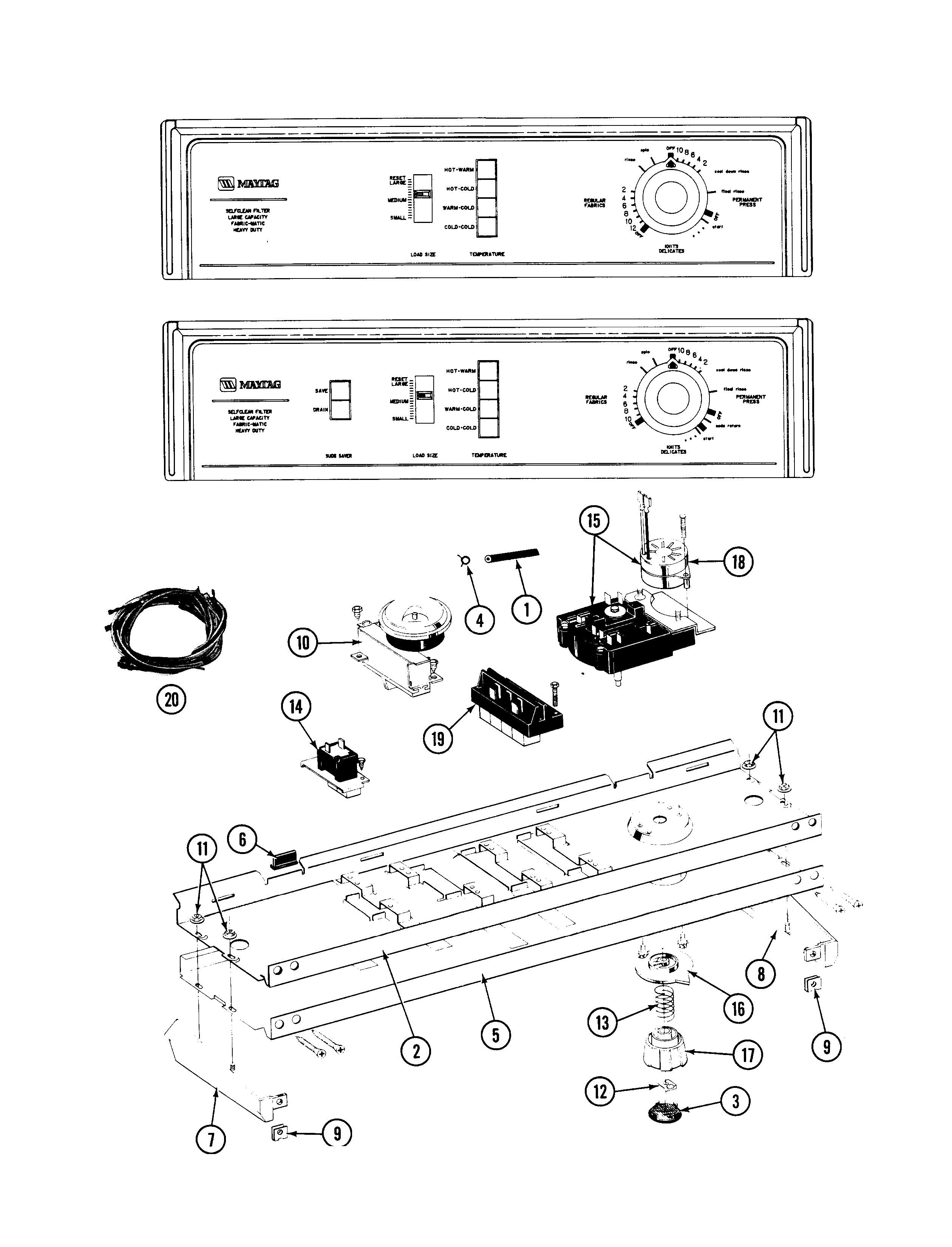

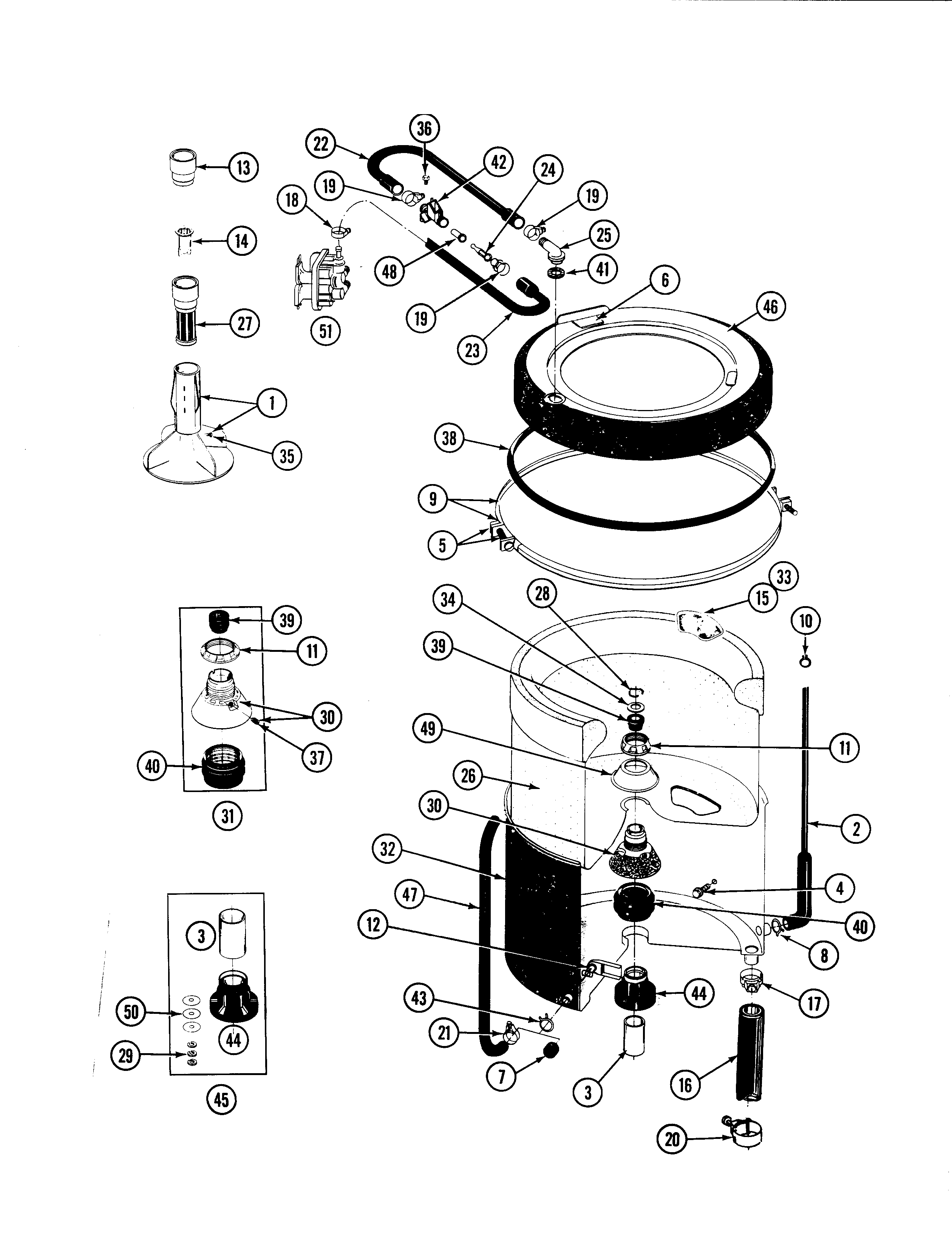

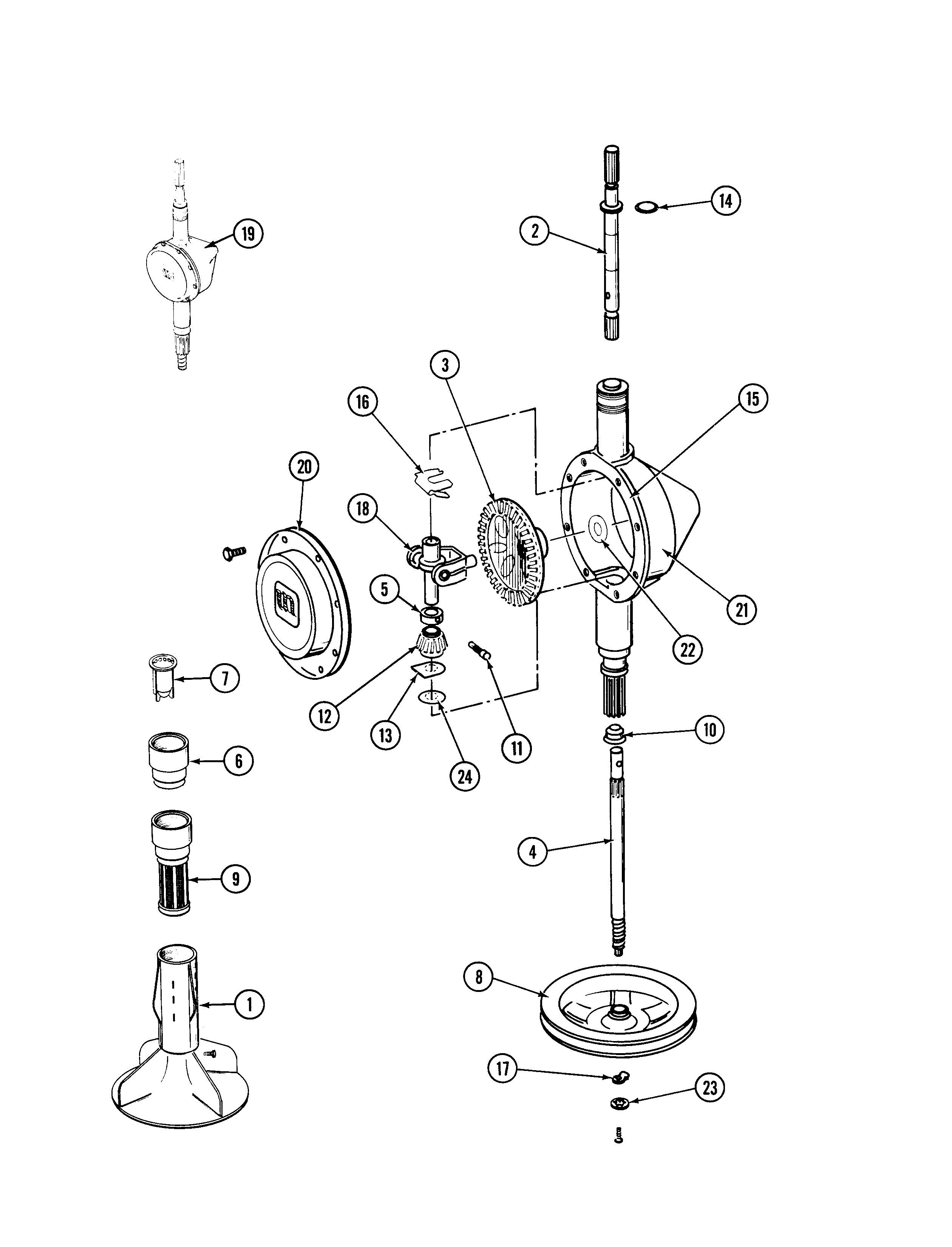

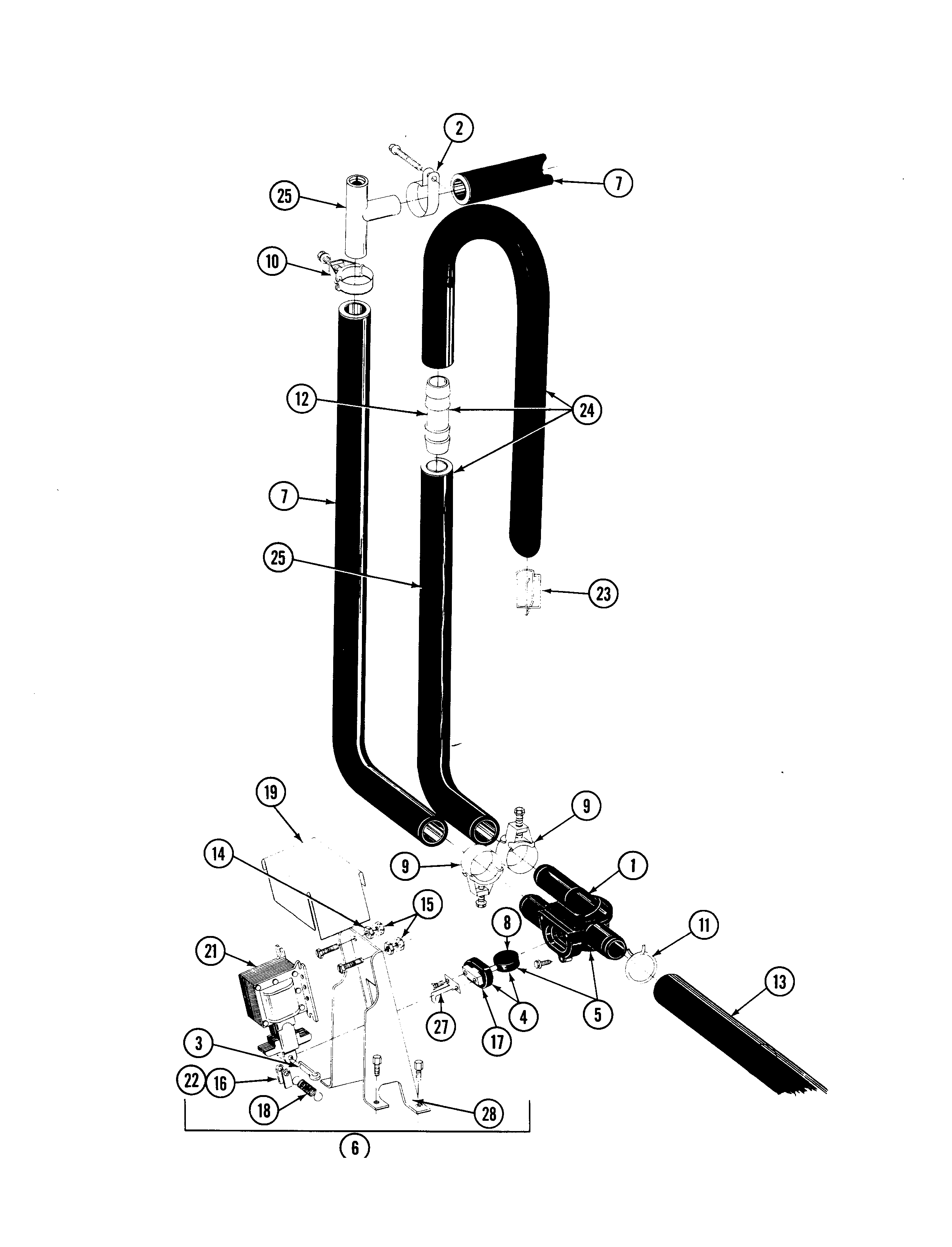

Browse Parts for A7500W Washer/Dryer

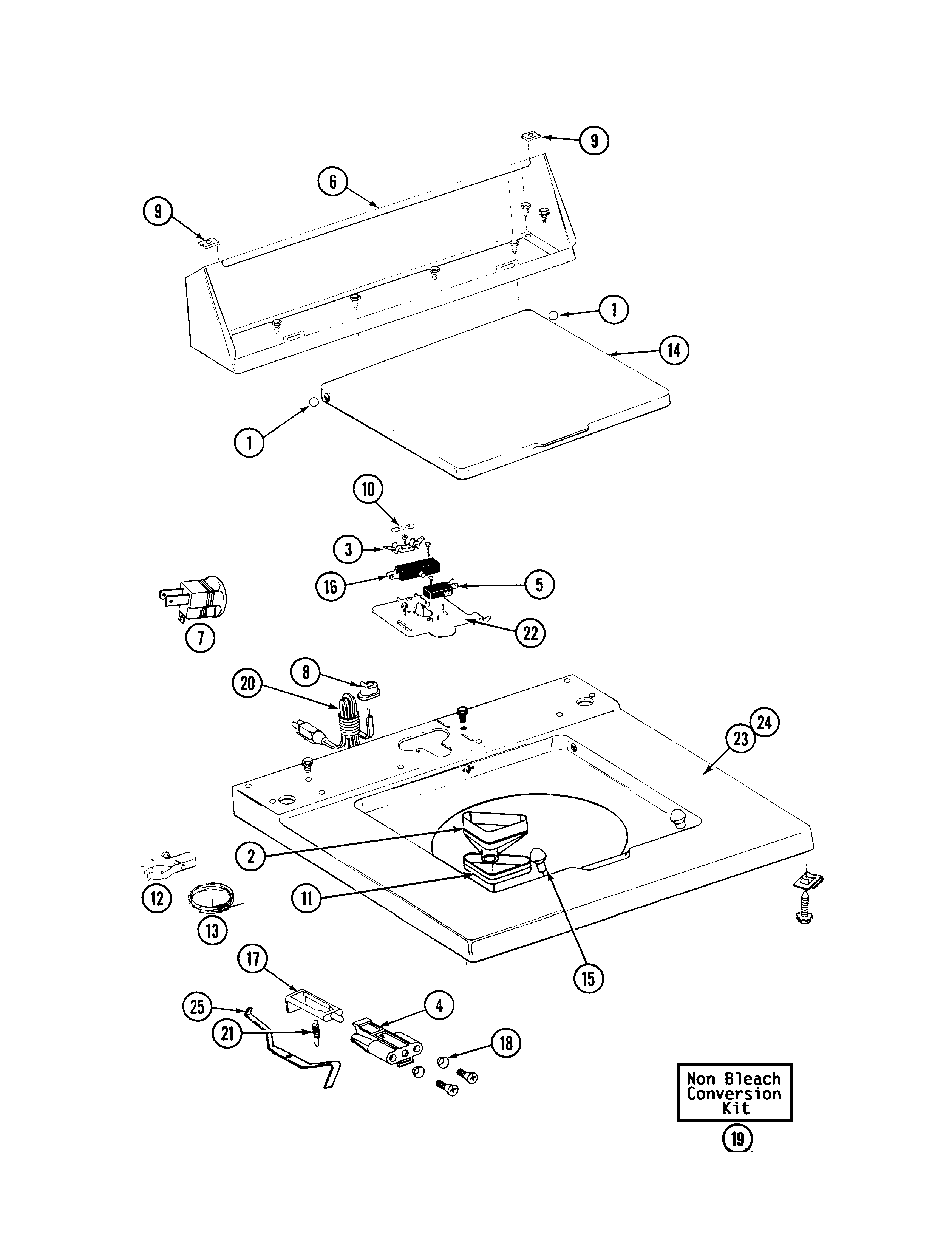

Top cover, console & lid switch diagram
Screw
Part #910182Replaced by #W10756178
Manufacturer substitutionThis part replaces 910182. Substitute parts can look different from the original.This item is not returnableIn Stock$4.33
Qty

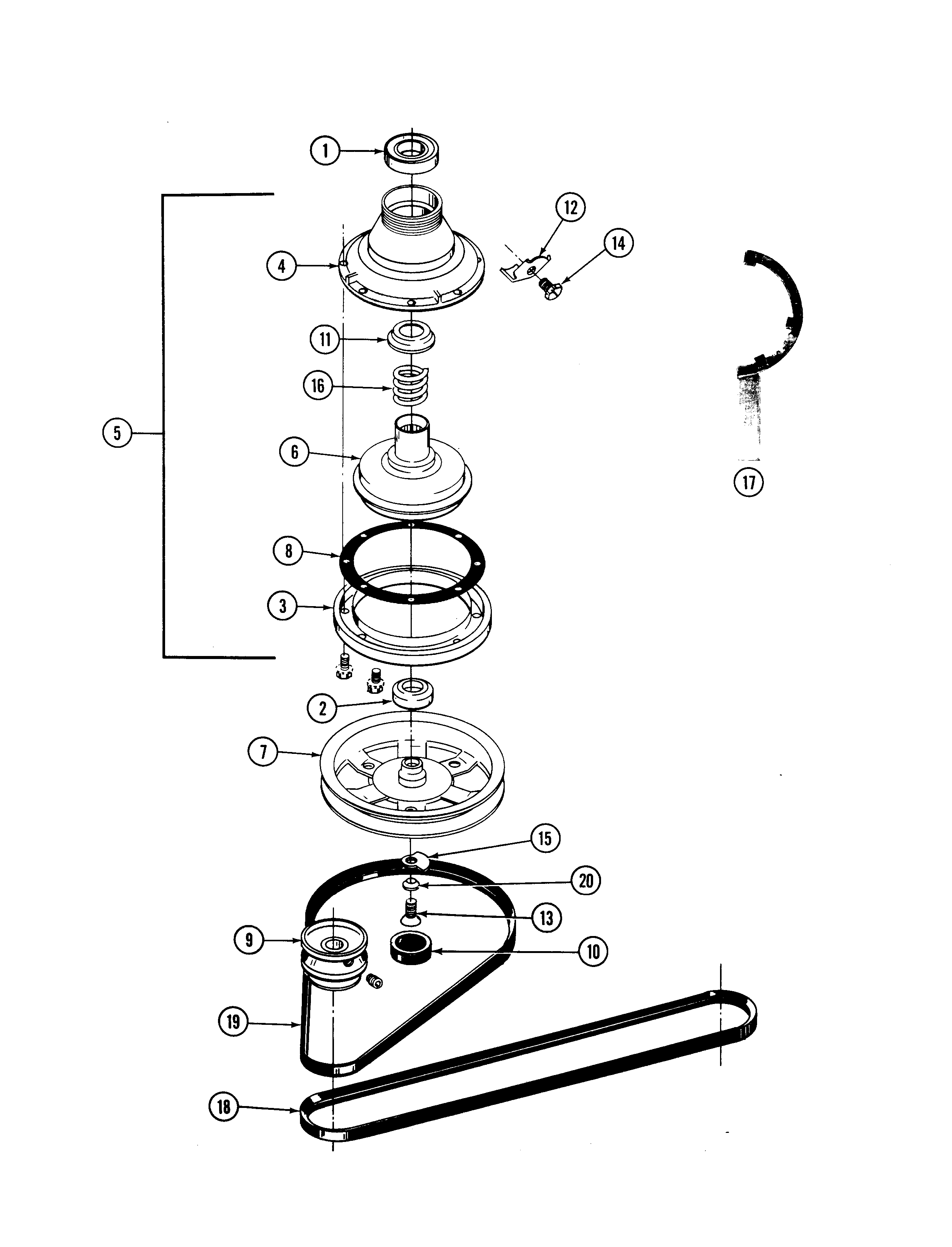

Clutch, brake & belts diagram
Screw,hex He
Part #211000Replaced by #WP8281227
Manufacturer substitutionThis part replaces 211000. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4810% OFF Phone Price : $10.48
QtyScrew,stop L
Part #211375Replaced by #WP912618

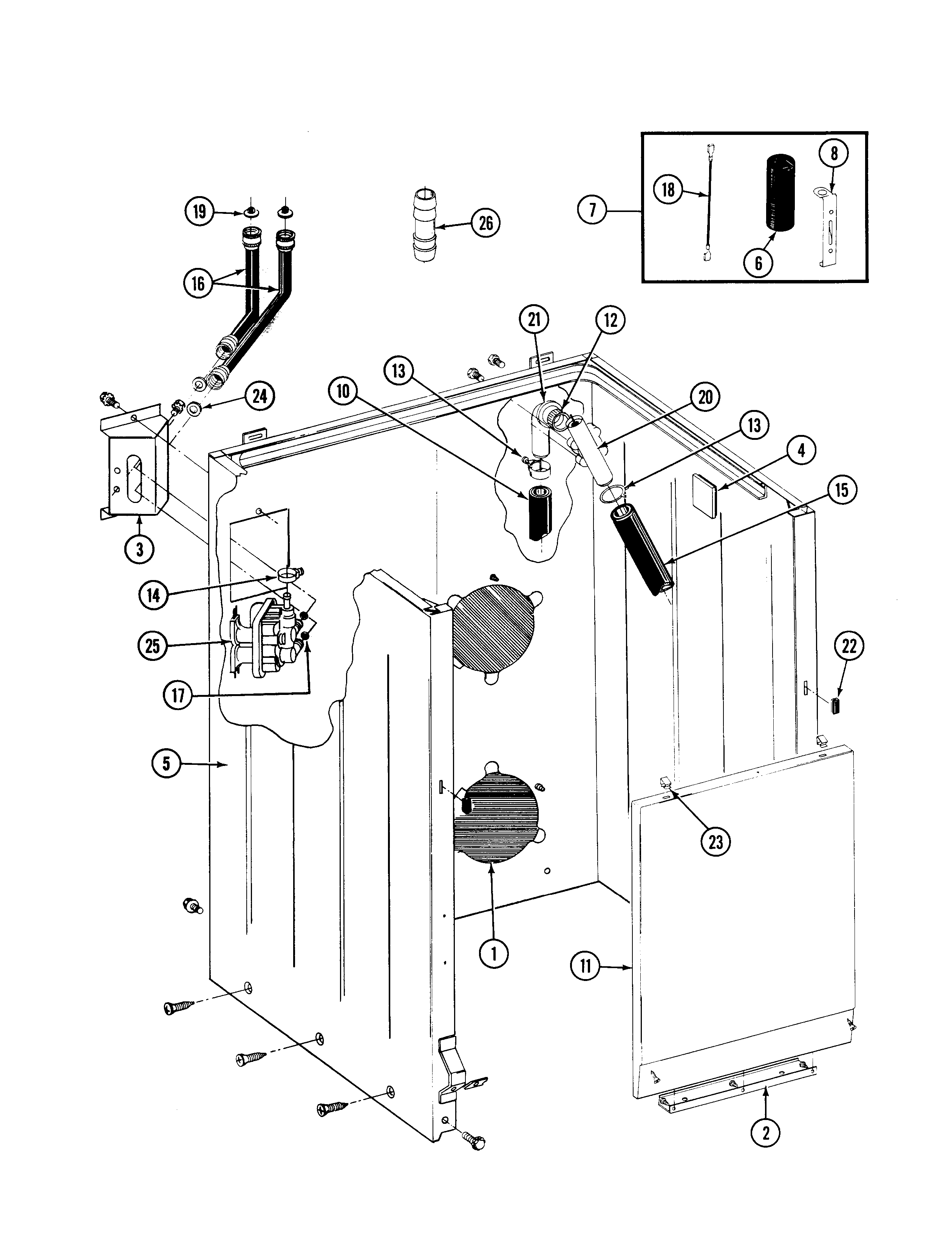

Manufacturer substitutionThis part replaces 211375. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyCabinet, water valve, hoses & frnt panel diagram
Siphon Screw
Part #014874Replaced by #WPY014874
Manufacturer substitutionThis part replaces 014874. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyCabinet, water valve, hoses & frnt panel diagram
Drain Hose
Part #215279Replaced by #WP22003410
Manufacturer substitutionThis part replaces 215279. Substitute parts can look different from the original.In Stock$42.7912% OFF Phone Price : $48.79QtyCabinet, water valve, hoses & frnt panel diagram
Siphon Break
Part #214764Replaced by #208847
Manufacturer substitutionThis part replaces 214764. Substitute parts can look different from the original.This item is not returnableIn Stock$27.8318% OFF Phone Price : $33.83QtyHose,pump To
Part #214767Replaced by #WP22001448

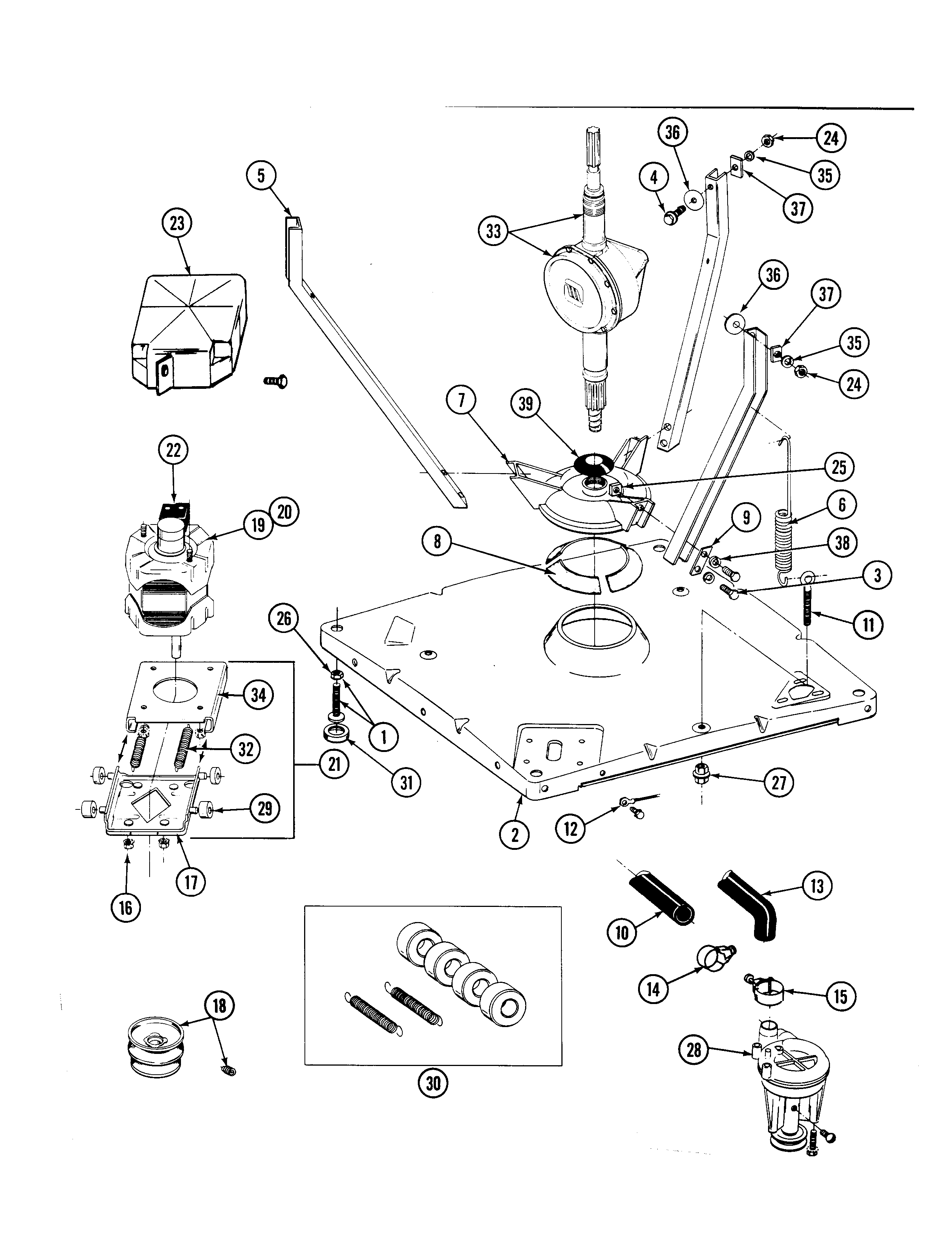

Manufacturer substitutionThis part replaces 214767. Substitute parts can look different from the original.In Stock$56.2810% OFF Phone Price : $62.28QtyBase, pump, motor & components diagram
Screw Bearing
Part #015408Replaced by #22003235
Manufacturer substitutionThis part replaces 015408. Substitute parts can look different from the original.In Stock$32.23QtyLug Stop
Part #211089Replaced by #WP211089
Manufacturer substitutionThis part replaces 211089. Substitute parts can look different from the original.In Stock$9.3710% OFF Phone Price : $10.37QtyBase, pump, motor & components diagram
Eye Bolt For
Part #213120Replaced by #W11129403
Manufacturer substitutionThis part replaces 213120. Substitute parts can look different from the original.In Stock$38.25Qty
