Whirlpool
Microwave/Hood Combo

Model #WMH31017AB1 Whirlpool 1.7 cubic foot microwave/hood combo

Here are the diagrams and repair parts for Whirlpool WMH31017AB1 1.7 cubic foot microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

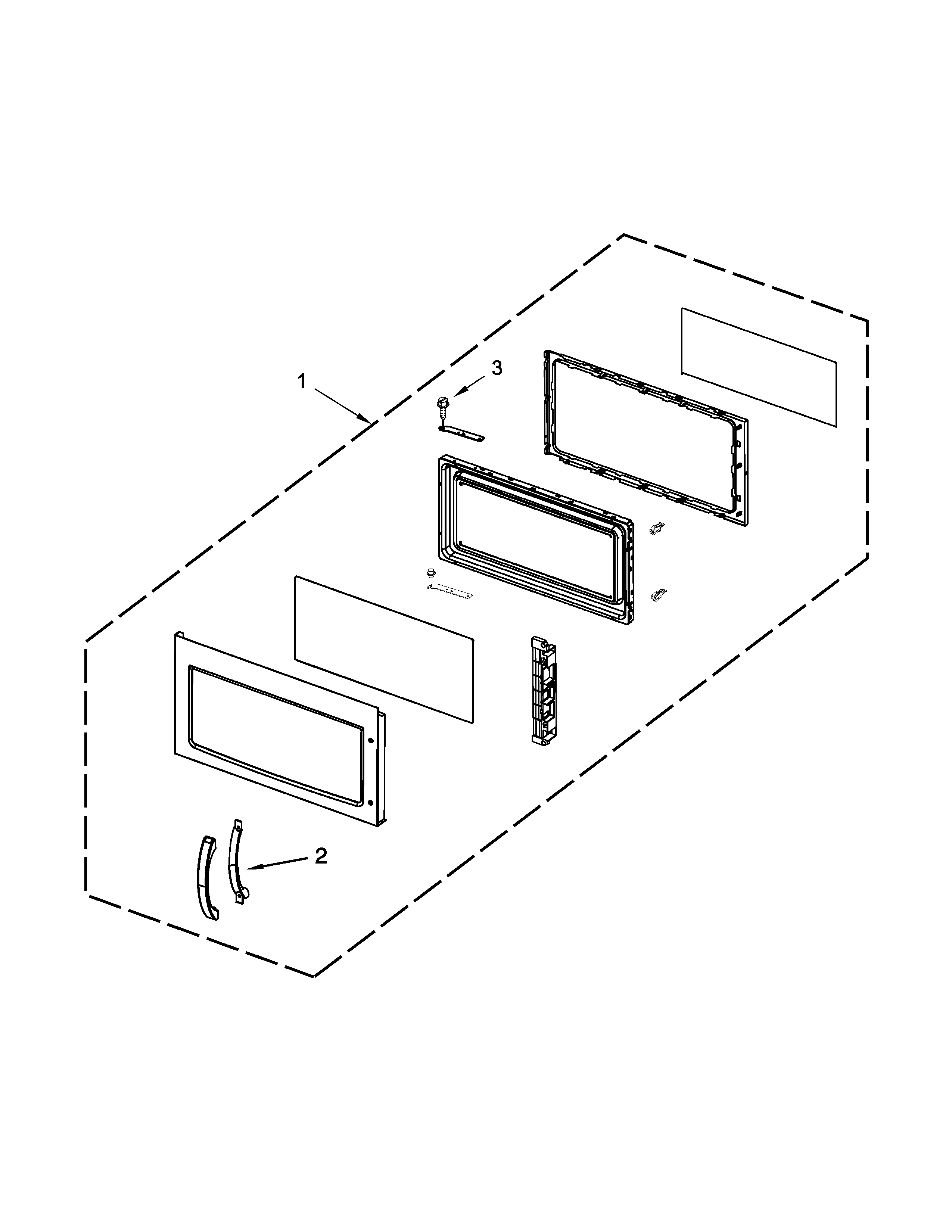

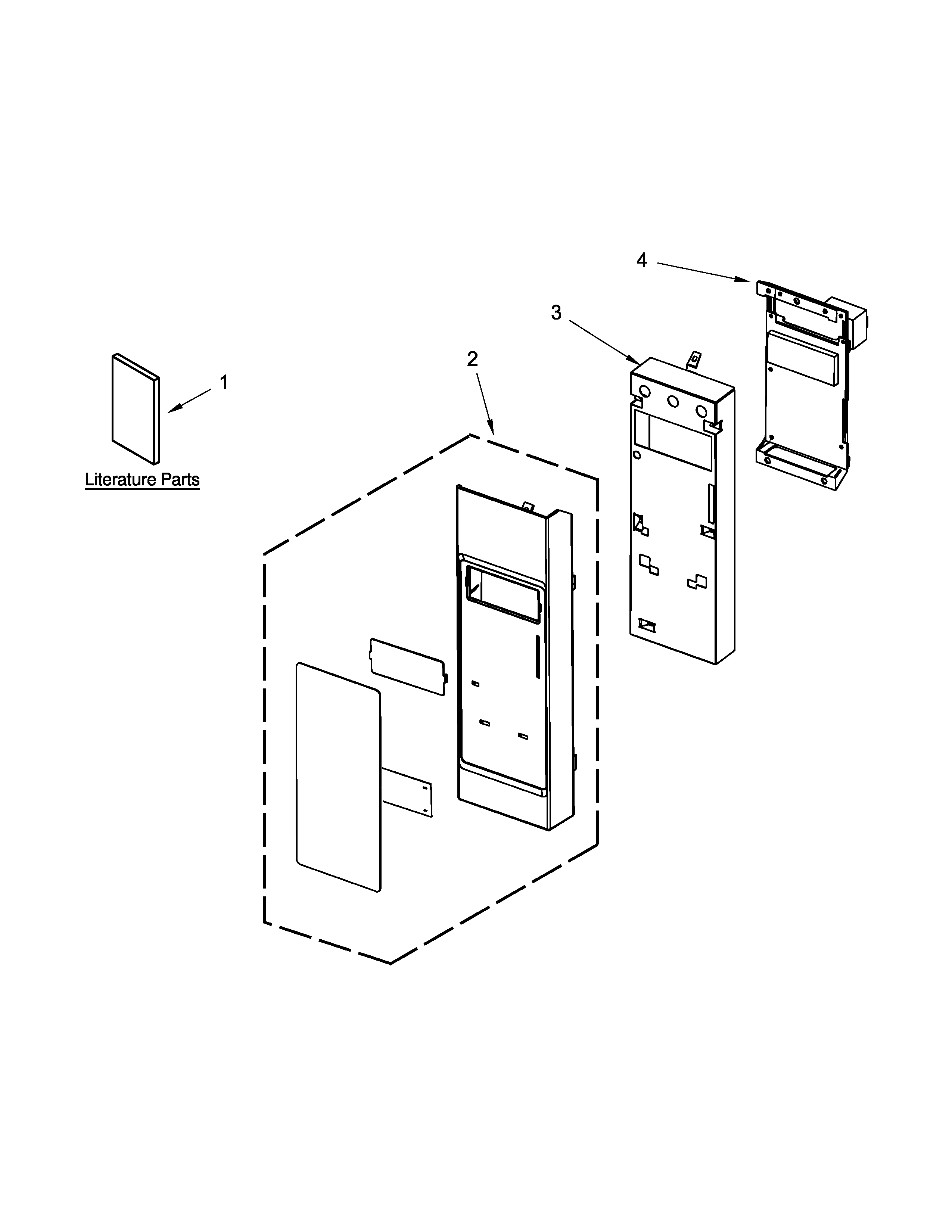

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 96 parts

    Microwave Surface Light Bulb, 40-watt#3

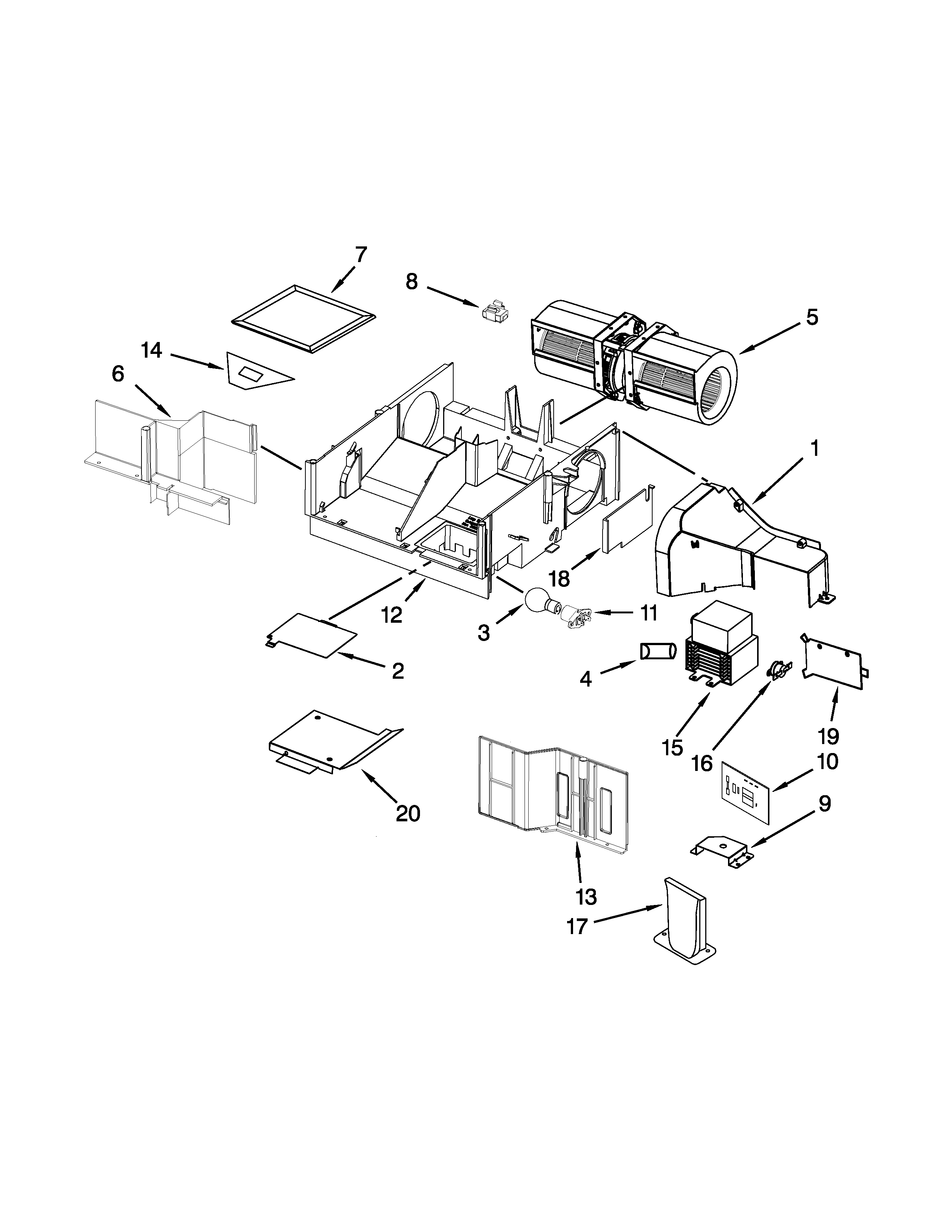

    Air flow parts Diagram

    Lamp assembly

    Part #4393681
    Replaced by #8206232A
    ?
    Manufacturer substitution
    This part replaces 4393681. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.09
    Microwave Surface Light Bulb, 40-watt#2

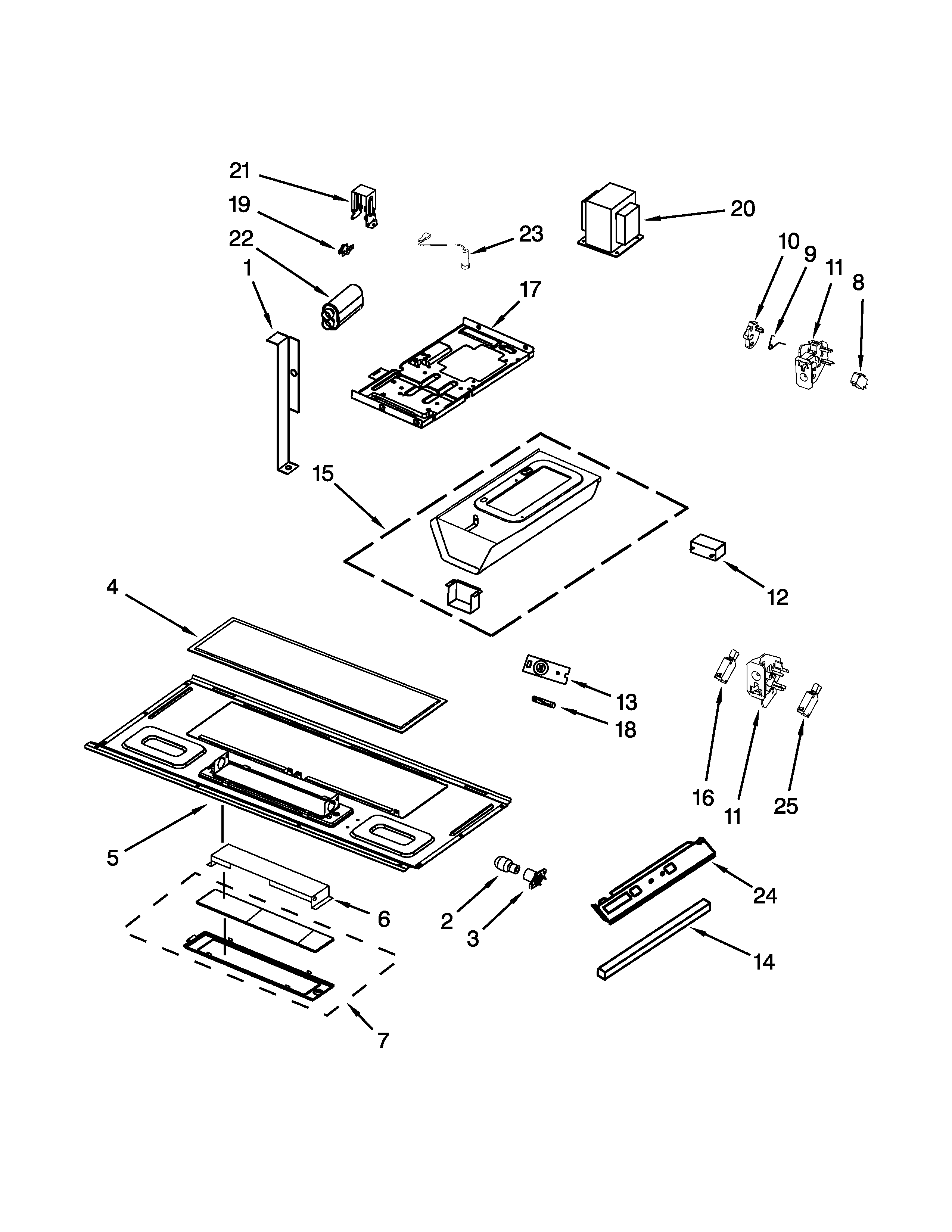

    Interior and ventilation parts Diagram

    Microwave/hood light bulb

    Part #8206232
    Replaced by #8206232A
    ?
    Manufacturer substitution
    This part replaces 8206232. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.09
    Microwave Mounting Plate#1

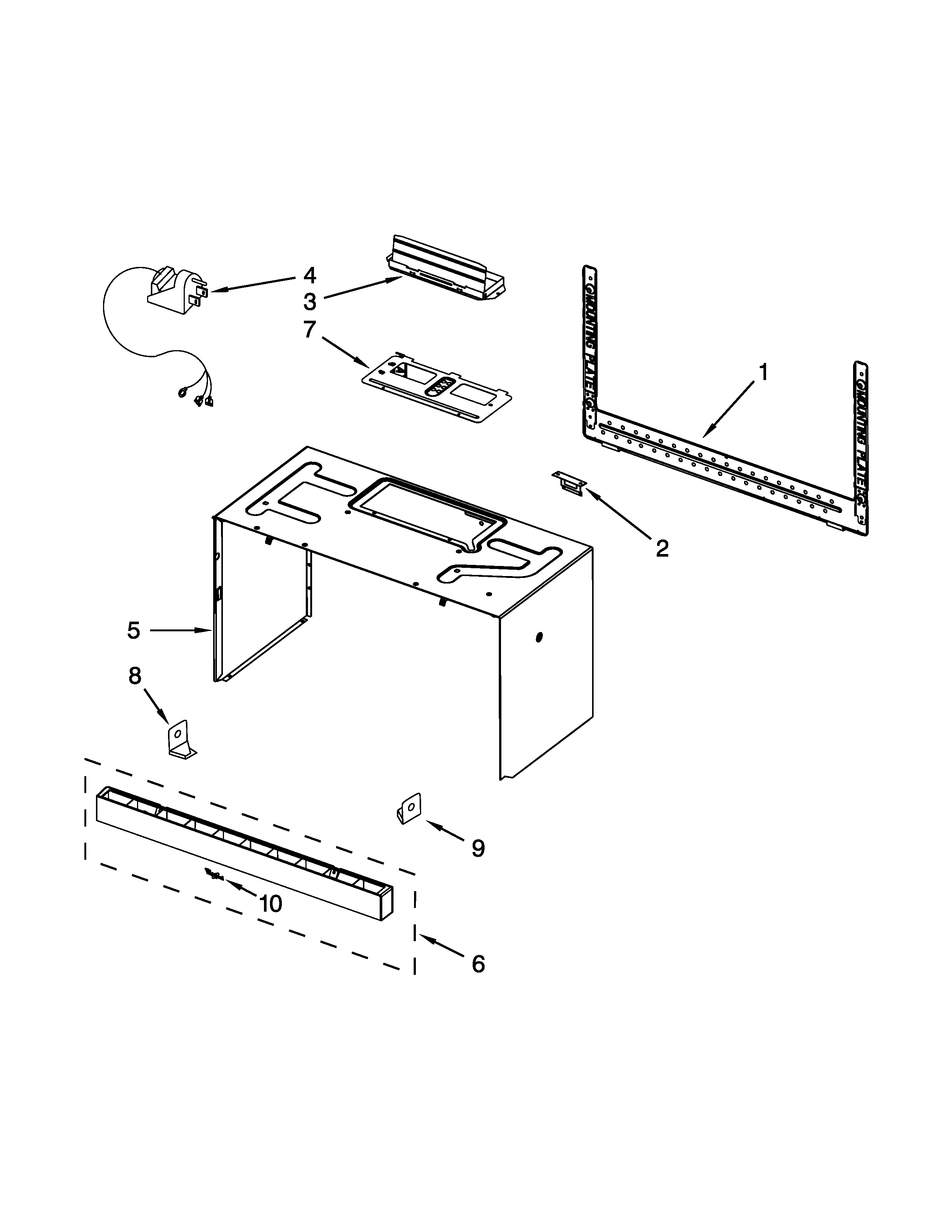

    Cabinet and installation parts Diagram

    Microwave mounting plate

    Part #W10440498
    Replaced by #W11025649
    ?
    Manufacturer substitution
    This part replaces W10440498. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $12.19
    Microwave Grease Filter#4

    Interior and ventilation parts Diagram

    Filter

    Part #W10208631
    Replaced by #W10208631A
    ?
    Manufacturer substitution
    This part replaces W10208631. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $34.29
    Microwave Charcoal Filter#7

    Air flow parts Diagram

    Filter

    Part #8206230
    Replaced by #8206230A
    ?
    Manufacturer substitution
    This part replaces 8206230. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $17.19
    Microwave Light Socket#3

    Interior and ventilation parts Diagram

    Microwave light socket

    Part #W10210871
    BEST SELLER
    This item is not returnable
    In Stock
    $7.09
    Microwave Door Interlock Switch#16

    Interior and ventilation parts Diagram

    Microwave door switch

    Part #W10269457
    Replaced by #W10727360
    ?
    Manufacturer substitution
    This part replaces W10269457. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39
    Microwave Turntable Tray Support#4

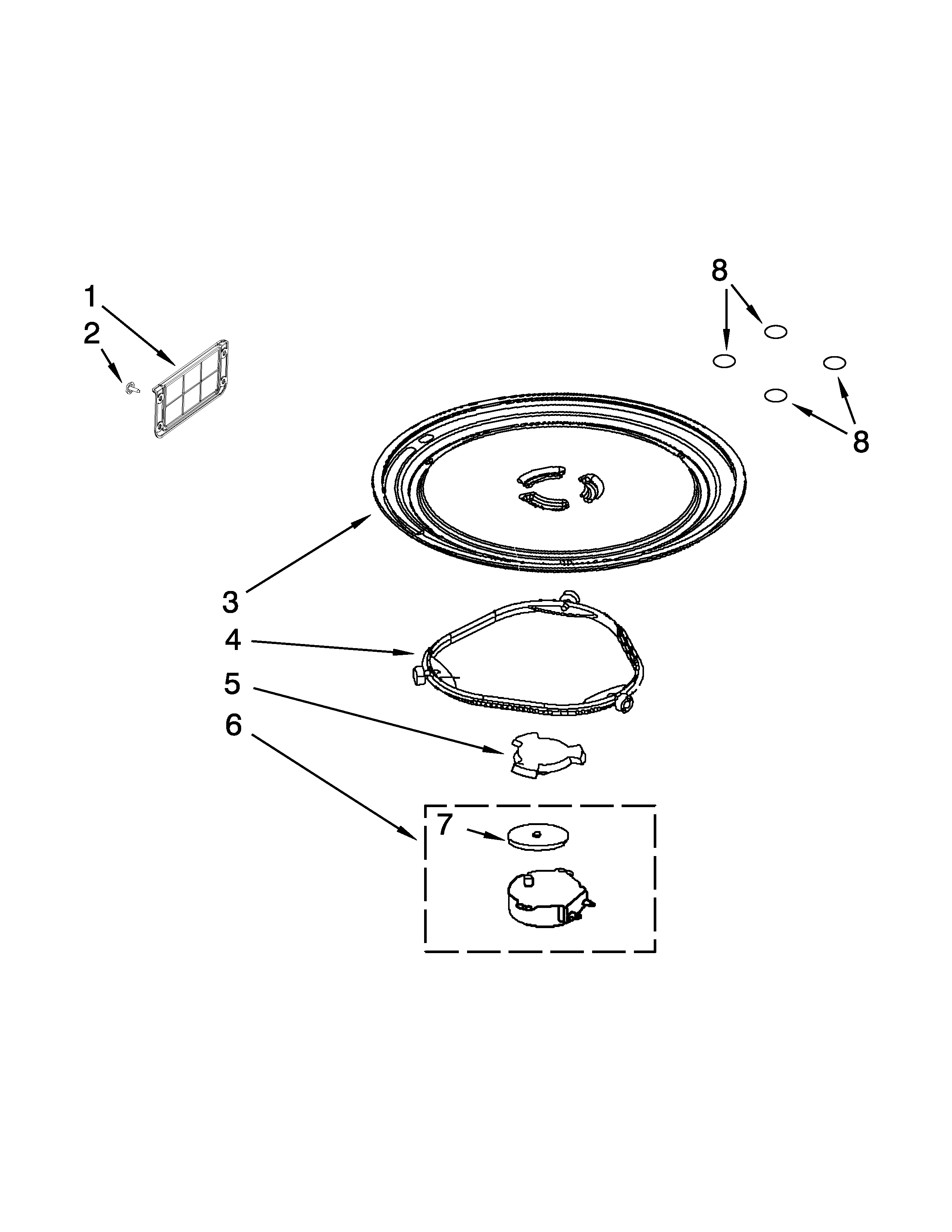

    Turntable parts Diagram

    Microwave turntable support ring

    Part #W10435114
    Replaced by #W11252182
    ?
    Manufacturer substitution
    This part replaces W10435114. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.99
    Microwave Installation Hardware Kit#NI

    Cabinet and installation parts Diagram

    Microwave mounting hardware

    Part #8206614
    Replaced by #W10821385
    ?
    Manufacturer substitution
    This part replaces 8206614. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $48.89
    Microwave Turntable Tray#3

    Turntable parts Diagram

    Microwave glass turntable tray

    Part #W10337247
    Replaced by #W11367904
    ?
    Manufacturer substitution
    This part replaces W10337247. Substitute parts can look different from the original.
    BEST SELLER
    Back Order
    $57.69 |
    13% OFF
    MSRP: $66.00
